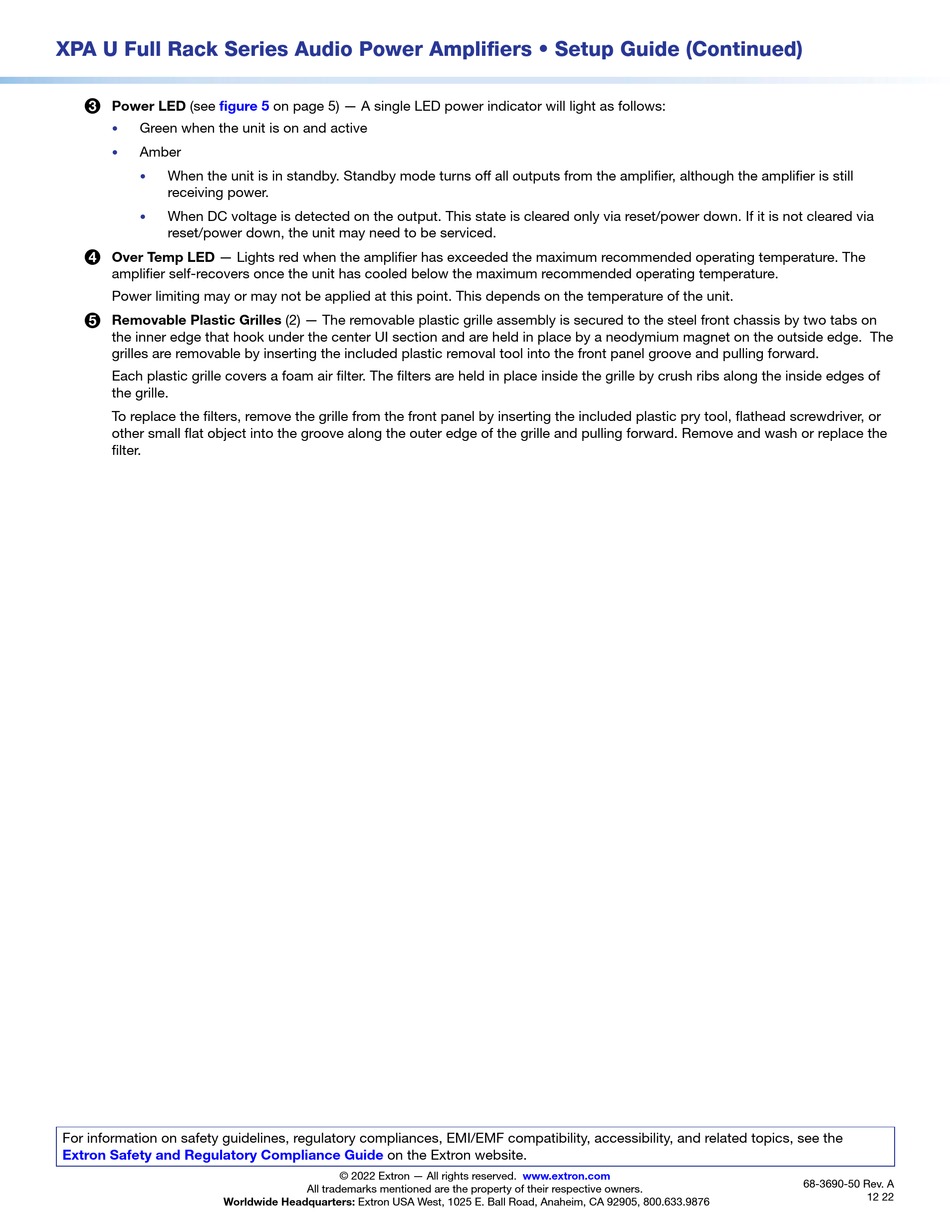

XPA U Full Rack Series Audio Power Amplifiers • Setup Guide (Continued)
Power LED (see figure 5
3
Green when the unit is on and active
•
Amber
•
When the unit is in standby. Standby mode turns off all outputs from the amplifier, although the amplifier is still
•
receiving power.
When DC voltage is detected on the output. This state is cleared only via reset/power down. If it is not cleared via
•
reset/power down, the unit may need to be serviced.
Over Temp LED — Lights red when the amplifier has exceeded the maximum recommended operating temperature. The
4
amplifier self-recovers once the unit has cooled below the maximum recommended operating temperature.
Power limiting may or may not be applied at this point. This depends on the temperature of the unit.
Removable Plastic Grilles (2) — The removable plastic grille assembly is secured to the steel front chassis by two tabs on
5
the inner edge that hook under the center UI section and are held in place by a neodymium magnet on the outside edge. The
grilles are removable by inserting the included plastic removal tool into the front panel groove and pulling forward.
Each plastic grille covers a foam air filter. The filters are held in place inside the grille by crush ribs along the inside edges of
the grille.
To replace the filters, remove the grille from the front panel by inserting the included plastic pry tool, flathead screwdriver, or
other small flat object into the groove along the outer edge of the grille and pulling forward. Remove and wash or replace the
filter.
