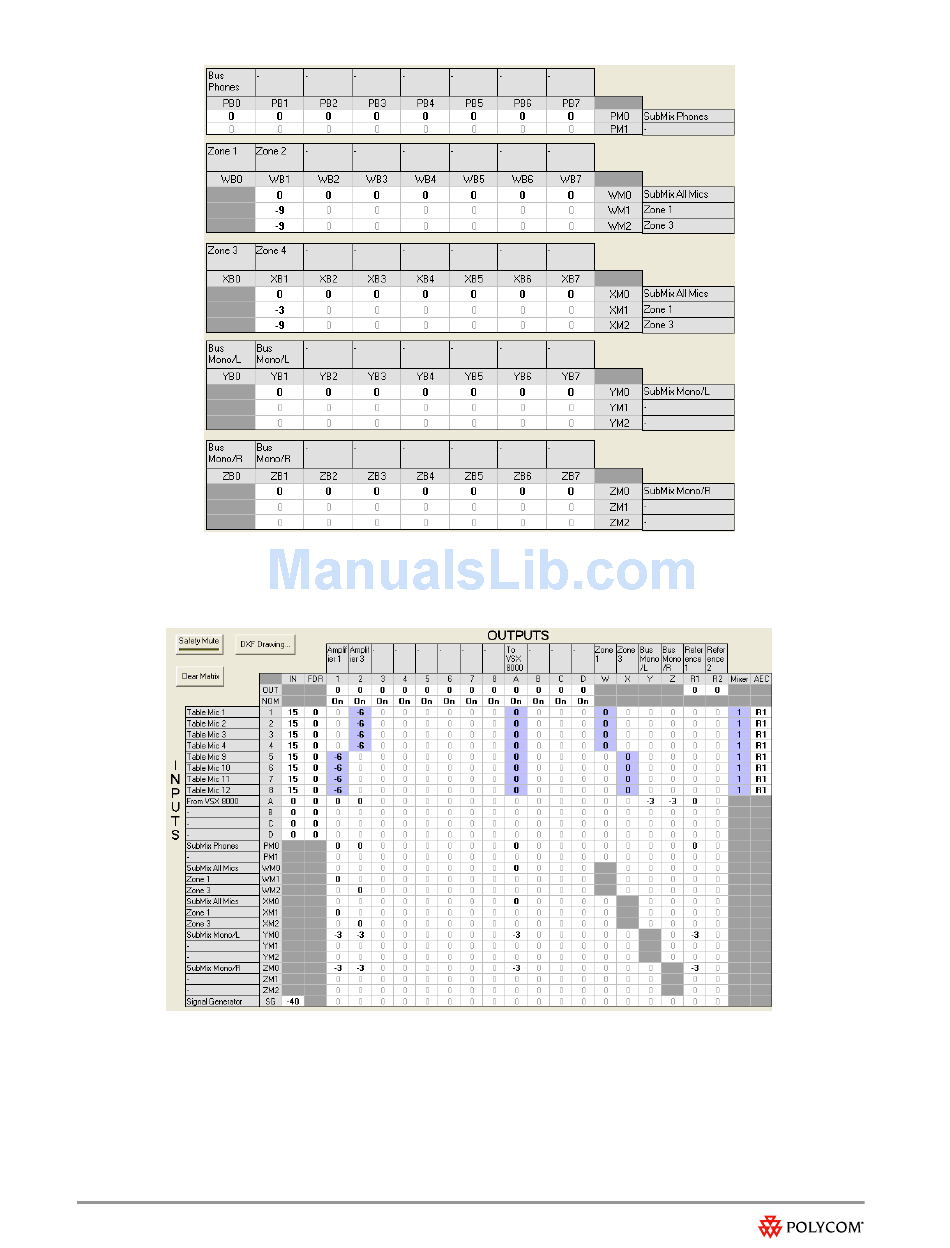

Figure 28. The sub-matrix for Vortex EF2280:00 which will feed the main matrix to create the local outputs for Vortex 0: Zone 1 output and Zone
3. Combination signals WM1 and XM1 contain the microphones from Zone 2 and 4 that need to be sent to the Zone 1 amplifier and combination
signals WM2 and XM2 contain the mixes of microphones that need to be sent to the Zone 3 amplifier.
Figure 26. The main matrix for Vortex EF2280:00.
Vortex EF2280:01 Configuration
For Vortex EF2280:01, we will apply the same reasoning to create the zone 2 and zone 4 outputs. The EF bus sub matrix for
EF2280:01 is shown in Figure 28.
46
