Electro-Harmonix Deluxe Electric Mistress Quick Start Manual

FCC COMPLIANCE
Note: This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
•
Reorient or relocate the receiving antenna.
•
Increase the separation between the equipment and receiver.
•
Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
•
Consult the dealer or an experienced radio/TV technician for help.
Modifications not expressly approved by the manufacturer could void the
user's authority to operate the equipment under FCC rules.

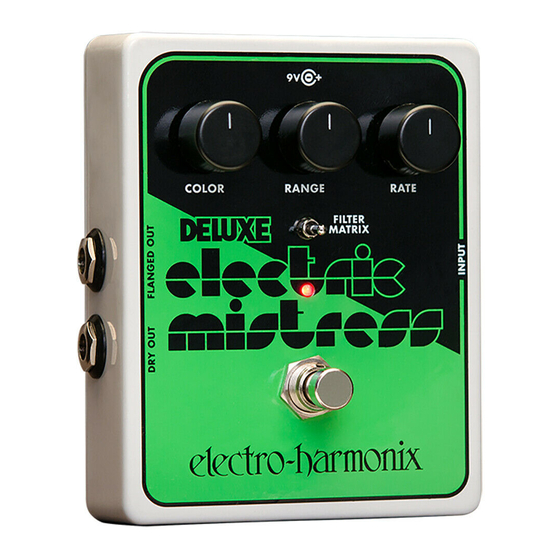

DELUXE ELECTRIC MISTRESS
FLANGER/FILTER MATRIX
Congratulations on your purchase of the Deluxe Electric Mistress, a true
stand out classic in the Electro-Harmonix line-up! Over the past four
decades, guitarists spanning numerous genres have relied on the Deluxe
Electric Mistress to broaden their guitar's sound pallet, making their guitar
sound bigger, lusher and even a little ethereal.
You might notice that the Deluxe Electric Mistress that came with this
manual is quite a bit smaller than every other Deluxe Electric Mistress ever
made by Electro-Harmonix. The circuit remains true to its roots even though
we've reduced its footprint to fit into a pedalboard friendly die-cast box.
Power is now supplied by 9VDC, both from the included AC Adaptor or from
a battery, but the voltage is boosted internally to the higher voltage normally
preferred by the Deluxe Electric Mistress. True Bypass and LED indication
have also been added.
WARNING: Your Deluxe Electric Mistress comes equipped with an Electro-Harmonix
9.6DC-200 power supply (same as used by Boss
The Deluxe Electric Mistress requires up to 40mA at 9VDC with a center negative
plug. Using the wrong adaptor may damage your unit and void the warranty. The
Deluxe Electric Mistress also accepts 9V batteries, we recommend alkaline.
RATE Knob – controls the speed of flanger modulation. As you turn RATE
clockwise, the flanger's speed increases. Higher settings of RATE give the
effect a sound like vibrato.
RANGE Knob – allows you to set the lower limit of the flanger sweep. A
fully counter-clockwise setting, where the lower limit is just below the higher,
creates a very narrow sweeping effect. As you turn RANGE clockwise the
flanger sweeps down further into the bass region. A convincing rotating
speaker effect may be obtained by setting RATE near maximum, RANGE near
minimum, and COLOR approximately half-way.
COLOR Knob – sets the intensity of the flanger effect. As you turn COLOR
clockwise the effect becomes more pronounced, producing that classic
whoosh effect flangers are famous for.
® ®
& Ibanez : 9.6 Volts DC 200mA).
