Electro-Harmonix XO OCTAVE MULTIPLEXER Manual

FCC COMPLIANCE
Note: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
•
Reorient or relocate the receiving antenna.
•
Increase the separation between the equipment and receiver.
•
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
•
Consult the dealer or an experienced radio/TV technician for help.
Modifications not expressly approved by the manufacturer could void the user's authority to
operate the equipment under FCC rules.

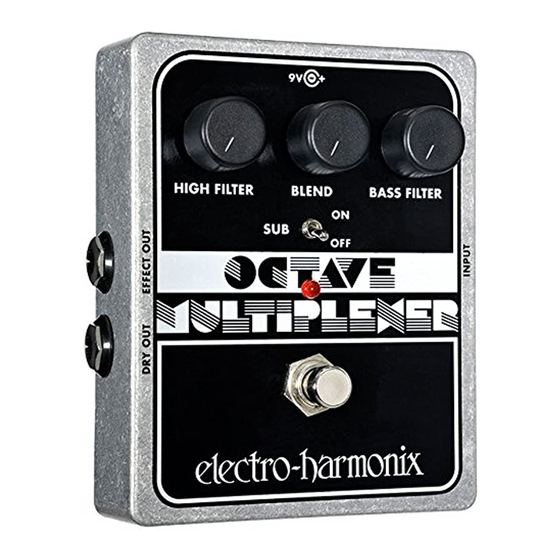

OCTAVE MULTIPLEXER
Sub-Octave Generator
The Electro-Harmonix OCTAVE MULTIPLEXER is the result of many years of
engineering research. To get the best results from it please put aside an
hour or two for practice in a quiet room...just you, your guitar and amp, and
the OCTAVE MULTIPLEXER.
The OCTAVE MULTIPLEXER produces a sub-octave note one octave below
the note you play. With two filter controls and a SUB switch, the OCTAVE
MULTIPLEXER allows you to shape the tone of the sub-octave from deep
bass to fuzzy sub-octaves.
-CONTROLS-
HIGH FILTER Knob – Adjusts a filter that will shape the tone of the sub-
octave's higher order harmonics. Turning the HIGH FILTER knob clockwise
will make the sub-octave sound more gnarly and fuzzy.
BASS FILTER Knob – Adjusts a filter that will shape the tone of the sub-
octave's fundamental and lower order harmonics. Turning the BASS FILTER
knob counter-clockwise will make the sub-octave sound deeper and bassier.
PLEASE NOTE: the BASS FILTER knob is only active when the SUB switch is
set to ON.
SUB Switch – Switches the Bass Filter in and out. When SUB is set to ON
the Bass Filter and its corresponding knob are activated. When the SUB
switch is set to OFF, only the High Filter is active. Turning the SUB switch on
gives the sub-octave a deeper, bassier sound.
BLEND Knob – This is a wet/dry knob. Counter-clockwise is 100% dry.
Clockwise is 100% wet.
STATUS LED – When the LED is lit; the Octave Multiplexer effect is active.
When the LED is off, the Octave Multiplexer is in True Bypass Mode. The
footswitch engages/disengages the effect.
INPUT Jack – Connect your instrument to the input jack. The input
impedance presented at the input jack is 1Mohm.
