Control panel Loading the racks, 6 Lower rack Cutlery basket Upper rack Start-up and use, 7 LFS 215 Starting the dishwasher Measuring out the detergent Wash options Wash cycles, 8 Table of wash cycles Rinse aid and refined salt, 9...
All manuals and user guides at all-guides.com Installation Positioning and levelling see Assistance see adjacent information see the Assembly instruction sheet New Acqua Stop Connecting the water and electricity supplies see figure...
All manuals and user guides at all-guides.com Advice regarding the first wash cycle chapter entitled Rinse aid and refined salt see chapter entitled Rinse aid and refined salt see figure Technical data width 59.5 cm Dimensions height 82 cm depth 57 cm Capacity 12 standard place-settings Water supply...
All manuals and user guides at all-guides.com Electrical Connection As the colours of the wires in the mains lead may not correspond with the coloured markings identifying the If your appliance is supplied with a 13 amp. fused plug it can be plugged into a 13 amp socket for terminal in your plug, proceed as follows: connect Green &...

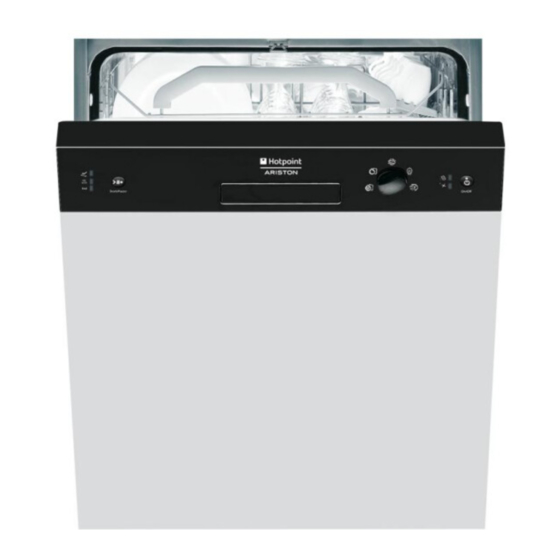

All manuals and user guides at all-guides.com Description of the appliance Overall view Upper rack Upper sprayer arm Tip-up compartments Rack height adjuster Lower rack Lower sprayer arm Cutlery basket Washing filter Salt dispenser Detergent and rinse aid dispensers Data plate Control Panel Control panel Drying indicator...
All manuals and user guides at all-guides.com Loading the racks After loading the appliance, check that the sprayer arms can rotate freely. The height of the upper rack should ideally be adjusted Lower rack WHEN THE RACK IS EMPTY. Never lift or lower the rack on one side only. Loading examples.
All manuals and user guides at all-guides.com Start-up and use Starting the dishwasher Measuring out the detergent A good wash result also depends on the correct 1. Turn the water tap on. amount of detergent being used; exceeding the stated 2.
All manuals and user guides at all-guides.com Wash cycles Detergent Wash Wash (A) = compartment A cycle cycles Wash cycle selection (B) = compartment B duration Wash cycle which instructions (tolerance include ±10%) Powder Liquid Tablets drying Hrs. Min. Heavily soiled dishes and pans (not to be used for delicate 30 g (A) 30 ml (A)
All manuals and user guides at all-guides.com Rinse aid and refined salt Only use products which have been specifically designed for dishwashers. Do not use table salt or industrial salt, or washing up liquid. we recommend that you add salt, especially if you live in an area where the water is hard or very hard.
All manuals and user guides at all-guides.com Care and maintenance Clean the water inlet filter at the tap outlet regularly. - Turn off the water tap. - Unscrew the end of the water inlet hose, remove the filter and clean it carefully under running water. - Replace the filter and screw the water hose back into position.
All manuals and user guides at all-guides.com Precautions, advice and Assistance see Start-up and use General safety see Start-up and use Assistance Disposal Check whether the problem can be resolved using the Troubleshooting guide (see Troubleshooting). Restart the programme to check whether the problem has ceased to exist.
All manuals and user guides at all-guides.com Troubleshooting Whenever the appliance fails to work, check for a solution from the following list before calling for Assistance. Problem: Possible causes / Solutions: The dishwasher does not start. • T h e p l u g h a s n o t b e e n i n s e r t e d i n t o t h e e l e c t r i c a l s o c k e t p r o p e r l y , o r t h e r e i s n o p o w e r i n t h e h o u s e .
Page 14
All manuals and user guides at all-guides.com التركيب وصل خرطوم إدخال الماء احتفظ بدليل التعليمات هذا في مكان آمن لمراجعته في المستقبل. إذا تم بيع الجهاز، إعطاؤه أو نقله، الرجاء تأكد من أن دليل التعليمات قد أرفق بالنقطة المالئمة لتوصيل المياه الباردة: قبل وصل الخرطوم، قم بتشغيل •...
Page 15
All manuals and user guides at all-guides.com *شريط مقاومة التكثيف وصل خرطوم إخراج الماء بعد تركيب ماكينة غسل األطباق، افتح الباب والصق الشريط الشفاف .الالصق تحت الرف الخشبي بهدف حمايته من أي تكثيف يمكن أن يتك و ّ ن قم بوصل خرطوم اإلخراج (من دون ثنيه) إلى قنات التسريب بواسطة قطر من...
Page 16
All manuals and user guides at all-guides.com التوصيالت الكهربائية في حال لم تتوافق ألوان األسالك في التوصيل مع مفاتيح األلوان المعرفة في التوصيالت الكهربائية :نهائيات القابس لديك، تصرف على النحو التالي إذا كان الجهاز مزودا بقابس مصهره 31 أمبير، فيمكن إدخاله إلى مقبس ”...
Page 17
All manuals and user guides at all-guides.com وصف الجهاز نظرة عامة الرف العلوي ذراع الرشاش العلوي حجرات قابلة للطي ضابط ارتفاع الرف الرف السفلي ذراع الرشاش السفلي سلة السكاكين فلتر الغسل حاوية الملح حجرات مواد التنظيف ومادة الشطف المساعدة لوحة البيانات لوحة...
Page 18
All manuals and user guides at all-guides.com تحميل الرفوف معايرة ارتفاع الرف العلوي قبل تحميل الرفوف، أزل كل فضالت الطعام عن األواني وقم بتفريغ .بهدف جعل ترتيب األواني أسهل، يمكن تحريك الرف العلوي إلى مستوى مرتفع أو منخفض .السوائل من الكؤوس والفناجين (في...
Page 19
All manuals and user guides at all-guides.com بدء التشغيل واالستخدام قياس مواد التنظيف تشغيل ماكينة غسل األطباق تعتمد نتائج الغسل الجيدة أيضا على كمية مواد التنظيف الصحيحة التي يتم استخدامها؛ تعدي كمية المواد المحددة ال ينتج عنه غسل أكثر جودة وهو يزيد من .1.
Page 20
All manuals and user guides at all-guides.com دورات الغسيل .يمكن لرقم ونوع دورة الغسل وكذلك الخيارات أن تتغير وفقا لطراز ماكينة غسل األطباق .للخيارات المتوفرة، الرجاء راجع جدول الخيارات في صفحة بدء التشغيل واالستخدام مواد التنظيف مدة دورة دورات A ) الحجرةA( = الغسل...
Page 21
All manuals and user guides at all-guides.com ملح التكرير ومادة الشطف المساعدة :اآلن اختيار مستوى قساوة الماء. هناك مستوى من قساوة الماء لكل دورة غسل .استخدم المنتجات المصنعة خصيصا لماكنات غسل األطباق فقط 1 مثال: دورة الغسل 1، مستوى قساوة الماء .ال...
Page 22
All manuals and user guides at all-guides.com العناية والصيانة .نظف فلتر إدخال الماء الموجود على مخرج الحنفية بشكل منتظم .- أقفل حنفية الماء - فك نهائية خرطوم إدخال الماء بشكل لولبي، أزل الفلتر ونظفه بعناية تحت الماء .الجاري .- أعد الفلتر وأعد تركيب خرطوم الماء في موضعه تنظيف...
Page 23
All manuals and user guides at all-guides.com وسائل حذر، نصائح ومساعدة :• أختر دورة غسل مالئمة لنوع األواني باستخدام جدول دورات الغسل تم تصميم هذا الجهاز وتصنيعه طبقا لمواصفات األمان العالمية سارية - لألطباق ذات مستوى االتساخ العادي، استخدم دورة الغسل المفعول.
Page 24
All manuals and user guides at all-guides.com استكشاف المشاكل وحلها .إذا لم يعمل الجهاز، وقبل استدعائك للمساعدة ابحث عن حل في القائمة التالية :األسباب المحتملة/ الحلول :المشكلة .ماكينة غسل األطباق ال تبدأ بالعمل • لم يتم إدخال القابس في المقبس الكهربائي، أو لم يتم إدخاله بما فيه الكفاية ليحدث .تماسا...
Page 25
صفحه کنترل ،قرار دادن ظروف در قفسه ها قفسه پایین سبد مخصوص کارد و چنگال قفسه باال ،راه اندازی و استفاده LFS 215 راه اندازی ماشین ظرفشوئی اندازه گیری مایع شستشو *گزینه های شستشو ،برنامه های شستشو جدول برنامه های شستشو...
Page 26
All manuals and user guides at all-guides.com نصب وصل کردن شلنگ آب ورودی این دفترچه راهنما را برای استفاده های آتی در مکانی مطمئن نگهداری کنید. اگر ماشین ظرف شویی را می فروشید، می بخشید یا جابجا می کنید حتما ً دفترچه راهنما را داخل آن بگذارید، تا صاحب جدید بتواند از اطالعات •...
Page 27
All manuals and user guides at all-guides.com وصل کردن شلنگ آب خروجی نوار آب بندی بعد از اینکه ماشین ظرف شویی را نصب کردید، در آنرا باز کرده و نوار چسب شفاف را زیر قفسه چوبی بگذارید تا آب بندی شلنگ...
Page 28
All manuals and user guides at all-guides.com اتصاالت برق اتصاالت برق از آنجاییکه رنگ سیم های کابل اصلی شاید با کدگذاری ترمینال دوشاخه شما مطابقت نداشته باشد، به ترتیب زیر عمل اگر یک فیوز 31 آمپر همراه دستگاه است می توانید برای استفاده ً...
Page 29
All manuals and user guides at all-guides.com معرفی ماشین ظرفشوئی نمای کلی قفسه باال بازوی آب پاش باال محفظه های متحرک تنظیم کننده ارتفاع قفسه قفسه پایین بازوی آب پاش پایین سبد مخصوص کارد و چنگال فیلتر شستشو مخزن نمک مخزن...
Page 30
All manuals and user guides at all-guides.com قرار دادن ظروف در قفسه ها تنظیم ارتفاع قفسه باالیی قبل از قرار دادن ظروف در قفسه ها، باقیمانده مواد غذائی را از ظروف .پاک کرده و مایعات را از شیشه ها و لیوان ها خالی کنید برای...
Page 31
All manuals and user guides at all-guides.com راه اندازی و استفاده راه اندازی ماشین ظرفشوئی اندازه گیری مایع شستشو شستشوی خوب به استفاده از مقدار صحیح شوینده بستگی دارد؛ اگر از .1. شیر آب را باز کنید مقدار تعیین شده بیشتر استفاده کنید شستشوی بهتری نخواهید داشت و به ...
Page 32
All manuals and user guides at all-guides.com برنامه های شستشو .اگر ظروف فقط کمی کثیف شده باشند یا قبل از قرار دادن در ماشین ظرف شویی آنها را آب کشیده اید، مقدار ماده شوینده را متناسبا ً کاهش دهید .ممکن است تعداد و نوع برنامه شستشو و گزینه ها بسته به مدل ماشین ظرف شوئی متفاوت باشد .برای...
Page 33
All manuals and user guides at all-guides.com کمک آبکشی و نمک تصفیه شده چشمک می زند. حاال می توانید میزان سختی آب را انتخاب کنید. برای هر برنامه فقط از شوینده های مخصوص ماشین ظرف شوئی :شستشو یک میزان سختی آب هست .استفاده...
Page 34
All manuals and user guides at all-guides.com نگهداری و مراقبت از ماشین ظرفشویی .فیلتر آب ورودی را در شیر بطور مرتب تمیز کنید .- شیر آب را ببندید - سر شلنگ آب ورودی را باز کنید، فیلتر را بردارید و با دقت زیر آب جاری .بشویید...
Page 35
All manuals and user guides at all-guides.com نکات احتیاطی، راهنمایی و کمک رسانی • برنامه شستشو را بر اساس نوع ظروفی که دارید و میزان کثیفی آنها از این ماشین ظرف شویی بر اساس استانداردهای جاری بین المللی در :جدول برنامه های شستشو انتخاب کنید زمینه...
Page 36
All manuals and user guides at all-guides.com عیب یابی .اگر ماشین ظرف شویی کار نمی کند، ابتدا و قبل از تلفن کردن به بخش کمک رسانی سعی کنید راه حل را از فهرست زیر بیابید :دالیل احتمالی / راه حل ها :مشکل...
Page 37
All manuals and user guides at all-guides.com , 38-39-40 , 37 , 41 , 42 LFS 215 , 44 , 45 , 46 , 47 , 48...
Page 38
All manuals and user guides at all-guides.com 4 *.
Page 39
All manuals and user guides at all-guides.com 4 cm 1 0 0 c m 技术 数据 长 59.5 cm 规格 高 82 cm 深 57 cm 容量 12 套 标准餐具 0.05~1MPa (0.5~10 bar) 水源 压力 4.3 psi – 145 psi 电压...
Page 40
All manuals and user guides at all-guides.com "E" "L" "N" BS 1363 BS 1362 (ASTA) "N" "L" "E" BS 5733) 13...
Page 41
All manuals and user guides at all-guides.com On/Off Drying Low salt Washing Low rinse aid Start/Pause On-Off/RESET...
Page 42
All manuals and user guides at all-guides.com Baby Baby...
Page 43
All manuals and user guides at all-guides.com On/Off SELECT WASH CYCLE MULTI-FUNCTIONAL TABLETS Start/Pause Washing Start On/Off ON-OFF/RESET • • Start/Pause Start/Pause Start/Pause Delayed Start...
Page 44
All manuals and user guides at all-guides.com 洗涤剂 程序时间 程序是否有 (A) = 容器 A (误差 干燥步骤 程序选择指示 程序 (B) = 容器 B ±10%) 小时:分钟 洗涤粉 洗涤液 洗涤块 非常肮脏的餐具和锅具(质 Intensive 30 g (A) 30 ml (A) 1 (A) 是 2:15’ 地纤细者不能使用) (强力洗) 正常肮脏的餐具和锅具。...
Page 45
All manuals and user guides at all-guides.com ON/OFF L o w s a l t Low rinse aid 水质硬度表 °dH °fH mmol/l 级别 20 1.1 30 2.1 60 3.1 • Low rinse aid 90 6.1 0°f 至 10°f 建议不要使用再生盐。 通过这一设定,洗涤时间可能稍微延长。 °dH °fH mmol/l...
Page 46
All manuals and user guides at all-guides.com...
Page 47
All manuals and user guides at all-guides.com (RAEE) 2002/96/CE (Mod.) (S/N)
Page 48
All manuals and user guides at all-guides.com 195070524.00 07/2008- Xerox Business Services 故障: 可能原因/排除方法: 洗碗机不能启动。 • 电 插 头 未 在 电 源 插 座 中 插 好 , 或 者 家 中 无 电 。 • 洗 碗 机 门 未 关 好 。 D elayed S tart (预...
