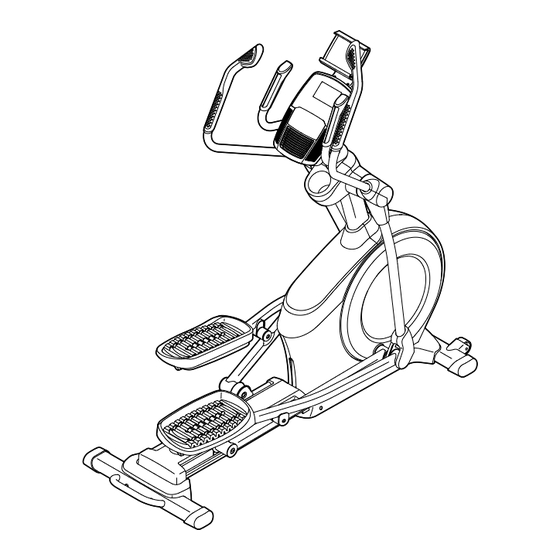

NordicTrack NTEL07915.2 User Manual

Hide thumbs

Advertisement

Table of Contents

www.nordictrack.com
USER'S MANUAL
Model No. NTEL07915.2
Serial No.
Write the serial number in the space
above for reference.
Serial Number
Decal
ACTIVATE YOUR
WARRANTY
To register your product and
activate your warranty today, go
to www.nordictrackservice.com/
registration.
CUSTOMER CARE
For service at any time, go to
www.nordictrackservice.com.
Or call 1-800-TO-BE-FIT
(1-800-862-3348)
Mon.–Fri. 6 a.m.–6 p.m. MT
Sat. 8 a.m.–12 p.m. MT
Please do not contact the store.
CAUTION
Read all precautions and
instructions in this manual before
using this equipment. Keep this
manual for future reference.

Advertisement

Table of Contents
loading

Related Manuals for NordicTrack NTEL07915.2

Summary of Contents for NordicTrack NTEL07915.2

  • Page 1 USER’S MANUAL Model No. NTEL07915.2 Serial No. Write the serial number in the space above for reference. Serial Number Decal ACTIVATE YOUR WARRANTY To register your product and activate your warranty today, go to www.nordictrackservice.com/ registration. CUSTOMER CARE For service at any time, go to www.nordictrackservice.com.

  • Page 2: Table Of Contents

    NORDICTRACK is a registered trademark of ICON Health & Fitness, Inc. IFIT is a registered trademark of ICON Health & Fitness, Inc. App Store is a trademark of Apple Inc., registered in the U.S. and other countries. Android and Google Play are trademarks of Google Inc.

  • Page 3: Important Precautions

    IMPORTANT PRECAUTIONS WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read all important precautions and instructions in this manual and all warnings on your elliptical before using your elliptical. ICON assumes no responsibility for personal injury or property damage sus- tained by or through the use of this product.
  • Page 4 18. The elliptical does not have a freewheel; the 20. Over exercising may result in serious injury pedals will continue to move until the fly- or death. If you feel faint, if you become short wheel stops. Reduce your pedaling speed in of breath, or if you experience pain while a controlled way.
  • Page 5 STANDARD SERVICE PLANS...

  • Page 6: Before You Begin

    BEFORE YOU BEGIN Thank you for selecting the revolutionary reading this manual, please see the front cover of this NORDICTRACK C 7.5 elliptical. The C 7.5 elliptical manual. To help us assist you, note the product model ® provides an impressive selection of features designed number and serial number before contacting us.

  • Page 7: Part Identification Chart

    PART IDENTIFICATION CHART Use the drawings below to identify the small parts needed for assembly. The number in parentheses below each drawing is the key number of the part, from the PART LIST near the end of this manual. The number following the key number is the quantity needed for assembly.

  • Page 8: Assembly

    ASSEMBLY • Assembly requires two persons. • In addition to the included tool(s), assembly requires the following tools: • Place all parts in a cleared area and remove the one Phillips screwdriver packing materials. Do not dispose of the packing materials until you finish all assembly steps.
  • Page 9 3. Press the Cover Mounts (106) on the underside of the Rear Stabilizer Cover (15) into the Rear Stabilizer (2). 4. With the help of a second person, place some of the packing materials (not shown) under the front of the Frame (1). Have the second per- son hold the Frame to prevent it from tipping while you complete this step.
  • Page 10 5. Orient the Upright (4) as shown. Have a second person hold the Upright near the Frame (1). See the inset drawing. Locate the wire tie (A) in the lower end of the Upright (4). Tie the wire tie to the Main Wire (110). Then, pull the upper end of the wire tie until the Main Wire is routed through the Upright.
  • Page 11 7. Using a plastic bag to keep your fingers clean, apply some of the included grease to the Pivot Axle (35) and to two 16mm Wave Washers (54). Insert the Pivot Axle (35) through the Upright (4) and center it. Tip: It may be helpful to use a rubber mallet.
  • Page 12 9. Untie and discard the wire tie on the Main Wire (110). While a second person holds the Console (7) near the Upright (4), connect the wires on the Console to the Main Wire (110) and to the Sensor Wires (63). Insert the excess wire into the Upright (4).
  • Page 13 11. Orient the Right Pedal Arm (58) as shown. Apply grease to the axle on the Right Pedal Arm (58). Attach the Right Pedal Arm (58) to the Right Roller Arm (59) with an M8 x 14mm Shoulder Screw (79), a Small Axle Cover (55), and an M8 Washer (97).
  • Page 14 13. Orient the Rear Upright Cover (81) as shown. Attach the Rear Upright Cover (81) to the Upright (4) with four M4 x 16mm Screws (101); start all the Screws, and then tighten them. Next, orient the Front Upright Cover (117) as shown.
  • Page 15 15. Identify the Right Leg Inner Cover (83) and orient it as shown. Attach the Right Leg Inner Cover (83) to the Right Upper Body Leg (60) with an M4 x 16mm Screw (101) and an M5 Washer (94). Next, identify the Right Leg Outer Cover (69) and orient it as shown.
  • Page 16 17. Attach the Tablet Holder (9) to the Console (7) with four #8 x 12mm Screws (111); start all the Screws, and then tighten them. 18. Make sure that all parts are properly tightened before you use the elliptical. Extra parts may be included. Place a mat beneath the elliptical to protect the floor.

  • Page 17: How To Use The Elliptical

    HOW TO USE THE ELLIPTICAL HOW TO PLUG IN THE POWER CORD A temporary adapter may 2-pole Receptacle This product must be grounded. If it should mal- be used to function or break down, grounding provides a path of connect the Adapter least resistance for electric current to reduce the risk power cord...
  • Page 18 HOW TO MOVE THE ELLIPTICAL HOW TO LEVEL THE ELLIPTICAL Due to the size and weight of the elliptical, moving If the elliptical rocks slightly on your floor during use, it requires two persons. Stand in front of the elliptical, turn one or both of the leveling feet beneath the rear hold the upright, and place one foot against one of the stabilizer or turn the leveling foot under the center of...
  • Page 19 HOW TO EXERCISE ON THE ELLIPTICAL To mount the elliptical, hold the handlebars or the Upper upper body arms and step onto the pedal that is in the Body Arms lower position. Then, step onto the other pedal. Push the pedals until they begin to move with a continuous motion.
  • Page 20 CONSOLE DIAGRAM FEATURES OF THE CONSOLE You can also listen to your favorite workout music or audio books with the console sound system while you The advanced console offers an array of features exercise. designed to make your workouts more effective and To turn on the power, see page 21.
  • Page 21 HOW TO TURN ON THE POWER HOW TO USE THE MANUAL MODE IMPORTANT: If the elliptical has been exposed to 1. Begin pedaling or press any button on the cold temperatures, allow it to warm to room tem- console to turn on the console. perature before you turn on the power.
  • Page 22 4. Follow your progress with the display. Speed—This display mode will show your pedaling speed in miles per hour or kilometers per hour. The display can show the following workout Time—When the manual mode is selected, this information: display mode will show the elapsed time. When a workout is selected, this display mode will show either the time remaining in the workout or the elapsed time.
  • Page 23 Press the Home button repeatedly to pause the If the display does not show your heart rate, make workout, view your workout results, and exit sure that your hands are positioned as described. the workout and return to the manual mode. Be careful not to move your hands excessively or to squeeze the contacts tightly.
  • Page 24 HOW TO USE AN ONBOARD WORKOUT At the end of each segment of the workout, a series of tones will sound and the next segment of 1. Begin pedaling or press any button on the the profile will begin to flash. If a different resis- console to turn on the console.
  • Page 25 4. Follow your progress with the display. THE OPTIONAL CHEST HEART RATE MONITOR See step 4 on page 22. Whether your goal is to 5. Measure your heart rate if desired. burn fat or to strengthen your See step 5 on page 23. cardiovascular system, the key 6.
  • Page 26 HOW TO CONNECT YOUR SMART DEVICE TO THE 4. Disconnect your smart device from the console CONSOLE if desired. The console supports BLUETOOTH connections to To disconnect your smart device from the console, smart devices via the iFit app and to compatible heart press and hold the Bluetooth Smart button on the rate monitors.

  • Page 27: Fcc Information

    HOW TO CHANGE CONSOLE SETTINGS To view distance in miles, select ENGLISH. To view distance in kilometers, select METRIC. 1. Select the settings mode. Incline System Calibration—If the incline sys- To select the settings mode, press the Settings tem is not functioning properly, it may need to be button.

  • Page 28: Maintenance And Troubleshooting

    MAINTENANCE AND TROUBLESHOOTING MAINTENANCE Using a standard screwdriver, pry off the left Regular maintenance is important for optimal Disc (71). performance and to reduce wear. Inspect and properly tighten all parts each time the elliptical is used. Note: For clarity, the left Replace any worn parts immediately.
  • Page 29 HOW TO ADJUST THE DRIVE BELT See EXPLODED DRAWING C on page 35. Identify the Left and Right Shields (73, 74). Remove If the pedals slip while you are pedaling, even while the M4 x 19mm Screws (5), the M4 x 25mm Screws the resistance is adjusted to the highest level, the drive (126), and the M4 x 48mm Screw (107) from the Left and Right Shields;...

  • Page 30: Exercise Guidelines

    EXERCISE GUIDELINES Burning Fat—To burn fat effectively, you must exer- WARNING: cise at a low intensity level for a sustained period of Before beginning this time. During the first few minutes of exercise, your or any exercise program, consult your physi- body uses carbohydrate calories for energy.

  • Page 31: Part List

    PART LIST Model No. NTEL07915.2 R1016A Key No. Qty. Description Key No. Qty. Description Frame Roller Rear Stabilizer Pedal Arm Cap Ramp Large Axle Cover Upright 16mm Wave Washer M4 x 19mm Screw Small Axle Cover Front Stabilizer Roller Arm Bushing...
  • Page 32 Key No. Qty. Description Key No. Qty. Description M4 x 16mm Screw Front Upright Cover M8 Locknut Shield Cover Cap M6 x 12mm Screw Power Cord M10 x 122mm Screw Ramp Axle M10 Split Washer Small Frame Bushing Cover Mount Clevis Pin M4 x 48mm Screw Plastic Spacer...

  • Page 33: Exploded Drawing

    EXPLODED DRAWING A Model No. NTEL07915.2 R1016A...
  • Page 34 EXPLODED DRAWING B Model No. NTEL07915.2 R1016A...
  • Page 35 EXPLODED DRAWING C Model No. NTEL07915.2 R1016A...

  • Page 36: Ordering Replacement Parts

    ORDERING REPLACEMENT PARTS To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to provide the following information when contacting us: • the model number and serial number of the product (see the front cover of this manual) •...

This manual is also suitable for:

C 7.5
