Trademarks
FOXWELL is trademark of Shenzhen Foxwell Technology Co., Ltd.
All other marks are trademarks or registered trademarks of their respective
holders.
Copyright Information
©2020 Shenzhen Foxwell Technology Co., Ltd.
All rights reserved.
Disclaimer
The information, specifications and illustrations in this manual are based on the
latest information available at the time of printing.
Foxwell reserves the right to make changes at any time without notice.
Visit our website at
www.foxwelltech.us
For Technical Assistance, send us email at
support@foxwelltech.com
1

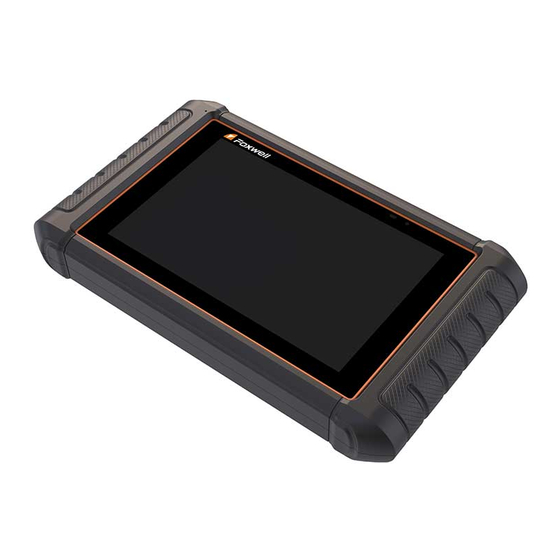

Premier Diagnostic Platform NT909 User's Manual V1.01
Advertisement
Table of Contents
Related Manuals for Foxwell Premier Diagnostic Platform NT909
Summary of Contents for Foxwell Premier Diagnostic Platform NT909
- Page 1 Disclaimer The information, specifications and illustrations in this manual are based on the latest information available at the time of printing. Foxwell reserves the right to make changes at any time without notice. Visit our website at www.foxwelltech.us For Technical Assistance, send us email at support@foxwelltech.com...
-
Page 2: One-Year Limited Warranty
FOXWELL. 3 The customer shall bear the cost of shipping the product to FOXWELL. And FOXWELL shall bear the cost of shipping the product back to the customer after the completion of service under this limited warranty. - Page 3 The customer will be billed for any parts or labor charges not covered by this limited warranty. d) FOXWELL will repair the Product under the limited warranty within 30 days after receipt of the product. If FOXWELL cannot perform repairs covered...
- Page 4 (the Consumer). This limited warranty gives the Consumer specific legal rights and the Consumer may also have other rights which vary from state to state. Premier Diagnostic Platform NT909 User's Manual V1.01...
-
Page 5: Safety Information
● Do not exceed voltage limits between inputs specified in this user’s manual. ● Always wear ANSI approved goggles to protect your eyes from propelled objects as well as hot or caustic liquids. Premier Diagnostic Platform NT909 User's Manual V1.01... - Page 6 ● Block drive wheels before testing with engine running. Put the transmission in park (for automatic transmission) or neutral (for manual transmission). And never leave a running engine unattended. ● Do not wear jewelry or loose fitting clothing when working on engine. Premier Diagnostic Platform NT909 User's Manual V1.01...
-
Page 7: Table Of Contents
4 VEHICLE IDENTIFICATION ......................22 4.1 VIN R ..........................23 EADING 4.1.1 Automatic Read ........................ 23 4.1.2 Scan VIN .......................... 25 4.1.2.1 Scan VIN Plate ......................25 4.1.2.2 Scan Barcode/QR Code of VIN .................26 4.1.2.3 Photo Recognition .....................27 Premier Diagnostic Platform NT909 User's Manual V1.01... - Page 8 6.13 K ..................... 57 ROGRAMMING MMOBILIZER 7 DATA MANAGER ........................... 57 7.1 I ............................57 MAGE 7.1.1 How to Save an Image ..................... 58 7.1.2 Review Image ........................58 7.2 PDF R ..........................60 EPORT Premier Diagnostic Platform NT909 User's Manual V1.01...
- Page 9 ......................80 USTOMER NFORMATION 12 MY ACCOUNT ..........................81 12.1 M .......................... 81 CCOUNT 12.2 M .........................82 RODUCTS 12.3 F ....................82 EEDBACK AND SUGGESTIONS 13 REMOTE SUPPORT ........................83 14 TECHNICAL DATA ........................84 Premier Diagnostic Platform NT909 User's Manual V1.01...
-
Page 10: Using This Manual
1.2.3 Note and Important Message Note A NOTE provides helpful information such as additional explanations, tips, and comments. Example: NOTE Test results do not necessarily indicate a faulty component or system. Important Premier Diagnostic Platform NT909 User's Manual V1.01... -
Page 11: Introduction
1 8’’ LED IPS Capacitive Touch Screen - shows menus, test results and operation tips. 2 Power Indicator - indicates the power status of the scanner. 3 Charging Indicator - indicates the charging status of the scanner. Premier Diagnostic Platform NT909 User's Manual V1.01... - Page 12 8 HDMI (high-definition multimedia interface) Port - outputs display of the scanner for demonstration and training. 9 USB Port - provides USB connection with VCI dongle, oscilloscope, video scope and other external storage devices. Premier Diagnostic Platform NT909 User's Manual V1.01...
-
Page 13: Vci Dongle Descriptions
1 Running Light – flashes during normal operation, and stays on or off when abnormal.. 2 Communication Light – is always on when VCI connect to device via bluetooth or USB, and flashes when sending data. 3 Power Light - turns to red when powered on. Premier Diagnostic Platform NT909 User's Manual V1.01... -
Page 14: Accessories
2.3 Accessories This section lists the accessories that go with the scanner. If you find any of the following items missing from your package, contact your local dealer for assistance. Table 2-1 Accessories Premier Diagnostic Platform NT909 User's Manual V1.01... -
Page 15: Technical Specifications
Before using the NT909 applications (including updating the scanner), please make sure to provide power to the scanner. The unit operates on any of the following sources: Internal Battery Pack ● External Power Supply ● Premier Diagnostic Platform NT909 User's Manual V1.01... -
Page 16: Internal Battery Pack
To establish communication with NT909: 1. Connect the VCI dongle to the vehicle’s DLC for both communication and power source. 2. Connect the VCI dongle to the NT909 tablet via Bluetooth or USB connection. Premier Diagnostic Platform NT909 User's Manual V1.01... -
Page 17: Vci Connection
● Bluetooth Communication ● USB Communication 3.3.1.1 Bluetooth Communication Bluetooth communication is recommended. The working range for Bluetooth communication is about 10-20m, providing easy connection to vehicles in any location throughout the shop. Premier Diagnostic Platform NT909 User's Manual V1.01... - Page 18 Figure 3-4 Sample VCI Manager Screen Figure 3-5 Sample Bluetooth Connection Screen 3. Check if the button at the toolbar turns to green. If yes, it means it’s ready to start diagnosis. Premier Diagnostic Platform NT909 User's Manual V1.01...
-
Page 19: Usb Communication
3.4 Screen Layout of Home Screen When the tablet boots up, press the NT909 desktop icon to launch the diagnostic application. Figure 3-7 Sample Home Screen 1. Application Menu 2. Navigation Toolbar Premier Diagnostic Platform NT909 User's Manual V1.01... -
Page 20: Application Menu
Data Manager - leads to screens for saved screenshots, pictures and test ● reports, and playing back live data, as well as debug logging data. Update - leads to screens for Foxwell ID registration and updating the ● scanner. VCI Manager - leads to screens for making Bluetooth pairing of VCI ●... - Page 21 Shortcut for Maintenance menu from any screen of Maintenance the tablet. Shortcut for Update menu from any screen of the Update tablet. Shortcut for Data Manager menu from any screen Data Manager of the tablet. Table 3-1 Tool Bar Premier Diagnostic Platform NT909 User's Manual V1.01...
-
Page 22: Diagnostic Menu
Therefore, certain attributes of the test vehicle must be entered into the scan tool to ensure the data displays correctly. The vehicle identification sequence is menu driven. Simply follow the screen Premier Diagnostic Platform NT909 User's Manual V1.01... -
Page 23: Vin Reading
Automatic Read allows to identify a vehicle by automatically reading the vehicle identification number (VIN). To identify a vehicle by Automatic Read: 1. Select Diagnostic from home screen of the NT909 application. 2. Click VIN and choose Automatic Read from the option list. Premier Diagnostic Platform NT909 User's Manual V1.01... - Page 24 4. If it takes too long to get the VIN code, press Cancel to stop and input the VIN manually. Or if failed to identify the VIN, please input the VIN manually or click Cancel to quit. Premier Diagnostic Platform NT909 User's Manual V1.01...
-
Page 25: Scan Vin
Specification or VIN code is correct, press the Confirm to continue. If incorrect, you are allowed to modify VIN number manually. Figure 4-5 Sample Scan VIN Screen Figure 4-6 Sample VIN Confirmation Screen Premier Diagnostic Platform NT909 User's Manual V1.01... -
Page 26: Scan Barcode/Qr Code Of Vin
The VIN number displays with a successful scan. If the Vehicle Specification or VIN code is correct, press the Confirm to continue. If incorrect, you are allowed to modify VIN number manually. The scan box can be zoomed in or zoomed out. Premier Diagnostic Platform NT909 User's Manual V1.01... -
Page 27: Photo Recognition
The VIN number displays with a successful scan. If the Vehicle Specification or VIN code is correct, press the Confirm to continue. If incorrect, you are allowed to modify VIN number manually. Premier Diagnostic Platform NT909 User's Manual V1.01... -
Page 28: Manual Entry
4. If failed, please click Close to quit and input the VIN manually. 4.1.3 Manual Entry Manual Entry allows to identify a vehicle by inputting VIN manually. To identify a vehicle by Manual Entry: Premier Diagnostic Platform NT909 User's Manual V1.01... -
Page 29: Manual Selection
Select vehicle brand you are to test, and two ways of getting to the diagnostic operations are available. Smart VIN ● Manual Selection ● Figure 4-15 Sample Vehicle Entry Screen Name Button Description Home Back to the Application Menu. Premier Diagnostic Platform NT909 User's Manual V1.01... -
Page 30: Smart Vin
A menu of all vehicle manufacturers displays. Or tap the Search box to search the car you are to test. Figure 4-16 Sample Vehicle Selection Screen 3. Choose SmartVIN option to start reading the VIN automatically. Premier Diagnostic Platform NT909 User's Manual V1.01... -
Page 31: Manual Vehicle Selection
3. Choose Manual Selection option from the list. 4. On each screen that appears, select the correct option until the complete vehicle information is entered and the menu of controller selection displays. Figure 4-18 Sample Manual Vehicle Selection Screen Premier Diagnostic Platform NT909 User's Manual V1.01... -
Page 32: Vehicle History
3. Choose the vehicle model you want to test from the list. 4. Click the Diagnostic button at the tested vehicle information page and then answer Yes to go to system selection page. Figure 4-20 Sample History Record Screen Premier Diagnostic Platform NT909 User's Manual V1.01... -
Page 33: Diagnosis
When you completed the identification of vehicle, you have to identify the control modules installed in the vehicle. There are two ways to identify the controllers installed in a car: Quick Scan ● Control Modules ● Premier Diagnostic Platform NT909 User's Manual V1.01... -
Page 34: Quick Scan
Figure 5-3 Sample Quick Scan Screen 3. At the end of successful automatic controller scan, a menu with a list of DTC displays and click button to the right to view DTC descriptions. Premier Diagnostic Platform NT909 User's Manual V1.01... - Page 35 4. Press Report to create an overview of installed control units and their system status, or press Save to save the report. Press Erase to clear the information. Figure 5-5 Sample DTC Save Screen Figure 5-6 Sample Report Screen Premier Diagnostic Platform NT909 User's Manual V1.01...
-
Page 36: Control Modules
It is useful for technicians who are familiar with the vehicle specifications. To select a system to test: 1. Press Control Modules from the menu and a controller menu displays. Premier Diagnostic Platform NT909 User's Manual V1.01... -
Page 37: Diagnostic Operations
● ECU Information ● Special Functions ● NOTE Not all function options listed above are applicable to all vehicles. Available options may vary by the year, model, and make of the test vehicle. Premier Diagnostic Platform NT909 User's Manual V1.01... -
Page 38: Read Codes
Figure 5-11 Sample Trouble Code Screen Freeze Frame- select one fault code from the code list and click Freeze ● Frame button on the screen. The screen will display freeze frame data, a Premier Diagnostic Platform NT909 User's Manual V1.01... - Page 39 Figure 5-13 Sample Freeze Frame Screen Help - select one fault code from the code list and click Help button on the ● screen. The screen will display the detailed descriptions about the fault code and repair guide. Premier Diagnostic Platform NT909 User's Manual V1.01...
-
Page 40: Clear Codes
Clear Codes does not fix the problem that caused the fault! DTCs should ● only be erased after correcting the condition(s) that caused them. To clear codes: 1. Press Clear Codes from Select Diagnostic Function menu. Figure 5-15 Sample Function Menu Screen Premier Diagnostic Platform NT909 User's Manual V1.01... -
Page 41: Live Data
1. Press Live Data from Select Diagnostic Function menu to display the live data menu. Figure 5-16 Sample Function Menu Screen 2. Press All Data from the menu to display the data stream screen. All readings will be displayed in text format by default. Premier Diagnostic Platform NT909 User's Manual V1.01... - Page 42 Click the dropdown list at the upper left of the screen to enter to choose a working condition to learn. Premier Diagnostic Platform NT909 User's Manual V1.01...
- Page 43 To view another PID plot, tab the name of a plot and a list of available PIDs display. Select one from the dropdown box and the plot changes to the newly selected PID. Premier Diagnostic Platform NT909 User's Manual V1.01...
- Page 44 Merge Graph: merges multiple PID plots into one coordinate, so you can ● easily see how they affect each other, providing you with the most comprehensive and functional look at live data possible. Figure 5-22 Sample Merge Graph Screen Premier Diagnostic Platform NT909 User's Manual V1.01...
-
Page 45: Custom List
Figure 5-24 Sample Live Data Screen 5.2.4 ECU Information ECU Information screen displays the identification data of the control module under test, such as the control module identification string and the control module coding. To read ECU information: Premier Diagnostic Platform NT909 User's Manual V1.01... -
Page 46: Active Tests
The sequence, number and type of tests are dictated by the control module. On some systems, the actuator tests cannot be restarted until the ignition key is switched off for some time. Alternatively, briefly start and run the engine, Premier Diagnostic Platform NT909 User's Manual V1.01... - Page 47 2. Select an option to start the test and live data of the selected test displays. Figure 5-28 Sample Active Test Screen 3. Follow on-screen instructions to make proper selections and operations to complete the tests. 4. Press to exit. Premier Diagnostic Platform NT909 User's Manual V1.01...
-
Page 48: Special Functions
The Service section is specially designed to provide you quick access to the vehicle systems various scheduled service maintenance performances. To start a service function: 1. Select Special Functions from main menu and press ENTER to confirm. Figure 5-29 Sample Main Menu Screen Premier Diagnostic Platform NT909 User's Manual V1.01... -
Page 49: Coding And Programming
Programming is the process of taking a blank control module and then adding the correct vehicle program to memory. To start a coding & programming test: 1. Select Special Functions from main menu and press ENTER to confirm. Premier Diagnostic Platform NT909 User's Manual V1.01... - Page 50 2. Select Programming option from the Special Functions menu. A list of available services display. Figure 5-33 Sample Special Functions Screen 3. Select the function you want to test. Follow on-screen instructions to make proper selections and operations to complete the tests Premier Diagnostic Platform NT909 User's Manual V1.01...
-
Page 51: Hot Functions
2. Select Hot Functions option from the Special Functions menu. A list of available services display. Figure 5-36 Sample Special Functions Screen 3. Select the function you want to test. Follow on-screen instructions to make proper selections and operations to complete the tests Premier Diagnostic Platform NT909 User's Manual V1.01... -
Page 52: Maintenance
The Service Indicator System is designed to alert the driver when the vehicle is due for a service. Oil service reset methods are determined by the vehicle being tested. Depending on the vehicle being tested, any of the following means displays: Premier Diagnostic Platform NT909 User's Manual V1.01... -
Page 53: Electronic Parking Brake (Epb) Service
Mercedes SBC vehicles - allows to change brake fluid/bleed brake system. Perform service reset and service position on BMW EPB vehicles - ● allows to do the CBS reset and CBS correction for front brake and rear brake. Premier Diagnostic Platform NT909 User's Manual V1.01... -
Page 54: Battery Replacement (Brt)
1. Replace the old battery with the new one. Ensure the key is not in the ignition. 2. Connect the scanner to the vehicle’s 16 pin Data Link Connector (DLC) with the diagnostic cable. Premier Diagnostic Platform NT909 User's Manual V1.01... -
Page 55: Diesel Particulate Filter (Dpf) Regeneration
SAS Calibration menu let you perform calibration of the Steering Angle Sensor, which permanently stores the current steering wheel position as straight-ahead in the sensor EEPROM. On successful calibration of the sensor, its fault memory is automatically cleared. Premier Diagnostic Platform NT909 User's Manual V1.01... -
Page 56: Continuous Variable Transmission (Cvt)
Anytime the brake system is opened to replace components such as calipers, wheel cylinders, the master cylinder, or brake lines or hoses, air gets inside. The air has to be removed by bleeding the brakes if you want a firm brake Premier Diagnostic Platform NT909 User's Manual V1.01... -
Page 57: Key Programming/Immobilizer
Image option leads to screens for review of stored screenshots. In case a failure of NT909 application or the Android system occurs, please just take a screenshot and send it to our team to help with the troubleshooting. Premier Diagnostic Platform NT909 User's Manual V1.01... -
Page 58: How To Save An Image
Figure 7-3 Sample Screenshot Screen 7.1.2 Review Image To review the screenshots: 1. Press Data Manager from home screen of NT909 diagnostic application. 2. Press Image and all available pictures will be displayed. Premier Diagnostic Platform NT909 User's Manual V1.01... - Page 59 Print to print the pictures and press Rename to change the picture name. Figure 7-5 Sample Edit Picture Screen 4. Long press the screen to edit all pictures like Rename or Delete. Figure 7-6 Sample All Pictures Edit Screen Premier Diagnostic Platform NT909 User's Manual V1.01...
-
Page 60: Pdf Report
2. Press PDF and all available PDF files will be displayed. Figure 7-8 Sample Browse PDF Screen 3. Long press the screen to edit all PDF files like Rename or Delete the files. Premier Diagnostic Platform NT909 User's Manual V1.01... -
Page 61: Data Playback
Figure 7-10 Sample Data Playback Screen 4. To view parameter graphs, press the Graph tab. And to merge the graphs, press the tab Merge Graph or press the tab Multi Graph to view multiple plots. Premier Diagnostic Platform NT909 User's Manual V1.01... -
Page 62: Data Logging & Data Record
To create a debug data log: 1. When connected to a car, click the Data Logging icon to start record the communication data between the tablet and the vehicle. Premier Diagnostic Platform NT909 User's Manual V1.01... -
Page 63: Report
Figure 7-14 Sample Report Review Screen 8 VCI Manager VCI Manager allows you to make Bluetooth pairing between the tablet and the VCI dongle, update VCI firmware and unbind a VCI dongle. Premier Diagnostic Platform NT909 User's Manual V1.01... -
Page 64: Bluetooth
1. Connect the VCI dongle to the NT909 tablet via USB or Bluetooth. And make sure the power supply will not be disturbed during the process of update. 2. Click the VCI Manager application on the NT909 menu. 3. Select Update option from the option list. Premier Diagnostic Platform NT909 User's Manual V1.01... -
Page 65: Unbind Avci Dongle
8.3 Unbind a VCI dongle This option allows you to unbind a VCI dongle when the VCI dongle is defective or stolen. To unbind a VCI dongle: 1. Click the VCI Manager application on the NT909 Menu. Premier Diagnostic Platform NT909 User's Manual V1.01... - Page 66 2. Select Unbind a VCI dongle option from the option list and press OK to confirm. Figure 8-5 Sample Unbind Prompt Screen To bind a new VCI dongle: 1. Connect the VCI dongle with NT909 tablet via USB cable. Premier Diagnostic Platform NT909 User's Manual V1.01...
-
Page 67: Registration And Update
The scanner can be updated to keep you stay current with the latest development of diagnosis. This section illustrates how to register and update your scan tool. You can register both on Foxwell website or by the built-in update client. - Page 68 Code button. We will send a 4-digit verification code to the email you just entered. Find the security code in your mailbox, input the code, create a password and click Free Registration to complete. Premier Diagnostic Platform NT909 User's Manual V1.01...
- Page 69 Figure 9-4 Sample Registration Done Screen 5. The serial number will be recognized automatically and click Submit to activate the scanner. Figure 9-5 Sample Product Activation Screen 6. The product is registered successfully. Premier Diagnostic Platform NT909 User's Manual V1.01...
-
Page 70: Register Through Website
Figure 9-6 Sample Activation Done Screen 9.1.2 Register through Website To register through our website: 1. Visit Foxwell official website www.foxwelltech.us and press Register icon, or go to the registration page by selecting Support from home page and then click Register. - Page 71 Free Registration to complete. Figure 9-9 Sample Create Account Screen 3. Sign in to the Member Center, click New Registration, input the right serial number and click Submit to activate the product. Premier Diagnostic Platform NT909 User's Manual V1.01...
-
Page 72: Update
3. When all the items are updated, an “Update Done” message displays. NOTE Please make sure your network works correctly and the tablet is fully charged or connect to external power supply. Figure 9-11 Sample Update Screen Premier Diagnostic Platform NT909 User's Manual V1.01... -
Page 73: Settings
To configure system language: 1. Press Settings from home screen of the NT909 diagnostic application and select Language. Then all available language options display. 2. Select your preferred language and click Yes to confirm. Premier Diagnostic Platform NT909 User's Manual V1.01... -
Page 74: Push Message
This option allows you to enable/disable automatic update notice. If it is enabled, an orange update mark will show on the upper right of the diagnostic software icon whenever there is a new version available. Premier Diagnostic Platform NT909 User's Manual V1.01... -
Page 75: System Settings
1. Tap Settings application on home screen of NT909. 2. Tap the Uninstall Vehicle Software option on the option list. 3. Choose the vehicle software you want to delete or choose Select All. Premier Diagnostic Platform NT909 User's Manual V1.01... -
Page 76: Print Settings
This option allows you to print any data or information anywhere and anytime either via PC network or Wi-Fi. To setup the printer connection: 1. Tap the Settings application on home screen of NT909. 2. Tap the Printing Settings option on the option list. Premier Diagnostic Platform NT909 User's Manual V1.01... - Page 77 3. Tap Print Plugin Manager and turn on the Mopria Print Service, then NT909 will search for available printers automatically. Figure 10-7 Sample Print Service Manager Screen Figure 10-8 Sample Setting of Print Service Manager Screen 4. Choose the right printer. Premier Diagnostic Platform NT909 User's Manual V1.01...
-
Page 78: About
NT909, such as serial number, hardware and software version and etc. To view information of your scan tool: 1. Press About from home screen of the NT909 diagnostic application. 2. A screen with detailed information of the scanner displays. Premier Diagnostic Platform NT909 User's Manual V1.01... -
Page 79: Shop Manager
History also allows you to start a new test of tested vehicle without the need to do vehicle identification again by pressing the Diagnostic in the record. Click Client allows to add this vehicle to certain customer. Premier Diagnostic Platform NT909 User's Manual V1.01... -
Page 80: Workshop Information
Figure 11-3 Sample Workshop Information Screen 11.3 Customer Information The Customer allows you to edit, input and save the detailed customer information, such as customer name, address, phone number and more. Premier Diagnostic Platform NT909 User's Manual V1.01... -
Page 81: My Account
Feedback and suggestions ● Figure 12-1 Sample My Account Screen 12.1 My Account My Account option allows you to check and modify your account information including user name, e-mail, telephone, address and so on. Premier Diagnostic Platform NT909 User's Manual V1.01... -
Page 82: M Yproducts
12.3 Feedback and suggestions This option allows you to log on your e-mail and send feedback and suggestions about Foxwell products. NOTE Please your Foxwell account on the NT909 before using this function. Premier Diagnostic Platform NT909 User's Manual V1.01... -
Page 83: Remote Support
Figure 12-4 Sample Feedback & Suggestions Screen 13 Remote Support Remote Control enables you to get remote support from Foxwell with TeamViewer when you have issues with Foxwell products. If you need our team to remote control your NT909, 1. Click the Remote Control icon on the main menu of the NT909 to start TeamViewer. -
Page 84: Technical Data
3. Send your ID to us to let our team to take control your tablet. 14 Technical Data This option provides you with the quick access to technical data like wiring diagram and repair tips provided by HaynesPro, AutoData or others. Figure 14-1 Sample Technical Data Screen Premier Diagnostic Platform NT909 User's Manual V1.01...
