olympia electronics nsc BS-1632 Manual

BS-1632,
Conventional
Thank you for purchasing this product of Olympia Electronics. A European manufacturer.
GENERAL
The family of fire detection panels consist of 3 types (2, 4 and 6 zone) with identical operation and indications. The panels have
2 independent siren outputs, Alarm, Fault Relay and a programmable AUX relay. The required batteries for the panels are two
A-920 (12V/2.6Ah). All functions and indications are according to European Norms EN 54-2 and EN 54-4.
Battery compartment
two Α-920
Page 1 from 10
BS- 634, BS- 636 1
2, 4 and 6 zone
Extra earth
Mounting hole
terminals

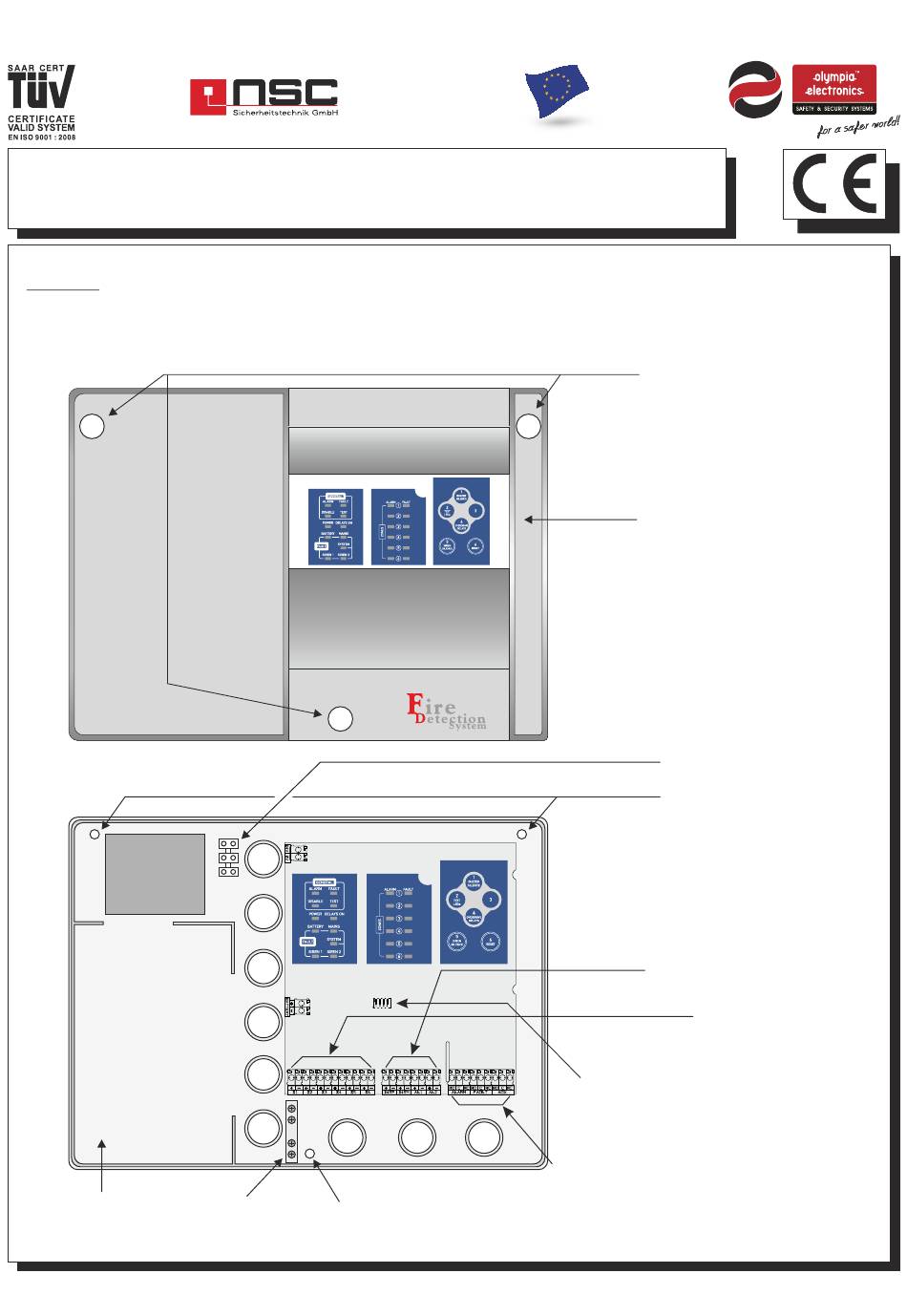

Figure 1. Schematic diagram of the panel
High Quality European based Manufacturers
1
Fire Alarm Panels
MODE selection
microswitch
Relay outputs
connection terminals
Top cover
retaining screws
Control Keyboard and
indication leds
Mains voltage connection
terminal block (220-240V AC)
Mounting holes
General output connection
(Sirens,24V)
Zone connection terminal
921163600_09_020
