olympia electronics BSR-2104/MAR Operation And Installation Manual

olympia electronics BSR-2104/MAR Operation And Installation Manual

Addressable fire detection panel with 2 or 4 loops and expansion capabilities
Table of Contents

Advertisement

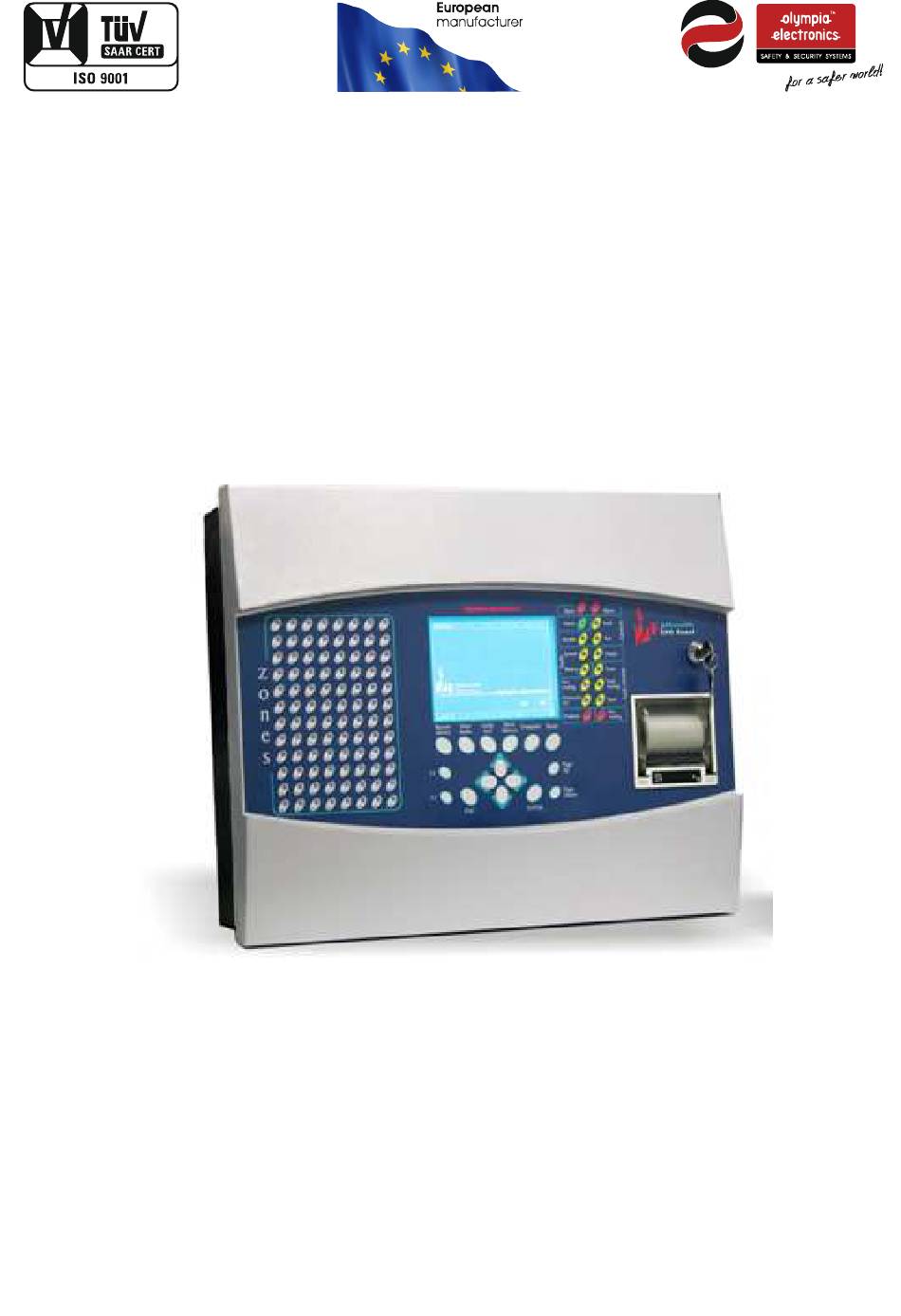

BSR-2104/MAR, BSR-2114/MAR
Addressable fire detection panel
with 2 or 4 loops and expansion
capabilities
Operation and installation manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BSR-2104/MAR and is the answer not in the manual?

Questions and answers

Summary of Contents for olympia electronics BSR-2104/MAR

  • Page 1 BSR-2104/MAR, BSR-2114/MAR Addressable fire detection panel with 2 or 4 loops and expansion capabilities Operation and installation manual...
  • Page 2: Table Of Contents

    Date 9/7/2018 File BSR-2114/MAR Document Number 921211401_09_002 Page 2 από 74 Contents 1 Introduction section -------------------------------------------------------------------------------------------------------------- 7 Description --------------------------------------------------------------------------------------------------------------------- 7 Safety---------------------------------------------------------------------------------------------------------------------------- 7 Indicators and controls -------------------------------------------------------------------------------------------------------- 7 1.3.1 Panel front -------------------------------------------------------------------------------------------------------------- 8 1.3.2 Panel Keypad ------------------------------------------------------------------------------------------------------------ 8 1.3.3 Event Indication LEDs -------------------------------------------------------------------------------------------------- 9 1.3.4 Zone indicators --------------------------------------------------------------------------------------------------------- 9 1.3.5...
  • Page 3 Date 9/7/2018 File BSR-2114/MAR Document Number 921211401_09_002 Page 3 από 74 5.3.4 Check - Siren menu ---------------------------------------------------------------------------------------------------- 59 5.3.5 Check network --------------------------------------------------------------------------------------------------------- 59 5.3.6 Extension check -------------------------------------------------------------------------------------------------------- 59 Setup menu -------------------------------------------------------------------------------------------------------------------- 60 5.4.1 Setup - Points ---------------------------------------------------------------------------------------------------------- 60 5.4.2 Setup - Sirens ---------------------------------------------------------------------------------------------------------- 64 5.4.3 Setup - Aux relay ------------------------------------------------------------------------------------------------------ 65 5.4.4...
  • Page 4 Date 9/7/2018 File BSR-2114/MAR Document Number 921211401_09_002 Page 4 από 74 Diagram index Figure 1-1 Face of the panel ........................8 Figure 1-2 Panel keypad .......................... 8 Figure 1-3 Indication LEDs ........................9 Figure 1-4 LCD indications ........................11 Figure 2-1 System in quiescent state ......................12 Figure 2-2 Language selection ........................
  • Page 5 Date 9/7/2018 File BSR-2114/MAR Document Number 921211401_09_002 Page 5 από 74 Figure 4-28 Information menu diagram ......................51 Figure 4-29 System information ........................ 52 Figure 4-30 Loop information ........................53 Figure 4-31 Loop information ........................53 Figure 4-32 Technician information ......................54 Figure 5-1 Access code for level 3......................
  • Page 6 Date 9/7/2018 File BSR-2114/MAR Document Number 921211401_09_002 Page 6 από 74 Table index Table 3-1 Device consumptions ......................... 29 Table 3-2 Loop cable length ........................30 Table 3-3 Siren cable length (Alarm) ......................31 Table 6-1 Factory default settings ......................72 Table 6-2 Options with requirements EN 54-2 including in the panel ..............
  • Page 7: Introduction Section

    1.1 Description The BSR-2104/MAR and BSR-2114/MAR are used on ships and there are 2 or 4 loop addressable fire detection panels with expansion capabilities that can upgrade the panel to 8 loops.
  • Page 8: Panel Front

    Date 9/7/2018 File BSR-2114/MAR Document Number 921211401_09_002 Page 8 από 74 1.3.1 Panel front The panel’s fascia contains the LCD and an assortment of LEDS, that are used to relay Safety Lock Liquid crystal information to the user concerning the status of the system.
  • Page 9: Event Indication Leds

    Date 9/7/2018 File BSR-2114/MAR Document Number 921211401_09_002 Page 9 από 74 1.3.3 Event Indication LEDs The Leds are separated in groups and are color coordinated. This helps us understand there functions easily. In detail, the indications of the Leds correspond to the following instances: Alarm [red] The system is in an alarm status Power...
  • Page 10: Thermal Printer

    Date 9/7/2018 File BSR-2114/MAR Document Number 921211401_09_002 Page 10 από 74 1.3.5 Thermal printer The thermal printer is optional and can be installed on any panel. A thermal printer (BSR-2142) which is suitable for all panels in the range BSR-2XXX. Each event, alarm, fault, pre-alarm, e.t.c is printed on the printer Paper advance key...
  • Page 11: General Lcd Indications

    Date 9/7/2018 File BSR-2114/MAR Document Number 921211401_09_002 Page 11 από 74 1.3.6 General LCD indications The figure below shows the general indications of the panels LCD display. Figure 1-4 LCD indications While in the waiting screen, press the «ENTER» key to show the main menu on the top section of the screen. The last line of the screen shows the date, time as well as the general state of the panel.
  • Page 12: Function Section

    Date 9/7/2018 File BSR-2114/MAR Document Number 921211401_09_002 Page 12 από 74 2 Function Section 2.1 Operation modes of the panel Below we will describe the indications that are shown on the LCD during the following states of the panel: Α) Quiescent state Β) Alarm C) Pre Alarm D) Fault...
  • Page 13: Language Selection

    Date 9/7/2018 File BSR-2114/MAR Document Number 921211401_09_002 Page 13 από 74 2.2.1 Language selection When the panel is in quiescent state then the language can be changed by pressing the «ESC» key. After pressing the key the following language selection screen is shown: Figure 2-2 Language selection Using the «UP»...
  • Page 14: Alarm State

    Date 9/7/2018 File BSR-2114/MAR Document Number 921211401_09_002 Page 14 από 74 2.3 Alarm state When a device gives a fire alarm signal the red LED marked “General Alarm” lights. The LCD will show information concerning the address on the point that issued the alarm as shown in the figure below: Figure 2-3 Typical screen layout during the alarm state The total number of alarm events (Alarm counter) is shown to the right of the window title.
  • Page 15: Pre-Alarm State

    Date 9/7/2018 File BSR-2114/MAR Document Number 921211401_09_002 Page 15 από 74 2.4 Pre-alarm state If a point that is connected to the loop issues a pre-alarm then the yellow LED marked “Pre-Alarm” lights. The LCD screen will show additional details about the pre-alarm. Figure 2-4 Screen layout and indications during the pre-alarm state The total number of pre-alarm events (Pre-alarm counter) is shown to the right of the window title.
  • Page 16: Fault State

    Date 9/7/2018 File BSR-2114/MAR Document Number 921211401_09_002 Page 16 από 74 2.5 Fault state During a fault event the LED “General Fault” is lit. Other LEDs that describe the faults origin can also be lit. The LCD will show additional details regarding the fault.. Figure 2-5 Screen layout and indications during the fault state The total number of fault events (Fault counter) is shown to the right of the window title.
  • Page 17: Access Level 1 Functions

    Date 9/7/2018 File BSR-2114/MAR Document Number 921211401_09_002 Page 17 από 74 2.6 Access Level 1 functions This level contains the functions that can by implemented by a normal user. - “Buzzer Silence”: In case of an alarm, pre-alarm or fault and if button (1) is pressed then the internal buzzer will stop.
  • Page 18: Installation Instructions

    3.1 General Description The BSR-2104/MAR and BSR-2114/MAR panels are addressable fire detection panels with 2 or 4 loops and expansion capabilities up-to 8 loops and 32,64 or 96 zones. Each loop can accept up-to 150 input units (sensors, call points) , output units and line isolators.
  • Page 19: Description Of The Panel's Interior

    Date 9/7/2018 File BSR-2114/MAR Document Number 921211401_09_002 Page 19 από 74 3.3 Description of the panel’s interior The interior can be accessed by disengaging the lock found on the right of the panel. In general, the panel consists of 2 sections: 1.
  • Page 20: Loop Board

    Date 9/7/2018 File BSR-2114/MAR Document Number 921211401_09_002 Page 20 από 74 3.3.1 Loop board This board is located on the top right section of the panel. In general it contains terminals for connecting the panel power supply, for connecting sirens, for connecting the loops and for connecting the mains power supply.
  • Page 21 Date 9/7/2018 File BSR-2114/MAR Document Number 921211401_09_002 Page 21 από 74 Connection with main P.C.B. REL4 Loop Output REL5 Panel Interface REL6 REL1 REL2 Other Outputs Connection USB output REL3 with printer for PC connection External device power supply Figure 3-3 Input/Output board Extension Output...
  • Page 22: Connections

    Date 9/7/2018 File BSR-2114/MAR Document Number 921211401_09_002 Page 22 από 74 3.4 Connections In the following paragraphs we will describe all the connections that can be done to the panel. Each individual connection should have its own connection cable. (e.i. a 3 core cable for connecting the mains power supply, a 2 core cable for connecting the sirens e.t.c).
  • Page 23: Battery Connections

    Date 9/7/2018 File BSR-2114/MAR Document Number 921211401_09_002 Page 23 από 74 3.4.2 Battery connections The battery compartment on the lower left section of the panel as shown in figure 3-1. The batteries used must be 2x Sunlight SP-12 12V (7Ah or 12Ah) Lead Acid with a rating of 12V each. It’s capacity can range from 7Ah or 12Αh.
  • Page 24: Connecting Points To The Loop

    Date 9/7/2018 File BSR-2114/MAR Document Number 921211401_09_002 Page 24 από 74 The above picture shows how the battery mounting if the is a problem of vibration. In the package of the panel there is the metal parts and the screws for mounting the batteries. The metal brackets must be fitted at all times.
  • Page 25: Connecting The Sirens

    Date 9/7/2018 File BSR-2114/MAR Document Number 921211401_09_002 Page 25 από 74 device and on the other pair +L and -L connect the cables to the next device. In sensors bases, connect the positive loop cable to the contacts marked as «IN» and the negative loop cable to the contacts marked as «IN-OUT». The loop must be a closed or circular circuit without any branches.
  • Page 26: Connecting Panels To A Network

    Date 9/7/2018 File BSR-2114/MAR Document Number 921211401_09_002 Page 26 από 74 3.4.5 Connecting panels to a network The I/O board contains four terminals (+A2, -A2, +Α1 and –Α1 ). These terminals are used to inter-connect the panels in installation where we want to install a network. The network can contain up to 32 panels. Figure 3-12 Connecting panels to a network The maximum distance between 2 panels must not exceed 400m.
  • Page 27: Connection Panel With Repeaters

    Date 9/7/2018 File BSR-2114/MAR Document Number 921211401_09_002 Page 27 από 74 3.4.6 Connection panel with repeaters Up to 4 repeater can be connected to a panel. The below figure shows the connection. The repeaters can be BSR-2000/MAR or BSR-21XX/MAR (in repeater mode). First of all, the panel must be programmed to work as repeater, and after that they can be connected with panel.
  • Page 28: Fault Routing Connection

    Date 9/7/2018 File BSR-2114/MAR Document Number 921211401_09_002 Page 28 από 74 These outputs can be used to signal fire alarm equipment such as diallers etc. These outputs are according to EN 54-2. These ouput can be used to operate in diffently to default setting, but then they will not fulfil the EN 54-2. 3.4.8 Fault routing connection The panel has provision of Fault routing.
  • Page 29: Calculating The Loop Consumption And The Required Cable Cross Section

    Date 9/7/2018 File BSR-2114/MAR Document Number 921211401_09_002 Page 29 από 74 NO,C,NC terminals of the relays 4,5,6. These are voltage free relay contacts with a rating of 230V/5A. By default they are programmed to operate as alarm relays. This programming can be changed. Α1,Α2 and Α3 terminals.
  • Page 30 Date 9/7/2018 File BSR-2114/MAR Document Number 921211401_09_002 Page 30 από 74 Table 3-2 Loop cable length Cable Length (m) 200m 500m 1000m 1500m 2000m Quiescent Current (mA) 50mA 0.5 mm 0.5 mm 0.75 mm 1 mm 2.5 mm 100mA 0.5 mm 0.5 mm 0.75 mm 1 mm...
  • Page 31: Cabling

    Date 9/7/2018 File BSR-2114/MAR Document Number 921211401_09_002 Page 31 από 74 1 x N heat of rise detector 1 x N call point 4 x N line isolators 10 x N Conventional devices drivers 1 x N Input units 1 x N Input/output units 0 x N indication LED...
  • Page 32: Mounting

    Date 9/7/2018 File BSR-2114/MAR Document Number 921211401_09_002 Page 32 από 74 3.7 Mounting The panel is provided as a package. The package contains the mounting screws and accessories and the instruction manuals. Remove the panel from the package and locate the lock keys which can be found on the top side of the panel. Mount the panel in an area that is visible and easily accessible by the personnel that are responsible for the fire safety of the building.
  • Page 33: User Menu Section

    Date 9/7/2018 File BSR-2114/MAR Document Number 921211401_09_002 Page 33 από 74 4 User Menu Section This section will reference all the function that can be obtained using access levels 1 and 2. To enter the menu, press the «ENTER» key when in the main screen (figure 4-1). Figure 4-1 Main screen After that a new option bar is shown at the top of the screen as shown in figure 4-2.
  • Page 34: Access Codes

    Date 9/7/2018 File BSR-2114/MAR Document Number 921211401_09_002 Page 34 από 74 As observed, there are 5 basic menu categories as shown in the diagram of figure 4-4. MENU USER TECHNICIAN EVENTS DATA INFO Figure 4-3 Menu diagram In detail the menu contains: USER : This menu contains all options that are available to the user that has access to access level 2.
  • Page 35 Date 9/7/2018 File BSR-2114/MAR Document Number 921211401_09_002 Page 35 από 74 Figure 4-4 User Code After entering the correct code press the «ENTER» and the submenu will be shown as the figure below. Figure 4-5 User Menu As shown in the diagram. The user can choose from numerous selections. Figure 4-4 shows the tree-diagram of this menu.
  • Page 36 Date 9/7/2018 File BSR-2114/MAR Document Number 921211401_09_002 Page 36 από 74 USER ENABLE ALL SYSTEM LOOPS POINTS ZONES AUX RELAYS SIRENS DISABLE ALL SYSTEM LOOPS POINTS ZONES AUX RELAYS SIRENS PROPERTIES OF POINTS AUX RELAYS OF SIRENS TASKS GROUPS DATE/TIME TIME ADJUST DATE ADJUST DAY ADJUST...
  • Page 37: Enable - Disable Menu

    Date 9/7/2018 File BSR-2114/MAR Document Number 921211401_09_002 Page 37 από 74 4.2.1 Enable – Disable menu With the Enable option we can enable any element of the panel as shown in figure 4-7. Figure 4-7 Activation Menu We have the following selections : ALL SYSTEM : All the elements of the panel are enabled ...
  • Page 38 Date 9/7/2018 File BSR-2114/MAR Document Number 921211401_09_002 Page 38 από 74 Figure 4-8 Point properties Depending on the type of point, different settings will be shown. We can change the loop and the address with the «LEFT» and «RIGHT» keys. After the setting has been adjusted then by pressing «ENTER»...
  • Page 39 Date 9/7/2018 File BSR-2114/MAR Document Number 921211401_09_002 Page 39 από 74 Figure 4-9 Functions If we select the «GROUP» option then we can see it’ s settings. Specifically, each group consists of many zones, and when one is activated then all the others are activate too. When we select “Groups”...
  • Page 40: Date - Time Menu

    Date 9/7/2018 File BSR-2114/MAR Document Number 921211401_09_002 Page 40 από 74 4.2.3 Date – Time menu The user has the following options in this menu : TIME ADJUST : Adjust the time of the system.  DATE ADJUST : Adjust the date of the system. ...
  • Page 41: Show Disabled Segments Menu

    Date 9/7/2018 File BSR-2114/MAR Document Number 921211401_09_002 Page 41 από 74 The definition of the time of «DAY» is determined by the above 2 screens. With these two screens we can set when employees are in the building. In most buildings during the day time and due to presence of employees, it is not always required that the fire detection system operate with big sensitivity.
  • Page 42: Point For Service Menu

    Date 9/7/2018 File BSR-2114/MAR Document Number 921211401_09_002 Page 42 από 74 4.2.6 Point for service menu There are some types of detectors that require maintenance, e.g. smoke detectors. The system has the capability to determine which detectors need maintenance due to dust accumulation. Using this option we can see the list of detectors that need maintenance.
  • Page 43: Event Menu

    Date 9/7/2018 File BSR-2114/MAR Document Number 921211401_09_002 Page 43 από 74 4.3 Event menu Access level1 also permits the user to view current and logged events that are categorized. While in the main screen press the «ENTER» key. Figure 4-15. Main screen in quiescent state Next press twice the right key and select the EVENT menu as shown in figure 4-16.
  • Page 44 Date 9/7/2018 File BSR-2114/MAR Document Number 921211401_09_002 Page 44 από 74 Figure 4-17 Event menu This way we enter the menu where we can see current and logged menu events. EVENTS CURRENT EVENTS FAULT EVENTS ALARM EVENTS PREALARM EVENTS RECORDED EVENTS FAULT EVENTS ALARM EVENTS PREALARM EVENTS...
  • Page 45 Date 9/7/2018 File BSR-2114/MAR Document Number 921211401_09_002 Page 45 από 74 If we press the ENTER key we can see all current alarm events if available. CURRENT EVENTS Using the UP and DOWN keys we can navigate through the events. Pressing the ALARM EVENTS ESC key exits this menu and goes to the previous.
  • Page 46 Date 9/7/2018 File BSR-2114/MAR Document Number 921211401_09_002 Page 46 από 74 Figure 4-19 Viewing events Beside the title we can see the total amount of event of the type selected. The top section is divided into 3 sections, the general number of the event, the origin of the event and finally the description of the event.
  • Page 47: Data Menu

    Date 9/7/2018 File BSR-2114/MAR Document Number 921211401_09_002 Page 47 από 74 4.4 Data menu With the use of this menu we can make data transfer between the panel and a PC. Before making a transfer, be sure to connect the panel with the PC via the USB port. After that the port setting must be adjusted on the PC.
  • Page 48 Date 9/7/2018 File BSR-2114/MAR Document Number 921211401_09_002 Page 48 από 74 Figure 4-21 Port settings Select via the «Communication» menu the option to “send” or to “receive” data to the PC. Then select the «DATA» menu of the panel. A code requester will pop up requesting the user to input a code. Input the code for access level 2.
  • Page 49: Sending Data To The Pc

    Date 9/7/2018 File BSR-2114/MAR Document Number 921211401_09_002 Page 49 από 74 DATA ΤΟ PC FROM PC Figure 4-23 Data menu diagram The selection «TO PC» is used to transfer data to the PC. The selection «FROM PC» is used to program the panel from the PC. 4.4.1 Sending data to the PC When selecting the option «TO PC»...
  • Page 50: Receiving Data From A Pc

    Date 9/7/2018 File BSR-2114/MAR Document Number 921211401_09_002 Page 50 από 74 Figure 4-25 Sending data to a PC When the transfer has finished, press any key to close the window. 4.4.2 Receiving data from a PC When selecting the option «FROM PC» you must enter the technician code and after a window is opened that shows a communication test between the PC and the panel.
  • Page 51: Information Menu

    Date 9/7/2018 File BSR-2114/MAR Document Number 921211401_09_002 Page 51 από 74 4.5 Information menu Access level 1 permit us to view information about the system. While in the main screen press «ENTER» and then select «INFO» and press «ENTER» again. The information menu will be shown (figure 4-22). ΝΕΤ...
  • Page 52 Date 9/7/2018 File BSR-2114/MAR Document Number 921211401_09_002 Page 52 από 74 Figure 4-29 System information We can see information for the following: PROGRAM VERSION : The firmware version of the main processor of the panel.  HARDWARE VERSION : The hardware version of the system. ...
  • Page 53 Date 9/7/2018 File BSR-2114/MAR Document Number 921211401_09_002 Page 53 από 74 Figure 4-30 Loop information If a key is pressed then we can view information regarding the firmware and hardware versions of each loop as shown below. Figure 4-31 Loop information If we select the «TECHNICIAN»...
  • Page 54 Date 9/7/2018 File BSR-2114/MAR Document Number 921211401_09_002 Page 54 από 74 Figure 4-32 Technician information Press any key to close the screen.
  • Page 55: Technicians Menu Section

    Date 9/7/2018 File BSR-2114/MAR Document Number 921211401_09_002 Page 55 από 74 5 Technicians menu section This section will reference the selections that a technician can do. ( access level 3 and 4). 5.1 Access Codes. Access levels ‘3’ and ‘4’ are used to access options that can control the panel in the event of a fire alarm or a fault condition. They are used also to get access to the options that program the panel.
  • Page 56: Check Menu

    Date 9/7/2018 File BSR-2114/MAR Document Number 921211401_09_002 Page 56 από 74 TECHNICIAN CHECK POINTS ZONES ZONE AUX RELAYS ALL ZONES SIRENS OUTPUT TEST NETWORK EXTENSION STEP BY STEP SETUP POINTS AUX RELAYS SIRENS TASKS GROUPS SYSTEM AUTOMATIC POINT DETECTION NETWORK DETECTION EXTENSION DETECTION INITIALISE NAMES FACTORY DEFAULTS...
  • Page 57: Check - Points Menu

    Date 9/7/2018 File BSR-2114/MAR Document Number 921211401_09_002 Page 57 από 74 5.3.1 Check - points menu !! BE AWARE !! THIS OPTION IS NOT ACCORDING TO EN 54-2. This selection permits us to test each point that is installed on the loop. The figure below shows a typical screen for testing one point of the panel.
  • Page 58: Check - Auxiliary Relay Menu

    Date 9/7/2018 File BSR-2114/MAR Document Number 921211401_09_002 Page 58 από 74 OUTPUT TEST : With this option enables the siren output for few seconds every time a alarm occurs in zone under  test. THIS OPTION IS NOT ACCORDING TO EN 54-2. 5.3.3 Check - Auxiliary relay menu With the option we can test the good operation of the 6 auxiliary relays.
  • Page 59: Check - Siren Menu

    Date 9/7/2018 File BSR-2114/MAR Document Number 921211401_09_002 Page 59 από 74 This screen shows the settings of the relay and can also be used to activate it. To activate the relay for 5 seconds we must move the arrow to point to the selection «PRESS ENTER FOR OUTPUT ACTIVATION »...
  • Page 60: Setup Menu

    Date 9/7/2018 File BSR-2114/MAR Document Number 921211401_09_002 Page 60 από 74 PANEL IN NETWORK ------------------------------------------------ - 11 - 15 - 21 30 - ------------------------------------------------ EVENTS IN QUEUE ..... PACKET IN NETWORK ....CONDITION OF PANEL NETWORK ..ΚΑΝΟΝΙΚΗ ------------------------------------------------ CORRECT PACKETS RECEIVED ....
  • Page 61 Date 9/7/2018 File BSR-2114/MAR Document Number 921211401_09_002 Page 61 από 74 Figure 5-9 Point configuration. Depending on the type of the installed point the screen shows the according settings. We can change the address or the loop by using the arrow keys «LEFT» and «RIGHT» . To set the setting press the «ENTER»...
  • Page 62 Date 9/7/2018 File BSR-2114/MAR Document Number 921211401_09_002 Page 62 από 74 Figure 5-10 Selecting the type of point This screen shows all the types of points that can be installed. ( Note- The ---- denote that the point is not available). Select the required type by using the «DOWN»...
  • Page 63 Date 9/7/2018 File BSR-2114/MAR Document Number 921211401_09_002 Page 63 από 74 The following window opens to change the status of a point. (figure 5-11). Figure 5-12 Changing the status of a point...
  • Page 64: Setup - Sirens

    Date 9/7/2018 File BSR-2114/MAR Document Number 921211401_09_002 Page 64 από 74 5.4.2 Setup - Sirens If Siren configuration is selected then a window is opened that permits us to select the siren that is to be configured. Select the required siren by using the «UP» and «DOWN» keys. Figure 5-12 shows a typical siren configuration screen.
  • Page 65: Setup - Aux Relay

    Date 9/7/2018 File BSR-2114/MAR Document Number 921211401_09_002 Page 65 από 74 5.4.3 Setup - Aux relay The configuration of the auxiliary relay is identical to the siren configuration. ( see paragraph. 5.4.2). Figure 5-14 Auxiliary relay configuration. THE OPTION DURATION AFTER ACTIVATION IS NOT ACCORDING TO EN 54-2. 5.4.4 Task setup If we select the function configuration option, a window will open that will permit us to select which function we want to...
  • Page 66: Setup - Groups

    Date 9/7/2018 File BSR-2114/MAR Document Number 921211401_09_002 Page 66 από 74 Figure 5-15 Function configuration To change the activation mode move the arrow to point to «ACTIVATION MODE» and press «ENTER». A window opens with the following options : ZONES (OR) : The function is activated when any chosen zone is activated. ...
  • Page 67: System Menu

    Date 9/7/2018 File BSR-2114/MAR Document Number 921211401_09_002 Page 67 από 74 Figure 5-16 Group configuration If we want to place a zone in a group place the cursor «^» under the zone using the «LEFT» and «RIGHT» and then press the «UP»...
  • Page 68 Date 9/7/2018 File BSR-2114/MAR Document Number 921211401_09_002 Page 68 από 74 Figure 5-17 Automatic point detection If the address of a point conflicts with the address of another point, then the message «POINTS WITH SAME ADDRESS» as shown in the figure below. This problem must be corrected and a new point recognition must be conducted. To continue press any key.
  • Page 69: Network Detection

    Date 9/7/2018 File BSR-2114/MAR Document Number 921211401_09_002 Page 69 από 74 Figure 5-19 End of point recognition. After point recognition has finished the screen will show information about the loops and after a while the panel will conduct a system reset (figure 5-19). 5.5.2 Network detection If the panel is master (panel address 1) is choice is available.
  • Page 70: Parameters Menu

    Date 9/7/2018 File BSR-2114/MAR Document Number 921211401_09_002 Page 70 από 74 This option clears the alarm counter. The alarm counter is a counter that counts the alarms and does not clear. The counter clears only with this option. To initialize the alarm counter you must be in access level 4. The access level is accessed when you are in access level 3 and the dip switch 4 of SW1 is ON on BOARD I/O.
  • Page 71: Mode Repeater

    Date 9/7/2018 File BSR-2114/MAR Document Number 921211401_09_002 Page 71 από 74 The parameters are : NETWORK STATUS : if the network in enabled or disabled. If the arrow is at this choice and we press «ENTER» we  can change the status. PANEL ADDRESS : The address can be set from 1 up to 32.
  • Page 72: Technical Characteristics Section

    Date 9/7/2018 File BSR-2114/MAR Document Number 921211401_09_002 Page 72 από 74 6 Technical characteristics section 6.1 Factory defaults Table 6-1 Factory default settings Loops No loop is installed No point is installed Points They are named with the following format «POINT 1 LOOP 1 PANEL 1» All sirens are enabled and are activated with a general alarm.
  • Page 73: Characteristics

    9/7/2018 File BSR-2114/MAR Document Number 921211401_09_002 Page 73 από 74 6.3 Characteristics Table 6-3 Characteristics BSR-2104/MAR BSR-2114/MAR 2-4 loop, 96 zone addressable fire detection panel. 220-240V AC/50-60Hz Power supply 2A-250VAC (slow blow) 5x20mm Fuse rating 100 VA Consumption Battery type...
  • Page 74 This warranty ceases to exist if the buyer does not follow the technical instructions included in official documents given by Olympia Electronics or if the buyer modifies the goods provided or has any repairs or re-setting done by a third party, unless Olympia Electronics has fully agreed to them in writing. Products that have been damaged can be returned to the premises of our company for repair or replacement, as long as the warranty period is valid.
