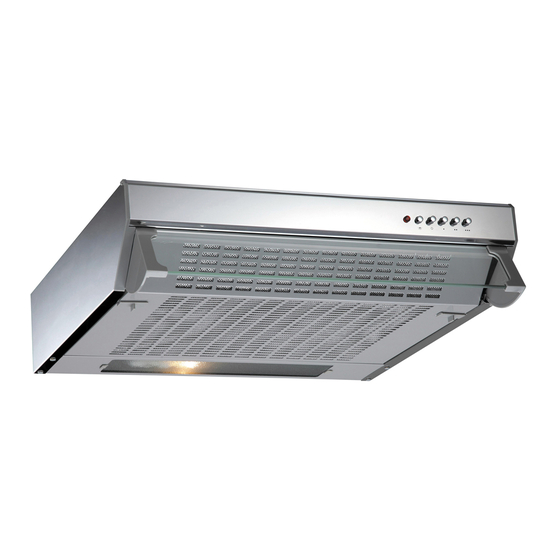

- Page 1 CST61 Extractor Installation, use and maintenance www.cda.eu...
-
Page 2: Table Of Contents
Contents Important information Important notes Using your extractor Care and maintenance Changing the charcoal filter Changing the light bulb Mains electricity connection Electrical information Troubleshooting Installation Mounting your extractor Selecting operating mode Energy efficiency information... - Page 3 Appliance information: Please enter the details on the appliance rating plate below for reference, to assist CDA Customer Care in the event of a fault with your appliance and to register your appliance for guarantee purposes. Appliance Model...
-
Page 4: Important Information
IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE PRODUCT IN ACCORDANCE WITH EC DIRECTIVE 2012/19/EU. At the end of its working life, the product must be taken to a special local authority waste collection centre or to a dealer providing appliance recycling services. Disposing of a household appliance separately avoids possible negative consequences for the environment and health. -
Page 5: Using Your Extractor
Using your extractor For best performance, you should switch on the extractor 15 minutes before starting to cook and leave it to run for approximately 15 minutes after the end of cooking. Control Panel Fig. 1 A - Neon Indicator B - Light button C - Off button D - Speed level buttons... -
Page 6: Care And Maintenance
To switch the extractor off • Press button “C”. Care and maintenance IMPORTANT : DO NOT PERFORM MAINTENANCE OR CLEANING OF THE EXTRACTOR WITHOUT FIRST SWITCHING OFF THE ELECTRICITY SUPPLY. Cleaning You should use a nonabrasive cleaner. Any abrasive cleaner (including Cif) will scratch the surface and could erase the control panel markings. -
Page 7: Changing The Charcoal Filter
This is normal and does not constitute a fault with the appliance. Changing the charcoal filter (re-circulating only) (Charcoal filter - CDA part number: CHA36) To ensure best performance of your extractor, you should replace the charcoal filter every four to six months, depending on use. See page... -
Page 8: Changing The Light Bulb
Only use the bulb recommended for your extractor. Do not fit a bulb of a higher power rating. Bulbs of a lower power rating may be adequate for use, generally last longer and use less energy. Spare bulbs are available from CDA Customer Care or from your local DIY shop. -
Page 9: Mains Electricity Connection
Mains Electricity DOUBLE POLE SWITCHED FUSED SPUR OUTLET Connection THIS APPLIANCE MUST BE CONNECTED TO THE MAINS SUPPLY BY A COMPETENT PERSON, USING FIXED WIRING VIA A DOUBLE POLE SWITCHED FUSE SPUR OUTLET AND USE A 3 AMP FUSE PROTECTED BY A 3A FUSE. We recommend that the appliance is connected by a qualified electrician, who is a member of the N.I.C.E.I.C. -
Page 10: Electrical Information
Assembly and electrical connection should be carried out by specialised personnel. When installing this product we recommend you seek the help of another individual. Electrical information Mains electrical voltage: 230 – 240Vac. Total rated power consumption: 70.5W. Troubleshooting Please note: Your extractor is equipped with a motor protection device that will switch off the motor to prevent damage from overheating. -
Page 11: Installation
Installation When the extractor is to be installed above an electric hob, the minimum distance between the hob and extractor must exceed 600mm (650mm is recommended). When the extractor is to be installed above a gas hob, the minimum distance between the hob and extractor must exceed 700mm (750mm is recommended). -
Page 12: Mounting Your Extractor
Mounting your extractor The extractor can be mounted in two ways: To fasten the product to the underside of a bridging cabinet: 1. Remove the grease filter cover. 2. Screw the hood directly to the cabinet using appropriate wood screws (these are not supplied). -
Page 13: Selecting Operating Mode
To mount the hood on to a wall: 1. Remove the grease filter and cover. 2. Drill four holes as shown as “B” and “Z” in Fig. 4. Please note: The size required for the holes is dependent on the wall fixings to be used. - Page 14 Extraction mode For extraction mode, set the lever “L” (Fig. 5) to position “A” (the left hand side). The extracted air is then routed through the outlet “C” (Fig. Recirculation mode For recirculation mode, set the lever “L” (Fig. 5) to position “F” (the right hand side).
-
Page 15: Energy Efficiency Information
Measured power consumption in off mode Sound Power Level Grease Filter Efficiency 67.7 Hood Lamp Efficiency 2.1 (G) Hood E & O E. All instructions, dimensions and illustrations are provided for guidance only. CDA reserve the right to change specifications without prior notice. - Page 16 For more information please contact: The Sales Department on 01949 862 010 or email sales@cda.eu Customer Care Department. The CDA Group Ltd, Harby Road, Langar, Nottinghamshire, NG13 9HY 01949 862 012 01949 862 003 customer.care@cda.eu www.cda.eu VER 2111...
