Summary of Contents for Electra Multi Split DUO 50 DCI

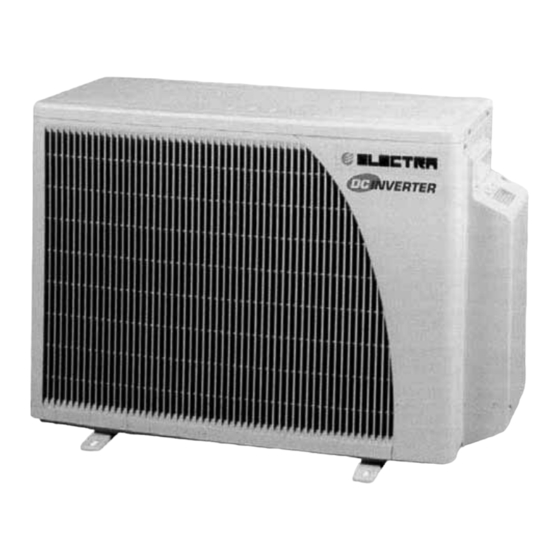

- Page 1 Multi Split DUO 50 DCI Indoor Units Outdoor Units WNG 25 DCI WNG 35 DCI K 25 DCI DUO 50 DCI K 35 DCI PXD 25 DCI PXD 35 DCI LS 35 DCI REFRIGERANT R410A HEAT PUMP SEPTEMBER –– 2008 SM DUODCI 1-E.1 GB...
- Page 2 LIST OF EFFECTIVE PAGES LIST OF EFFECTIVE PAGES Note: Changes in the pages are indicated by a “Revision#” in the footer of each effected page (when none indicates no changes in the relevant page). All pages in the following list represent effected/ non effected pages divided by chapters.
- Page 3 TABLE OF CONTENTS Table of Contents INTRODUCTION ....................1-1 PRODUCT DATA SHEET ..................2-1 RATING CONDITIONS ..................3-1 OUTLINE DIMENSIONS ..................4-1 PERFORMANCE DATA ..................5-1 PRESSURE CURVES ...................6-1 ELECTRICAL DATA ....................7-1 WIRING DIAGRAMS .....................8-1 REFRIGERATION DIAGRAMS ................9-1 10. TUBING CONNECTIONS ..................10-1 11. CONTROL SYSTEM .....................11-1 12.
- Page 4 INTRODUCTION INTRODUCTION General The new DUO50 DCI is a high efficiency inverter technology outddor unit, since it’s a lego concept unit, it can be matched to several types of inverter indoors, such wall mounted, cassette , floor/ceiling units, with a capacity range of 2.5 – 3.5 Kw for each single indoor unit.
- Page 5 INTRODUCTION Matching Table 1.5.1 R410A INDOOR UNITS OUTDOOR UNITS MODEL REFRIGER. WNG25 WNG35 PXD25 PXD35 LS35 √ √ √ R410A DUO50 DCI √ √ √ √ R410A SM DUODCI 1-E.1 GB CONTENT...
- Page 6 PRODUCT DATA SHEET PRODUCT DATA SHEET Outdoor Unit DUO 50 DCI Specifications. Model DUO-50 DCI R410A Function Cooling Heating Capacity Kcal/hr 4300(1030~5570) 5330(820~6670) Btu/hr 17050(4090~22100) 21140(3240~26430) 5000(1200~6480) 6200(950~7750) Total Input 1470(420~2160) 1670(375~2050) E.E.R (Cooling) / C.O.P (Heating) 3.71 Running Current Starting Current 10.5 Inrush Current...
- Page 7 PRODUCT DATA SHEET Indoor Units Data 2.2.1 WNG 25 DCI Specifications Model Indoor Unit / Type WNG 25 DCI / Wall Mounted Installation Method FLARE Fan Motor Output Power Supply V/Ph/Hz 220-240 / 1/ 50 Fan Type & Quantity Crossflow *1 Airflow H/M/L 530/570...
- Page 8 PRODUCT DATA SHEET 2.2.3 K 25 DCI Specifications Model Indoor Unit / Type K 25 DCI / Cassette Installation Method FLARE Fan Motor Output Power Supply V/Ph/Hz 220-240 / 1/ 50 Fan Type & Quantity Centifugal *1 Airflow H/M/L 530/600 500/530 435/450 Cooling / Heating...
- Page 9 PRODUCT DATA SHEET 2.2.5 PXD 25 DCI Specifications Model Indoor Unit / Type PXD 25 DCI / Cassette Installation Method FLARE Fan Motor Output Power Supply V/Ph/Hz 220-240 / 1/ 50 Fan Type & Quantity Centifugal *2 Airflow H/M/L Cooling / Heating Sound Power Level L - H dB (A)
- Page 10 PRODUCT DATA SHEET 2.2.7 LS 35 DCI Specifications Model Indoor Unit / Type LS 35 DCI / Cassette Installation Method FLARE Fan Motor Output Power Supply V/Ph/Hz 220-240 / 1/ 50 Fan Type & Quantity Centifugal *2 Airflow H/M/L Cooling / Heating Sound Power Level L - H dB (A)
- Page 11 PRODUCT DATA SHEET Data For Outdoor Unit DUO 50 DCI Combinations (Based on WNG) Cooling Heating Total Total Indoor Units Room A Room B Power Input Room A Room B Power Input Capacity Capacity Combinations 2500 3400 1135 2500 3400 (1220 - 3700) (420 - 980) (950 - 4000)
- Page 12 RATING CONDITIONS RATING CONDITIONS Standard conditions in accordance with ISO 5151, ISO 13253 (for ducted units) and EN 14511. Cooling: Indoor: C DB 19 C WB Outdoor: 35 C DB Heating: Indoor: C DB Outdoor: 7 C DB 6 C WB Operating Limits Indoor Outdoor...
- Page 13 OUTLINE DIMENSIONS OUTLINE DIMENSIONS Indoor Unit: WNG 25 / 35 DCI Indoor Unit: K25 / 35 DCI SM DUODCI 1-E.1 GB CONTENT...
- Page 14 OUTLINE DIMENSIONS Indoor Unit: PXD 25 / 35 DCI Indoor Unit: LS 35 DCI SM DUODCI 1-E.1 GB CONTENT...
- Page 15 OUTLINE DIMENSIONS Outdoor Unit: DUO 38 DCI / Delta SM DUODCI 1-E.1 GB CONTENT...
- Page 16 PERFORMANCE DATA PERFORMANCE DATA WNG 25 DCI 5.1.1 Cooling Capacity (kW) - Run Mode (Unit A or B) 230[V] : Indoor Fan at High Speed. ID COIL ENTERING AIR DB/WB TEMPERATURE [ OD COIL 22/15 24/17 27/19 29/21 32/23 ENTERING AIR DB DATA TEMPERATURE [ 80 - 110 % of nominal...
- Page 17 PERFORMANCE DATA 5.1.3 Heating Capacity (kW) - Run Mode(Unit A or B) 230[V] : Indoor Fan at High Speed. ID COIL ENTERING AIR DB TEMPERATURE [ OD COIL ENTERING AIR DB/WB DATA TEMPERATURE [ 1.97 1.84 1.70 -15/-16 0.50 0.55 0.60 2.20 2.06...
- Page 18 PERFORMANCE DATA WNG 35 DCI 5.2.1 Cooling Capacity (kW) - Run Mode (Unit A or B) 230[V] : Indoor Fan at High Speed. ID COIL ENTERING AIR DB/WB TEMPERATURE [ OD COIL ENTERING AIR DB DATA 22/15 24/17 27/19 29/21 32/23 TEMPERATURE [ 80 - 110 % of nominal...
- Page 19 PERFORMANCE DATA 5.2.3 Heating Capacity (kW) - Run Mode(Unit A or B) 230[V] : Indoor Fan at High Speed. ID COIL ENTERING AIR DB TEMPERATURE [ OD COIL ENTERING AIR DB/WB DATA TEMPERATURE [ 2.20 2.04 1.89 -15/-16 0.59 0.65 0.71 2.44 2.29...
- Page 20 PERFORMANCE DATA K 25 DCI 5.3.1 Cooling Capacity (kW) - Run Mode(Unit A or B) 230[V] : Indoor Fan at High Speed. ID COIL ENTERING AIR DB/WB TEMPERATURE [ OD COIL 22/15 24/17 27/19 29/21 32/23 ENTERING AIR DB DATA TEMPERATURE [ 80 - 110 % of nominal -10 - 20...
- Page 21 PERFORMANCE DATA 5.3.3 Heating Capacity (kW) - Run Mode(Unit A or B) 230[V] : Indoor Fan at High Speed. ID COIL ENTERING AIR DB TEMPERATURE [ OD COIL ENTERING AIR DB/WB DATA TEMPERATURE [ 1.99 1.85 1.71 -15/-16 0.52 0.57 0.62 2.22 2.08...
- Page 22 PERFORMANCE DATA K 35 DCI 5.4.1. Cooling Capacity (kW) - Run Mode (Unit A or B) 230[V] : Indoor Fan at High Speed. ID COIL ENTERING AIR DB/WB TEMPERATURE [ OD COIL 22/15 24/17 27/19 29/21 32/23 ENTERING AIR DB DATA TEMPERATURE [ 80 - 110 % of nominal...
- Page 23 PERFORMANCE DATA 5.4.3 Heating Capacity (kW) - Run Mode (Unit A or B) 230[V] : Indoor Fan at High Speed. ID COIL ENTERING AIR DB TEMPERATURE [ OD COIL ENTERING AIR DB/WB DATA TEMPERATURE [ 2.13 1.98 1.83 -15/-16 0.59 0.64 0.70 2.37...
- Page 24 PERFORMANCE DATA PXD 25 DCI 5.5.1. Cooling Capacity (kW) - Run Mode (Unit A or B) 230[V] : Indoor Fan at High Speed. ID COIL ENTERING AIR DB/WB TEMPERATURE [ºC] OD COIL ENTERING AIR DB DATA 22/15 24/17 27/19 29/21 32/23 TEMPERATURE [ºC] 80 - 110 % of nominal...
- Page 25 PERFORMANCE DATA 5.5.3 Heating Capacity (kW) - Run Mode (Unit A or B) 230[V] : Indoor Fan at High Speed. ID COIL ENTERING AIR DB TEMPERATURE [ºC] OD COIL ENTERING AIR DB/WB DATA TEMPERATURE [ºC] 1.87 1.74 1.61 -15/-16 0.54 0.60 0.65 2.08...
- Page 26 PERFORMANCE DATA PXD 35 DCI 5.6.1. Cooling Capacity (kW) - Run Mode (Unit A or B) 230[V] : Indoor Fan at High Speed. ID COIL ENTERING AIR DB/WB TEMPERATURE [ºC] OD COIL 22/15 24/17 27/19 29/21 32/23 ENTERING AIR DB DATA TEMPERATURE [ºC] 80 - 110 % of nominal...
- Page 27 PERFORMANCE DATA 5.6.3 Heating Capacity (kW) - Run Mode (Unit A or B) 230[V] : Indoor Fan at High Speed. ID COIL ENTERING AIR DB TEMPERATURE [ºC] OD COIL ENTERING AIR DB/WB DATA TEMPERATURE [ºC] 2.11 1.96 1.81 -15/-16 0.64 0.70 0.77 2.35...
- Page 28 PERFORMANCE DATA LS 35 DCI 5.7.1. Cooling Capacity (kW) - Run Mode (Unit A or B) 230[V] : Indoor Fan at High Speed. ID COIL ENTERING AIR DB/WB TEMPERATURE [ºC] OD COIL ENTERING AIR DB DATA 22/15 24/17 27/19 29/21 32/23 TEMPERATURE [ºC] 80 - 110 % of nominal...
- Page 29 PERFORMANCE DATA 5.7.3 Heating Capacity (kW) - Run Mode (Unit A or B) 230[V] : Indoor Fan at High Speed. ID COIL ENTERING AIR DB TEMPERATURE [ºC] OD COIL ENTERING AIR DB/WB DATA TEMPERATURE [ºC] 2.09 1.94 1.80 -15/-16 0.54 0.60 0.65 2.32...
- Page 30 PERFORMANCE DATA Capacity Correction Factor Due to Tubing Length (OneWay) 5.8.1 WNG25, WNG35, K25, K35 5.8.2 Cooling Capacity Ratio VS.Tubing Length - Cooling 1.02 1.00 0.98 0.96 0.94 0.92 0.90 0.88 Tubing Length [m] 5.8.3 Heating Capacity Ratio VS. Tubing Length - Heating 1.02 1.00 0.98...
- Page 31 PRESSURE CURVES PRESSURE CURVES Model: WNG 25+25 DUO 50 DCI 6.1.1 Cooling – Test Mode Suction Pressure Vs. Outdoor Temp’ - Cooling 1400 Indoor DB/WB 1300 1200 22/15 24/17 1100 27/19 1000 29/21 32/23 Outdoor DB Temperature[ºC] Discharge Pressure Vs. Outdoor Temp’- Cooling Indoor 4000 DB/WB...
- Page 32 PRESSURE CURVES 6.1.2 Heading – Test Mode Suction Pressure Vs. Outdoor Temp’ - Heating 1000 Indoor Outdoor WB Temperature[ºC] Discharge Pressure Vs. Outdoor Temp’- Heating 3250 Indoor 3000 2750 2500 2250 2000 1750 1500 Outdoor WB Temperature[ºC] SM DUODCI 1-E.1 GB CONTENT...
- Page 33 ELECTRICAL DATA ELECTRICAL DATA Power Supply 1 PH, 220-240 VAC, 50Hz Connected to Outdoor Maximum Current 13.7 A Inrush Current 35 A Starting Current 10 A Circuit breaker 16 A Power supply wiring - No. x cross section 3 X 2.5 mm Interconnecting cable - No.
- Page 34 WIRING DIAGRAMS WIRING DIAGRAMS DUO 50 DCI Wiring Diagram EEV1 EEV2 SM DUODCI 1-E.1 GB CONTENT...
- Page 35 REFRIGERATION DIAGRAMS REFRIGERATION DIAGRAMS Heat Pump Models 9.1.1 DUO 50 DCI => Cooling Mode SM DUODCI 1-E.1 GB CONTENT...
- Page 36 REFRIGERATION DIAGRAMS 9.1.2 DUO 50 DCI => Heating Mode SM DUODCI 1-E.1 GB CONTENT...
- Page 37 TUBING CONNECTIONS TUBING CONNECTIONS TUBE (Inch) ¼” ⅜” ½” ⅝” ¾” TORQUE (Nm) Flare Nuts 11-13 40-45 60-65 70-75 80-85 Valve Cap 13-20 13-20 18-25 18-25 40-50 Service Port Cap 11-13 11-13 11-13 11-13 11-13 Valve Protection Cap-end Refrigerant Valve Port (use Allen wrench to open/close) Valve Protection Cap Refrigerant Valve Service Port Cap...
- Page 38 CONTROL SYSTEM CONTROL SYSTEM 11.1 General Functions and Operating Rules (for single split models) The DCI software is fully parametric. All the model dependent parameters are shown in Blue color and with Italic style [parameter]. The parameters values are given in the last section of this control logic chapter of the service manual.
-
Page 39: Maxfreqasoatc
CONTROL SYSTEM 11.3.2 Target Frequency Setting The compressor target frequency is a function of the NLOAD number sent from the indoor controller and the outdoor air temperature. Basic Target Frequency Setting: NLOAD Target Frequency Maximum frequency 10 < NLOAD < 127 Interpolated value between minimum and maximum frequency Minimum frequency Compressor is stopped... - Page 40 CONTROL SYSTEM 11.4 Indoor Fan Control 10 Indoor fan speeds are determined for each model. 5 speeds for cool/dry/fan modes and 5 speeds for heat mode. When user sets the indoor fan speed to a fixed speed (Low/ Medium/ High), unit will operate constantly at set speed.
- Page 41 CONTROL SYSTEM 11.7 EEV (electronic Expansion valve) Control EEV opening is defined as EEV = EEV + EEV • is the initial EEV opening as a function of the compressor frequency, operation mode, unit model and capacity. • is a correction value for the EEV opening that is based on the compressor temperature.
- Page 42 CONTROL SYSTEM 11.14 Heat Mode NLOAD is calculated according to the difference between actual room temperature and user set point temperature by PI control. In high/ medium/ low indoor fan user setting, unit will operate fan in selected speed. In AutoFan user setting, fan speed will be adjusted automatically according to the calculated NLOAD.
- Page 43 CONTROL SYSTEM 11.16 Dry Mode As long as room temperature is higher then the set point, indoor fan will work in low speed and compressor will work between 0 and MaxNLOADIF1C Hz. When the room temperature is lower than the set point, compressor will be switched OFF and indoor fan will cycle 3 minutes OFF, 1 minute ON.
-
Page 44: Compressor Over Heating Protection
CONTROL SYSTEM 11.17.3 Compressor over Heating Protection Compressor temperature can be in one of 5 control zones (4 in protection, and 1 normal), t. Stop-Compresor CTTOH4 CTTOH3 CTTOH2 CTTOH1 Normal Compressor Temperature Control Status Else Increases Norm Stop Compressor 11.17.4 Compressor over Current Protection Stop-Compresor CCROC4... - Page 45 CONTROL SYSTEM 11.17.5 Heat Sink Over Heating Protection (NA for DCI 25 and 35) HST Trend Decreasing No Change Increasing HST > 90 85 < HST ≤ 90 82 < HST ≤ 85 80 < HST ≤ 82 78 < HST ≤ 80 Norm Norm HST ≤...
- Page 46 CONTROL SYSTEM 11.17.6.2 Deicing Protection Procedure Threshold COMP max. 12 minutes HEAT COOL OFAN EEVDeicerOpen T1 = T2 = 36 seconds, T3 = 6 seconds 11.17.7 Condensate Water Over Flow Protection Each of the pins P1, P2, P3 can have two options: 1 –...
- Page 47 CONTROL SYSTEM Water Level LEVEL4 LEVEL2&3 LEVEL1 Pump NLOAD BLINK OPER LED NORMAL 11.17.7.2 1 Level Logic (used in all models except for floor/ceiling models) Level Don’t Normal care Don’t Overflow care Overflow when Overflow when unit is ON unit is OFF Overflow Water Level Normal...
- Page 48 CONTROL SYSTEM 11.18 Indoor Unit Dry Contact Indoor unit Dry contact has two alternative functions that are selected by J8. Function Contact = Open Contact = Short J8 = Open Presence Detector Connection No Limit Forced to STBY J8 = Short Power Shedding Function No Limit Limit NLOAD...
- Page 49 CONTROL SYSTEM 11.20.2 Indoor Unit Controls and Indicators for LCD Display STBY Cool Heat Auto SPT(1*) SPT(1*) SPT(1*) SPT(1*) SPT(1*) OFF(2*) ON(2*) ON(2*) ON(2*) ON(2*) ON(2*) OFF(2*) OFF(2*) OFF(2*) OFF(2*) OFF(2*) OFF(2*) (Low) (Med) User User User User User (High) setting setting setting...
- Page 50 CONTROL SYSTEM 11.21 Test Mode 11.21.1 Entering Test Mode System can enter Test mode in two ways: • Automatically when the following conditions exists for 30 minutes continuously: o Mode = Cool, Set point = 16, Room temperature = 27±1, Outdoor temperature = 35±1 o Mode = Heat, Set point = 30, Room temperature = 20±1, Outdoor temperature = 7±1...
- Page 51 CONTROL SYSTEM 11.22.3 Outdoor Unit NLOAD setting The MSMP controller gets the NLOAD from each of the indoor units, and sends a combined NLOAD to the outdoor unit control. The combined NLOAD is a weighted average of the indoor units NLOAD. The weight of the indoor units as a function of their nominal capacity: Indoor Unit Capacity [kW] (kBtu/hr) Capacity Code...
- Page 52 CONTROL SYSTEM 11.24 SW Parameters 11.24.1 Indoor Units SW Parameters General Parameters for All Models: Parameters defining the indoor fan speed as a function of Indoor Coil temperature in heat mode (ICT): ICTST Speed ICT to stop indoor fan ICTVLSpeed ICT to go down to very low speed ICTLSpeed ICT to start in very low speed...
-
Page 53: Table Of Contents
CONTROL SYSTEM 11.24.2 Outdoor Units SW Parameters: Parameter Name DCI25 DCI35 DCI 50 DCI50 DUO Compressor Parameters MinFreqC MaxFreqC MinFreqH MaxFreqH Step1Freq Step2Freq Step3Freq Frequency limits as a function of outdoor air temperature MaxFreqAsOATC MaxFreqAsOAT1H MaxFreqAsOAT2H Compressor Over Heating Protection CTTOH1 CTTOH2 CTTOH3... - Page 54 TROUBLESHOOTING TROUBLESHOOTING WARNING!!! When Power Up – the whole outdoor unit controller, including the wiring, is under HIGH VOLTAGE!!! Never open the Outdoor unit before turning off the Power!!! When turned off, the system is still charged (400V)!!! It takes about 3 Min. to discharge the system. Touching the controller before discharging may cause an electrical shock!!! For safe handling of the controller please refer to section 1.6 below.
- Page 55 TROUBLESHOOTING 1.2 Checking the refrigeration system Checking system pressures and other thermodynamic measures should be done when system is in Test Mode (in Test mode, system operates in fixed settings). The performance curves given in this manual are given for unit performance in test mode when high indoor fan speed is selected. Entering test mode: Set the two indoor units to Cool/16 degrees/High indoor fan speed, or Heat/30 degrees/High indoor fan speed, and enter diagnostics.
- Page 56 TROUBLESHOOTING 1.3.2 Outdoor unit diagnosis by MSMP and corrective actions Probable Cause Corrective Action Fault Sensors failures of all types Check sensors connections or replace sensors. IPM Fault Electronics HW Check all wiring and jumper problem settings, if OK, replace electronics.
- Page 57 TROUBLESHOOTING 1.3.3 MSMP Fault Code for Indoor unit: Problem RT-1 is disconnected RT-1 is shorted RT-2 is disconnected RT-2 is shorted RGT is disconnected Reserved Communication mismatch No Communication No Encoder Reserved Outdoor unit fault Reserved Reserved. Reserved Reserved Defrost protection Deicing Protection Outdoor Unit Protection Indoor Coil HP Protection...
- Page 58 TROUBLESHOOTING 1.3.4 Indoor unit diagnosis by MSMP and corrective actions Probable Cause Corrective Action Fault Sensors failures of all Check sensors connections types or replace sensors. IPM Fault Electronics HW Check all wiring and jumper problem settings, if OK, replace electronics.
- Page 59 TROUBLESHOOTING 1.5.3 Checking the PCB. Appearance inspect: Check discoloration, nick and connection of copper foil, short-circuit and open circuit, component soldering, bulgy and distortion of electrolytic capacitor. Power circuit check: check voltage of every power level (5V, 12V, 15V) printed on back of PCB. 1.5.4 Checking the Outdoor Fan Motor.
- Page 60 EXPLODED VIEWS AND SPARE PARTS LISTS EXPLODED VIEWS AND SPARE PARTS LISTS 13.1 Outdoor Unit: DUO 50 DCI SM DUODCI 1-E.1 GB 13-1 CONTENT...
- Page 61 EXPLODED VIEWS AND SPARE PARTS LISTS 14.2 Outdoor Unit: DUO 50 DCI Part No. Description Unit Front panel A 433218 Air inlet ring-420 4526340 Painting insulation plate 433223 Axial fan OD=401 4526476 DC motor ARW 44 8p 40W 4526475 Motor support 4526457 Base painting assy 4526482...
- Page 62 APPENDIX A APPENDIX A INSTALLATION AND OPERATION MANUAL ► INSTALLATION MANUAL DUO 50 DCI 14-1 SM DUODCI 1-E.1 GB CONTENT...
