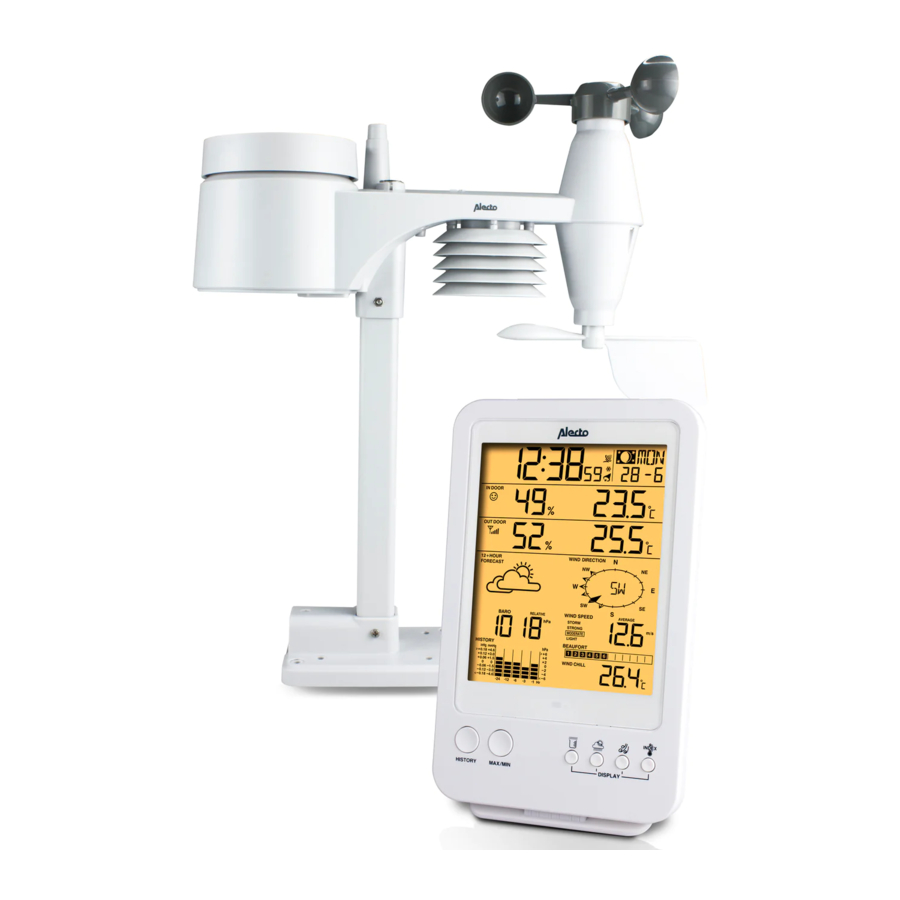

Alecto WS-4800, WS-4700 - Weather Station with Wireless Outdoor Sensor Manual

OVERVIEW

Indoor unit

1. SNOOZE/LIGHT button: snooze button in alarm mode, also for activating the display lighting
2. Display (the following pages will explain what everything on the display means)
3. Alert LED for the MAX/MIN alarm
4. HISTORY button: displays the data of the past 24 hours
5. MAX/MIN button:
   displays the measured minimum and maximum values, including at what time and on which date the measurement was taken
6. button: 'rainfall' button
7. button: 'barometer' button
8. button: 'wind' button
9. button: 'index' button
10. button: clock setup button
11. button: alarm clock setup button
12. button: alarm setup button
13. button: down button
14. button: up button
15. °C/°F switch:
    to set the temperature display to degrees Celsius or degrees Fahrenheit
16. Battery compartment
17. RCC button: to switch the DCF receiver on or off
18. SCAN button: to have the indoor unit search for the outdoor unit
19. RESET button: to reboot the indoor unit in case of a (possible) fault

Outdoor unit

Side view

20. Rain meter
21. Antenna
22. Wind speed meter
23. Temperature + air humidity sensor

Bottom view

24. Wind direction vane
25. LED (transmit indicator)
26. RESET button
27. Battery compartment

INSTALLATION

Attention :
after the installation, it may take several hours up to a day before the correct values are displayed. Additionally, after replacing exhausted batteries in the indoor unit, all measured data in the indoor unit will be erased.

Power supply

Advice regarding batteries:
We advise you to use normal alkaline batteries of high quality for the indoor unit. Alkaline batteries with a capacity of 2000mAh have a lifespan of over one year. Rechargeable batteries are not recommended because of their lower supply voltage.

Also the outdoor unit is powered by 3 AA 1.5Volt batteries, but because normal Alkaline batteries perform poorly or not at all at temperatures of around or below 0°C, it's not recommended to use standard Alkaline batteries for the outdoor unit.
For that reason, we advise you to use Lithium batteries for the outdoor unit that are designed to function well within a temperature range of -20°C to 60°C. These batteries can be ordered via the service department of Alecto via www.alecto.info
Lithium batteries with a capacity of 2900mAh have a lifespan of over one year.

Indoor unit:
Slide down the battery cover at the rear of the unit and insert 3 AA 1.5V batteries according to the markings inside the battery compartment. Slide the battery cover back onto the indoor unit. (Batteries are not included) The indoor unit will now start a 1 minute scan to search for the outdoor unit. Therefore, you'll need to insert the batteries into the outdoor unit within that minute.

Outdoor unit:
Open the battery compartment by loosening the battery cover using a small crosshead screwdriver. Install 3 AA 1.5V batteries according to the picture below, paying attention to the correct polarity (+ and -). Replace the cover and fasten the screw (batteries are not included).

Pairing the indoor unit/outdoor unit

Automatically:
As soon as you insert the batteries into the indoor unit, the indoor unit will start a 1 minute scan to search for the signal of the outdoor unit. Therefore, if you insert the batteries into the outdoor unit within that minute and the units will 'find' each other, they will be automatically paired and the display of the indoor unit will show the temperature transmitted by the outdoor unit.

Manually:
If the units cannot be paired automatically, or after replacing the batteries, you can pair the outdoor unit (again) with the indoor unit as follows:

1. press and hold the SCAN button on the indoor unit for 2 seconds until the antenna symbol starts flashing in the display
2. Press briefly press the RESET button on the outdoor unit
3. the units will have found each other (again) after several seconds

Positioning: reset

Indoor unit:
You may suspend the indoor unit from a simple screw in a wall or use it as a desk model with the supplied support. In any case, never place the indoor unit in direct sunlight or next to heat radiating lights or stoves.

Outdoor unit:
You may place the outdoor unit on a flat surface (such as a fence or railing) or on top of a pole (not included). In any case, make sure the unit is placed at least 1.5 meters above the ground and ensure the unit is standing freely in the rain and wind.

Outdoor unit positioning tips:
To ensure that the rain meter is functioning as accurate as possible, the outdoor unit must be standing exactly horizontal. You can verify this by using the built-in spirit level at the top of the outdoor unit.

To be able to check from which direction to wind is coming, the outdoor unit should be aimed to the North. To do this, use the N marking on top of the outdoor unit. Use an accurate compass (not included) to properly orient the unit.


Make sure that the distance between the outdoor unit and indoor unit is no greater than 50 to 100 meters.

Clock

Introduction
The WS-4700 is provided with a built-in DCF receiver which receives the DCF time signal from Frankfurt. This signal ensures that the clock shows the time very accurately, provided a strong enough signal is being received.

Automatically:
As soon as you insert the batteries into the indoor unit, the clock will start searching for the DCF radio signal for the time while the antenna symbol is flashing. After several seconds or minutes the WS-4700 will start showing the correct time. In extreme cases, it can take over a day before the DCF time is shown.

Manually:
If the clock cannot receive the radio signal or cannot receive it well enough, you can set the clock manually as follows:

1. press and hold the button for 2 seconds, 12Hr or 24Hr will appear in the display
2. Use to set the time format, then briefly press the button
3. use to set the hours and then briefly press the button
4. use to set the minutes and then briefly press thebutton
5. use to set the seconds to 0 (this allows you to have the clock run synchronously with your own clock) and then briefly press the button
6. use to set the year and then briefly press the button
7. use to set the month and then briefly press the button
8. use to set the date and then briefly press the button
9. use to set the hour difference compared to the DCF time. E.g. for use in the Benelux select '0' and then briefly press the button.
10. use to set the language in which the day must be displayed, you may choose from: EN (English), FR (French), DE (German), ES (Spanish) or IT (Italian), now briefly press the button.
11. use to determine whether the clock must switch to daylight saving time or standard time automatically (AUTO) or whether you prefer to do this manually (OFF), now briefly press the button.

The clock is now set manually.
When the DCF receiver is enabled and a strong signal is being received, the receiver will overwrite the clock display.

Switching the DCF receiver on/off:
You can turn off the DCF receiver as follows, allowing you to have only the time and date shown on the display according to your programming:

• turn off: press and hold the RCC OFF button at the rear of the indoor unit for 8 seconds until the antenna symbol disappears.
  You can turn the receiver back on as follows:
• turn on: press and hold the RCC ON button at the rear of the indoor unit for 8 seconds until the antenna symbol starts flashing.

The symbol in the upper middle part of the display shows the status of the DCF clock:

no symbol:	the DCF receiver is disabled; the displayed time is provided by the internal clock of the WS-4700
flashing:	the DCF receiver is enabled and is searching for the DCF signal; the displayed time is provided by the internal clock of the WS-4700
remains lit:	the DCF receiver is enabled and is receiving the DCF signal; the displayed time and date are provided by the DCF atomic clock in Frankfurt

To reset measurement data

After the installation is completed, press and hold the HISTORY button for 10 seconds to delete all of the measurements made up until that moment. This ensures that you won't see any measurements at a later time that were caused by movements during the installation.

OPERATION

Basic functions

The display shows the following basic functions/data:

1. illuminates when the battery of the indoor unit is running low
2. display of the actual time
3. illuminates when the alarm clock is set to ice alert (see chapter "ALARM CLOCK")
4. illuminates when the DCF clock radio signal is being received
5. illuminates when the daylight saving time is enabled
6. display of the moon status (*1)
7. display of the day of the week
8. illuminates when using the MAX/MIN button to display the maximum or minimum values (*2)
9. illuminates when the alarm clock is set (see chapter "ALARM CLOCK")
10. display of the date
11. display of the month

*1: The display of the moon status is linked to the settings of the date, month and year. The display can show the following moon statuses:

	New moon		Full moon
	Waxing crescent		Waning moon
	First quarter		Last quarter
	Crescent		Ashen moon

*2: By repeatedly pressing the MAX/MIN button, the following data will appear in the display in order:

1. maximum outdoor temperature
2. minimum outdoor temperature
3. maximum outdoor humidity
4. minimum outdoor humidity
5. maximum indoor temperature
6. minimum indoor temperature
7. maximum indoor humidity
8. minimum indoor humidity
9. maximum wind chill
10. minimum wind chill
11. maximum heat index
12. minimum heat index
13. maximum dew point temperature
14. minimum dew point temperature
15. maximum air pressure
16. minimum air pressure
17. maximum average wind speed
18. maximum wind gust speed
19. maximum rainfall

The upper right part of the display shows on which day and at what time the concerned minimum or maximum value was measured.
Press and hold the MAX/MIN button for 2 seconds to erase this memory

Indoor temperature and humidity

1. relative indoor air humidity
2. illuminates when the max or min alarm is set
3. indoor temperature
4. comfort icon, this is a combination of temperature and humidity (*3)

*3:
comfortable
comfort not OK (too cold/too dry)
comfort not OK (too warm/too humid)
there's no comfort indication at temperatures <0°C (32°F) or >60°C (140°F)

Outdoor temperature and air humidity

1. relative outdoor air humidity
2. illuminates when the max or min alarm is set
3. outdoor temperature
4. indicates the connection strength of the radio signal with the outdoor unit (*4)
5. illuminates when the batteries in the outdoor unit are running low

*4:

no sensor	searching for contact with sensor	good reception	average reception	no reception

Weather forecast

12+ HOUR FORECAST

1. here the weather forecast is shown

Sunny	partly cloudy	cloudy	rainy	storm (flashing)	snow

Remarks:

• the accuracy of a forecast based on air pressure is 70% to 75%; please keep in mind that a correct display of the weather forecast is not guaranteed.
• the prediction is based on the coming 12 hours and does not necessarily represent the current weather conditions.
• the 'snow' weather forecast is based on the air pressure combined with the temperature: when the forecast is in fact 'rain', but the outdoor temperature is below -3°C (26°F), 'snow' will be predicted

Barometer (air pressure)

If this window is not visible, please first press the button

1. actual air pressure
2. indicates whether the relative or absolute (*5) air pressure is displayed
3. indicates whether the air pressure is shown in hPa (hecto Pascals), in inHg (inches of mercury) or in mmHg (millimetres of mercury) (*6)
4. +5. this shows the trend of the air pressure over the last 24 hours

*5: An absolute air pressure indicates the air pressure which is present independent from the height on which you're measuring the air pressure. A relative air pressure is the air pressure corrected for the height on which you're measuring the air pressure. For a correct weather forecast the relative air pressure is required.

You can set the desired unit as follows:

1. press and hold the button for 2 seconds
2. use to select your desired unit
3. briefly press the button (if the air pressure now starts flashing, press the button again)
   Chapter "RELATIVE AIR PRESSURE" explains how you can change the relative air pressure display in case you're using the weather station on a much higher level than mean sea level.

*6: In the Benelux one uses the hectoPascal notation. Before, the air pressure was sometimes also expressed in bar; 1 mbar equals 1 hPa.
You may switch between these notations by briefly pressing the button.

Rain

If this window is not visible, please first press the button

1. amount of rainfall
2. indicates how much rain has fallen in in (inches) or in mm (millimetres) (*7)
3. +4. this shows the trend of the rainfall over the past 5 days

5. indicates over which period rainfall is measured (*8)
6. illuminates when the max rain alert is set

*7: You can set the desired unit as follows:

1. press and hold the button for 2 seconds
2. use to select your desired unit
3. briefly press the button

*8: blank = rainfall of the past hour (this is updated every 6 minutes and displayed the rainfall of the last 60 minutes.
DAILY = rainfall of today, calculated from midnight.
WEEKLY = rainfall from the beginning of the week (Monday)
MONTHLY = rainfall of this month
You can switch between these indications by briefly pressing the button.

Wind (direction + speed)

1. actual wind direction
2. measured wind directions (max 6) of the last 5 minutes
3. wind direction
4. indicates whether the displayed wind speed is an average speed or a wind gust (*9)
5. Wind speed
6. indicates whether the wind speed is expressed in mph (miles per hour), in m/s (meters per second), in km/h (kilometres per hour) or in Knots (1 KNOTS = 1,852 km/h (1.151 mph)) (*10)
7. illuminates when the max. wind speed alert is set
8. wind speed, according to the Beaufort scale
9. wind speed, expressed in everyday speech (*11)

*9: AVERAGE = average speed
GUST = wind gust
You can switch between these indications by briefly pressing the button.

*10: You can set the desired unit as follows:

1. press and hold the button for 2 seconds
2. use to select your desired unit
3. briefly press the button

*11: STORM = ≥ 88 km/h (≥ 55 mph)
STRONG = 42-87 km/h (26-54 mph)
MODERATE = 14-41 km/h (9-25 mph)
LIGHT = 3-13km/h (2-8mph)

Feels like / Wind chill / Heat index / Dewpoint

1. indicates whether the displayed temperature is the Feels like, Wind chill, the Heat Index or the Outdoor Dew Point (dew point temperature, outside (*12)
2. temperature according to the indication shown underneath 1 (*13)
3. effect of Wind chill and Heat index on Feels like temperature

*12:
Feels like: temperature compensated with the wind chill or heat index
Wind chill: combination of the measured temperature and wind speed
Heat index: combination of the measured temperature and air humidity
Dew point temperature, outside: the temperature at which water vapour is converted into water (mist, dew or frost). This temperature depends on the outdoor temperature and the humidity.
You can switch between these indications by briefly pressing the button.

*13:

At HEAT INDEX:	the alert level is:
< 27°C (display 'LO')	no danger
27°C – 32°C (80°F – 90°F)	pay attention (risk of exhaustion due to heat)
33°C – 40°C (91°F – 105°F)	be careful (risk of dehydration due to heat)
41°C – 54°C (106°F – 129°F)	danger (increased risk of exhaustion due to heat)
≥55°C (≥130°F)	very dangerous (huge risk of dehydration/stroke)

Display lighting

Press the SNOOZE button at the top of the indoor unit to switch on the display lighting. After you release the button, the light will turn off after 5 seconds

ALARM CLOCK

Introduction

The WS-4700 allows you to program an alarm (wake-up) time.
You may also enable an ice alert for this wake-up function: when the outdoor temperature is below -3°C, the alarm signal will sound 30 minutes before the time you've programmed.

Alarm time setup

1. press and hold the button at the rear of the indoor for 2 seconds until the hour display starts flashing
2. use to set the hours, briefly press and the minute display starts flashing
3. use to set the minutes and briefly press to store your alarm time

Alarm function setup

1. repeatedly press the button to check/enable/disable the alarm
   Only "AL" appears: the displayed time is the set alarm time, but the alarm itself is disabled
   "AL" + "" appear: the alarm is enabled and the wake-up signal will sound at the set alarm time
   "AL" + " " + " " appear: the ice alert is set
2. release the button; after several seconds the actual time will be displayed again and the alarm status as mentioned above remains visible

Operation

• At the set moment of time, the alarm will sound for up to 120 seconds
• Press the button to stop the alarm signal beforehand OR press the SNOOZE/LIGHT button on top of the indoor unit to enable the snooze function; the wake-up alarm will sound again after 5 minutes.
• The alarm is repeated daily until you disable it according to the above instructions OR press and hold the SNOOZE/LIGHT buttons for 2 seconds to delay the alarm for 24 hours.
• When you enable the ice alert and outside it's colder than -3°C, the wake-up signal will sound 30 minutes earlier than the alarm time you set. When it's warmer than -3°C outside, the alarm will sound at the set time.

HISTORY

Introduction

The indoor unit of the WS-4700 automatically saves all measurement data of the past 24 hours, allowing you to check the trend of the last 24 hours at any time

To view the history

1. press the HISTORY button to show the last saved measurement data in the display, while the upper part of the display shows the time and date of the concerned measurement
2. repeatedly press the HISTORY button to scroll the memory
   The history memory saves the data of the indoor and outdoor temperature and humidity, air pressure, wind chill, wind speed and rainfall.

To delete the history

Press and hold the HISTORY button for 10 seconds to erase all measurement data up until that moment.

MAX-MIN ALARM

Introduction

For the following measurements you can set an alarm for when a maximum or minimum threshold is exceeded:

Indoor temperature	min/max alarm
Indoor humidity	min/max alarm
outdoor temperature	min/max alarm
outdoor humidity	min/max alarm
Rainfall	max alarm (only the actual rainfall from 00:00am is considered)
Wind speed	max alarm

To set Hi-Lo limits

1. repeatedly press the button until the desired display is flashing with the indication 'HI AL' or 'LO AL' next to it (if applicable)
2. use to set the limit
3. briefly press the button again to save the value
4. press the button again to select the next display or wait several seconds for the setup mode to end automatically

Hi-Lo Alarm function setup

1. repeatedly press the button until the desired display is flashing with the indication 'HI AL' or 'LO AL' next to it (if applicable)
2. briefly press the button to enable or disable the selected alarm

Operation

As soon as the set limit is exceeded, an alert tone will sound for up to 2 minutes while the concerned display flashes and the alert indicator underneath the display flashes every 7 seconds. Briefly press the button to stop the alert ton. The flashing stops automatically as soon as the concerned measurement returns to within the set limits (or when you adjust the limit or disable the alarm function for the concerned measurement).

RELATIVE AIR PRESSURE

Introduction

When you're living considerable higher than the mean sea level, you'll be experiencing a lower air pressure. To ensure that the weather forecast is still accurate, you'll need to correct the air pressure according to your where you live.

Relative air pressure setup

1. refer to the internet or your local authorities for information about your local air pressure
2. press and hold the button for 2 seconds until 'absolute' or 'relative' starts flashing
3. use to select 'relative'
4. briefly press and the air pressure display starts flashing
5. use to correct the display by setting it to the value you've obtained from your local authorities or the internet
6. briefly press to save the air pressure

PROBLEM SOLVING

Problems	Solutions
No or strange measurements from the rain sensor	Check the drain in the rain meter; it must be opened. Check whether the rain meter sits horizontal. As long as the wheather station is searching for the correct time, there is no transmitting from the rain sensor. This can last for about 15 minutes.
No or strange measurements from the thermometer and humidity meter.	Check whether the air grooves are open. Check the sensor casing.
No or strange measurements of wind speed and wind direction.	Check the weather vane. Check the wind cups of the wind speed meter.
and (reception signal lost for 1 minute)	Move the indoor unit closer to the outdoor unit. Make sure that the indoor unit is not placed near other electronic equipment that might cause interference due to
(reception signal lost for 1 hour)	Move the indoor unit closer to the outdoor unit. Make sure that the indoor unit is not placed near other electronic equipment that might cause interference due to wireless transmissions (TV, PC, microwave) When the problem remains, please reset both the indoor and outdoor unit.

MAINTENANCE

Rain meter

You can disassemble the rain meter as follows to remove any spiders or other insects:

1. Rotate the upper ring of the rain collector 30° anti-clockwise, making sure that the star sign in the bottom of the funnel is in the "Unlock" position. You can now remove this ring and look at the interior of the rain meter.

2. Use a soft brush with long hairs to clean the rain meter.
3. Replace the ring onto the rain meter and rotate it clockwise, making sure that the star sign in the bottom of the funnel is in the "Lock" position.

Outdoor temperature and humidity sensor

1. Remove the wind guides from the outdoor unit according to the illustration.
2. Blow into the holder containing the temperature and humidity sensor and use a soft brush with long hairs to clean the wind guides. DO NOT USE WATER.
3. Replace and tighten the wind guides.

SPECIFICATIONS

Indoor unit:
Dimensions	120 x 190 x 22mm
Weight	370gr (including batteries)
Power	3x 1.5V AA batteries
Frequency	868MHz
Outdoor unit:
Dimensions	343.5 x 393.5 x 136mm
Weigh	673gr (including batteries)
Power	3x 1,5V AA batteries
Frequency	868MHz
Broadcast	every 12 seconds
Indoor temperature:
measuring units:	°C, °F
display range:	-40°C to 70°C (-40°F to 158°F) ('LO' at <-40°C, 'Hi' at >70°C)
functional range:	-10°C to 50°C (14°F to 122°F)
resolution:	0.1°C or 0.1°F
accuracy:	+/-1°C or 2°F at 25°C (77°F)
memory display:	history of the past 24 hours, MIN/MAX temperature with time and date
alarm:	HI/LO alarm
Outdoor temperature:
measuring units:	°C, °F
display range:	-40°C to 80°C (-40°F to 176°F) ('LO' at <-40°C, 'Hi' at >80°C)
functional range:	-40°C to 60°C (-40°F to 140°F)
resolution:	0.1°C or 0.1°F
accuracy:	+/-0.5°C or 1°F at 25°C (77°F)
memory display:	history of the past 24 hours, MIN/MAX temperature with time and date
alarm:	HI/LO alarm
Indoor humidity:
display range:	20% to 90% ('LO' at <20%: 'Hi' at >90%) (at temperatures between 0°C and 60°C)
functional range:	20% to 90% relative humidity
resolution:	1%
accuracy:	+/-5% at 25°C (77°F)
memory display:	history of the past 24 hours, MIN/MAX humidity with time and date
alarm:	HI/LO alarm
Outdoor humidity:
display range:	1% to 99% ('LO' at <1%: 'Hi' at >99%)
functional range:	1% to 99% relative humidity
resolution:	1%
accuracy:	+/-3% at 25°C (77°F)
memory display:	history of the past 24 hours, MIN/MAX humidity with time and date
alarm:	HI/LO alarm
Air pressure:
measuring units:	hPa, inHg, mmHg
display range:	540 to 1100hPa
resolution:	1hPa, 0.01inHg, 0.1mmHg
accuracy:	(540 - 699hPa ± 8hPa @ 0-50oC) / 700 - 1100hPa ± 4hPa @ 0-50oC) (405 - 524mmHg ± 6mmHg @ 0-50oC) / (525 - 825mmHg ± 3mmHg @ 0-50oC) (15.95 - 20.66inHg ± 0.24inHg @ 32-122oF) / (20.67 - 32.48inHg ± 0.12inHg @ 32-122oF)
forecasts:	sunny, partially cloudy, cloudy, rain, storm, snow
memory display:	history of the past 24 hours, MIN/MAX air pressure with time and date
alarm:	HI/LO alarm
Wind speed:
measuring units:	mph, m/s, km/h, knots
display range:	0~112mph, 50m/s, 180km/h, 97knots
resolution:	0.5mph or 0.5knot or 0.5m/s
accuracy:	< 5m/s: +/- 0.5m/s > 5m/s: +/- 6%
display units:	average, wind gust
memory display:	history of the past 24 hours, MAX wind gust with direction, time and date
alarm:	HI alarm (for average and for wind gust)
Wind direction:
number of wind directions:	16
Rainfall:
measuring units:	mm, inch
display range:	0-9999mm (0~393.7inch)
resolution:	0.4 mm (0.0157 in)
accuracy:	+/- 7%
display units:	actual rainfall, this day, this week, this month
memory display:	history of the past 24 hours
alarm:	HI alarm
DCF radio controlled clock:
synchronisation	automatic or off
display	HH:MM:SS/day and date
time format	12hr AM/PM or 24hr

Documents / Resources

References

• Alecto.nl | alectonl

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download Alecto WS-4800, WS-4700 - Weather Station with Wireless Outdoor Sensor Manual
