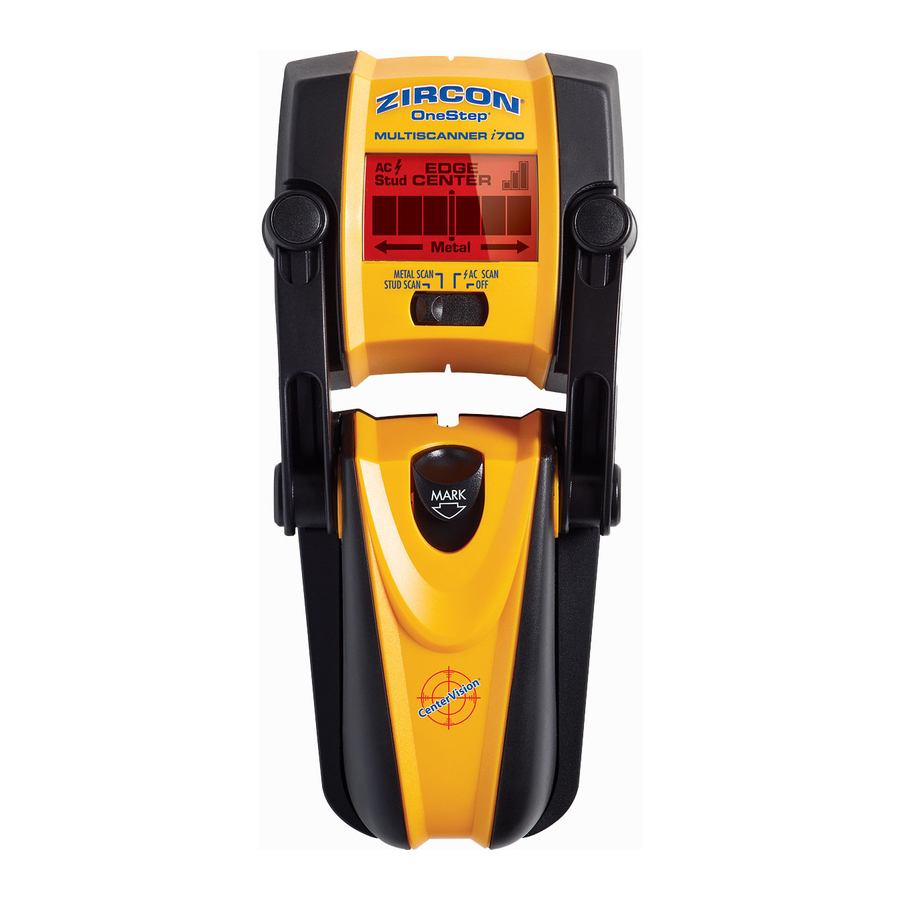

Zircon MultiScanner i700 OneStep - Multifunction Wall Scanner Manual

INTRODUCTION

Congratulations on purchasing the most technically advanced wall scanner ever created! Zircon introduced the StudSensor^™ in 1980 and has put over 25 years of research into developing OneStep^™, the advanced technology at the core of MultiScanner^® i700. OneStep technology senses, processes, and adapts to wall surfaces to provide high-definition visibility into walls, floors, and ceilings. MultiScanner i700 is the fastest, most accurate, and easiest-to-use wall scanner on the market today.

REGISTER YOUR PRODUCT AND WIN!
At Zircon, we value customer feedback, which allows us to better serve you with product support and updates, and make enhancements to our products and Web site. Register your product today and be automatically entered in our monthly drawings to win free Zircon products. To quickly and easily |register your Zircon product, please visit www.zircon.com

OVERVIEW

INSTALLING THE BATTERY

Press battery door release in with your finger or a coin and lift up to remove door.
Place 9-volt battery into the compartment and press into place.
Replace battery door and snap shut. Battery will last approximately 2 years under normal conditions.

SELECTING THE MODE

Move selector switch to the desired mode: STUD SCAN for finding wood or metal studs; METAL SCAN for locating metal; or AC SCAN for locating hot AC wiring.
Move selector switch to the Off position when not in use to prevent the tool from accidentally powering on and wearing down the battery.

FINDING A STUD

Always start with the scanner placed against the wall, then press the handle down. Wait for beep to confirm calibration has completed before moving tool.

Slowly slide tool across surface. EDGE display will illuminate, indicating location of the stud edge.

Continue sliding tool. When the center of stud is located with three bars on the Signal Strength Indicator, the buzzer will sound, and the four middle bars, CENTER display, and SpotLite will illuminate.

In cases of deeper studs (or thicker walls) two bars will show on the Signal Strength Indicator and only the SpotLite and four middle bars will illuminate. If you still can't locate a stud, try the next step.

Quickly (within one second) release and re-press the handle down. The scanner will enter the High Sensitivity Mode and the Stud Scan Mode Indication will flash continuously. The center of a very deep stud will be indicated by the four middle bars illuminating.

TIPS FOR PROPER OPERATION

For optimum scanning results it is important to properly hold MultiScanner i700 and move slowly when scanning. The following tips will ensure accurate scanning results:

• Grasp the handle with your thumb on one side and your fingers on the other side. Make sure your fingertips are resting on or above the running board and not touching the surface being scanned or the scanning head of the tool.

• Hold the tool straight up and down, parallel to the studs, and do not rotate the tool.
• Keep tool flat against the wall and do not rock or tilt the tool when slowly sliding across the surface being scanned.
• Make sure your other hand or any other part of your body is not touching the surface being scanned. This could interfere with the tool's performance.

CALIBRATING THE TOOL

MultiScanner i700 is the world's first StudSensor that can be calibrated anywhere on the wall.

• Place MultiScanner i700 against the wall and press the handle until it lays flat against the wall. Pressing the tool to lay flat against the wall will automatically power on the tool via the internal on/off switch.
• Once powered on, tool will automatically perform all calibrations. The LCD will display all icons until calibration is complete. Upon completion of calibration, the SpotLites and buzzer will momentarily activate and the tool will begin continuous measurements. Continue to press the tool flat against the wall and begin scanning.

Note: It is important to wait for calibration to complete (1–2 seconds) before moving the scanner.

• One of the most important factors in ensuring scanning accuracy is calibrating the tool away from a stud, so the tool will sense increased density over the stud. During scanning, the tool will automatically recalibrate itself when needed. This recalibration is usually transparent and no indication is made.
  If the tool is initially calibrated near a stud and then moved away (it will detect the density of the wall decreasing), and an arrow icon will be illuminated, indicating the direction of the missed stud.


SCANNING IN METAL MODE

Press the tool flat against the wall and slowly slide the scanner across the surface. MARK the spot where the display bars peak and the steady tone sounds. The SpotLites will also shine a beam of light. Continue in same direction until display bars reduce.

Reverse direction and MARK the spot where the display bars peak from the reversed direction. The midpoint of the two marks is the location of the center of the metal object.

SCANNING IN AC MODE

Press the tool flat against the wall and slowly slide the scanner across the surface. MARK the spot where the display bars peak. Continue in the same direction until display bars reduce.

Reverse direction and MARK the spot where the display bars peak from the reversed direction. The midpoint of the two marks is the location of the center of the electrical object.

Note: AC SCAN mode will only detect hot AC wiring.

AC WireWarning^®
Zircon's AC WireWarning^® feature works continuously in all modes. When AC voltage is detected, the AC Alert warning icon will appear in the display.

Wires deeper than 2 inches (51 mm) from the surface, in conduit, or behind plywood shear wall may not be detected. Use extreme caution under these circumstances or whenever hot AC wiring is present. Always turn off power when working near electrical wires.

WORKING WITH DIFFERENT MATERIALS

Wallpaper:
The MultiScanner i700 functions normally on walls covered with wallpaper or fabric, unless the materials are metallic foil, contain metallic fibers, or are still wet after application.

Lath & plaster:
Due to irregularities in plaster thickness, it is difficult for the MultiScanner i700 to locate studs in STUD SCAN mode. Change to METAL SCAN mode to locate nail heads holding laths to stud. If plaster has metal mesh reinforcement, MultiScanner i700 will be unable to detect through that material.

Textured walls or acoustic ceilings:
When scanning a ceiling or wall with an uneven surface, place thin cardboard on the surface to be scanned and scan over the cardboard. Calibrate with cardboard in place.

Wood flooring, subflooring, or gypsum drywall over plywood sheathing:
Use STUD SCAN mode and move the tool slowly. The signal strength indicator may only display 1 or 2 bars when the tool locates a stud through thick surfaces.

MultiScanner i700 cannot scan for wood studs and joists through carpeting and pad. In problematic situations, try using METAL SCAN to locate nails or drywall screws that line up vertically where a stud is positioned.

Note: Sensing depth and accuracy can vary due to moisture content of materials, wall texture, and paint.

MARKING THE LOCATION

Once an object is located, you can MARK the location by gently pulling down the MARK button with the tip of your finger. Pulling back the MARK button will cause a pencil point to extend from the front of the handle, placing a short erasable line on the wall.

CHANGING THE MARKER TIP

Pull and hold the MARK button to fully extend the marker tip. Grasp the marker and pull it off the marker post. To install a new marker tip, pull and hold the MARK button to fully extend the marker post. Push the new marker onto the marker post.

Note: MultiScanner i700's comes with three spare marker tips. These tips are stored in a compartment located behind the battery. Additional marker tips can be ordered from customer service at 1-800-245-9265.

REMOVING OR REPLACING THE SCANNING HEAD

MultiScanner i700's scanner head may be removed from the handle to facilitate cleaning or repair. Or the scanning head may also become separated from the handle if accidentally dropped or twisted. Follow the directions below to replace the scanning head:

To remove head:
Place the back of the head in the palm of one hand, and grasp the body of the unit in the other hand. Slowly and gently lift and turn the body, removing one arm from the socket at a time.

To replace the head:
Align the end of the arms over the sockets and gently snap them back into their sockets, one arm at a time.

FCC Part 15 Class B Registration Warning
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules.

HELPFUL HINTS

StudSensor, WireWarning, Centervision, MultiScanner, OneStep, SpotLite, and Zircon are registered trademarks or trademarks of Zircon Corporation.

LIMITED 2 YEAR WARRANTY

Zircon Corporation, ("Zircon") warrants this product to be free from defects in materials and workmanship for two years from the date of purchase. Any in-warranty defective product returned to Zircon*, freight prepaid with proof of purchase date and $5.00 to cover postage and handling, will be repaired or replaced at Zircon's option.

Return product freight prepaid with proof of purchase date (dated sales receipt) and $5.00 to cover postage and handling, to:
UPS SCS C/O ZIRCON RETURNS
Lohstrabe 30a
85445 Schwaig
Munich, Germany

Customer Service, 1-800-245-9265 or 1-408-963-4550
Monday–Friday, 8:00 a.m. to 5:00 p.m. PST
E-mail: info@zircon.com

PROTECTING THE ENVIRONMENT

Separate collection. This product must not be disposed with normal household waste.

Should your Zircon product need replacement or is of no further use to you, do not dispose of it with household waste. Make this product available for separate collection.

Separate collection of used products and packaging allows materials to be recycled and used again. Re-use of recycled materials helps prevent environmental pollution and reduces the demand for raw materials.

Local regulations may provide for separate collection of electrical products from the household, at municipal waste sites or by the retailer when you purchase a new product.

EC Declaration of Conformity

Zircon corporation declares that this product conforms to:
EMC 89/336/EEC
EN 55022:1998, EN 55024:1998

Director of Engineering
Zircon Corporation
1580 Del Ave. Campbell
California 95008
USA

U.S. Patent 5917314, 6259241, Canada Patent 2341385, Japan Patent
3581851, E.U. patent EP0657032 and Patents Pending
©2006 Zircon Corporation • P/N 62131 Rev A 12/06
