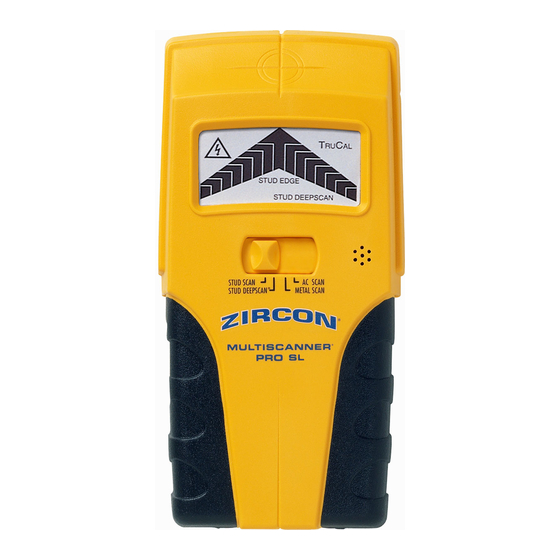

Zircon MultiScanner Manual

Hide thumbs Also See for MultiScanner:
1
2
3
4
5

Advertisement

Quick Links

Download this manual
Wall Scanner, MultiScanner
The Wall Scanner and MultiScanner
unshielded AC wiring up to 1
Wall Scanner and MultiScanner

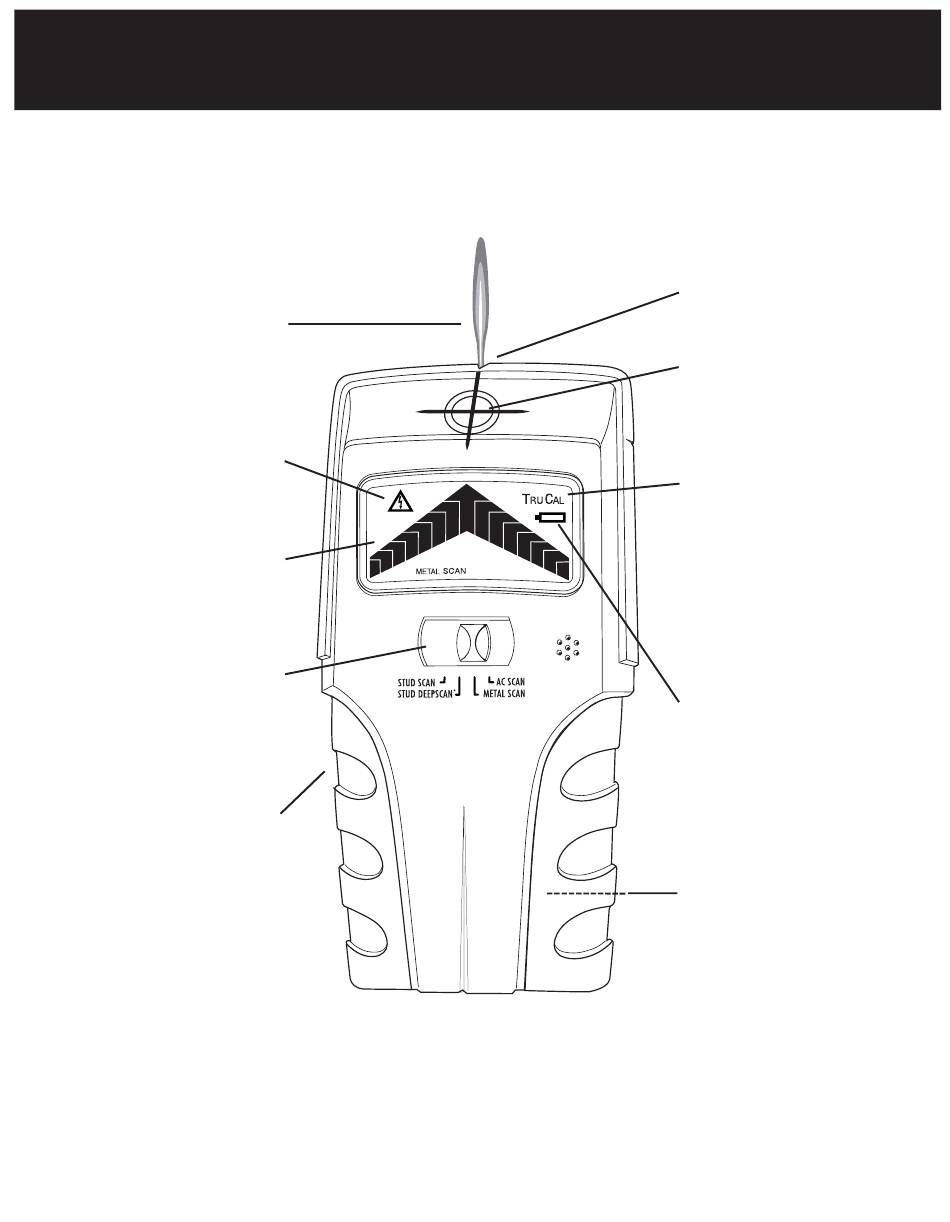

beam of light over the edge of a stud or near metal/AC.
SpotLite
®
Pointing System
AC Indicator
LCD Display
Mode Selector Switch
Power Button
U.S. Patents 4099118, 4464622, 5352974, 5619128, 6023159, and 6259241
U.S. Design Patent D427166
Canada Patents 1106932, 2141553, and 2341385
G.B Patents 2117909B, and 2159630B
Japan Patent 3581851, and Patents Pending
P/N 62117 Rev A 12/06
MultiScanner
®
scanners use four different scanning modes to detect studs, metal, and hot
1
⁄
in. (38 mm) deep behind walls, floors, and ceilings. It also detects rebar in concrete.
2
®
Pro SL also features the SpotLite
Pro SL
®
®
Pointing System, which automatically displays a
Stud Edge Indicator
Metal Sensor
TruCal
Low Battery Indicator
Battery (back of unit)
,
®
®
Calibration Indicator

Advertisement

loading
Need help?

Need help?

Do you have a question about the MultiScanner and is the answer not in the manual?

Questions and answers

Related Manuals for Zircon MultiScanner

Summary of Contents for Zircon MultiScanner

  • Page 1 Wall Scanner, MultiScanner ® MultiScanner Pro SL ® The Wall Scanner and MultiScanner ® scanners use four different scanning modes to detect studs, metal, and hot unshielded AC wiring up to 1 ⁄ in. (38 mm) deep behind walls, floors, and ceilings. It also detects rebar in concrete.

  • Page 2: Mode Selection

    1. MODE SELECTION • When looking for studs, always start with the scanner in Stud Scan mode, which scans through surfaces up to ⁄ inch thick. • DeepScan ® mode should only be selected if you know the surface is built-up and thicker than normal construction.

  • Page 3: Operating Cautions

    4. SCANNING IN METAL OR AC MODE Select mode. After calibrating (see number 2 ), continue to hold the power button and slowly slide the unit across the surface. Mark the spot where the display bars peak and a steady tone sounds. On the Wall Scanner and Pro SL model the SpotLite will also shine a beam of light.

  • Page 4: Changing The Battery

    Working With Different Materials • Wallpaper: The Wall Scanner functions normally on walls covered with wallpaper or fabric, unless the materials are metallic foil, contain metallic fibers, or are still wet after application. •Lath & plaster: Due to irregularities in plaster thickness, it is difficult for the Wall Scanner to locate studs in Stud Scan mode.
  • Page 5 7. HELPFUL HINTS (See also number 2, Important Operating Tips) Situation Probable Causes Solutions Not certain the • Scan the same area with Metal Scan and AC Scan. If the unit • DeepScan increased sensitivity may object found is a indicates the presence of metal or hot AC, the original stud have located something other than stud in DeepScan...
