Zircon MultiScanner i700 OneStep Quick Start Manual

i
MultiScanner 700 OneStep
®
Multifunction Wall Scanner
Congratulations on purchasing the most technically advanced wall scanner
ever created! Zircon introduced the StudSensor
25 years of research into developing OneStep ™
at the core of MultiScanner ® i 700. OneStep technology senses, processes,
and adapts to wall surfaces to provide high-definition visibility into walls,
floors, and ceilings. MultiScanner i 700 is the fastest, most accurate, and
easiest-to-use wall scanner on the market today.
REGISTER YOUR PRODUCT AND WIN!
At Zircon, we value customer feedback, which allows us to better serve you
with product support and updates, and make enhancements to our products
and Web site. Register your product today and be automatically entered in
our monthly drawings to win free Zircon products. To quickly and easily
|register your Zircon product, please visit www.zircon.com

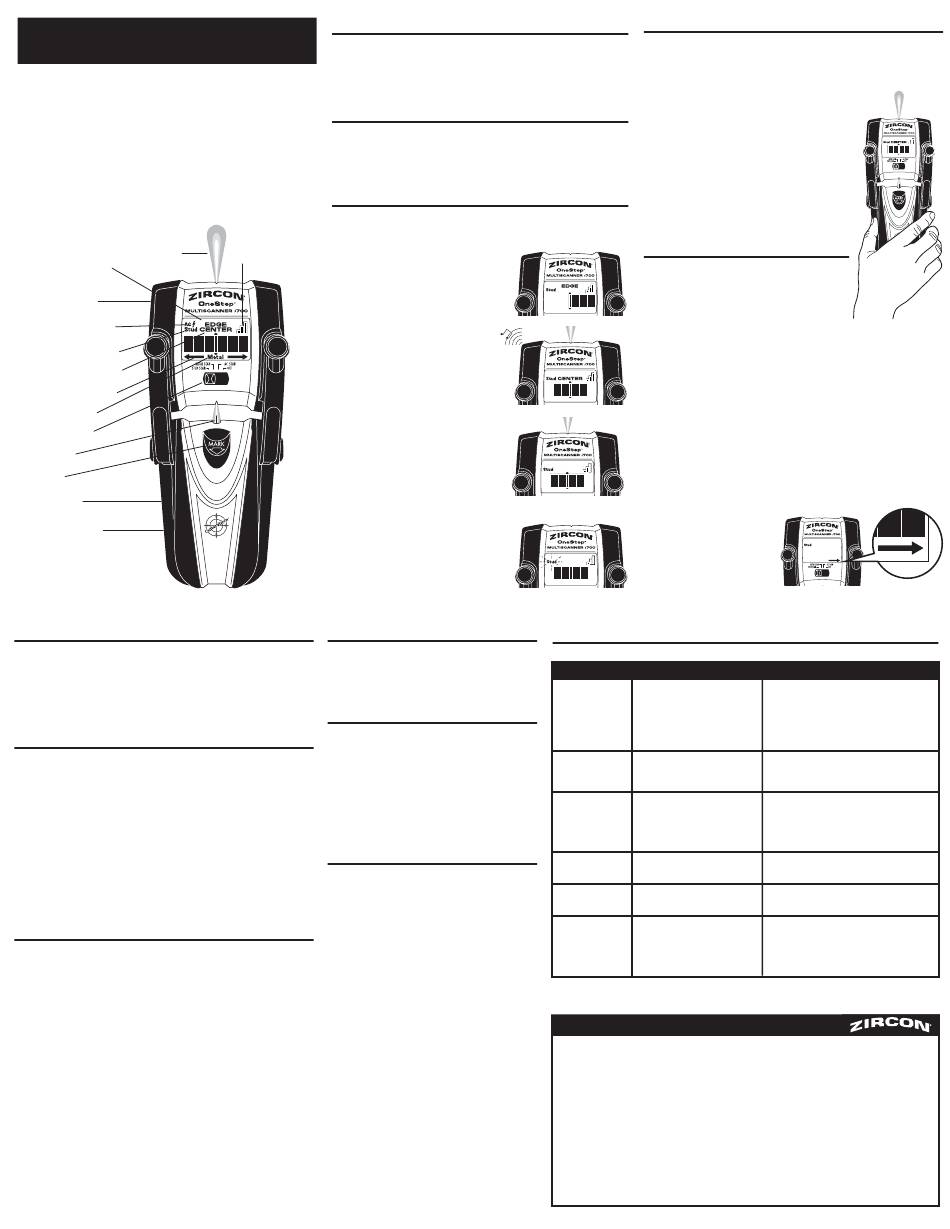

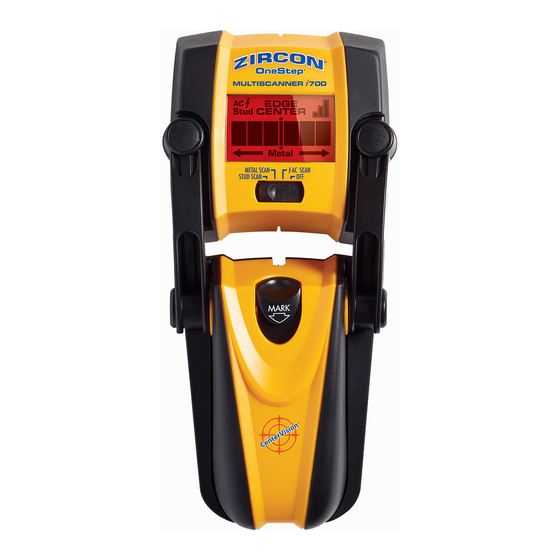

Dual SpotLite ®
Pointing System
Backlit LCD
Metal Sensor
(back of unit)
AC Mode & WireWarning ®
Indication
Stud Scan Mode Indication
Stud Edge or Center Indication
Auto Recalibration Indication
Metal Mode Indication
Mode Selector Switch
Erasable Marker
Mark Button
Running Board
Battery (back of unit)
6. SCANNING IN METAL MODE
Press the tool flat against the wall and slowly slide the scanner across the
surface. MARK the spot where the display bars peak and the steady tone
sounds. The SpotLites will also shine a beam of light. Continue in same
direction until display bars reduce.
Reverse direction and MARK the spot where the display bars peak from
the reversed direction. The midpoint of the two marks is the location of the
center of the metal object.
7. SCANNING IN AC MODE
Press the tool flat against the wall and slowly slide the scanner across the
surface. MARK the spot where the display bars peak. Continue in the same
direction until display bars reduce.
Reverse direction and MARK the spot where the display bars peak from
the reversed direction. The midpoint of the two marks is the location of
the center of the electrical object.
Note: AC SCAN mode will only detect hot AC wiring.
AC WireWarning ®
Zircon's AC WireWarning ® feature works continuously in all modes. When AC
voltage is detected, the AC Alert warning icon will appear in the display.
CAUTION: Wires deeper than 2 inches (51 mm) from the surface, in conduit,
or behind plywood shear wall may not be detected. Use extreme caution
under these circumstances or whenever hot AC wiring is present. Always turn
off power when working near electrical wires.
8. WORKING WITH DIFFERENT MATERIALS
i
Wallpaper: The MultiScanner 700 functions normally on walls covered with
wallpaper or fabric, unless the materials are metallic foil, contain metallic
fibers, or are still wet after application.
Lath & plaster: Due to irregularities in plaster thickness, it is difficult for
the MultiScanner i 700 to locate studs in STUD SCAN mode. Change to
METAL SCAN mode to locate nail heads holding laths to stud. If plaster
has metal mesh reinforcement, MultiScanner i 700 will be unable to detect
through that material.
Textured walls or acoustic ceilings: When scanning a ceiling or wall with
an uneven surface, place thin cardboard on the surface to be scanned and
scan over the cardboard. Calibrate with cardboard in place.
Wood flooring, subflooring, or gypsum drywall over plywood
sheathing: Use STUD SCAN mode and move the tool slowly. The signal
strength indicator may only display 1 or 2 bars when the tool locates a
stud through thick surfaces.
MultiScanner i 700 cannot scan for wood studs and joists through carpeting
and pad. In problematic situations, try using METAL SCAN to locate nails or
drywall screws that line up vertically where a stud is positioned.
Note: Sensing depth and accuracy can vary due to moisture content
of materials, wall texture, and paint.

1. INSTALLING THE BATTERY

™
Press battery door release in with your finger or a coin and lift up
to remove door.
Place 9-volt battery into the compartment and press into place.
Replace battery door and snap shut. Battery will last approximately
™ in 1980 and has put over
2 years under normal conditions.
, the advanced technology
2. SELECTING THE MODE
Move selector switch to the desired mode: STUD SCAN for finding wood
or metal studs; METAL SCAN for locating metal; or AC SCAN for locating
hot AC wiring.
Move selector switch to the Off position when not in use to prevent the
tool from accidentally powering on and wearing down the battery.
3. FINDING A STUD
Always start with the scanner placed against the wall, then press
the handle down. Wait for beep to confirm calibration has completed
before moving tool.
Signal Strength
Indicator
Slowly slide tool across surface. EDGE
display will illuminate, indicating
location of the stud edge.
Continue sliding tool. When the center of
stud is located with three bars on the
Signal Strength Indicator, the buzzer will
sound, and the four middle bars, CENTER
display, and SpotLite will illuminate.
In cases of deeper studs (or thicker
walls) two bars will show on the
Signal Strength Indicator and only
the SpotLite and four middle bars will
illuminate. If you still can't locate a
stud, try the next step.
Quickly (within one second) release
and re-press the handle down. The
scanner will enter the High Sensitivity
Mode and the Stud Scan Mode Indication
will flash continuously. The center of a
very deep stud will be indicated by the
four middle bars illuminating.
9. MARKING THE LOCATION
Once an object is located, you can MARK the location
by gently pulling down the MARK button with the tip
of your finger. Pulling back the MARK button will
cause a pencil point to extend from the front of the
handle, placing a short erasable line on the wall.
10. CHANGING THE MARKER TIP
Pull and hold the MARK button to fully extend the
marker tip. Grasp the marker and pull it off the marker
post. To install a new marker tip, pull and hold the
MARK button to fully extend the marker post. Push
the new marker onto the marker post.
Note: MultiScanner
marker tips. These tips are stored in a compartment
located behind the battery. Additional marker tips can
be ordered from customer service at 1-800-245-9265.
11. REMOVING OR REPLACING
THE SCANNING HEAD
MultiScanner
from the handle to facilitate cleaning or repair. Or the
scanning head may also become separated from the
handle if accidentally dropped or twisted. Follow the
directions below to replace the scanning head:
To remove head: Place the back of the head in the
palm of one hand, and grasp the body of the unit in
the other hand. Slowly and gently lift and turn the
body, removing one arm from the socket at a time.
To replace the head: Align the end of the arms over
the sockets and gently snap them back into their
sockets, one arm at a time.
FCC Part 15 Class B Registration Warning
This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant
to Part 15 of FCC Rules.

12. HELPFUL HINTS

(See also number 4, Tips for Proper Operation)
Detects other objects
besides studs in STUD
SCAN mode. Finds
more targets than
there should be.
Area of voltage appears
much larger than actual
wire (AC only).
i
700's comes with three spare
Difficulty detecting metal.
Image of metal object
appears wider than
i 700's scanner head may be removed
actual size.
Constant readings of
studs near windows
and doors.
You suspect electrical
wires, but do not
detect any.
StudSensor, WireWarning, Centervision, MultiScanner, OneStep, SpotLite, and Zircon are registered trademarks or trademarks of Zircon Corporation.
Visit www.zircon.com/support for the most current instructions.
LIMITED 1 YEAR WARRANTY
Zircon Corporation, ("Zircon") warrants this product to be free from
defects in materials and workmanship for one year from the date of
purchase. Any in-warranty defective product returned to Zircon*, freight
prepaid with proof of purchase date and $5.00 to cover postage and
handling, will be repaired or replaced at Zircon's option. This warranty
is limited to the electronic circuitry and original case of the product
and specifically excludes damage caused by abuse, unreasonable use
or neglect. This warranty is in lieu of all other warranties, express or
implied, and no other representations or claims of any nature shall bind
or obligate Zircon. Any implied warranties applicable to this product
are limited to the one year period following its purchase. IN NO
EVENT WILL ZIRCON BE LIABLE FOR ANY SPECIAL, INCIDENTAL OR
CONSEQUENTIAL DAMAGES RESULTING FROM POSSESSION, USE
OR MALFUNCTION OF THIS PRODUCT.
In accordance with government regulations, you are advised that:
(i) some states do not allow limitations on how long an implied
warranty lasts and/or the exclusion or limitation of incidental or
consequential damages, so the above limitations and/or exclusions
4. TIPS FOR PROPER OPERATION
For optimum scanning results it is important to properly hold MultiScanner
i 700 and move slowly when scanning. The following tips will ensure
accurate scanning results:
• Grasp the handle with your thumb on one side
and your fingers on the other side. Make sure
your fingertips are resting on or above the
running board and not touching the surface
being scanned or the scanning head of the tool.
• Hold the tool straight up and down, parallel to
the studs, and do not rotate the tool.
• Keep tool flat against the wall and do not rock
or tilt the tool when slowly sliding across the
surface being scanned.
• Make sure your other hand or any other part
of your body is not touching the surface
being scanned. This could interfere with the
tool's performance.
5. CALIBRATING THE TOOL
MultiScanner i 700 is the world's first StudSensor
that can be calibrated anywhere on the wall.
• Place MultiScanner i 700 against the wall and
press the handle until it lays flat against the wall.
Pressing the tool to lay flat against the wall will
automatically power on the tool via the internal
on/off switch.
• Once powered on, tool will automatically
perform all calibrations. The LCD will display
all icons until calibration is complete. Upon
completion of calibration, the SpotLites and
buzzer will momentarily activate and the
tool will begin continuous measurements.
Continue to press the tool flat against the wall
and begin scanning.
Note: It is important to wait for calibration to complete
(1–2 seconds) before moving the scanner.
• One of the most important factors in ensuring scanning accuracy is
calibrating the tool away from a stud, so the tool will sense increased
density over the stud. During scanning, the tool will automatically
recalibrate itself when needed. This recalibration is usually transparent
and no indication is made.
If the tool is initially calibrated
near a stud and then moved
away (it will detect the density
of the wall decreasing), and an
arrow icon will be illuminated,
indicating the direction of the
missed stud.
Situation Probable Cause
• Electrical wiring and metal/plastic
pipes may be near or touching back
surface of wall.
• Static charge may develop on drywall,
spreading voltage detection as much as
12 in. (305 mm) laterally from each
side of an actual electrical wire.
• Tool calibrated over metal object.
• Metal targets too deep.
• Metal has greater density than wood.
• Double and triple studs are usually
found around doors and windows.
Solid headers are above them.
• Wires may be shielded in metal conduit
or behind metallic wall covering.
• Wires deeper than 2 in. (51 mm) from
surface might not be detected.
• Wires may not be hot.
Solution
• Scan the area in METAL and AC SCAN modes to
determine if metal or hot AC is present.
• Check for other studs equally spaced to either side (12,
16, or 24 in. [305, 406, or 610 mm]) apart or the same
stud at several places directly above or below the first.
Use CAUTION when nailing, sawing, or drilling in walls,
floors, and ceilings where these items may exist.
• To narrow detection, turn unit off and on again at the
edge of where wire was first detected and scan again.
• Place your free hand flat against wall near tool during
the entire scan to drain static.
• The scanner may have been calibrated over a
metal object, reducing sensitivity. Try calibrating
in another location.
• Scan in both horizontal and vertical directions. Metal
sensitivity is increased when metal object is parallel
to sensor, located under Zircon logo.
• To reduce sensitivity, recalibrate MultiScanner i 700
over either of first two marks.
• Detect outer edges so you know where to begin.
• Try METAL SCAN to see if you can find metal, wire,
or metal conduit.
• Always turn off the power when working near
electrical wires.
• Try turning on switches to outlet.
• Try plugging a lamp into outlet and turning on switch.
may not apply to you, and further (ii) this warranty gives you specific
legal rights and you may also have other rights which vary from state
to state.
Return product freight prepaid with proof of purchase date (dated sales
receipt) and $5.00 to cover postage and handling, to:
Zircon Corporation
*Attn: Returns Department
1600 Dell Avenue, Unit K
Campbell, CA 95008-6992 USA
Be sure to include your name and return address. Out of warranty
service and repair, where proof of purchase is not provided, shall be
returned with repairs charged C.O.D. Allow 4 to 6 weeks for delivery.
Customer Service, 1-800-245-9265 or 1-408-963-4550
Monday–Friday, 8:00 a.m. to 5:00 p.m. PST
E-mail: info@zircon.com
U.S. Patent 5917314, 6259241, Canada Patent 2341385, Japan Patent
3581851, E.U. patent EP0657032 and Patents Pending
©2005 Zircon Corporation • P/N 61616 Rev A 11/05
