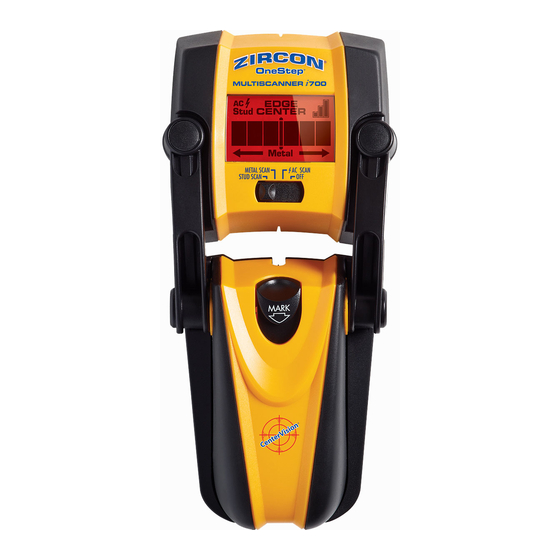

Zircon MultiScanner i700 OneStep Quick Start Manual

MultiScanner
i
700 OneStep
Multifunction
Wall Scanner
Congratulations on purchasing the most technically
advanced wall scanner ever created! Zircon invented
the StudSensor in 1980 and has put over 25 years
™
of research into developing OneStep
technology at the core of MultiScanner
OneStep technology senses, processes, and adapts
to wall surfaces to provide high-definition visibility
into walls, floors, and ceilings. MultiScanner
the fastest, most accurate, and easiest-to-use wall
scanner on the market today.
REGISTER YOUR PRODUCT AND WIN!
At Zircon, we value customer feedback, which allows us to
better serve you with product support and updates, and make
enhancements to our products and Web site. Register your
product today and be automatically entered in our monthly
drawings to win free Zircon products. To quickly and easily
register your Zircon product, please visit www.zircon.com
1. INSTALLING THE BATTERY
Press battery door release in with your finger or a coin and lift up
to remove door.
Place 9-volt battery into the compartment and press into place.
Replace battery door and snap shut. Battery will last approximately
2 years under normal conditions.
2. SELECTING THE MODE
Move selector switch to the desired mode: STUD SCAN for finding wood or metal studs; METAL SCAN for
locating metal; or AC SCAN for locating hot AC wiring.
Move selector switch to the Off position when not in use to prevent the tool from accidentally powering on
and wearing down the battery.
3. TIPS FOR PROPER OPERATION
For optimum scanning results it is important to properly hold MultiScanner
move slowly when scanning. The following tips will ensure accurate scanning results:
• Grasp the handle with your thumb on one side and your fingers on the other
side. Make sure your fingertips are resting on or above the running board and
not touching the surface being scanned or the scanning head of the tool.
• Hold the tool straight up and down, parallel to the studs, and do not
rotate the tool.
• Keep tool flat against the wall and do not rock or tilt the tool when slowly
sliding across the surface being scanned.
• Make sure your other hand or any other part of your body is not touching
the surface being scanned. This could interfere with the tool's performance.
4. CALIBRATING THE TOOL
i
MultiScanner 700 is the world's first StudSensor that can be calibrated anywhere on
the wall. It constantly monitors the subsurface environment 10 times per
second and automatically recalibrates, when needed, to successfully find the center
of studs in OneStep!
i
• Place MultiScanner 700 against the wall and press the handle until it lays flat
against the wall. Pressing the tool to lay flat against the wall will automatically
power on the tool via the internal on/off switch.
• Once powered on, tool will automatically perform all calibrations. The LCD
will display all icons until calibration is complete. Upon completion of
calibration, the SpotLites and buzzer will momentarily activate and the tool
will begin continuous measurements. Continue to press the tool flat against
the wall and begin scanning.
Note: It is important to wait for calibration to complete
(1–2 seconds) before moving the scanner.
®
™

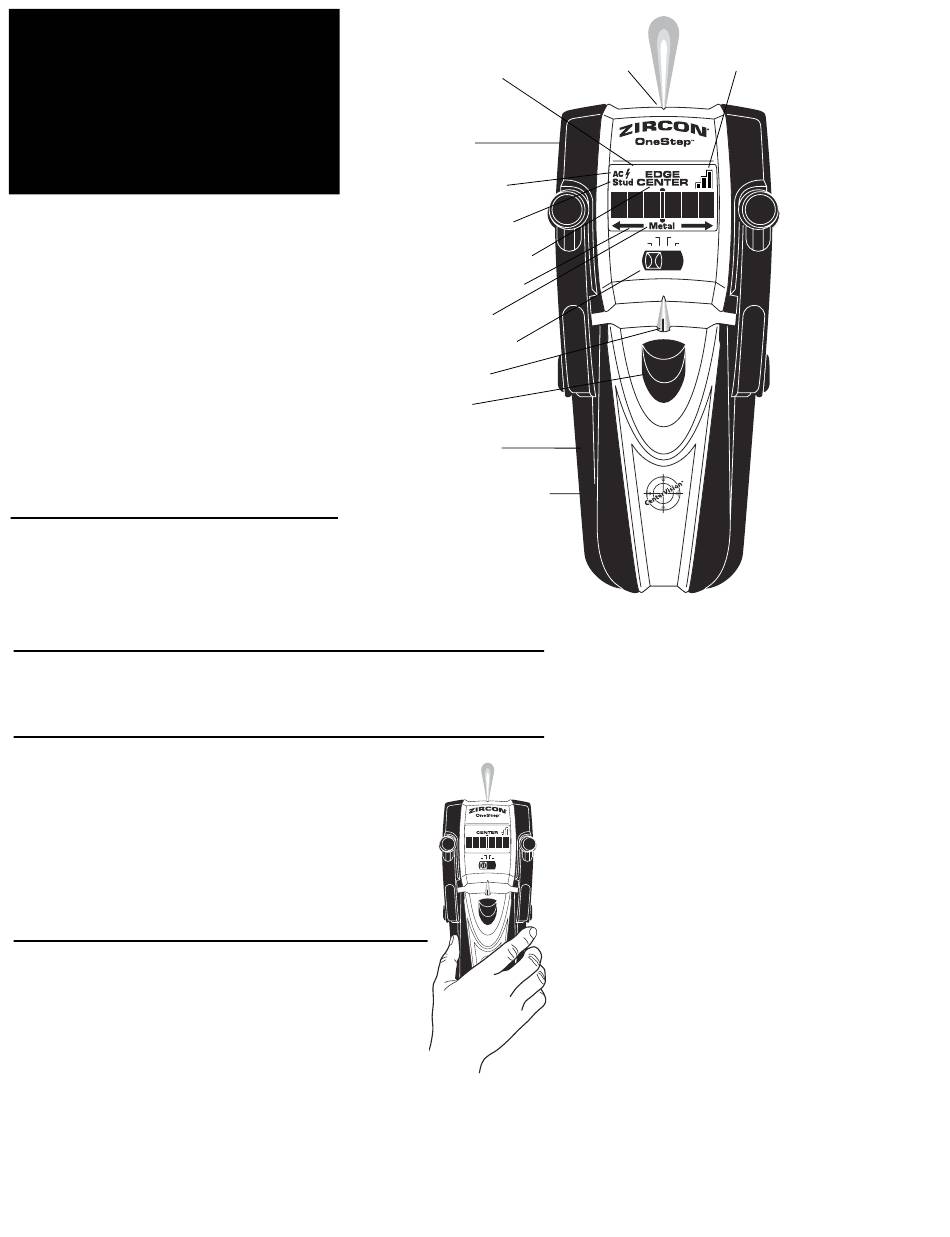

Metal Sensor
(back of unit)
AC Mode & WireWarning
Indication
Stud Scan Mode Indication
Stud Edge or Center Indication
, the advanced
™
i 700.
®
Auto Recalibration Indication
Metal Mode Indication
i
700 is
Mode Selector Switch
Erasable Marker
Mark Button
i
700 and
Dual SpotLite
Pointing System
Backlit LCD
™
Running Board
Battery (back of unit)
i
MULTISCANNER 700
METAL SCAN AC SCAN
STUD SCAN OFF
MARK
® Signal Strength
Indication
i
MULTISCANNER 700
METAL SCAN AC SCAN
STUD SCAN OFF
MARK
