Zircon SuperScan K1 - Advanced Wall Scanner Manual

BEFORE YOU BEGIN

ZIRCON^® STUD FINDERS WORK BY SENSING DENSITY CHANGES BEHIND THE WALL. OTHER OBJECTS CAN BE DETECTED, ESPECIALLY IF THEY ARE VERY CLOSE TO THE WALL. DO NOT ASSUME THAT EVERYTHING DETECTED IS A STUD.

• Always use a new 9V alkaline battery with an extended expiration date at least 3 years beyond the current date. Match battery direction to the image inside of battery cavity.
• Do not rely exclusively on the scanner to locate items behind a surface. Use other information to help locate such items before penetrating the surface, including construction plans, visible points of entry of pipes, wiring into walls such as in a basement, and standard stud-spacing practices.
• Always start your scan in Target Control^™ (TC^™) mode, which scans through standard single layer drywall up to ¾" (19 mm) deep.
• Always scan for studs at several different heights on the wall and mark the location of every target indicated by the stud finder. This is called "mapping the wall." Pipes and other objects will likely not give consistent readings from floor to ceiling, like a stud would.
• Studs normally run from floor to ceiling, except above and below windows and above doors.
• Readings should always be consistent and repeatable.
• Zircon^® stud finders are recommended for interior use only.
• Other objects commonly contained in walls, floors, or ceilings are water pipes (plastic and metal), gas lines, firestops, and electrical wiring.
• Sensing depth and accuracy can vary depending on scanning environment conditions, such as mineral content, moisture, texture, and consistency of the wall materials.
• Depending on the proximity of electrical wiring or pipes to the wall surface, scanner may detect them in the same manner as studs.

  should always be used when nailing, cutting, or drilling in walls, floors, and ceilings that could contain these items. Use extreme caution under these circumstances or whenever live AC wiring is present.
• Studs are normally spaced 16" or 24" (40 cm or 60 cm) apart on center, are normally 1½" (38 mm) wide, and may be separated by firestops. Anything closer together, or of a different width, may not be a stud.

Trust but Verify is a technique that can help indicate "safe-to-drill" zones to minimize hitting existing metals on a stud, such as nails, screws, and protector plates. When the Crosshairs show TC^™, run scanner vertically up and down the stud. The stud indicators (Crosshairs, Edge Indicators, Target Indicator Bars, Target Spotlight, and SpotLite^® Pointer) will all turn off over screws and other metal, then turn on again when the stud is free from metal. The "safe-to-drill" zones are typically between adjacent drywall screws, nails, and protector plates, assuming the builder properly installed metal protector plates on the stud, and over plumbing and electrical. If stud indicators do not disappear when running vertically up and down the object in TC^™ mode, the absence of drywall screws, nails, or protector plates indicates this could be a non-metallic object such as plastic plumbing or PEX tubing, and should not be mistaken for a stud.

DEVICE OVERVIEW

Featuring Revolutionary Target Control™ (TC™) Technology

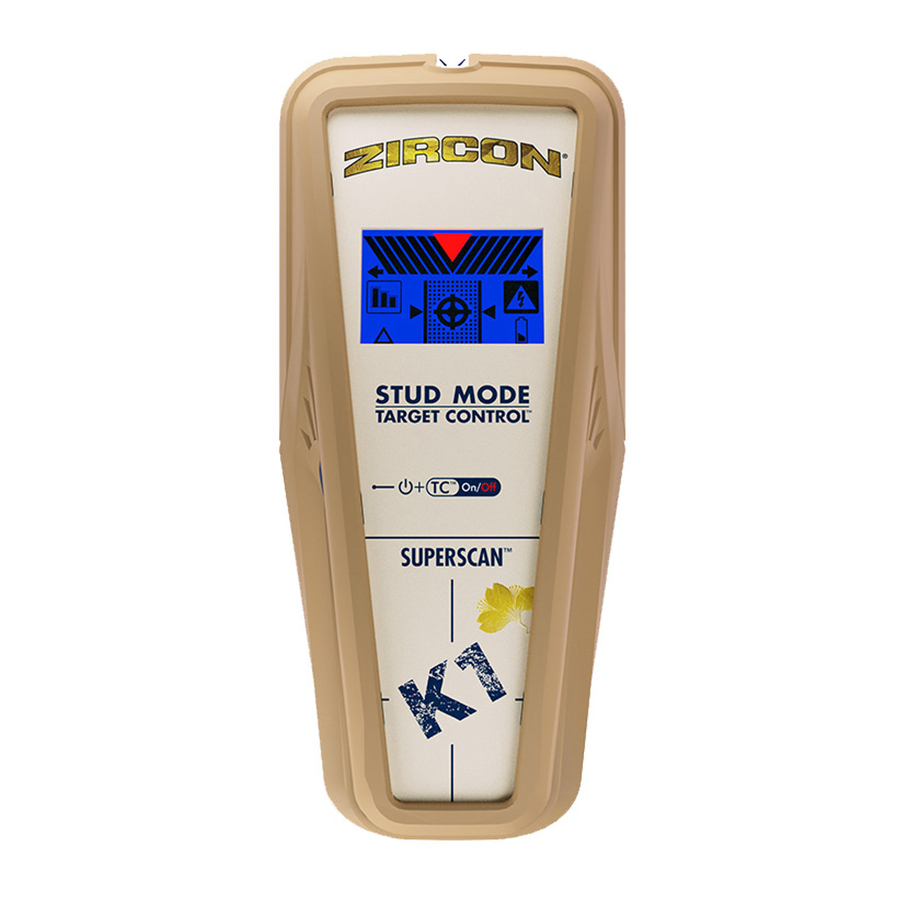

The SuperScan^™ K1 wall scanner is tuned to find wood studs while filtering out metallic false-positive objects such as plumbing, conduit, straps, brackets, or ducts beneath surfaces. With TC^™ mode, users can utilize the "Trust but Verify" technique to identify "safe-to-drill" zones between adjacent drywall screws, nails, and protector plates.

Two scanning modes

• Target Control^™ (TC^™) locates center, edges, and direction of wood studs (while ignoring metal) up to ¾" (19 mm) deep. The LCD will be backlit with a blue light. In TC^™ mode, the LoLevel^™ Indicator indicates low (weak) signal objects, such as plastic water pipes, plastic sewer drains or studs deeper than ¾" (19 mm). When compared to stud signals, the LoLevel^™ Indicator may help differentiate studs from false positives.
• StudScan locates center, edges, and direction of wood and metal studs up to ¾" (19 mm) deep.
  LCD will not be backlit in this mode.
  In StudScan mode, the Signal Strength Indicator uses the same icon as the LoLevel^™ Indicator. When TC^™ is off, a strong signal is indicated by full signal strength bars.

WIREWARNING^® DETECTION

The Zircon^® WireWarning^® Detection continuously detects and alerts for live, unshielded AC (alternating current) wires in both modes. When live AC voltage is detected, warning indicator appears and screen starts flashing red until scanner is moved sufficiently away from the live wire. When calibration begins over an AC wire in both TC^™ and StudScan modes, the AC icon will flash. Use extreme caution under these circumstances or whenever live AC wiring is present.

Scanner may not detect AC activity if wires are more than 2" (5 cm) behind the scanned surface, in concrete, encased in conduit, behind a plywood shear wall or metallic wall covering, or if moisture is present in the environment or scanned surface.

INSTALL 9-VOLT BATTERY

Always use a new 9V alkaline battery with an extended expiration date at least 3 years beyond the current date. Match the battery direction to the image inside the battery cavity.

Do not rely exclusively on scanner to locate items behind a surface. Use other information to help locate items before penetrating the surface, including construction plans, visible points of entry of pipes and wiring into walls, such as in a basement, and standard stud-spacing practices.

POWER UP

To activate scanner, press and hold Power Button. The default mode at power up is TC^™. Unit shuts off 1–2 seconds after Power Button is released.

FIND A CLEAN WOOD STUD IN TARGET CONTROL^™ (TC^™) MODE

TC^™ is designed to detect wood studs during scanning. For best results, hold scanner as shown and move slowly when scanning. Do not touch the surface during calibration or scan.

1. Hold scanner flat against the wall, then press and hold Power Button (Figure A).

   Figure A

   Unit will calibrate in 1–2 seconds. Proper calibration is confirmed by a short beep, a flicker of the SpotLite^® Pointer, and a flash of the icons.
   If a calibration error occurs, all icons will flash continuously.
   NOTE: Screen will have a blue backlight in TC^™ mode.
   DO NOT MOVE SCANNER DURING CALIBRATION.
2. While holding down the Power Button, slide scanner slowly along the wall. When scanner finds the edge of a stud, the Edge Indicator shows. (Figure B)

   Figure B

3. Continue sliding.
   When scanner finds the center of a stud, the Crosshairs show and SpotLite^® illuminates.

4. Mark the spot where stud was found. (Figure C)

   Figure C
5. Scanner automatically recalibrates when in use. If the two ACT™ arrows appear on the LCD, scanner was calibrated over a stud, then moved away. This is ACT^™ (Auto Correcting Technology) in action.
   NOTE: LoLevel^™ Indicator will display rapidly cascading bars when the device senses a sustained weak signal, indicating a false positive object may be present.

6. Use the Trust but Verify technique for finding drywall screws or nails up and down the stud to confirm that you have located a wood stud. Other objects, such as plastic plumbing pipes, do not contain nails or drywall screws. (See important note under BEFORE YOU BEGIN for more information on this procedure.)

FIND A STUD IN STUDSCAN MODE (TC^™ OFF)

1. Hold scanner flat against wall, press the Power Button, release it, then press it again, holding it down the second time. The unit will calibrate in 1–2 seconds. A short beep confirms that calibration is complete. If a calibration error occurs, all icons will flash continuously.
   NOTE: Scanner is in StudScan mode (TC^™ off) when the display backlight is off. When TC^™ mode is off, metal objects may be indicated as a stud and Signal Strength Indicator will have steady strength bars.
   DO NOT MOVE SCANNER DURING CALIBRATION.
2. While holding down the Power Button, slide scanner slowly along the wall. When scanner finds the edge of a stud, the Edge Indicator shows.
3. Continue sliding.
   When scanner finds the center of a stud, the Crosshairs turn on, SpotLite^® illuminates, and a beep sounds. (Figure D)

   Figure D

4. Mark the spot where stud was found.
5. Scanner automatically recalibrates when in use. If the two ACT^™ arrows appear on the display, scanner was calibrated too close to a stud, then moved away. This is ACT^™ (Auto Correcting Technology) in action. (Figure E)

   Figure E

Return to Target Control^™ mode by releasing and pressing the Power Button again. When the display is backlit blue, you are back in TC^™ mode.

DO NOT ASSUME THERE ARE NO LIVE ELECTRICAL WIRES IN THE WALL. DO NOT TAKE ACTIONS THAT COULD BE DANGEROUS IF THE WALL CONTAINS A LIVE ELECTRICAL WIRE. ALWAYS TURN OFF THE ELECTRICAL, GAS, AND WATER SUPPLIES BEFORE PENETRATING A SURFACE. FAILURE TO FOLLOW THESE INSTRUCTIONS MAY RESULT IN ELECTRIC SHOCK, FIRE, AND/OR SERIOUS INJURY OR PROPERTY DAMAGE.

WORKING WITH DIFFERENT MATERIALS

Wallpaper Scanner functions normally on walls covered with wallpaper or fabric, unless the materials are metallic foil, contain metallic fibers, or are still wet after application. Wallpaper may need to dry for several weeks after application.

Freshly painted walls It may take a week or longer to dry after application.

Lath and plaster This tool is not designed to scan over lath and plaster.

Highly textured walls or acoustic ceilings This tool is not designed to scan over highly textured walls or acoustic ceilings.

Wood flooring, subflooring, or gypsum drywall over plywood sheathing Scanner cannot scan for wood studs and joists through these materials, or through carpet and padding.

NOTE: Sensing depth and accuracy can vary depending on scanning environment conditions such as mineral content, moisture, texture, and consistency of the wall materials.

Electrical wiring and pipes Depending on the proximity of electrical wiring or pipes to the wall surface, scanner may detect them in the same manner as studs.

should always be used when nailing, cutting, or drilling in walls, floors, and ceilings that may contain these items.

Studs Studs are normally spaced 16" or 24" (40 cm or 60 cm) apart on center and are 1½" (38 mm) wide.

Anything closer together, or of a different width, may not be a stud.
