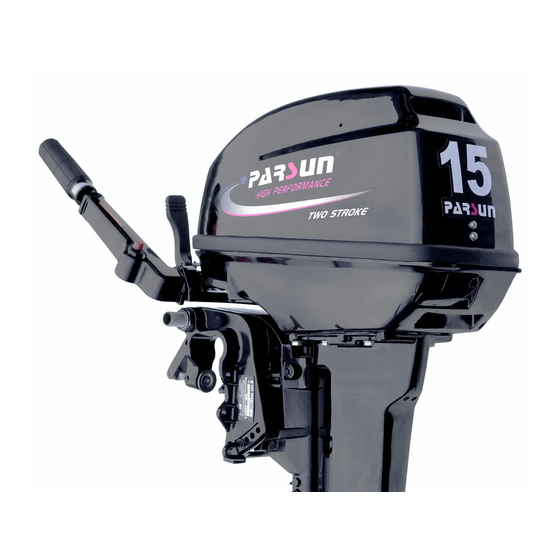

- Page 1 OUTBOARD MOTOR OWNER’S MANUAL T15BM (T9.9BM) SUZHOU PARSUN POWER MACHINE CO., LTD.
- Page 2 If there is any question concerning the manual, please consult your local PARSUN dealer.
- Page 3 Record your outboard motor serial number in the spaces provided to assist you in ordering spare parts from your Parsun dealer, or for reference in case your outboard motor is stolen. 1. Outboard motor serial number location...
- Page 4 Engine serial number The engine serial number is carved on the aluminum casting of engine. Serial number as follows:...
-
Page 5: Table Of Contents
Table of contents 1. Main components and General information· · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · ·1 1.1 Main components·... - Page 6 3. Maintenance· · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · ·29 3.1 Greasing·...
-
Page 7: Main Components And General Information
1. Main components and General information 1.1 Main components 11. Starter handle Top cowling Top cowling lock handle Gear shift lever Throttle grip Anti-cavitation plate Propeller Throttle friction adjuster Note: Clamp screw Cooling water inlet * The fuel tank is Trim rod Rope attachment equipped for the... - Page 8 If your model includes a portable fuel tank, its parts are as follows: 1. Fuel tank cap 3. Air vent screw 2. Fuel joint 4. Fuel gauge WARNING The fuel tank supplied with this engine could only be used as supply of fuel for its running and must not be as a fuel storage container.
-
Page 9: General Information
1.2 General information 1.2.1 Specifications Parameter Items Data Items Data Type of engine 2-stroke L Weight (L) 37.5Kg Displacement 246cm Transom (S) 381mm Bore X stroke 56mm×50mm Transom (L) 508mm Gear ratio 2.08（27/13） Recommended fuel Unleaded regular gasoline Overall length 870mm Recommended engine oil 2-stroke engine oil... -
Page 10: Fueling Instructions
1.2.2 Fueling instructions Fueling instructions: Recommended gasoline: Regular unleaded gasoline, If it is not available, then premium gasoline. If knocking or pinging occurs, use a different brand of gasoline or premium unleaded fuel. If leaded gasoline is usually used, engine valves and related parts should be inspected after every 100 hours of operation. -
Page 11: Propeller Selection
CAUTION: Use only new clean gasoline which has been stored in clean containers and is not contaminated with water or foreign matter. Engine oil: Recommended engine oil: 2-stroke engine oi Gasoline and oil mixing: 25:1 Break-in period Gasoline Engine oil 0.04L 0.48L 0.56L 0.96L 50:1 After break-in Gasoline... - Page 12 “PARSUN” dealers stock a range of propellers and can advise you and install a propeller on your outboard that is best suited to your application. For a greater boat load and a low engine speed, a smaller-pitch propeller is more suitable.
-
Page 13: Operation
2. Operation 2.1 Installation Mount the outboard motor on the center line (keel line) of the boat. For boats without a keel or which are asymmetrical, consult your dealer. Center line (keel line) NOTE: During water testing check the buoyancy of the boat, at rest, with its maximum load. Check that the static water level on the exhaust housing is low enough to prevent water entry into the power head, when water rises due to waves when the outboard is not running. -
Page 14: Mounting Height
Improper mounting of the outboard motor could result in hazardous conditions. For permanently mounted models, your dealer or other person experienced in proper rigging should mount the motor. If you are mounting the motor yourself, you should be trained by an experienced person. -
Page 15: Clamping The Outboard Motor
The optimum mounting height of the outboard motor is affected by the boat and motor combination and the desired use. Test runs at a different height can help determine the optimum mounting height. For further information, consult your “PARSUN” dealer or boat manufacturer. -
Page 16: Breaking In Engine
Attach to a secure mounting point on the boat to avoid the engine being completely lost if it accidentally falls off the transom. 3. Secure the clamp bracket to the transom using the appropriate bolts. For details, consult your PARSUN dealer. WARNING: Avoid using bolts, nuts or washers inappropriate. - Page 17 Gasoline and oil mixing: 25:1 Break-in period Gasoline Engine oil 0.04L 0.48L 0.56L 0.96L CAUTION: Failure to follow the break-in procedure could result in reduced engine life or even severe engine damage. 1. First 10 minutes: Run the engine at idle. Next 50 minutes: Run the engine at 3000 r/min or at approximately half throttle.
-
Page 18: Pre-Operation Checks
2.3 Pre-operation checks Fuel Check to be sure you have plenty of fuel for your trip. Make sure there are no fuel leaks or gasoline fumes. Check fuel line connections to be sure they are tight. Be sure the fuel tank is positioned on a secure, flat surface, and that the fuel line is not twisted or ... -
Page 19: Filling Fuel
repaired before operating the outboard motor. Otherwise an accident could occur. CAUTION: Do not start the engine out of water. Overheating and serious engine damage can occur. 2.4 Filling fuel WARNING： Gasoline and its vapors are highly flammable and explosive. Keep away from sparks, cigarettes, flames, or other sources of ignition. -
Page 20: Starting Engine
2.5 Starting engine 1. Loosen the air vent screw on the fuel tank cap, 2 or 3 turns. 2. Connect fuel joints securely and squeeze the primer pump with the outlet end up until you feel it become firm (if equipped the fuel joint). 3. - Page 21 Do not attach the lanyard to clothing that could tear loose. Do not route the lanyard where it could become entangled, preventing it from functioning. Avoid accidentally pulling the lanyard during normal operation. Loss of engine power means the loss of steering control. Also, without engine power, the boat could slow rapidly. This could cause people and objects in the boat to be thrown forwar NOTE: The start-in-gear protection device prevents...
- Page 22 5. Pull out the choke knob fully. NOTE: It is not necessary to use the choke when starting a warm engine. If the choke is left in the “START” (start) position while the engine is running, the engine will run poorly or stall.
-
Page 23: Warming Up Engine
7. After the engine starts, slowly return the manual starter handle to its original position before releasing it. 8. Slowly return the throttle grip to the fully closed position. CAUTION: When the engine is cold, it needs to be warmed up. ... -
Page 24: Shifting
CAUTION: If water is not flowing out of the hole at all times while the engine is running, stop the engine and check whether the cooling water inlet on the lower case or the cooling water pilot hole is blocked. ... -
Page 25: Reverse
2. Move gear shift lever quickly and firmly from neutral to forward. 2.7.2 Reverse WARNING: When operating in reverse, go slowly. Do not open the throttle more than half. Otherwise the boat could become unstable, which could result in loss of control and an accident. -
Page 26: Tiller
NOTE: Make sure the tilt lock lever is in the lock/down position. 2.8 Tiller 1. Change direction To change direction, move the tiller handle to the left or right as necessary. 2. Change speed Turn the grip counterclockwise to increase speed and clockwise to decrease speed. 3. -
Page 27: Stopping Engine
4. Throttle friction adjuster The throttle friction adjuster is on the tiller handle, which provides adjustable resistance to movement of the throttle grip, and can be set according to operator preference. To increase resistance, turn the adjuster clockwise. To decrease resistance, turn the adjuster counterclockwise. -
Page 28: Trimming Outboard Motor
NOTE: If the outboard motor is equipped with an engine stop switch lanyard, the engine can also be stopped by pulling the lanyard and removing the lock plate from the engine stop switch. Tighten the air vent screw on the fuel tank cap. Disconnect the fuel line if you are using an external fuel tank. -
Page 29: Tilting Up And Down
2. Remove the trim rod from the clamp bracket while slightly tilting the outboard motor up. 3. Reposition the rod in the desired hole. Make test runs with the trim set to different angles to find the position that works best for your boat and operating conditions. WARNING: ... -
Page 30: Tilting
WARNING: Be sure all people are clear of the outboard motor when tilting up and down, also be careful not to pinch any body parts between the drive unit and engine bracket. Tighten the air vent screw and place the fuel cock in the closed position if the outboard motor will be tilted for more than a few minutes. - Page 31 2. Tighten the steering friction adjuster by turning it clockwise to prevent the motor from turning freely. 3. Tighten the air vent screw. Disconnect the fuel joint from the outboard motor. 4. Place the tilt lock lever (if equipped) in the up position.
-
Page 32: Tilting Down
5. Hold the rear handle and tilt the engine up fully until the tilt support lever automatically locks. 2.11.2 Tilting down 1. Slightly tilt the outboard motor up. 2. Slowly tilt the outboard motor down while pulling the tilt support bar lever up. -
Page 33: Cruising In Other Conditions
Loose the steering friction adjuster by turning it counterclockwise, and adjust the steering friction according to operator preference. WARNING: If there is too much resistance it could be difficult to steer, which could result in an accident. 2.12 Cruising in other conditions 2.12.1 Cruising in shallow water The outboard motor can be tilted up partially to allow operation in shallow water. -
Page 34: Cruising In Salt Water
CAUTION: The cooling water inlet on the lower unit should be not above the surface of the water when setting up for and cruising in shallow water. Otherwise severe damage from overheating can result. For tilting procedure, see section 2.11. 2.12.2 Cruising in salt water ages with fresh water to prevent After operating in salt water, wash out the cooling water pass... -
Page 35: Maintenance
If you or the owner is not familiar with machine servicing, this work should be done by your PARSUN dealer or other qualified mechanic. CAUTION: If replacement parts are necessary, use only genuine PARSUN parts or parts of the same type and of equivalent strength and materials. -
Page 36: Greasing
3.1 Greasing 3.2 Cleaning and adjusting spark plug You should periodically remove and inspect the spark plug because heat and deposits will cause the spark plug to slowly break down and erode. If necessary, you should replace the spark plug with another of the correct type. Before fitting the spark plug, measure the electrode gap with a wire thickness gauge;... -
Page 37: Checking Fuel System
Wipe off any dirt from the threads and screw in the spark plug to the correct torque. 3.3 Checking the fuel system 1. Check the fuel lines for leaks, crack, or malfunction. If a problem is found, your PARSUN dealer or other qualified mechanic should repair it immediately. -
Page 38: Cleaning The Fuel Filter
3.3.1 Cleaning the fuel filter 1. Removing the nut holding the fuels filter assembly if equipped. 2. Unscrew the filter cup, catching any spilled fuel in a rag. 3. Remove the filter element, and wash it in solvent. Allow it to dry. Inspect the filter element and O-ring of the filter cup to 1. -
Page 39: Inspecting Idling Speed
Correct idling speed inspection is only possible if the engine is fully warmed up. If not warmed up fully, the idle speed will measure higher than normal. If you have difficulty verifying the idle speed, or the idle speed requires adjustment, consult a PARSUN dealer or other qualified mechanic. -
Page 40: Checking Wiring And Connectors
Check that no exhaust or water leaks from the joints between the exhaust cover, cylinder head, and body cylinder. Check for oil leaks on the around the engine. CAUTION: If any leaks are found, consult your PARSUN dealer. 3.7 Checking propeller WARNING: ... - Page 41 Do not use your hand to hold the propeller when loosening or tightening the propeller nut. Put a wood block between the anti-cavitation plate and the propeller to prevent the propeller from turning. 1. Check each of the propeller blades for wear, erosion from cavitation or ventilation, or other damage.
-
Page 42: Removing The Propeller
3.7.1 Removing the propeller 1. Straighten the cotter pin and pull it out using a pair of pliers. 2. Remove the propeller nut, washer, and spacer (if equipped). 3. Remove the propeller and thrust washer. 1. Cotter pin 2. Propeller nut 3. -
Page 43: Changing Gear Oil
3. Install the spacer (if equipped) and the washer. 4. Tighten the propeller nut. Align the propeller nut with the propeller shaft hole. Insert a new cotter pin in the hole and bend the cotter pin ends. 3.8 Changing gear oil WARNING: ... -
Page 44: Cleaning Fuel Tank
Inspect the used oil after it has been drained. If the oil is milky, water is getting into the gear case which can cause gear damage. Consult PARSUN dealer. 5. Use a flexible or pressurized filling device, and inject the gear oil into the gear oil drain screw hole. -
Page 45: Checking And Replacing Anode
3.10 Checking and replacing anode(s) Inspect the external anodes periodically. Remove scales from the surfaces of the anodes. Consult a PARSUN dealer for replacement of external anodes. CAUTION: Do not paint anodes, as this would render them ineffective and can cause more rapid engine... -
Page 46: Checking Top Cowling
3.11 Checking top cowling Check the fitting of the top cowling by pushing it with both hands. If it is loose have it repaired by your PARSUN dealer. -
Page 47: Maintenance Table
Frequency of maintenance operations may be adjusted according to the operating conditions, but the following table gives general guidelines. The “●” symbol indicates the check-ups which you may carry out by yourself. The “○” symbol indicates work to be carried out by your Parsun dealer. Initial Every... - Page 48 Continuation /…1 Initial Every Item Operations 10 hours 50 hours 100 hours 200 hours (1 month) (3 months) (6 months) (1 year) Idling speed (carburetor Check/adjustment ●/○ ●/○ models) Propeller and cotter pin Check/replacement ● ● Shift link/shift cable Check/adjustment ○...
-
Page 49: Transporting And Storing Outboard Motor
4. Transporting and storing 4.1 Transporting The outboard motor should be trailed and stored in the normal running position. If there is insufficient road clearance in this position, then trailer the outboard motor in the tilt position using a motor support device. CAUTION: Do not use the tilt support lever or knob when trailing the boat. -
Page 50: Storing
It is advisable to have your outboard motor serviced by an authorized PARSUN dealer prior to storage. However, you, the owner, with a minimum of tools, can perform the following procedures. - Page 51 5. Fill the tank with fresh water to above the level of the anti-cavitation plate. CAUTION: If the fresh water level is below the level of the anti-cavitation plate, or if the water supply is insufficient, engine seizure may occur. 6.
- Page 52 10. If “Fogging Oil” is not available, remove the spark plug(s). Pour a teaspoonful of clean engine oil into each cylinder. Crank several times manually. Replace the spark plug(s). 11. Drain the fuel from the fuel tank completely. CAUTION: Portable fuel tank equipped models: Store the portable fuel tank in a dry, well-ventilated place, not in direct sunlight.
-
Page 53: Action In Emergency
2. Inspect the control system and all components for damage. 3. Whether damage is found or not, return to the nearest harbor slowly and carefully. 4. Have a PARSUN dealer inspect the outboard motor before operating it again. 5.2 Starter will not operate If the starter mechanism does not operate, the engine can be started with an emergency starter rope. - Page 54 Be sure no one is standing behind you when pulling the starter rope. It could whip behind you and injure someone. Do not install the starter mechanism or top cowling after engine is running. Keep loose clothing and other objects away when starting the engine. Do not touch the flywheel or other moving parts when the engine is running.
- Page 55 3. Remove the starter cover after removing the three bolts. 4. Prepare the engine for starting. For further information, see section 2.5. 5. Insert the knotted end of the emergency starter rope into the notch in the flywheel rotor and wind the rope several turns around the flywheel clockwise.
-
Page 56: Treatment Of Submerged Motor
4. Feed engine fogging oil or engine oil through the carburetor(s) and spark plug holes while starting the engine. 5. Take the outboard motor to a PARSUN dealer as soon as possible. CAUTION: Do not attempt to run the outboard motor until it has been completely inspected. -
Page 57: Troubleshooting
6.Troubleshooting Trouble type Possible reason Recovery action Starter components are faulty Have serviced by your dealer Starter will not operate Shift lever is not in neutral Shift to neutral Fuel tank is empty Fill tank with clean, fresh fuel Fuel is contaminated or stale Fill tank with clean, fresh fuel Clean or replace with recommended Fuel filter clogged... - Page 58 Continuation /…1 Trouble type Possible reason Recovery action Check for pinched or kinked fuel Fuel system is obstructed line or other obstructions in fuel system Fuel is contaminated or stale Fill tank with clean, fresh fuel Clean or replace with Fuel filter clogged recommended type Spark plug gap is incorrect...
- Page 59 Continuation /…2 Trouble type Possible reason Recovery action Propeller is damaged Repair or replace propeller Adjust trim angle to achieve most efficient Trim angle is incorrect operation Motor is mounted at incorrect transom height Adjust motor to proper transom height Boat bottom is fouled with marine growth Clean boat bottom Weeds or other foreign matter are tangled on...
- Page 60 Continuation /…3 Trouble type Possible reason Recovery action Fuel joint connection is incorrect Connect correctly Engine power loss Check and replace spark plug(s) as Specified spark plug(s) are not being used specified Propeller is damaged Repair or replace propeller Propeller shaft is damaged Have serviced by your dealer Weeds or other foreign matter are tangled on Engine vibrates...
-
Page 61: Circuit Diagram
7. Circuit diagram...
