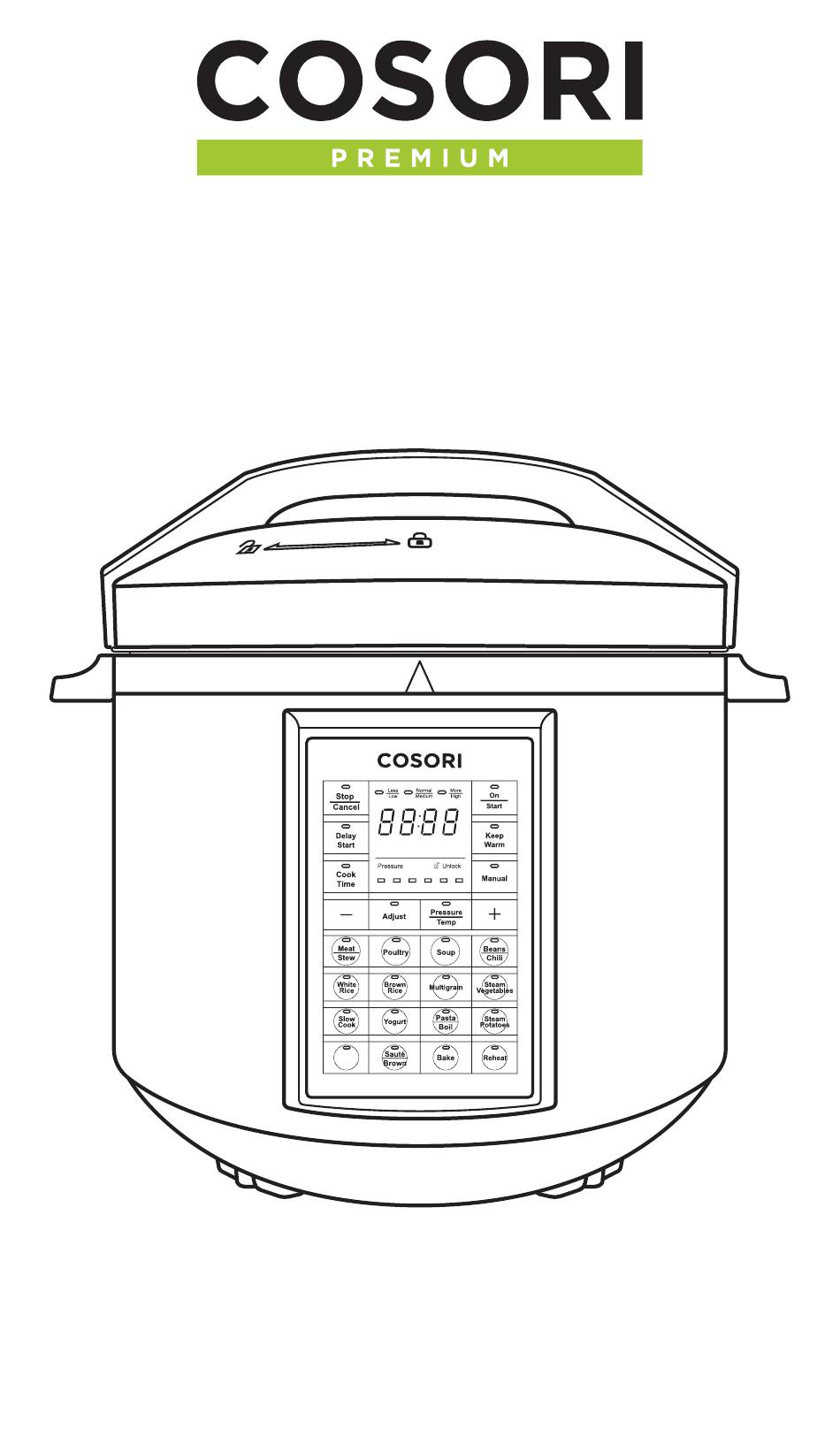

Premium 6-Quart Pressure Cooker
Model No.: CP016-PC
Hot Pot
COSORI SUPPORT:
Mon - Fri 9:00 AM - 5:00 PM PST
(888) 402-1684 | support@cosori.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the CP016-PC and is the answer not in the manual?

Questions and answers

Summary of Contents for Cosori CP016-PC

  • Page 1 Premium 6-Quart Pressure Cooker Model No.: CP016-PC Hot Pot COSORI SUPPORT: Mon - Fri 9:00 AM - 5:00 PM PST (888) 402-1684 | support@cosori.com...
  • Page 3 With Heartfelt Thanks We thank you for purchasing a new Electric Pressure Cooker by Cosori, and we’re excited to see what you’ll cook up very soon. We’re looking forward with you to preparing many fresh meals in your kitchen with minimal operation or effort.
  • Page 4: Table Of Contents

    Table of Contents Keeping Things Safe Getting to Know Your Pressure Cooker How Does it Work? Safely Removing the Lid Care & Maintenance Troubleshooting Warranty Customer Support Connect with Us Package Contents 1 x Electric Pressure Cooker 1 x Spoon 1 x Ladle 1 x Measuring Cup 1 x Glass Lid...
  • Page 5: Keeping Things Safe

    Keeping Things Safe IMPORTANT SAFEGUARDS Please read, understand, and flammable materials, heating comply with all the instructions units, or wet environments. provided in this manual before • In case of overheating, using the device. Failure to comply immediately turn off and unplug with the instructions given in this the pressure cooker.
  • Page 6 • The pressure cooker is intended clean. Do not put the inner pot for indoor use only. on other heat sources. Do not • To disconnect the unit from replace the inner pot with other a power source, press ‘Stop/ containers.
  • Page 7 pulled or accidentally tripped over. NOTE: This appliance has a three- • prong grounding plug. To reduce the risk of electric shock, this plug will only fit one When moving the unit, hold the way into a grounded electrical pressure cooker by its handles. outlet that is easily accessible.
  • Page 8 Geting to Know Your Pressure Cooker PRESSURE COOKER INSIDE OF LID INSIDE OF COOKER 1. Lid 9. Handles 2. Lid handle 10. Housing 3. Float valve 11. Control panel 4. Pressure release valve 12. Inner pot sensor 5. Sealing ring 13.
  • Page 9 CONTROL PANEL Less Normal More Stop Medium High Cancel Start Delay Keep Warm Start Pressure Unlock Cook Manual Time Pressure Adjust Temp Meat Beans Poultry Soup Stew Chili White Brown Steam Multigrain Rice Rice Vegetables Pasta Slow Steam Yogurt Cook Potatoes Boil Sauté...
  • Page 10 DISPLAY DESCRIPTIONS Unit is on standby Function has been cancelled Unit is heating up/pressurizing Lid is not closed properly Display time for non-pressurized cooking settings NOTE: The display will switch between the cooking time and temperature every two seconds. Display time for pressurized cooking settings Yogurt function Pasteurization function Jiu niang function...
  • Page 11 CONTROLS Button Function Starts any selected cooking function. Start Cancels any cooking process; also cancels any selections that are Stop made. Cancel NOTE: The display will show “OFF” after pressing ‘Stop/Cancel’ , indicating that the pressure cooker has stopped cooking. The pressure cooker will go into standby mode, showing “--:--”, after 3 minutes.
  • Page 12 • It is recommended to cook tender foods such as vegetables on the lower pressure levels. • The actual working pressure may vary depending on the amount of food and liquid being cooked. The warming function keeps food warm until you are ready to eat. Follow the steps below to manually set up the warming function.
  • Page 13: How Does It Work

    How Does it Work? PREPARING TO COOK NOTE: • Thoroughly wash the inner pot before each use. • The minimum amount of ingredients needed to cook in the pressure cooker is ⅕ of the capacity of the inner pot. • The minimum amount of liquid needed for cooking is 2 cups/500 mL.
  • Page 14 (Optional): Use the ‘Cook Time’ button to change the cooking time with the ‘+’ and ‘-’ buttons, or use the ‘Adjust’ button to select a pre- programmed cooking time (see time table on the next page). You can also change the pressure using the ‘Pressure/Temp’...
  • Page 15 The pressure cooker will beep three times to alert you when cooking has finished, and it will automatically set itself to the Keep Warm mode for 6 hours. (See Safely Removing the Lid.) PRESSURIZED COOKING FUNCTION TIMES NOTE: All pressurized cooking times can be adjusted from 1 minute to 4 hours. Preset Functions Adjust Default Time Setting...
  • Page 16 NON-PRESSURIZED COOKING FUNCTIONS Slow Cook This function allows you to cook various recipes at low temperatures ranging from 180°-211°F (82°-99°C). Only use the Press the ‘Pressure/Temp’ glass lid for this cooking function. button to change the cooking temperature, use ‘+’ or ‘-’ to change the temperature.
  • Page 17 Pasta/Boil NOTE: The pressure cooker always heats up This function allows you to boil water or liquids using high power, but maintains liquids as well as cook pasta al dente. the boiling temperature using the programmed setting. Press ‘On/Start’ , to start cooking.
  • Page 18 Sauté/Brown This function allows you to sauté, simmer, or even pan fry foods inside the inner pot. Press the ‘Pressure/Temp’ button and use ‘+’ or ‘-’ to change the temperature from 104° to 320°F. (Optional): Use the ‘Adjust’ button to select a pre-programmed cooking time and temperature (see table below for cooking times).
  • Page 19 Once your ingredients have Hot Pot combined, turn off the pressure This function allows you to create savory cooker and carefully transfer the soups for a family hot pot dinner or sweet liquid to a warm bowl. If you are dipping sauces for fun desserts.
  • Page 20 Reheat Less/ Normal/ More/ Medium High This function allows you to reheat Cooking 165°F 212°F 248°F prepared food in the pressure cooker. temp (74°C) (100°C) (120°C) Please note that raw foods should not be cooked using this setting. Replace the lid and press ‘On/ Start’...
  • Page 21 Yogurt Your new Cosori electric pressure cooker can heat up milk at a safe temperature to create fresh yogurt for you to enjoy. Follow the steps below to make your yogurt at home. Press ‘On/Start’ . The unit will start heating up to the...
  • Page 22 Jiu Niang Jiu Niang, also known as fermented glutinous rice, is a sweet and mildly alcoholic delicacy of Asia. Glutinous rice, more commonly known as sticky rice, is used in making Jiu Niang and contains a high concentration of starch that is converted to sugar during the fermentation process.
  • Page 23 ‘+’ or ‘-’ buttons to Manual Pressure Cooking Mode select your cooking time. Your new Cosori Electric Pressure Cooker also gives you the option to manually set up the pressure cooker for complete control over your cooking settings. There are two methods for setting up the manual pressure cooking mode.
  • Page 24 Once the unit reaches optimal cooking pressure, the display Press the ‘Cook Time’ button, will begin to count down. then use the ‘+’ or ‘-’ buttons to select your cooking time. The pressure cooker will beep three times when cooking has finished, and NOTE: it will automatically set itself to the When the programmed temperature...
  • Page 25: Safely Removing The Lid

    Safely Removing NATURAL RELEASE the Lid For your safety, open the lid slowly. Escaping steam is hot and may cause burns to exposed skin. Do not open Once cooking is complete, turn the lid before all pressure has escaped off the pressure cooker’s power through the exhaust valve and the by unplugging the power cable.
  • Page 26 Wait until float valve drops down to open the pressure cooker. Unlock the lid by turning it counterclockwise, then carefully lift the lid away from your face. The steam coming out from the pressure cooker will be hot. NOTE: It is recommended to use the natural release method when cooking liquids such as soups or rice porridge.
  • Page 27: Care & Maintenance

    Care & Maintenance Unplug the pressure cooker and allow it to completely cool before cleaning. Remove the float valve sealing ring to remove the float valve DO NOT immerse the from the lid. Rinse the float base in water or spray any valve with clean water and water inside the housing.
  • Page 28 SILICONE SEALING RING Installation INSTALLATION NOTE: Make sure the silicone sealing ring is not cracked or damaged in any way. Removal Line up silicone sealing ring on top of the metal ring. Take lid off of pressure cooker. Gently push down on silicone sealing ring, ensuring that the metal ring is inside the ring’s groove as shown above.
  • Page 29: Troubleshooting

    Troubleshooting Problem Cause Solution Difficulty closing lid. Silicone sealing ring may Correctly place the silicone not be placed correctly. sealing ring inside the lid. Lid not properly placed Align the unlock symbol on onto housing. the lid with the arrow above control panel.
  • Page 30: Warranty

    WARRANTIES, INCLUDING THE WARRANTY OF MERCHANTABILITY, Terms & Policy ARE LIMITED TO THE PERIOD OF THE Cosori warrants all products to be of the LIMITED WARRANTY. highest quality in material, craftsmanship Should your product prove defective and service for a minimum of 1 year, within the specified warranty period, effective from the date of purchase.
  • Page 31: Customer Support

    Customer Support Team. Your satisfaction is our goal! CUSTOMER SUPPORT Cosori Corporation 1202 N. Miller St. Suite A Anaheim, CA 92806 Phone: (888) 402-1684 Email: support@cosori.com SUPPORT HOURS...
  • Page 32: Connect With Us

    #iCookCosori @cosoricooks Cosori Appliances Considering what to cook? Many recipe ideas are available, both from us and the Cosori community. More Cosori Products Lastly, if you’re happy with this pressure cooker, the line doesn’t stop here. Check out www.cosori.com for a line of all our beautiful and thoughtfully designed cookware. They...
