u
PLAY TODAY
KEEGAN'S KASTLE

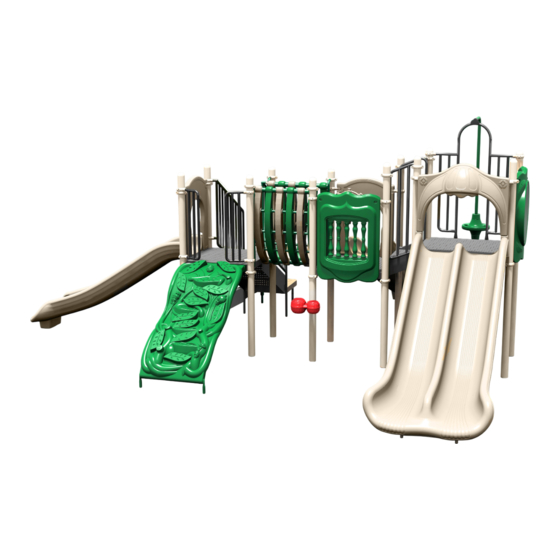

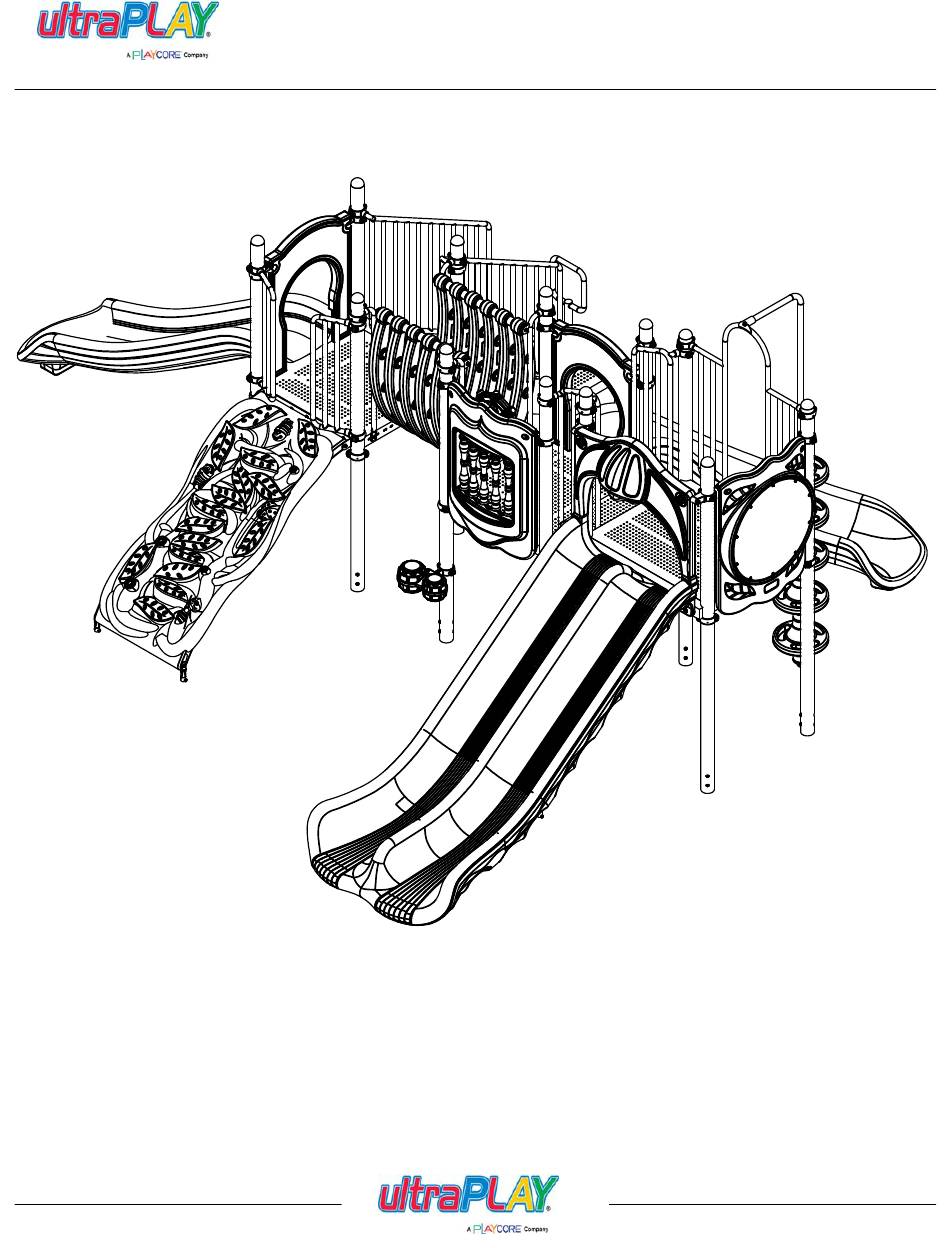

MODEL # UPLAY-030-N
MODEL # UPLAY-030-P
Issued/Revised:
8/10/2017
www.ultraplay.com
800.458.5872

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ultraPLAY uPLAY TODAY KEEGAN'S KASTLE and is the answer not in the manual?

Questions and answers

Related Manuals for Playcore ultraPLAY uPLAY TODAY KEEGAN'S KASTLE

Summary of Contents for Playcore ultraPLAY uPLAY TODAY KEEGAN'S KASTLE

  • Page 1 PLAY TODAY KEEGAN'S KASTLE MODEL # UPLAY-030-N MODEL # UPLAY-030-P Issued/Revised: 8/10/2017 www.ultraplay.com 800.458.5872...
  • Page 3 For more information on UPlayToday and UltraPlay products, please do not hesitate to give us a call or visit ultraplay.com. Thank you for your business; we look forward to working with you on all of your future playground equipment projects! Sincerely, UPlayToday by UltraPlay A PlayCore® Company Issued/Revised: 8/10/2017 www.ultraplay.com 800.458.5872...
  • Page 4 PLAY TODAY GENERAL COMMERCIAL PLAYGROUND SAFETY GUIDELINES Maintaining your playground equipment and its surrounding area is essential to minimizing the risk of injury to users as well as maximizing its useful lifespan. UPlayToday STRONGLY recommends that you follow these Safety Guidelines in conjunction with conducting periodic maintenance inspections using the accompanying Playground Maintenance Checklist.
  • Page 5 PLAY TODAY GENERAL COMMERCIAL PLAYGROUND SAFETY GUIDELINES Install Wood Mulch (EWF) at a depth of 12". Over time this mulch will compress to a depth of 9" as required by the U.S. Consumer Product Safery Commission, ASTM standard F-1487 and Canadian Standard CAN/CSA-Z-614.
  • Page 6 PLAY TODAY GENERAL COMMERCIAL PLAYGROUND SAFETY GUIDELINES TRIPPING HAZARDS: There should be no exposed concrete footings, abrupt changes in surface elevations, tree roots, tree stumps, and rocks, which can trip children and adults. Check for trip hazards, such as the balance beam support posts, or environmental trip hazards, such as rocks or roots in the play area.
  • Page 7 PLAY TODAY GENERAL COMMERCIAL PLAYGROUND SAFETY GUIDELINES -All equipment should be free of rust and repainted with an appropriate lead-free paint whenever necessary to deter rusting. This should also be done for any chipped or peeling areas. -Regular checking of all parts, casting, etc., should be made. If part is broken or worn it should be replaced immediately.
  • Page 8 PLAY TODAY GENERAL COMMERCIAL PLAYGROUND SAFETY GUIDELINES -Check for loose bolts, nuts, etc. and tighten. -Check for broken or missing rails, steps, rungs, or seats and replace. Issued/Revised: 8/10/2017 www.ultraplay.com 800.458.5872...
  • Page 12 PLAY TODAY UPlayToday Warranty UltraPlay warrants its products to be free from defects in materials and/or workmanship, subject to normal usage and installation, for a period of 1-year from the date of shipment to the original purchaser. In the event of a claim under this warranty, UltraPlay will replace the component at no cost within the first 12 months from date of shipment to the original customer.
  • Page 13 PLAY TODAY WARRANTY EXCLUSIONS All warranties specifically exclude damage caused by man-made or natural disasters, vandalism, negligence, improper installation or improper use, modification, changes in appearance resulting from weathering, scratches, dents, discoloration, normal wear and tear, or marring as a result of public or private use.
  • Page 14 PLAY TODAY GENERAL INTRODUCTION TO INSTALLATION INSTRUCTIONS IMPORTANT! Please read the entire Installation Instructions packet before beginning the installation. UltraPlay has designed UPlayToday to take advantage of all Consumer Product Safety Commission (CPSC) and ASTM guidelines in force at the time of purchase in an effort to prevent playground accidents.
  • Page 15 PLAY TODAY GENERAL INTRODUCTION TO INSTALLATION INSTRUCTIONS TOOLS REQUIRED: UltraPlay supplies only the special wrenches and bits required to fasten the "tamper-resistant" hardware and components. You will need common wrenches and an Allen key set as well as a drill, string line, level, shovels, post hole digger, pry bar, washable felt tip marker, phillips head screw driver, utility knife, rubber mallet, and a tape measure.
  • Page 16 PLAY TODAY GENERAL INTRODUCTION TO INSTALLATION INSTRUCTIONS 7. CPSC guidelines mandate that there shall be no gaps present in the playground equipment that fall between 3-1/2" and 9". The positioning of certain components by the installer can affect this criteria, so you should always measure distances created when attaching components in order to avoid these spaces which can cause entrapment of a child using the equipment.
  • Page 17 PLAY TODAY WARNING LABEL APPLICATIONS INSTRUCTIONS The enclosed Warning Labels must be affixed to your playground equipment. At least one Warning Label is needed per play structure, permanently affixed in a conspicuous location within easy view of users. INSTRUCTIONS: 1. Fully assemble and install your UPlayToday playground equipment per the accompying installatioin instructions.
  • Page 18 PLAY TODAY TOOLS REQUIRED Issued/Revised: 8/10/2017 www.ultraplay.com 800.458.5872...
  • Page 19 INCH HARDWARE REFERENCE M8 B.H.C.S. Bolts 40mm 45mm 50mm 70mm 100mm 20mm 25mm 30mm 35mm 13mm 1-3/4" 2" 2-3/4" 4" 3/4" 1" 1-3/16" 1 3/8" 1-9/16" 1/2" (33-11-0109) (33-11-0113) (33-11-0102) (33-11-0104) (33-11-0105) (33-11-0106) (33-11-0114) (33-11-0107) (33-11-0103) (33-11-0101) M8 Barrel Nut (33-11-0501) M8 Flat Washer (33-11-0300)
  • Page 20 PLAY TODAY ELEVATION VIEW 22'-6 1/4" 18'-6" 10'- 1/4" ELEVATION VIEW Issued/Revised: 8/10/2017 www.ultraplay.com 800.458.5872...
  • Page 21 PLAY TODAY UPRIGHT PLACEMENT UPRIGHTS LIST DESCRIPTION PART NUMBER 02-07-5025 7'-8" UPRIGHT 8'-4" UPRIGHT 02-07-5026 8'-8" UPRIGHT 02-07-5076 7'-8" UPRIGHT (02-07-5025) 8'-8" UPRIGHT (02-07-5076) 48" 48" 60" 7'-8" UPRIGHT (02-07-5025) 8'-4" UPRIGHT (02-07-5026) Issued/Revised: 8/10/2017 www.ultraplay.com 800.458.5872...
  • Page 22 PLAY TODAY USE ZONE 4FT RIGHT CURVED SLIDE 1FT STAIRS (02-07-5005) (02-07-5064) 5FT BEANSTALK CLIMBER 4FT ADA STEPS -WIDE- (02-07-5060) (02-07-5000) 6'-0" WINDOW PANEL SQUARE DECK (02-07-5010) (02-07-5001) RAINWHEEL (02-07-5022) 48" 48" 60" 6'-0" 30'-6" 4FT STRAIGHT SLIDE RECTANGLE DECK (02-07-5004) (02-07-5038) VINE CLIMBER...
  • Page 23 PLAY TODAY FOOTING DETAIL - SURFACE MOUNT (33-12-0170) Parts List DESCRIPTION PART NUMBER 33-11-0702 CONCRETE ANCHOR UPRIGHT POST UPRIGHT FOOTER CONCRETE CONCRETE 4" MINIMUM ANCHOR w/3000 PSI GRAVEL IMPORTANT: Never install play equipment over hard, unresilient surfaces such as asphalt, concrete, or compacted earth.
  • Page 24 INCH FOOTING DETAIL - SURFACE MOUNT 1. Using Upright Footers as template, mark hole position on concrete. Drill 3/8" Dia. x 2" deep holes into concrete to receive anchor. 2. Attach Upright Footer to concrete using Concrete Anchor, Flat Washer, and Lock Nut. See Detail 067. LOCK NUT FLAT WASHER UPRIGHT...
  • Page 25 PLAY TODAY FOOTING DETAIL - ON GROUND (33-12-0171) Parts List DESCRIPTION PART NUMBER 02-07-0048 GROUND SPIKE IMPORTANT: UPRIGHTS WILL COME PRE-ASSEMBLED WITH UPRIGHT FOOTER UPRIGHT POSITIONED IN THE POST BOTTOM (2) HOLES TO ACCOMODATE 2" OF SURFACING. WHEN INSTALLING 12" OF SURFACING, REMOVE BOLTS AND ADJUST UPRIGHT FOOTER...
  • Page 26 INCH FOOTING DETAIL - ON GROUND 1. With Upright Footers in position, secure each Upright Footer to the ground using Ground Spikes. NOTE: A 4lb. hammer may be required to drive spikes into the ground. Install ground spikes angled inward as shown in illustration. See Detail 068. IMPORTANT: Refer to Post Placement/Hole Locations diagram to mark locations of Upright Footers.
  • Page 27 PLAY TODAY FOOTING DETAIL - IN GROUND (33-12-0172) Parts List DESCRIPTION PART NUMBER INGROUND FOOTER 02-07-0049 3/8" x 1 1/4" P.B.H.C.S. w/PATCH 33-05-0019 3/8" FLAT WASHER 33-02-0002 3/8" HEX NUT 33-01-0002 IMPORTANT: UPRIGHTS WILL COME UPRIGHT PRE-ASSEMBLED WITH UPRIGHT FOOTER POSITIONED IN THE BOTTOM (2) HOLES TO ACCOMODATE 2"...
  • Page 28 INCH FOOTING DETAIL - IN GROUND 1. Attach Inground Footer to Upright Post using 3/8" x 1 1/4" P.B.H.C.S., 3/8" Flat Washer, and 3/8" Hex Nut. Refer to Footing Table and Footing Layout page for Hole/Footer location. See Detail 069. 2.
  • Page 29 PLAY TODAY KEEGAN'S KASTLE Parts List DESCRIPTION PART NUMBER TUBE CLAMP 02-07-0039 PANEL CLAMP 02-07-0040 4FT ADA STEPS 02-07-5000 SQUARE DECK 02-07-5001 4FT. STRAIGHT SLIDE 02-07-5004 4FT RIGHT CURVED SLIDE 02-07-5005 VINE CLIMBER 02-07-5008 WINDOW PANEL 02-07-5010 SHIP'S WHEEL PANEL 02-07-5012 BONE BRIDGE 02-07-5016...
  • Page 30 PLAY TODAY KEEGAN'S KASTLE 8'-8" UPRIGHT (02-07-5076) WINDOW PANEL (02-07-5010) 8'-4" UPRIGHT (02-07-5026) 5FT DOUBLE STRAIGHT SLIDE (02-07-5065) RECTANGLE DECK (02-07-5038) 7'-8" UPRIGHT (02-07-5025) 5FT BEANSTALK CLIMBER VINE CLIMBER -WIDE- (02-07-5060) (02-07-5008) SQUARE DECK (02-07-5001) 4FT RIGHT CURVED SLIDE 4FT STRAIGHT SLIDE (02-07-5005) (02-07-5004) 4FT ADA STEPS...
  • Page 31 14'-2 1/2" KEEGAN'S KASTLE (UPLAY-30) TOP VIEW FOOTING TABLE Diagonal Hole No Hor. Dim. Ver. Dim. 132 1/4" 90 1/2" 160 1/4" 154" 90 1/2" 179 1/4" 2 1/2" 61 3/4" 61 3/4" 34 1/4" 61 3/4" 70 1/2" 143 1/2" 39 1/2"...

  • Page 32: Installation Instructions

    PLAY TODAY 8'-8" UPRIGHT w/CAP, CLAMP, & FOOTER 02-07-5076 Parts List DESCRIPTION PART NUMBER 3 1/2" UPRIGHT, 8'-8" LG. 02-07-0198 UPRIGHT FOOTER 02-07-0042 33-12-0026 HARDWARE COMPLETE M10 x 80mm (3 1/8") BHCS BOLT 33-11-0011* M10 BARREL NUT 33-11-0401* Unless Otherwise Specified, All Units of Measure are Each Items listed below Hardware Complete line are included with Hardware Complete Number Warning: During Installation, Hardware And Small Parts Are Choking Hazards For Young Children.
  • Page 33 PLAY TODAY 8'-8" UPRIGHT w/CAP, CLAMP, & FOOTER 02-07-5076 3-1/2" UPRIGHT, 8'-8" LG. (02-07-0198) UPRIGHT FOOTER (02-07-0042) FINISHED ASSEMBLY = INSTALLATION DETAIL Issued/Revised: 03/04/14 www.ultraplay.com 800.458.5872...
  • Page 34 INCH 8'-8" UPRIGHT w/CAP, CLAMP, & FOOTER 02-07-5076 UPRIGHT LARGE HOLE M10 BARREL NUT (33-11-0401) M10 x 80mm (3 1/8") TOP (2) HOLES USED BHCS BOLT FOR 12" ENGINEERED (33-11-0011) WOOD FIBER BOTTOM (2) HOLES USED FOR 2" POURED IN PLACE OR RUBBER TILES FOOTER Issued/Revised:...
  • Page 35 PLAY TODAY 8'-4" UPRIGHT w/CAP, CLAMP, & FOOTER 02-07-5026 Parts List DESCRIPTION PART NUMBER 3 1/2" UPRIGHT, 8'-4" LG. 02-07-0148 UPRIGHT FOOTER 02-07-0042 33-12-0026 HARDWARE COMPLETE M10 x 80mm (3 1/8") BHCS BOLT 33-11-0011* M10 BARREL NUT 33-11-0401* Unless Otherwise Specified, All Units of Measure are Each Items listed below Hardware Complete line are included with Hardware Complete Number Warning: During Installation, Hardware And Small Parts Are Choking Hazards For Young Children.
  • Page 36 PLAY TODAY 8'-4" UPRIGHT w/CAP, CLAMP, & FOOTER 02-07-5026 3-1/2" UPRIGHT, 8'-4" LG. (02-07-0148) UPRIGHT FOOTER (02-07-0042) FINISHED ASSEMBLY = INSTALLATION DETAIL Issued/Revised: 05/24/13 www.ultraplay.com 800.458.5872...
  • Page 37 INCH 8'-4" UPRIGHT w/CAP, CLAMP, & FOOTER 02-07-5026 UPRIGHT LARGE HOLE M10 BARREL NUT (33-11-0401) M10 x 80mm (3 1/8") TOP (2) HOLES USED BHCS BOLT FOR 12" ENGINEERED (33-11-0011) WOOD FIBER BOTTOM (2) HOLES USED FOR 2" POURED IN PLACE OR RUBBER TILES FOOTER Issued/Revised:...
  • Page 38 PLAY TODAY 7'-8" UPRIGHT w/CAP, CLAMP, & FOOTER 02-07-5025 Parts List DESCRIPTION PART NUMBER 3 1/2" UPRIGHT, 7'-8" LG. 02-07-0144 UPRIGHT FOOTER 02-07-0042 33-12-0026 HARDWARE COMPLETE M10 x 80mm (3 1/8") BHCS BOLT 33-11-0011* M10 BARREL NUT 33-11-0401* Unless Otherwise Specified, All Units of Measure are Each Items listed below Hardware Complete line are included with Hardware Complete Number Warning: During Installation, Hardware And Small Parts Are Choking Hazards For Young Children.
  • Page 39 PLAY TODAY 7'-8" UPRIGHT w/CAP, CLAMP, & FOOTER 02-07-5025 3-1/2" UPRIGHT, 7'-8" LG. (02-07-0144) UPRIGHT FOOTER (02-07-0042) FINISHED ASSEMBLY = INSTALLATION DETAIL Issued/Revised: 05/23/13 www.ultraplay.com 800.458.5872...
  • Page 40 INCH 7'-8" UPRIGHT w/CAP, CLAMP, & FOOTER 02-07-5025 UPRIGHT LARGE HOLE M10 BARREL NUT (33-11-0401) M10 x 80mm (3 1/8") TOP (2) HOLES USED BHCS BOLT FOR 12" ENGINEERED (33-11-0011) WOOD FIBER BOTTOM (2) HOLES USED FOR 2" POURED IN PLACE OR RUBBER TILES FOOTER Issued/Revised:...

  • Page 41: Trim Out Slots With Utility Knife If Necessary

    PLAY TODAY SQUARE DECK 02-07-5001 Parts List DESCRIPTION PART NUMBER SQUARE DECK 02-07-0003 HARDWARE COMPLETE 33-12-0019 M10 x 30mm (1 3/16") BHCS BOLT 33-11-0004* M10 FLATWASHER 33-11-0200* M10 LOCK NUT 33-11-0400* Unless Otherwise Specified, All Units of Measure are Each Items listed below Hardware Complete line are included with Hardware Complete Number Warning: During Installation, Hardware And Small Parts Are Choking Hazards For Young Children.
  • Page 42 PLAY TODAY SQUARE DECK 02-07-5001 SQUARE DECK (02-07-0003) UNDERNEATH = INSTALLATION DETAIL COMPONENTS SHOWN IN HIDDEN LINES ARE SOLD SEPARATELY FINISHED ASSEMBLY Issued/Revised: 04/30/13 www.ultraplay.com 800.458.5872...
  • Page 43 INCH SQUARE DECK 02-07-5001 M10 FLATWASHER M10 LOCK NUT (33-11-0200) (33-11-0400) DECK FLANGE M10 x 30mm (1 3/16") BHCS BOLT (33-11-0004) Issued/Revised: 04/30/13 800.458.5872 www.ultraplay.com...
  • Page 44 PLAY TODAY RECTANGLE DECK 02-07-5038 Parts List DESCRIPTION PART NUMBER RECTANGLE DECK 02-07-0184 HARDWARE COMPLETE 33-12-0019 M10 x 30mm (1 3/16") BHCS BOLT 33-11-0004* M10 FLATWASHER 33-11-0200* M10 LOCK NUT 33-11-0400* Unless Otherwise Specified, All Units of Measure are Each Items listed below Hardware Complete line are included with Hardware Complete Number Warning: During Installation, Hardware And Small Parts Are Choking Hazards For Young Children.
  • Page 45 PLAY TODAY RECTANGLE DECK 02-07-5038 RECTANGLE DECK (02-07-0184) UNDERNEATH COMPONENTS SHOWN IN HIDDEN LINES ARE SOLD SEPARATELY = INSTALLATION DETAIL FINISHED ASSEMBLY Issued/Revised: 06/12/13 www.ultraplay.com 800.458.5872...
  • Page 46 INCH RECTANGLE DECK 02-07-5038 M10 FLATWASHER M10 LOCK NUT (33-11-0200) (33-11-0400) DECK FLANGE M10 x 30mm (1 3/16") BHCS BOLT (33-11-0004) Issued/Revised: 06/12/13 www.ultraplay.com 800.458.5872...
  • Page 47 PLAY TODAY TUBE CLAMP 02-07-0039 Parts List DESCRIPTION PART NUMBER TUBE CLAMP 02-07-0039 Unless Otherwise Specified, All Units of Measure are Each Items listed below Hardware Complete line are included with Hardware Complete Number Warning: During Installation, Hardware And Small Parts Are Choking Hazards For Young Children. Store Unused Parts Appropriately Until Assembly Is Completed.
  • Page 48 INCH TUBE CLAMP 02-07-0039 M8 x 25mm (1") BHCS BOLT (33-11-0103) UPRIGHT M8 LOCK NUT (33-11-0500) M8 LOCK NUT (33-11-0500) CLAMP RIVET M8 x 25mm (1") BHCS (33-11-0700) BOLT (33-11-0103) DRILL THROUGH PRE-DRILLED HOLE IN CLAMP INTO UPRIGHT TO INSTALL CLAMP RIVET. (33-11-0700) Issued/Revised: 06/03/13...
  • Page 49 PLAY TODAY PANEL CLAMP - SINGLE 02-07-0040 Parts List DESCRIPTION PART NUMBER PANEL CLAMP 02-07-0040 Unless Otherwise Specified, All Units of Measure are Each Items listed below Hardware Complete line are included with Hardware Complete Number Warning: During Installation, Hardware And Small Parts Are Choking Hazards For Young Children. Store Unused Parts Appropriately Until Assembly Is Completed.
  • Page 50 INCH PANEL CLAMP - SINGLE 02-07-0040 M8 x 25mm (1") BHCS BOLT (33-11-0103) UPRIGHT M8 LOCK NUT (33-11-0500) M8 LOCK NUT (33-11-0500) CLAMP RIVET M8 x 25mm (1") BHCS (33-11-0700) BOLT (33-11-0103) DRILL THROUGH PRE-DRILLED HOLE IN CLAMP INTO UPRIGHT TO INSTALL CLAMP RIVET.

  • Page 51: Table Of Contents

    PLAY TODAY 1FT. STAIRS 02-07-5064 Parts List DESCRIPTION PART NUMBER 1 FT STAIR 02-07-0170 LEFT HANDRAIL 02-07-0172 RIGHT HANDRAIL 02-07-0171 TUBE CLAMP 02-07-0039 HARDWARE COMPLETE 33-12-0074 M10 x 20mm (3/4") BHCS BOLT 33-11-0002* M10 x 25mm (1") BHCS BOLT 33-11-0003* M10 x 50mm (2") BHCS BOLT 33-11-0010* 33-11-0200*...

  • Page 52: Ft Stair

    PLAY TODAY 1FT. STAIRS 02-07-5064 RIGHT HANDRAIL (02-07-0171) LEFT HANDRAIL (02-07-0172) TUBE CLAMP (02-07-0039) UNDERNEATH 1 FT STAIR (02-07-0170) UNDERNEATH COMPONENTS SHOWN IN HIDDEN LINES ARE SOLD SEPARATELY FINISHED ASSEMBLY = INSTALLATION DETAIL Issued/Revised: 08/29/13 www.ultraplay.com 800.458.5872...

  • Page 53: M10 X 20Mm (3/4") Bhcs Bolt

    INCH 1FT. STAIRS 02-07-5064 M8 x 25mm (1") BHCS BOLT (33-11-0103) HANDRAIL UPRIGHT TUBE CLAMP M8 LOCK NUT (33-11-0500) M8 LOCK NUT (33-11-0500) CLAMP RIVET M8 x 25mm (1") BHCS M8 x 25mm (1") BHCS (33-11-0700) BOLT (33-11-0103) BOLT (33-11-0103) M8 LOCKWASHER DRILL THROUGH PRE-DRILLED (33-11-0301)

  • Page 54: M10 X 50Mm (2") Bhcs Bolt

    INCH 1FT. STAIRS 02-07-5064 M10 FLATWASHER (33-11-0200) HANDRAIL M10 LOCK NUT (33-11-0400) DECK M10 x 50mm (2") BHCS BOLT (33-11-0010) Issued/Revised: 08/29/13 www.ultraplay.com 800.458.5872...

  • Page 55: M8 X 25Mm (1") Bhcs Bolt

    PLAY TODAY BONE BRIDGE 02-07-5016 Parts List DESCRIPTION PART NUMBER BONE BRIDGE 02-07-0023 BRACKET 02-07-0024 HARDWARE COMPLETE 33-12-0006 M10 x 25mm (1") BHCS BOLT 33-11-0003* M12 LOCKWASHER 33-11-0203* M10 FLATWASHER 33-11-0200* M10 LOCK NUT 33-11-0400* M8 x 25mm (1") BHCS BOLT 33-11-0103* M8 LOCKWASHER 33-11-0301*...
  • Page 56 PLAY TODAY BONE BRIDGE 02-07-5016 BONE BRIDGE (02-07-0023) UNDERNEATH BRACKET (02-07-0024) UNDERNEATH = INSTALLATION DETAIL COMPONENTS SHOWN IN FINISHED ASSEMBLY HIDDEN LINES ARE SOLD SEPARATELY Issued/Revised: 05/07/13 www.ultraplay.com 800.458.5872...

  • Page 57: M8 Lock Nut

    INCH BONE BRIDGE 02-07-5016 HANDRAIL M8 x 25mm (1") BHCS BOLT (33-11-0103) TUBE CLAMP UPRIGHT M8 LOCK NUT (33-11-0500) M8 LOCK NUT (33-11-0500) M8 x 25mm (1") BHCS BOLT (33-11-0103) M8 LOCKWASHER (33-11-0301) CLAMP RIVET M8 x 25mm (1") BHCS (33-11-0700) BOLT (33-11-0103) DRILL THROUGH PRE-DRILLED...
  • Page 58 INCH BONE BRIDGE 02-07-5016 BRACKET M12 LOCKWASHER (33-11-0203) BONE BRIDGE M10 FLATWASHER (33-11-0200) M10 x 25mm (1") BHCS BOLT (33-11-0003) Issued/Revised: 05/07/13 www.ultraplay.com 800.458.5872...
  • Page 59 PLAY TODAY ADA STEPS 02-07-5000 Parts List DESCRIPTION PART NUMBER ADA BARRIER LEFT 02-07-0008 ADA BARRIER RIGHT 02-07-0010 1" FOOTER 02-07-0043 ADA TRANSFER STAIR 02-07-0005 ADA DECK 02-07-0004 ADA DECK SUPPORT POST 02-07-0047 02-07-0011 ADA HANDHOLD ADA STEP 02-07-0006 8 1/4" EXTENSION POST 02-07-0060 15"...
  • Page 60 PLAY TODAY ADA STEPS 02-07-5000 7. Attach ADA Transfer Step to ADA Barriers using M10 x 25mm B.H.C.S. Bolt, M10 Flat Washer, and M10 Lock Nut. See Detail 032. 8. Attach Barrier Footer to ADA Deck Support using M10 x 35mm B.H.C.S. Bolt and M10 Lock Nut. See Detail 028. 9.

  • Page 61: Ada Barrier Left

    PLAY TODAY ADA STEPS 02-07-5000 ADA BARRIER LEFT (02-07-0008) ADA BARRIER RIGHT (02-07-0010) ADA HANDHOLD ADA DECK (02-07-0011) (02-07-0004) ADA STEP ADA TRANSFER (02-07-0006) STAIR (02-07-0005) UNDERNEATH UNDERNEATH UNDERNEATH UNDERNEATH ADA DECK SUPPORT POST COMPONENTS SHOWN IN (02-07-0047) HIDDEN LINES ARE SOLD SEPARATELY FINISHED ASSEMBLY = INSTALLATION DETAIL Issued/Revised: 04/22/13...
  • Page 62 INCH ADA STEPS 02-07-5000 M10 LOCK NUT (33-11-0400) M10 x 35mm (1 3/8") BHCS BOLT BARRIER (33-11-0005) TUBE CLAMP SUPPORT POST M8 x 25mm (1") BHCS BOLT (33-11-0103) FOOTER M8 LOCKWASHER (33-11-0301) M8 x 25mm (1") BHCS M10 LOCK NUT BOLT (33-11-0103) (33-11-0400) M10 FLATWASHER...

  • Page 63: 1/4" Extension Post

    INCH ADA STEPS 02-07-5000 DECK M10 LOCK NUT (33-11-0400) M10 LOCK NUT (33-11-0400) M10 FLATWASHER (33-11-0200) M10 FLATWASHER STAIR (33-11-0200) M10 x 25mm (1") DECK SUPPORT BHCS BOLT (33-11-0003) M10 FLATWASHER (33-11-0200) M10 x 35mm (1 3/8") BHCS BOLT BARRIER (33-11-0005) STEP M10 LOCK NUT...

  • Page 64: 15" Extension Post

    INCH ADA STEPS 02-07-5000 EXTENSION POST M10 LOCK NUT (33-11-0400) M10 x 35mm (1 3/8") BHCS BOLT (33-11-0005) LARGER HOLE FOOTER PLATE 04/22/13 Issued/Revised: www.ultraplay.com 800.458.5872...
  • Page 65 PLAY TODAY 4FT. CURVED SLIDE 02-07-5005 Parts List DESCRIPTION PART NUMBER CURVED SLIDE 02-07-0027 MOUNTING BRACKET 02-07-0045 EXTENSION TUBE 02-07-0044 FOOTER PLATE 02-07-0046 SLIDE HOOD 02-07-0025 CENTER SUPPORT POST 02-07-0062 FOOTER 02-07-0043 33-12-0072 HARDWARE COMPLETE M10 x 20mm (3/4") BHCS BOLT 33-11-0002* M12 LOCKWASHER 33-11-0203*...
  • Page 66 PLAY TODAY 4FT. CURVED SLIDE 02-07-5005 6. Clean out slots in Deck with utility knife if necessary. 7. Attach Slide to Deck using M10 x 20mm B.H.C.S, M12 Lock Washer, and M10 Flat Washer. See Detail 058. 8. Attach Slide Hood to Slide using M10 x 60mm B.H.C.S, M12 Lock Washer, and M10 Flat Washer. See Detail 059. 9.
  • Page 67 INCH 4FT. CURVED SLIDE 02-07-5005 PLATFORM MOUNTING M8 x 25mm (1") BHCS BRACKET BOLT (33-11-0103) M10 x 35mm (1 3/8") BHCS BOLT (33-11-0005) M8 LOCK NUT (33-11-0500) M8 LOCK NUT (33-11-0500) M10 LOCK NUT CLAMP RIVET (33-11-0400) (33-11-0700) M8 x 25mm (1") BHCS BOLT (33-11-0103) DRILL THROUGH PRE-DRILLED FOOTBUCK...

  • Page 68: M10 X 60Mm (2 3/8") Bhcs Bolt

    INCH 4FT. CURVED SLIDE 02-07-5005 SLIDE SLIDE DECK MOUNTING BRACKET M10 x 20mm (3/4") (02-07-0045 BHCS BOLT M10 FLATWASHER (33-11-0002) (33-11-0200) M12 LOCKWASHER M12 LOCKWASHER (33-11-0203) M10 FLATWASHER M10 x 20mm (3/4") (33-11-0203) (33-11-0200) BHCS BOLT (33-11-0002) SLIDE M8 LOCK NUT (33-11-0500) SLIDE HOOD M12 LOCKWASHER...
  • Page 69 INCH 4FT. CURVED SLIDE 02-07-5005 UPRIGHT M8 BARREL NUT (33-11-0501) SLIDE PANEL CENTER SUPPORT PANEL M10 FLATWASHER POST M8 x 20mm (3/4") CLAMP (33-11-0200) BHCS BOLT (33-11-0102) M12 LOCKWASHER (33-11-0203) M10 x 20mm (3/4") BHCS BOLT (33-11-0002) Issued/Revised: 05/01/17 www.ultraplay.com 800.458.5872...

  • Page 70: M10 Lock Nut

    PLAY TODAY 5FT BEANSTALK CLIMBER -WIDE- 02-07-5060 Parts List DESCRIPTION PART NUMBER 5FT BEANSTALK CLIMBER 02-07-0165 ENTRY ARCHWAY WIDE w/SOCKET 02-07-0163 EXTENSION PIPE 02-07-0203 FOOTER PLATE 02-07-0046 33-12-1034 HARDWARE COMPLETE M8 x 25mm (1") BHCS BOLT 33-11-0103* M8 LOCKWASHER 33-11-0301* M8 LOCK NUT 33-11-0500* M10 x 20mm (3/4") BHCS BOLT...
  • Page 71 PLAY TODAY 5FT BEANSTALK CLIMBER -WIDE- 02-07-5060 MAINTENANCE PROCEDURE: Periodically check hardware for tightness, and tighten as necessary. Always check all parts for breakage or wear, and immediately put equipment out of service until any faulty parts found are repaired or replaced. Also Check all metal parts for rust, paint loss and touch-up if necessary with paint.
  • Page 72 INCH 5FT BEANSTALK CLIMBER -WIDE- 02-07-5060 M8 x 25mm (1") BHCS BOLT (33-11-0103) HANDRAIL UPRIGHT TUBE CLAMP M8 LOCK NUT (33-11-0500) M8 LOCK NUT (33-11-0500) M8 x 25mm (1") BHCS CLAMP RIVET BOLT (33-11-0103) M8 x 25mm (1") BHCS M8 LOCKWASHER (33-11-0700) BOLT (33-11-0103) (33-11-0301)
  • Page 73 INCH 5FT BEANSTALK CLIMBER -WIDE- 02-07-5060 ENTRY ARCHWAY w/SOCKET M10 x 20mm (3/4") BHCS BOLT (33-11-0002) PIPE w/INSERT M10 FLATWASHER (33-11-0200) M12 LOCKWASHER (33-11-0203) CLIMBER M10 x 35mm (1 3/8") BHCS BOLT (33-11-0005) M10 LOCK NUT (33-11-0400) EXTENSION Issued/Revised: 09/18/13 www.ultraplay.com 800.458.5872...
  • Page 74 PLAY TODAY WINDOW PANEL 02-07-5010 Parts List DESCRIPTION PART NUMBER 02-07-0019 WINDOW PANEL HARDWARE COMPLETE 33-12-0034 M10 x 20mm (3/4") BHCS BOLT 33-11-0002* M12 LOCKWASHER 33-11-0203* M10 FLATWASHER 33-11-0200* M8 x 25mm (1") BHCS BOLT 33-11-0103* M8 x 55mm (2 3/16") BHCS BOLT 33-11-0110* M8 LOCK NUT 33-11-0500*...
  • Page 75 PLAY TODAY WINDOW PANEL 02-07-5010 WINDOW PANEL (02-07-0019) UNDERNEATH FINISHED ASSEMBLY = INSTALLATION DETAIL COMPONENTS SHOWN IN HIDDEN LINES ARE SOLD SEPARATELY Issued/Revised: 03/26/13 www.ultraplay.com 800.458.5872...
  • Page 76 INCH WINDOW PANEL 02-07-5010 M10 x 20mm (3/4") BHCS BOLT M8 x 25mm (1") BHCS (33-11-0002) M12 LOCKWASHER BOLT (33-11-0103) (33-11-0203) M10 FLATWASHER (33-11-0200) M8 LOCK NUT (33-11-0500) M8 LOCK NUT (33-11-0500) CLAMP RIVET DECK (33-11-0700) M8 x 25mm (1") BHCS BOLT (33-11-0103) DRILL THROUGH PRE-DRILLED THREADED...
  • Page 77 PLAY TODAY 5FT DOUBLE SLIDE 02-07-5065 Parts List DESCRIPTION PART NUMBER 5FT DOUBLE STRAIGHT SLIDE 02-07-0173 DOUBLE SLIDEHOOD 02-07-0174 DOUBLE SLIDE DECK FILLER 02-07-0192 CLAMP DOUBLE SLIDE 02-07-0193 MID SUPPORT BRACKET 02-07-0191 BOTTOM BRACKET 02-07-0190 EXTENSION TUBE 02-07-0202 02-07-0046 FOOTER PLATE 1"...
  • Page 78 PLAY TODAY 5FT DOUBLE SLIDE 02-07-5065 8. Attach Extension Tube to Footer Plate using M10 x 35mm B.H.C.S. Bolt and M10 Lock Nut. See Detail 036. 9. Insert Extension Tube into Bottom Bracket and secure with M10 x 35mm B.H.C.S. Bolt and M10 Lock Nut. See Detail 077. 10.
  • Page 79 INCH 5FT DOUBLE SLIDE 02-07-5065 M10 LOCK NUT (33-11-0400) M10 x 35mm (1 3/8") M10 LOCK NUT BHCS BOLT (33-11-0400) (33-11-0005) M10 FLATWASHER (33-11-0200) LARGER HOLE CENTER SUPPORT POST M10 FLATWASHER DECK (33-11-0200) FOOTER DECK M10 x 25mm (1") BHCS BOLT FILLER (33-11-0003) EXTENSION TUBE...
  • Page 80 INCH 5FT DOUBLE SLIDE 02-07-5065 UPRIGHT M8 LOCK NUT (33-11-0500) CLAMP DOUBLE SLIDE UPRIGHT (02-07-0193) M8 x 25mm (1") BHCS BOLT (33-11-0103) M8 x 25mm (1") BHCS BOLT (33-11-0103) CLAMP RIVET (33-11-0700) M8 LOCK NUT (33-11-0500) SLIDE HOOD M8 x 30mm (1 3/16") BHCS BOLT DRILL THROUGH PRE-DRILLED (33-11-0104)
  • Page 81 INCH 5FT DOUBLE SLIDE 02-07-5065 BRACKET M10 x 35mm (1 3/8") BHCS BOLT (33-11-0005) M10 LOCK NUT (33-11-0400) EXTENSION Issued/Revised: 04/28/17 www.ultraplay.com 800.458.5872...
  • Page 82 PLAY TODAY SHIP'S WHEEL PANEL 02-07-5012 Parts List DESCRIPTION PART NUMBER SHIP'S WHEEL PANEL 02-07-0016 HARDWARE COMPLETE 33-12-0034 M10 x 20mm (3/4") BHCS BOLT 33-11-0002* M12 LOCKWASHER 33-11-0203* M10 FLATWASHER 33-11-0200* M8 x 25mm (1") BHCS BOLT 33-11-0103* M8 x 55mm (2 3/16") BHCS BOLT 33-11-0110* M8 LOCK NUT 33-11-0500*...
  • Page 83 PLAY TODAY SHIP'S WHEEL PANEL 02-07-5012 SHIP'S WHEEL PANEL (02-07-0016) UNDERNEATH FINISHED ASSEMBLY = INSTALLATION DETAIL COMPONENTS SHOWN IN HIDDEN LINES ARE SOLD SEPARATELY Issued/Revised: 04/12/13 www.ultraplay.com 800.458.5872...
  • Page 84 INCH SHIP'S WHEEL PANEL 02-07-5012 M8 x 25mm (1") BHCS BOLT (33-11-0103) M10 x 20mm (3/4") UPRIGHT BHCS BOLT (33-11-0002) M12 LOCKWASHER (33-11-0203) M8 LOCK NUT M10 FLATWASHER (33-11-0500) (33-11-0200) M8 LOCK NUT (33-11-0500) CLAMP RIVET (33-11-0700) DECK M8 x 25mm (1") BHCS BOLT (33-11-0103) DRILL THROUGH PRE-DRILLED THREADED...
  • Page 85 PLAY TODAY VINE CLIMBER 02-07-5008 Parts List DESCRIPTION PART NUMBER VINE CLIMBER 02-07-0032 DECK MOUNTING BRACKET 02-07-0085 VINE CLIMBER EXTENSION POST-LONG 02-07-0097 VINE CLIMBER EXTENSION POST-SHORT 02-07-0098 FOOTER PLATE 02-07-0046 GRAB BAR 02-07-0033 TUBE CLAMP 02-07-0039 HARDWARE COMPLETE 33-12-0077 M10 x 20mm (3/4") BHCS BOLT 33-11-0002* M10 x 25mm (1") BHCS BOLT 33-11-0003*...
  • Page 86 PLAY TODAY VINE CLIMBER 02-07-5008 NOTE: THE VERTICAL POSITION OF THE GRAB BARS MUST BE A MINIMUM OF 38" ABOVE THE DECK. THE CLAMP POSITION CAN BE ADJUSTED HIGHER TO AVOID INTERFERENCE WITH OTHER CLAMPS. 7. Attach Tube Clamp to Upright using M8 x 25mm B.H.C.S. Bolt and M8 Lock Nut. Once all clamps are on and secure drill Ø1/4" hole through Clamp and Upright to install Clamp Rivet.
  • Page 87 INCH VINE CLIMBER 02-07-5008 M8 x 25mm (1") BHCS BOLT (33-11-0103) GRAB BAR UPRIGHT TUBE CLAMP M8 LOCK NUT (33-11-0500) M8 LOCK NUT (33-11-0500) M8 x 25mm (1") BHCS BOLT (33-11-0103) CLAMP RIVET M8 LOCKWASHER M8 x 25mm (1") BHCS (33-11-0700) (33-11-0301) BOLT (33-11-0103)
  • Page 88 INCH VINE CLIMBER 02-07-5008 DECK DECK MOUNTING BRACKET ROTOMOLD M10 FLATWASHER (33-11-0200) M10 x 25mm (1") BHCS BOLT (33-11-0003) M10 FLATWASHER (33-11-0200) EXTENSION POST ROTOMOLD M12 LOCKWASHER M12 LOCKWASHER (33-11-0203) (33-11-0203) M10 x 25mm (1") BHCS BOLT (33-11-0003) Issued/Revised: 04/26/13 www.ultraplay.com 800.458.5872...
  • Page 89 PLAY TODAY 4FT. STRAIGHT SLIDE 02-07-5004 Parts List DESCRIPTION PART NUMBER STRAIGHT SLIDE 02-07-0026 MOUNTING BRACKET 02-07-0045 EXTENSION TUBE 02-07-0044 FOOTER PLATE 02-07-0046 02-07-0025 SLIDE HOOD HARDWARE COMPLETE 33-12-0071 M10 x 20mm (3/4") BHCS BOLT 33-11-0002* M12 LOCKWASHER 33-11-0203* M10 FLATWASHER 33-11-0200* M10 x 35mm (1 3/8") BHCS BOLT 33-11-0005*...
  • Page 90 PLAY TODAY 4FT. STRAIGHT SLIDE 02-07-5004 8. Attach Slide Hood to Panel Clamp using M8 x 20mm B.H.C.S. and M8 Barrel Nut. See Detail 061. 9. Close Panel Clamps around Uprights and secure using M8 x 25mm B.H.C.S. and M8 Lock Nut. See Detail 025. (Do not install Clamp Rivet until entire unit is assembled.) 10.
  • Page 91 INCH 4FT. STRAIGHT SLIDE 02-07-5004 M8 x 25mm (1") MOUNTING BRACKET BHCS BOLT M10 x 35mm (1 (33-11-0103) 3/8") BHCS BOLT (33-11-0005) M8 LOCK NUT (33-11-0500) M8 LOCK NUT (33-11-0500) M10 LOCK NUT CLAMP RIVET M8 x 25mm (1") (33-11-0400) (33-11-0700) BHCS BOLT (33-11-0103)
  • Page 92 INCH 4FT. STRAIGHT SLIDE 02-07-5004 SLIDE SLIDE DECK LOCKWASHER (33-11-0203) M10 x 20mm (3/4") BHCS BOLT (33-11-0002) SLIDE M10 x 60mm (2 LOCKWASHER M10 FLATWASHER HOOD 3/8") BHCS BOLT (33-11-0203) (33-11-0200) (33-11-0007) M10 FLATWASHER (33-11-0200) UPRIGHT M8 BARREL NUT (33-11-0501) M8 FLATWASHER PANEL (33-11-0300)
  • Page 93 PLAY TODAY RAIN WHEEL w/TUBE CLAMP 02-07-5022 Parts List DESCRIPTION PART NUMBER RAIN WHEEL ASS'Y 02-07-0012 Unless Otherwise Specified, All Units of Measure are Each Items listed below Hardware Complete line are included with Hardware Complete Number Warning: During Installation, Hardware And Small Parts Are Choking Hazards For Young Children. Store Unused Parts Appropriately Until Assembly Is Completed.
  • Page 94 PLAY TODAY RAIN WHEEL w/TUBE CLAMP 02-07-5022 UPRIGHT RAIN WHEEL ASS'Y (02-07-0012) = INSTALLATION DETAIL FINISHED ASSEMBLY COMPONENTS SHOWN IN HIDDEN LINES ARE SOLD SEPARATELY Issued/Revised: 10/06/15 www.ultraplay.com 800.458.5872...
  • Page 95 INCH RAIN WHEEL w/TUBE CLAMP 02-07-5022 M8 x 25mm (1") BHCS BOLT (33-11-0103) UPRIGHT M8 LOCK NUT (33-11-0500) M8 LOCK NUT (33-11-0500) CLAMP RIVET M8 x 25mm (1") BHCS (33-11-0700) BOLT (33-11-0103) DRILL THROUGH PRE-DRILLED HOLE IN CLAMP INTO UPRIGHT TO INSTALL CLAMP RIVET.
  • Page 96 PLAY TODAY BONGO DRUMS 02-07-5024 Parts List DESCRIPTION PART NUMBER BONGO DRUMS BRACKET 02-07-0092 BONGO DRUMS TUBE CLAMP 02-07-0056 MOUNTING BAR 02-07-0093 BONGO DRUMS 02-07-0014 HARDWARE COMPLETE 33-12-0020 33-11-0103* M8 x 25mm (1") BHCS BOLT M8 BARREL NUT 33-11-0501* M8 x 20mm (3/4") BHCS BOLT 33-11-0102* M8 FLATWASHER 33-11-0300*...
  • Page 97 PLAY TODAY BONGO DRUMS 02-07-5024 MOUNTING BAR (02-07-0093) BONGO DRUMS TUBE CLAMP (02-07-0056) BONGO DRUMS (02-07-0014) COMPONENTS SHOWN IN FINISHED ASSEMBLY = INSTALLATION DETAIL HIDDEN LINES ARE SOLD SEPARATELY Issued/Revised: 05/08/13 www.ultraplay.com 800.458.5872...
  • Page 98 INCH BONGO DRUMS 02-07-5024 M8 x 25mm (1") BHCS M8 x 20mm (3/4") BOLT (33-11-0103) BHCS BOLT BONGOS (33-11-0102) (02-08-0025) UPRIGHT M10 LOCKWASHER (33-11-0201) M8 FLATWASHER M8 LOCK NUT (33-11-0300) (33-11-0500) M8 LOCK NUT (33-11-0500) MOUNTING BAR (02-08-0126) M8 LOCK NUT BONGO SUPPORT (33-11-0500) CLAMP RIVET...
