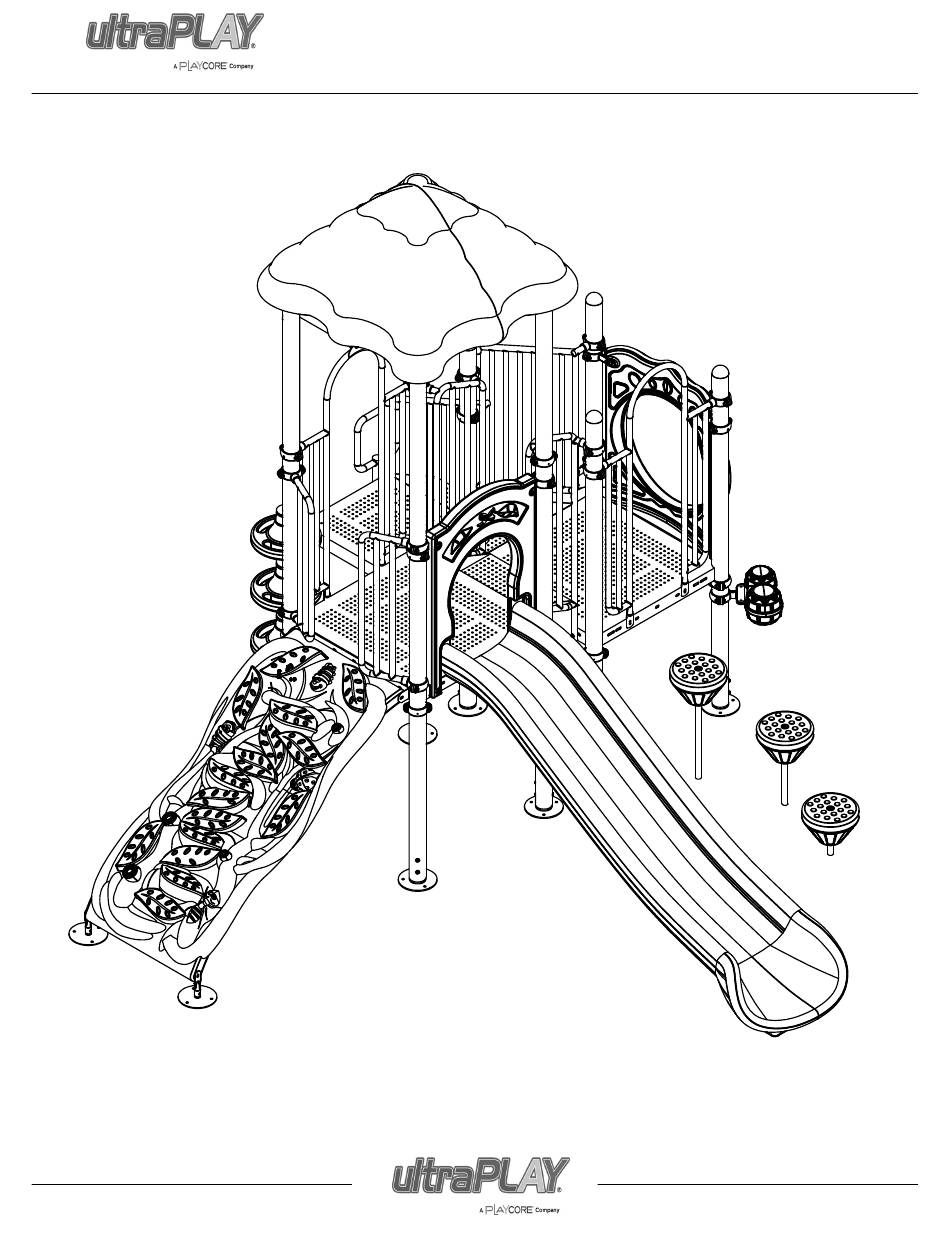

u
PLAY TODAY
TREASURE HOLLOW
MODEL # UPLAY-028-N
MODEL # UPLAY-028-P
Issued/Revised: 04/16/2019
www.ultraplay.com
800.458.5872

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ultraPLAY uPLAY TODAY TREASURE HOLLOW and is the answer not in the manual?

Questions and answers

Related Manuals for Playcore ultraPLAY uPLAY TODAY TREASURE HOLLOW

Summary of Contents for Playcore ultraPLAY uPLAY TODAY TREASURE HOLLOW

  • Page 1 PLAY TODAY TREASURE HOLLOW MODEL # UPLAY-028-N MODEL # UPLAY-028-P Issued/Revised: 04/16/2019 www.ultraplay.com 800.458.5872...
  • Page 3 For more information on UPlayToday and UltraPlay products, please do not hesitate to give us a call or visit ultraplay.com. Thank you for your business; we look forward to working with you on all of your future playground equipment projects! Sincerely, UPlayToday by UltraPlay A PlayCore® Company Issued/Revised: 04/16/2019 www.ultraplay.com 800.458.5872...
  • Page 4 PLAY TODAY GENERAL COMMERCIAL PLAYGROUND SAFETY GUIDELINES Maintaining your playground equipment and its surrounding area is essential to minimizing the risk of injury to users as well as maximizing its useful lifespan. UPlayToday STRONGLY recommends that you follow these Safety Guidelines in conjunction with conducting periodic maintenance inspections using the accompanying Playground Maintenance Checklist.
  • Page 5 PLAY TODAY GENERAL COMMERCIAL PLAYGROUND SAFETY GUIDELINES Install Wood Mulch (EWF) at a depth of 12". Over time this mulch will compress to a depth of 9" as required by the U.S. Consumer Product Safery Commission, ASTM standard F-1487 and Canadian Standard CAN/CSA-Z-614.

  • Page 6: Routine Maintenance

    PLAY TODAY GENERAL COMMERCIAL PLAYGROUND SAFETY GUIDELINES TRIPPING HAZARDS: There should be no exposed concrete footings, abrupt changes in surface elevations, tree roots, tree stumps, and rocks, which can trip children and adults. Check for trip hazards, such as the balance beam support posts, or environmental trip hazards, such as rocks or roots in the play area.
  • Page 7 PLAY TODAY GENERAL COMMERCIAL PLAYGROUND SAFETY GUIDELINES -Proper maintenance of UPlayToday equipment requires regular tightening of all bolts, nuts, set screws, and other hardware. -All equipment should be free of rust and repainted with an appropriate lead-free paint whenever necessary to deter rusting. This should also be done for any chipped or peeling areas. -Regular checking of all parts, casting, etc., should be made.
  • Page 8 PLAY TODAY GENERAL COMMERCIAL PLAYGROUND SAFETY GUIDELINES -Check for accessible sharp edges or points. Check for protruding bars, bolts, nuts, etc. Eliminate these conditions. -Check for exposed ends of tubing that should be covered with plugs or caps. -Check for loose bolts, nuts, etc. and tighten. -Check for broken or missing rails, steps, rungs, or seats and replace.
  • Page 12 PLAY TODAY UPlayToday Warranty UltraPlay warrants its products to be free from defects in materials and/or workmanship, subject to normal usage and installation, for a period of 1-year from the date of shipment to the original purchaser. In the event of a claim under this warranty, UltraPlay will replace the component at no cost within the first 12 months from date of shipment to the original customer.

  • Page 13: Warranty Exclusions

    PLAY TODAY WARRANTY EXCLUSIONS All warranties specifically exclude damage caused by man-made or natural disasters, vandalism, negligence, improper installation or improper use, modification, changes in appearance resulting from weathering, scratches, dents, discoloration, normal wear and tear, or marring as a result of public or private use.
  • Page 14 PLAY TODAY GENERAL INTRODUCTION TO INSTALLATION INSTRUCTIONS IMPORTANT! Please read the entire Installation Instructions packet before beginning the installation. UltraPlay has designed UPlayToday to take advantage of all Consumer Product Safety Commission (CPSC) and ASTM guidelines in force at the time of purchase in an effort to prevent playground accidents.
  • Page 15 PLAY TODAY GENERAL INTRODUCTION TO INSTALLATION INSTRUCTIONS TOOLS REQUIRED: UltraPlay supplies only the special wrenches and bits required to fasten the "tamper-resistant" hardware and components. You will need common wrenches and an Allen key set as well as a drill, string line, level, shovels, post hole digger, pry bar, washable felt tip marker, phillips head screw driver, utility knife, rubber mallet, and a tape measure.

  • Page 16: Safety During Installation

    PLAY TODAY GENERAL INTRODUCTION TO INSTALLATION INSTRUCTIONS 7. CPSC guidelines mandate that there shall be no gaps present in the playground equipment that fall between 3-1/2" and 9". The positioning of certain components by the installer can affect this criteria, so you should always measure distances created when attaching components in order to avoid these spaces which can cause entrapment of a child using the equipment.
  • Page 17 PLAY TODAY WARNING LABEL APPLICATION INSTRUCTIONS The enclosed Warning Labels must be affixed to your playground equipment. At least one Warning Label is needed per play structure, permanently affixed in a conspicuous location within easy view of users. INSTRUCTIONS: 1. Fully assemble and install your UPlayToday playground equipment per the accompying installatioin instructions.

  • Page 18: Tools Required

    PLAY TODAY TOOLS REQUIRED Issued/Revised: 04/16/2019 www.ultraplay.com 800.458.5872...

  • Page 19: Hardware Reference

    INCH HARDWARE REFERENCE M8 B.H.C.S. Bolts 45mm 50mm 70mm 100mm 20mm 25mm 30mm 35mm 40mm 13mm 1-3/4" 4" 3/4" 1-3/16" 1 3/8" 1-9/16" 2" 2-3/4" 1" 1/2" (33-11-0113) (33-11-0102) (33-11-0105) (33-11-0106) (33-11-0109) (33-11-0114) (33-11-0107) (33-11-0103) (33-11-0104) (33-11-0101) M8 Barrel Nut (33-11-0501) M8 Flat Washer (33-11-0300)
  • Page 20 PLAY TODAY UPRIGHT PLACEMENT UPRIGHTS LIST DESCRIPTION PART NUMBER 11' UPRIGHT 02-07-5028 6'-11" UPRIGHT 02-07-5074 7'-6" UPRIGHT 02-07-5075 11' UPRIGHT (02-07-5028) 7'-6" UPRIGHT (02-07-5075) 6'-11" UPRIGHT (02-07-5074) Issued/Revised: 04/16/2019 www.ultraplay.com 800.458.5872...
  • Page 21 PLAY TODAY USE ZONE TOP VIEW 1FT STAIRS (02-07-5064) 3FT STEP POD (02-07-5067) 4FT STRAIGHT SLIDE SQUARE DECK (02-07-5004) (02-07-5001) VINE CLIMBER BONGO DRUMS (02-07-5008) (02-07-5024) WINDOW PANEL (02-07-5010) BASS DRUM (02-07-5023) RAINWHEEL (02-07-5022) 4FT BEANSTALK CLIMBER (02-07-5057) 3FT ADA STEPS (02-07-5039) 25'-8"...
  • Page 22 PLAY TODAY ELEVATION VIEW 13'- 3/4" 13'-10" ELEVATION VIEW Issued/Revised: 04/16/2019 www.ultraplay.com 800.458.5872...

  • Page 23: Site Preparation

    PLAY TODAY FOOTING DETAIL - IN GROUND (33-12-0168) Parts List ITEM DESCRIPTION PART NUMBER INGROUND FOOTER 02-07-0049 3/8" x 1 1/4" P.B.H.C.S. w/PATCH 33-05-0019 3/8" FLAT WASHER 33-02-0002 3/8" HEX NUT 33-01-0002 IMPORTANT: UPRIGHTS WILL COME PRE-ASSEMBLED WITH UPRIGHT UPRIGHT FOOTER POSITIONED IN THE BOTTOM (2) HOLES TO UPRIGHT...
  • Page 24 INCH FOOTING DETAIL - IN GROUND 1. Attach Inground Footer to Upright Post using 3/8" x 1 1/4" P.B.H.C.S., 3/8" Flat Washer, and 3/8" Hex Nut. Refer to Footing Table and Footing Layout page for Hole/Footer location. See Detail 069. 2.
  • Page 25 PLAY TODAY TREASURE HOLLOW Parts List DESCRIPTION PART NUMBER TUBE CLAMP 02-07-0039 PANEL CLAMP 02-07-0040 SQUARE DECK 02-07-5001 4FT. STRAIGHT SLIDE 02-07-5004 VINE CLIMBER 02-07-5008 WINDOW PANEL 02-07-5010 ROOF 02-07-5015 RAINWHEEL w/TUBE CLAMP 02-07-5022 BASS DRUM w/TUBE CLAMP 02-07-5023 BONGO DRUMS 02-07-5024 11' UPRIGHT 02-07-5028...

  • Page 26: Finished Assembly

    PLAY TODAY TREASURE HOLLOW 11' UPRIGHT (02-07-5028) 1FT STAIRS (02-07-5064) TUBE CLAMP 7'6" UPRIGHT (02-07-0039) (02-07-5075) PANEL CLAMP (02-07-0040) RAINWHEEL (02-07-5022) 4FT BEANSTALK CLIMBER BONGO DRUMS (02-07-5057) (02-07-5024) SQUARE DECK WINDOW PANEL (02-07-5001) (02-07-5010) 3FT ADA STEPS BASS DRUM FINISHED ASSEMBLY (02-07-5039) (20-07-5023) MODEL # UPLAY-028-N...
  • Page 27 TREASURE HOLLOW (UPLAY-028) FOOTING TABLE Hole Diagonal Hor. Dim. Ver. Dim. TOP VIEW 36 3/4" 36 3/4" 36 3/4" 36 3/4" 52" 51 1/2" 36 3/4" 63 1/4" 88 1/4" 36 3/4" 95 3/4" 51 1/2" 88 1/4" 5 1/4" 28 1/2"...

  • Page 28: Installation Instructions

    PLAY TODAY 6'-11" UPRIGHT w/CAP, CLAMP, & FOOTER 02-07-5074 Parts List PART NUMBER DESCRIPTION 3 1/2" UPRIGHT, 6'-11" LG. 02-07-0196 UPRIGHT FOOTER 02-07-0042 HARDWARE COMPLETE 33-12-0026 M10 x 80mm (3 1/8") BHCS BOLT 33-11-0011 M10 BARREL NUT 33-11-0401 Unless Otherwise Specified, All Units of Measure are Each Items listed below Hardware Complete line are included with Hardware Complete Number Warning: During Installation, Hardware And Small Parts Are Choking Hazards For Young Children.
  • Page 29 PLAY TODAY 6'-11" UPRIGHT w/CAP, CLAMP, & FOOTER 02-07-5074 3-1/2" UPRIGHT, 6'-11" LG. (02-07-0196) UPRIGHT FOOTER (02-07-0042) FINISHED ASSEMBLY = INSTALLATION DETAIL Issued/Revised: 5/24/2013 www.ultraplay.com 800.458.5872...
  • Page 30 INCH 6'-11" UPRIGHT w/CAP, CLAMP, & FOOTER 02-07-5074 UPRIGHT LARGE HOLE M10 BARREL NUT (33-11-0401) M10 x 80mm (3 1/8") TOP (2) HOLES USED BHCS BOLT FOR 12" ENGINEERED (33-11-0011) WOOD FIBER BOTTOM (2) HOLES USED FOR 2" POURED IN PLACE OR RUBBER TILES FOOTER Issued/Revised:...
  • Page 31 PLAY TODAY 7'-6" UPRIGHT w/CAP, CLAMP, & FOOTER 02-07-5075 Parts List DESCRIPTION PART NUMBER 3 1/2" UPRIGHT, 7'-6" LG. 02-07-0197 UPRIGHT FOOTER 02-07-0042 33-12-0026 HARDWARE COMPLETE M10 x 80mm (3 1/8") BHCS BOLT 33-11-0011 M10 BARREL NUT 33-11-0401 Unless Otherwise Specified, All Units of Measure are Each Items listed below Hardware Complete line are included with Hardware Complete Number Warning: During Installation, Hardware And Small Parts Are Choking Hazards For Young Children.
  • Page 32 PLAY TODAY 7'-6" UPRIGHT w/CAP, CLAMP, & FOOTER 02-07-5075 3-1/2" UPRIGHT, 7'-6" LG. (02-07-0197) UPRIGHT FOOTER (02-07-0042) FINISHED ASSEMBLY = INSTALLATION DETAIL Issued/Revised: 5/24/2013 www.ultraplay.com 800.458.5872...
  • Page 33 INCH 7'-6" UPRIGHT w/CAP, CLAMP, & FOOTER 02-07-5075 UPRIGHT LARGE HOLE M10 BARREL NUT (33-11-0401) M10 x 80mm (3 1/8") TOP (2) HOLES USED BHCS BOLT FOR 12" ENGINEERED (33-11-0011) WOOD FIBER BOTTOM (2) HOLES USED FOR 2" POURED IN PLACE OR RUBBER TILES FOOTER Issued/Revised:...

  • Page 34: Maintenance Procedure

    PLAY TODAY SQUARE DECK 02-07-5001 Parts List PART NUMBER DESCRIPTION SQUARE DECK 02-07-0003 HARDWARE COMPLETE 33-12-0019 M10 x 30mm (1 3/16") BHCS BOLT 33-11-0004* M10 FLATWASHER 33-11-0200* M10 LOCK NUT 33-11-0400* Unless Otherwise Specified, All Units of Measure are Each Items listed below Hardware Complete line are included with Hardware Complete Number Warning: During Installation, Hardware And Small Parts Are Choking Hazards For Young Children.
  • Page 35 PLAY TODAY SQUARE DECK 02-07-5001 SQUARE DECK (02-07-0003) UNDERNEATH FINISHED ASSEMBLY = INSTALLATION DETAIL COMPONENTS SHOWN IN HIDDEN LINES ARE SOLD SEPARATELY Issued/Revised: 4/30/2013 www.ultraplay.com 800.458.5872...
  • Page 36 INCH SQUARE DECK 02-07-5001 M10 FLATWASHER (33-11-0200) M10 LOCK NUT (33-11-0400) DECK FLANGE M10 x 30mm (1 3/16") BHCS BOLT (33-11-0004) Issued/Revised: 4/30/2013 www.ultraplay.com 800.458.5872...
  • Page 37 PLAY TODAY TUBE CLAMP 02-07-0039 Parts List DESCRIPTION PART NUMBER TUBE CLAMP 02-07-0039 Unless Otherwise Specified, All Units of Measure are Each Items listed below Hardware Complete line are included with Hardware Complete Number Warning: During Installation, Hardware And Small Parts Are Choking Hazards For Young Children. Store Unused Parts Appropriately Until Assembly Is Completed.
  • Page 38 INCH TUBE CLAMP 02-07-0039 M8 x 25mm (1") BHCS BOLT (33-11-0103) UPRIGHT M8 LOCK NUT M8 LOCK NUT (33-11-0500) (33-11-0500) CLAMP RIVET (33-11-0700) DRILL THROUGH PRE-DRILLED M8 x 25mm (1") BHCS HOLE IN CLAMP INTO UPRIGHT BOLT (33-11-0103) TO INSTALL CLAMP RIVET. (33-11-0700) Issued/Revised: 6/3/2013...
  • Page 39 PLAY TODAY 1FT STAIRS 02-07-5064 Parts List DESCRIPTION PART NUMBER 1 FT STAIR 02-07-0170 LEFT HANDRAIL 02-07-0172 RIGHT HANDRAIL 02-07-0171 TUBE CLAMP 02-07-0039 HARDWARE COMPLETE 33-12-0074 33-11-0002 M10 x 20mm (3/4") BHCS BOLT M10 x 25mm (1") BHCS BOLT 33-11-0003 M10 x 50mm (2") BHCS BOLT 33-11-0010 M10 FLATWASHER...
  • Page 40 PLAY TODAY 1FT. STAIRS 02-07-5064 RIGHT HANDRAIL UNDERNEATH (02-07-0171) LEFT HANDRAIL (02-07-0172) TUBE CLAMP (02-07-0039) UNDERNEATH UNDERNEATH 1 FT STAIR (02-07-0170) UNDERNEATH FINISHED ASSEMBLY = INSTALLATION DETAIL COMPONENTS SHOWN IN HIDDEN LINES ARE SOLD SEPARATELY Issued/Revised: 8/29/2013 www.ultraplay.com 800.458.5872...
  • Page 41 INCH 1FT. STAIRS 02-07-5064 M8 x 25mm (1") BHCS HANDRAIL BOLT (33-11-0103) TUBE CLAMP UPRIGHT M8 LOCK NUT (33-11-0500) M8 LOCK NUT (33-11-0500) M8 x 25mm (1") BHCS CLAMP RIVET BOLT (33-11-0103) M8 LOCKWASHER (33-11-0700) (33-11-0301) DRILL THROUGH PRE-DRILLED M8 x 25mm (1") BHCS HOLE IN CLAMP IN UPRIGHT BOLT (33-11-0103) TO INSTALL CLAMP RIVET.
  • Page 42 INCH 1FT. STAIRS 02-07-5064 M10 FLATWASHER (33-11-0200) HANDRAIL M10 LOCK NUT (33-11-0400) DECK M10 x 50mm (2") BHCS BOLT (33-11-0010) Issued/Revised: 8/29/2013 www.ultraplay.com 800.458.5872...
  • Page 43 PLAY TODAY 3FT. ADA STEPS 02-07-5039 Parts List DESCRIPTION PART NUMBER BARRIER LEFT 02-07-0157 BARRIER RIGHT 02-07-0156 1" FOOTER 02-07-0043 ADA TRANSFER STAIR 02-07-0155 ADA DECK 02-07-0004 ADA DECK SUPPORT POST 02-07-0047 ADA HANDHOLD 02-07-0011 ADA STEP 02-07-0006 8 1/4" EXTENSION POST 02-07-0060 15"...
  • Page 44 PLAY TODAY 3FT. ADA STEPS 02-07-5039 7. Attach ADA Transfer Step to Barriers using M10 x 25mm B.H.C.S. Bolt, M10 Flat Washer, and M10 Lock Nut. See Detail 032. 8. Attach Barrier Footer to ADA Deck Support using M10 x 35mm B.H.C.S. Bolt and M10 Lock Nut. See Detail 028. 9.
  • Page 45 PLAY TODAY 3FT. ADA STEPS 02-07-5039 UNDERNEATH BARRIER LEFT BARRIER RIGHT (02-07-0157) (02-07-0156) ADA HANDHOLD UNDERNEATH (02-07-0011) ADA STEP (02-07-0006) ADA TRANSFER STAIR (02-07-0155) ADA DECK (02-07-0004) ADA DECK SUPPORT POST UNDERNEATH (02-07-0047) UNDERNEATH UNDERNEATH = INSTALLATION DETAIL FINISHED ASSEMBLY COMPONENTS SHOWN IN Issued/Revised: 8/23/2013...
  • Page 46 INCH 3FT. ADA STEPS 02-07-5039 BARRIER M10 LOCK NUT (33-11-0400) M10 x 35mm (1 3/8") BHCS BOLT TUBE CLAMP (33-11-0005) SUPPORT POST M8 x 25mm (1") BHCS BOLT (33-11-0103) M8 LOCKWASHER (33-11-0301) FOOTER M8 x 25mm (1") BHCS BOLT (33-11-0103) M10 LOCK NUT UPRIGHT (33-11-0400)
  • Page 47 INCH 3FT. ADA STEPS 02-07-5039 M10 LOCK NUT (33-11-0400) M10 FLATWASHER DECK M10 LOCK NUT (33-11-0200) (33-11-0400) M10 x 25mm (1") M10 FLATWASHER BHCS BOLT (33-11-0200) (33-11-0003) DECK SUPPORT STAIR BARRIER M10 FLATWASHER (33-11-0200) M10 x 35mm (1 3/8") BHCS BOLT (33-11-0005) M10 LOCK NUT STEP...
  • Page 48 INCH 3FT. ADA STEPS 02-07-5039 EXTENSION POST M10 LOCK NUT (33-11-0400) M10 x 35mm (1 3/8") BHCS BOLT (33-11-0005) LARGER HOLE FOOTER PLATE Issued/Revised: 8/23/2013 www.ultraplay.com 800.458.5872...
  • Page 49 PLAY TODAY VINE CLIMBER 02-07-5008 Parts List DESCRIPTION PART NUMBER VINE CLIMBER 02-07-0032 02-07-0085 DECK MOUNTING BRACKET VINE CLIMBER EXTENSION POST-LONG 02-07-0097 VINE CLIMBER EXTENSION POST-SHORT 02-07-0098 FOOTER PLATE 02-07-0046 GRAB BAR 02-07-0033 TUBE CLAMP 02-07-0039 HARDWARE COMPLETE 33-12-0077 M10 x 20mm (3/4") BHCS BOLT 33-11-0002 M10 x 25mm (1") BHCS BOLT 33-11-0003...
  • Page 50 PLAY TODAY VINE CLIMBER 02-07-5008 NOTE: THE VERTICAL POSITION OF THE GRAB BARS MUST BE A MINIMUM OF 38" ABOVE THE DECK. THE CLAMP POSITION CAN BE ADJUSTED HIGHER TO AVOID INTERFERENCE WITH OTHER CLAMPS. 7. Attach Tube Clamp to Upright using M8 x 25mm B.H.C.S. Bolt and M8 Lock Nut. Once all clamps are on and secure drill Ø1/4" hole through Clamp and Upright to install Clamp Rivet.
  • Page 51 INCH VINE CLIMBER 02-07-5008 M8 x 25mm (1") BHCS HANDRAIL BOLT (33-11-0103) UPRIGHT M8 LOCK NUT (33-11-0500) M8 LOCK NUT (33-11-0500) TUBE CLAMP CLAMP RIVET (33-11-0700) M8 x 25mm (1") BHCS BOLT (33-11-0103) DRILL THROUGH PRE-DRILLED HOLE IN CLAMP INTO UPRIGHT M8 x 25mm (1") BHCS TO INSTALL CLAMP RIVET.
  • Page 52 INCH VINE CLIMBER 02-07-5008 DECK DECK MOUNTING BRACKET ROTOMOLD M10 FLATWASHER (33-11-0200) M10 x 25mm (1") BHCS BOLT (33-11-0003) M10 FLATWASHER (33-11-0200) EXTENSION POST ROTOMOLD M12 LOCKWASHER M12 LOCKWASHER (33-11-0203) (33-11-0203) M10 x 25mm (1") BHCS BOLT (33-11-0003) Issued/Revised: 4/26/2013 www.ultraplay.com 800.458.5872...
  • Page 53 PLAY TODAY PANEL CLAMP - SINGLE 02-07-0040 Parts List PART NUMBER DESCRIPTION PANEL CLAMP 02-07-0040 Unless Otherwise Specified, All Units of Measure are Each Items listed below Hardware Complete line are included with Hardware Complete Number Warning: During Installation, Hardware And Small Parts Are Choking Hazards For Young Children. Store Unused Parts Appropriately Until Assembly Is Completed.
  • Page 54 INCH PANEL CLAMP - SINGLE 02-07-0040 M8 x 25mm (1") BHCS BOLT (33-11-0103) UPRIGHT M8 LOCK NUT (33-11-0500) M8 LOCK NUT (33-11-0500) CLAMP RIVET (33-11-0700) M8 x 25mm (1") BHCS BOLT (33-11-0103) DRILL THROUGH PRE-DRILLED HOLE IN CLAMP INTO UPRIGHT TO INSTALL CLAMP RIVET.
  • Page 55 PLAY TODAY 4FT. STRAIGHT SLIDE 02-07-5004 Parts List DESCRIPTION PART NUMBER STRAIGHT SLIDE 02-07-0026 SLIDE HOOD 02-07-0025 EXTENSION TUBE 02-07-0044 MOUNTING BRACKET 02-07-0045 FOOTER PLATE 02-07-0046 HARDWARE COMPLETE 33-12-0071 CLAMP RIVET 33-11-0700 M8 x 20mm (3/4") BHCS BOLT 33-11-0102 M8 x 25mm (1") BHCS BOLT 33-11-0103 M8 x 40mm (1 9/16") BHCS BOLT 33-11-0106...
  • Page 56 PLAY TODAY 4FT. STRAIGHT SLIDE 02-07-5004 8. Attach Slide Hood to Panel Clamp using M8 x 20mm B.H.C.S. and M8 Barrel Nut. See Detail 061. 9. Close Panel Clamps around Uprights and secure using M8 x 25mm B.H.C.S. and M8 Lock Nut. See Detail 025. (Do not install Clamp Rivet until entire unit is assembled.) 10.
  • Page 57 INCH 4FT. STRAIGHT SLIDE 02-07-5004 MOUNTING BRACKET M8 x 25mm (1") M10 x 35mm (1 BHCS BOLT 3/8") BHCS BOLT (33-11-0103) (33-11-0005) M8 LOCK NUT (33-11-0500) M8 LOCK NUT (33-11-0500) M10 LOCK NUT (33-11-0400) CLAMP RIVET (33-11-0700) M8 x 25mm (1") DRILL THROUGH PRE-DRILLED BHCS BOLT HOLE IN CLAMP INTO UPRIGHT...
  • Page 58 INCH 4FT. STRAIGHT SLIDE 02-07-5004 SLIDE SLIDE DECK LOCKWASHER (33-11-0203) LOCKWASHER (33-11-0203) M10 x 20mm (3/4") BHCS BOLT (33-11-0002) M10 x 60mm (2 M10 FLATWASHER 3/8") BHCS BOLT SLIDE HOOD (33-11-0200) (33-11-0007) M10 FLATWASHER (33-11-0200) UPRIGHT M8 BARREL NUT (33-11-0501) PANEL M8 FLATWASHER (33-11-0300)
  • Page 59 PLAY TODAY RAIN WHEEL w/TUBE CLAMP 02-07-5022 Parts List DESCRIPTION PART NUMBER RAINWHEEL ASS'Y 02-07-0012 BONGO DRUMS TUBE CLAMP 02-07-0056 Unless Otherwise Specified, All Units of Measure are Each Items listed below Hardware Complete line are included with Hardware Complete Number Warning: During Installation, Hardware And Small Parts Are Choking Hazards For Young Children.
  • Page 60 PLAY TODAY RAIN WHEEL w/TUBE CLAMP 02-07-5022 UPRIGHT RAIN WHEEL ASS'Y (02-07-0012) = INSTALLATION DETAIL FINISHED ASSEMBLY COMPONENTS SHOWN IN HIDDEN LINES ARE SOLD SEPARATELY Issued/Revised: 10/1/2018 www.ultraplay.com 800.458.5872...
  • Page 61 INCH RAIN WHEEL w/TUBE CLAMP 02-07-5022 M8 x 25mm (1") BHCS BOLT (33-11-0103) UPRIGHT M8 LOCK NUT M8 LOCK NUT (33-11-0500) (33-11-0500) CLAMP RIVET (33-11-0700) DRILL THROUGH PRE-DRILLED M8 x 25mm (1") BHCS HOLE IN CLAMP INTO UPRIGHT BOLT (33-11-0103) TO INSTALL CLAMP RIVET.
  • Page 62 PLAY TODAY BASS DRUM w/TUBE CLAMP 02-07-5023 Parts List DESCRIPTION PART NUMBER BASS DRUM BRACKET 02-07-0091 TUBE CLAMP 02-07-0039 BASS DRUM 02-07-0013 HARDWARE COMPLETE 33-12-0021 M8 x 25mm (1") BHCS BOLT 33-11-0103 M8 LOCKWASHER 33-11-0301 M8 LOCK NUT 33-11-0500 M8 x 20mm (3/4") BHCS BOLT 33-11-0102 M8 FLATWASHER 33-11-0300...
  • Page 63 PLAY TODAY BASS DRUM w/TUBE CLAMP 02-07-5023 BASS DRUM BRACKET (02-07-0091) UNDERNEATH BASS DRUM (02-07-0013) FINISHED ASSEMBLY = INSTALLATION DETAIL COMPONENTS SHOWN IN HIDDEN LINES ARE SOLD SEPARATELY Issued/Revised: 5/7/2013 www.ultraplay.com 800.458.5872...
  • Page 64 INCH BASS DRUM w/TUBE CLAMP 02-07-5023 HANDRAIL M8 x 25mm (1") BHCS BOLT (33-11-0103) TUBE CLAMP UPRIGHT M8 LOCK NUT M8 x 25mm (1") BHCS (33-11-0500) BOLT (33-11-0103) M8 LOCK NUT (33-11-0500) M8 LOCKWASHER CLAMP RIVET (33-11-0301) (33-11-0700) DRILL THROUGH PRE-DRILLED M8 x 25mm (1") BHCS HOLE IN CLAMP INTO UPRIGHT BOLT (33-11-0103)
  • Page 65 PLAY TODAY BONGO DRUMS 02-07-5024 Parts List DESCRIPTION PART NUMBER BONGO DRUMS 02-07-0014 02-07-0056 BONGO DRUMS TUBE CLAMP BONGO DRUMS BRACKET 02-07-0092 MOUNTING BAR 02-07-0093 HARDWARE COMPLETE 33-12-0020 CLAMP RIVET 33-11-0700 M8 x 20mm (3/4") BHCS BOLT 33-11-0102 33-11-0103 M8 x 25mm (1") BHCS BOLT M8 FLATWASHER 33-11-0300 M8 LOCK NUT...
  • Page 66 PLAY TODAY BONGO DRUMS 02-07-5024 MOUNTING BAR (02-07-0093) BONGO DRUMS TUBE CLAMP (02-07-0056) BONGO DRUMS (02-07-0014) = INSTALLATION DETAIL FINISHED ASSEMBLY COMPONENTS SHOWN IN HIDDEN LINES ARE SOLD SEPARATELY Issued/Revised: 5/7/2013 www.ultraplay.com 800.458.5872...
  • Page 67 INCH BONGO DRUMS 02-07-5024 M8 x 25mm (1") BHCS M8 x 20mm (3/4") BOLT (33-11-0103) BHCS BOLT BONGOS (33-11-0102) (02-08-0025) M10 LOCKWASHER (33-11-0201) UPRIGHT M8 FLATWASHER (33-11-0300) MOUNTING BAR M8 LOCK NUT M8 LOCK NUT (02-08-0126) (33-11-0500) (33-11-0500) M8 LOCK NUT BONGO SUPPORT (33-11-0500) BRACKET...
  • Page 68 PLAY TODAY WINDOW PANEL 02-07-5010 Parts List DESCRIPTION PART NUMBER WINDOW PANEL 02-07-0019 HARDWARE COMPLETE 33-12-0034 M10 x 20mm (3/4") BHCS BOLT 33-11-0002 M12 LOCKWASHER 33-11-0203 33-11-0200 M10 FLATWASHER M8 x 25mm (1") BHCS BOLT 33-11-0103 M8 x 55mm (2 3/16") BHCS BOLT 33-11-0110 M8 LOCK NUT 33-11-0500...
  • Page 69 PLAY TODAY WINDOW PANEL 02-07-5010 WINDOW PANEL (02-07-0019) UNDERNEATH = INSTALLATION DETAIL FINISHED ASSEMBLY COMPONENTS SHOWN IN HIDDEN LINES ARE SOLD SEPARATELY Issued/Revised: 3/26/2013 www.ultraplay.com 800.458.5872...
  • Page 70 INCH WINDOW PANEL 02-07-5010 M8 x 25mm (1") BHCS BOLT (33-11-0103) M10 x 20mm (3/4") BHCS BOLT (33-11-0002) M10 FLATWASHER (33-11-0200) M8 LOCK NUT (33-11-0500) M12 LOCKWASHER (33-11-0203) M8 LOCK NUT (33-11-0500) DECK CLAMP RIVET (33-11-0700) M8 x 25mm (1") BHCS THREADED BOLT (33-11-0103) INSERT...
  • Page 71 PLAY TODAY ROOF 02-07-5015 Parts List DESCRIPTION PART NUMBER ROOF 02-07-0037 33-12-0036 HARDWARE COMPLETE M5 x 76mm (3") SELF-TAPPING SCREW 33-11-0600* Unless Otherwise Specified, All Units of Measure are Each Items listed below Hardware Complete line are included with Hardware Complete Number Warning: During Installation, Hardware And Small Parts Are Choking Hazards For Young Children.
  • Page 72 PLAY TODAY ROOF 02-07-5015 ROOF (02-07-0037) UNDERNEATH = INSTALLATION DETAIL COMPONENTS SHOWN IN HIDDEN LINES ARE SOLD SEPARATELY FINISHED ASSEMBLY Issued/Revised: 04/22/13 www.ultraplay.com 800.458.5872...
  • Page 73 INCH ROOF 02-07-5015 ROOF M5 x 76mm (3") SELF-TAPPING SCREW (33-11-0600) UPRIGHT Issued/Revised: 04/22/13 www.ultraplay.com 800.458.5872...
  • Page 74 PLAY TODAY 11' UPRIGHT, CLAMP, & FOOTER 02-07-5028 Parts List DESCRIPTION PART NUMBER 3 1/2" UPRIGHT, 11' LG. 02-07-0001 UPRIGHT FOOTER 02-07-0042 HARDWARE COMPLETE 33-12-0026 M10 x 80mm (3 1/8") BHCS BOLT 33-11-0011* M10 BARREL NUT 33-11-0401* Unless Otherwise Specified, All Units of Measure are Each Items listed below Hardware Complete line are included with Hardware Complete Number Warning: During Installation, Hardware And Small Parts Are Choking Hazards For Young Children.
  • Page 75 PLAY TODAY 11' UPRIGHT, CLAMP, & FOOTER 02-07-5028 3-1/2" UPRIGHT, 11' LG. (02-07-0001) UPRIGHT FOOTER (02-07-0042) = INSTALLATION DETAIL FINISHED ASSEMBLY Issued/Revised: 5/24/2013 www.ultraplay.com 800.458.5872...
  • Page 76 INCH 11' UPRIGHT, CLAMP, & FOOTER 02-07-5028 UPRIGHT LARGE HOLE M10 BARREL NUT (33-11-0401) M10 x 80mm (3 1/8") TOP (2) HOLES USED BHCS BOLT FOR 12" ENGINEERED (33-11-0011) WOOD FIBER BOTTOM (2) HOLES USED FOR 2" POURED IN PLACE OR RUBBER TILES FOOTER Issued/Revised:...
  • Page 77 PLAY TODAY 4FT BEANSTALK CLIMBER 02-07-5057 Parts List PART NUMBER DESCRIPTION FOOTER PLATE 02-07-0046 ENTRY ARCHWAY w/SOCKET 02-07-0161 4FT BEANSTALK CLIMBER 02-07-0164 EXTENSION PIPE 02-07-0203 33-12-1034 HARDWARE COMPLETE CLAMP RIVET 33-11-0700 M8 x 25mm (1") BHCS BOLT 33-11-0103 M8 LOCKWASHER 33-11-0301 M8 LOCK NUT 33-11-0500...
  • Page 78 PLAY TODAY 4FT BEANSTALK CLIMBER 02-07-5057 MAINTENANCE PROCEDURE: Periodically check hardware for tightness, and tighten as necessary. Always check all parts for breakage or wear, and immediately put equipment out of service until any faulty parts found are repaired or replaced. Also Check all metal parts for rust, paint loss and touch-up if necessary with paint.
  • Page 79 INCH 4FT BEANSTALK CLIMBER 02-07-5057 HANDRAIL M8 x 25mm (1") BHCS BOLT (33-11-0103) TUBE CLAMP UPRIGHT M8 LOCK NUT M8 LOCK NUT (33-11-0500) (33-11-0500) M8 x 25mm (1") BHCS BOLT (33-11-0103) M8 LOCKWASHER CLAMP RIVET (33-11-0301) (33-11-0700) M8 x 25mm (1") BHCS DRILL THROUGH PRE-DRILLED BOLT (33-11-0103) HOLE IN CLAMP INTO UPRIGHT...
  • Page 80 INCH 4FT BEANSTALK CLIMBER 02-07-5057 ENTRY ARCHWAY w/SOCKET PIPE w/INSERT M12 LOCKWASHER (33-11-0203) M10 FLATWASHER (33-11-0200) M10 x 20mm (3/4") BHCS BOLT (33-11-0002) CLIMBER M10 x 35mm (1 3/8") BHCS BOLT (33-11-0005) M10 LOCK NUT (33-11-0400) EXTENSION Issued/Revised: 9/5/2013 www.ultraplay.com 800.458.5872...
  • Page 81 PLAY TODAY 3FT STEP POD 02-07-5067 Parts List DESCRIPTION PART NUMBER ENTRY ARCHWAY 02-07-0031 SMALL POD 02-07-0204 MEDIUM POD 02-07-0194 TALL POD 02-07-0195 33-12-1037 HARDWARE COMPLETE CLAMP RIVET 33-11-0700 M8 x 25mm (1") BHCS BOLT 33-11-0103 M8 LOCKWASHER 33-11-0301 M8 LOCK NUT 33-11-0500 M10 x 25mm (1") BHCS BOLT 33-11-0003...
  • Page 82 PLAY TODAY 3FT STEP POD 02-07-5067 BEHIND ENTRY ARCHWAY (02-07-0031) TALL POD (02-07-0195) MEDIUM POD (02-07-0194) SMALL POD (02-07-0204) = INSTALLATION DETAIL FINISHED ASSEMBLY COMPONENTS SHOWN IN HIDDEN LINES ARE SOLD SEPARATELY Issued/Revised: 6/28/2018 www.ultraplay.com 800.458.5872...

  • Page 83: Plan View

    PLAY TODAY 3FT STEP POD 02-07-5067  12 in [30.48 cm]  12 in REF. 6 in [30.48 cm] [15.24 cm] (3 PLCS) 36 13/16 in [93.50 cm] 15 3/8 in 15 in [39.13 cm] [38.10 cm] 34 1/4 in [87.00 cm] 53 1/2 in [135.89 cm]...
  • Page 84 INCH 3FT STEP POD 02-07-5067 M8 x 25mm (1") BHCS HANDRAIL BOLT (33-11-0103) TUBE CLAMP UPRIGHT M8 LOCK NUT (33-11-0500) M8 LOCK NUT (33-11-0500) M8 x 25mm (1") BHCS BOLT (33-11-0103) CLAMP RIVET (33-11-0700) M8 x 25mm (1") BHCS M8 LOCKWASHER BOLT (33-11-0103) (33-11-0301) DRILL THROUGH PRE-DRILLED...
