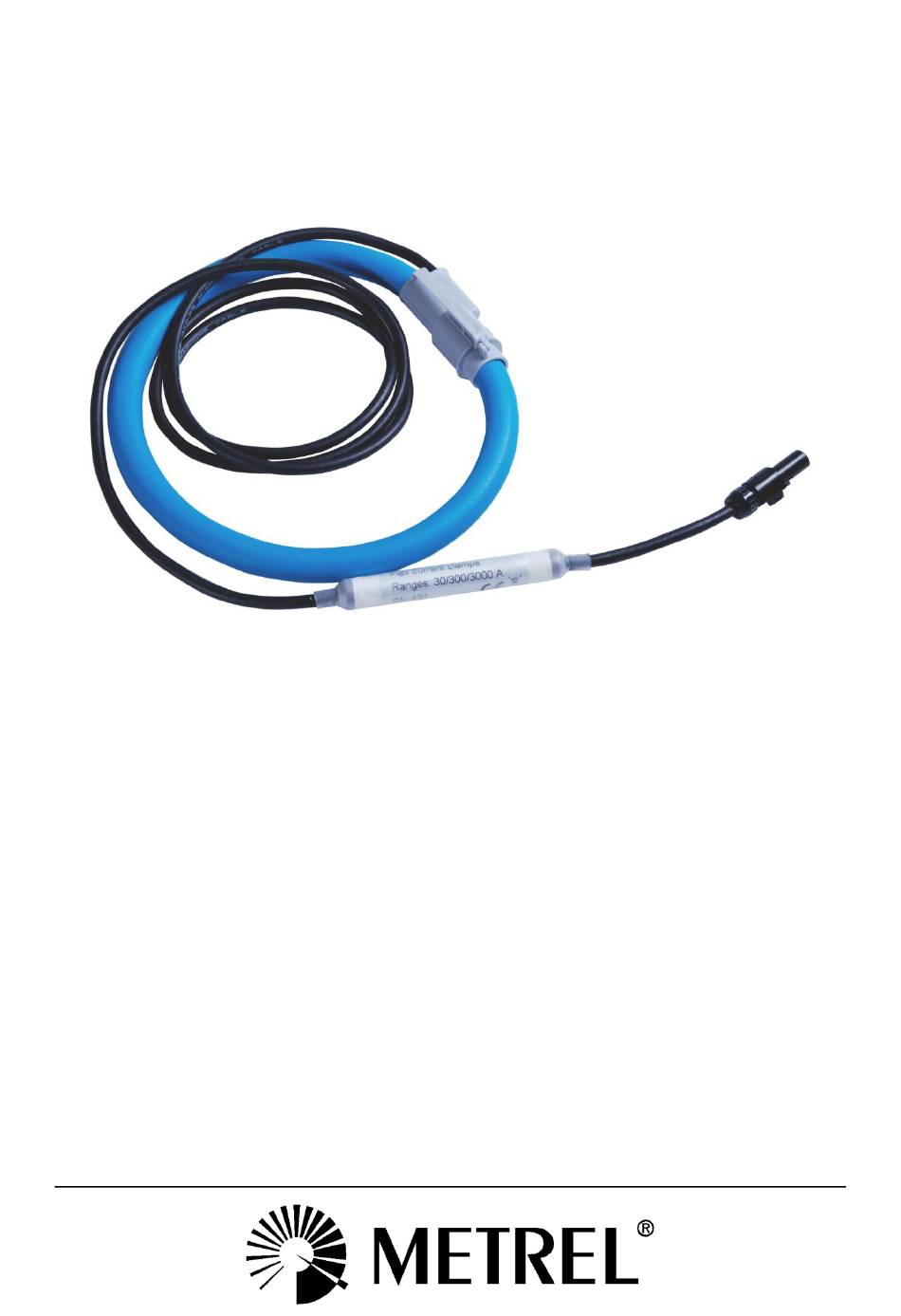

- Page 1 Flex current clamps A 1445 User Manual Version 1.1.0; Code No. 20 752 635...
- Page 2 Mark on your equipment certifies that this equipment meets the requirements of the EC (European Community) regulations concerning safety and electromagnetic compatibility. © 2016 Metrel No part of this publication may be reproduced or utilized in any form or by any means without permission in writing from METREL.
-
Page 3: Table Of Contents
Flex current clamps A 1227 Table of contents Introducing the A1445 ....................4 Features ........................5 Safety ........................6 Symbols ........................7 Measuring current with A 1445 ................. 8 Cleaning ........................9 Service ........................10 Technical specifications ..................11... -
Page 4: Introducing The A1445

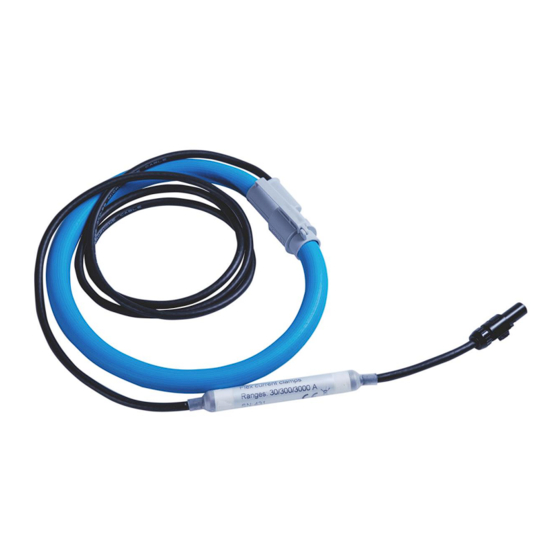

It has three current ranges 30A, 300A and 3000 A. The current range of the A 1445 is selected directly by the connected instrument. The electronic module is powered from the connected instrument to. The flexible sensor permits measurements on conductors where standard clamp-on current transformers can not be used. -
Page 5: Features
Flex current clamps A 1445 2 Features Range setup from the instrument, no additional range setup needed Power supply for electronic module is assured from the instrument mV output Waterproof sensor Minimum angle shift to accomplish accurate power measurements ... -
Page 6: Safety
Flex current clamps A 1445 3 Safety Read the operating instructions before use and follow all safety instructions. If the test equipment is used in a manner that is not specified in this user manual, the protection provided by the equipment might be impaired! Adhere to local and national safety codes. -
Page 7: Symbols
Product is protected by Double/Reinforced insulation Do not apply around or remove from HAZARDUS LIVE conductors. Do not dispose of this product as unsorted municipal waste. Contact Metrel or a qualified recycler for disposal. Complies with the relevant European standards. -
Page 8: Measuring Current With A 1445
5 Measuring current with A 1445 Picture 5.1: Wrap the measured cable with the measuring clamp To use the A 1445 Flexible Current Clamps, follow these instructions: 1. Connect the D01 3 Pin connector of the A1445 Flexible Current Clamps to the desired input on the measuring instrument (power meter,..) . -
Page 9: Cleaning
6 Cleaning Use soft patch, slightly moistened with soap water or alcohol, to clean the surface of the A 1445 and leave it to dry totally, before using it. Do not use liquids based on petrol or hydrocarbons! Do not spill cleaning liquid over the A 1445! -
Page 10: Service
Flex current clamps A 1445 7 Service For repairs under or out of warranty time please contact your Metrel distributor for further information. Name and address of manufacturer: METREL d.d. Ljubljanska cesta 77 SI-1354 Horjul Tel.: +386 1 75 58 200, fax.: +386 1 75 49 226, +386 1 75 49 206 http://www.metrel.si... -
Page 11: Technical Specifications
Flex current clamps A 1445 8 Technical specifications FEATURES NOTES DESCRIPTION Length of the sensor 61 cm Measuring range 30 A / 300 A / 3000A ac rms Overscale 60A / 600A / 6000 A sinus Sensitivities 33.3 mV / A; 3.33 mV / A; 0.33 mV / A... - Page 12 Flex current clamps A 1445...
