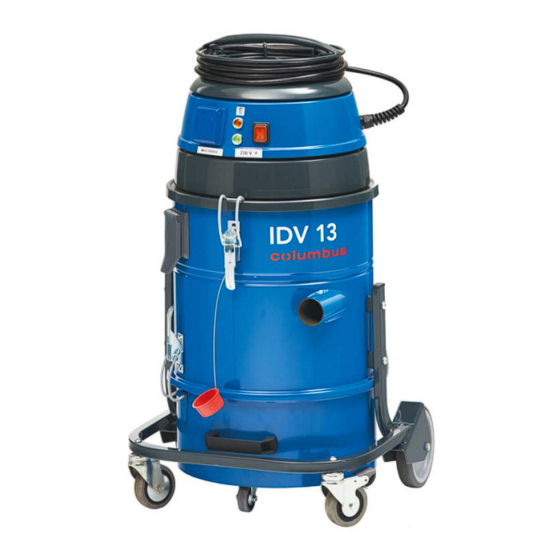

- Page 1 IDV 13 Operating manual Industrial vacuum cleaner Read these This machine is instructions carefully intended for before operating the industrial and machine! professional use only! 01.2022...
- Page 2 This manual should be considered an integral part of the vacuum cleaner and must be kept together with the unit until this is scrapped. In case of loss of or damage to the manual, ask columbus for a new copy.
-
Page 3: Table Of Contents
Industrial vacuum cleaner IDV 13 Contents 1 Information ............................4 1.1 Identification of the main parts ....................... 4 1.2 Accessories provided ........................5 1.3 Identification details of the manufacturer ..................6 1.4 Type plate ............................6 1.5 Intended uses ..........................7 1.6 Allowed environmental conditions .................... -
Page 4: Information
Industrial vacuum cleaner IDV 13 1 Information 1.1 Identification of the main parts 1) release fastener 2) suction head 3) push handle 4) filter chamber 5) suction pipe coupling point 6) fixed wheels 7) castors 8) vacuumed material container... -
Page 5: Accessories Provided
Industrial vacuum cleaner IDV 13 1.2 Accessories provided 21478700 - CONICAL CARTRIDGE FILTER CAT M... -
Page 6: Identification Details Of The Manufacturer
Industrial vacuum cleaner IDV 13 1.3 Identification details of the manufacturer G. Staehle GmbH u. Co. KG columbus Reinigungsmaschinen Mercedesstr. 15 D - 70372 STUTTGART Tel. +49(0)711 / 9544-950 info@columbus-clean.com www.columbus-clean.com 1.4 Type plate In compliance with the Machine Directive 2006/42/CE on vacuum cleaners, the machine is fitted with CE plates. -
Page 7: Intended Uses
Industrial vacuum cleaner IDV 13 1.5 Intended uses These specific vacuum cleaner models have been designed, built and protected for vacuuming dusts and solid materials only, using special filters. Warning! Always use specific filters for the type of dust or materials to be vacuumed. -
Page 8: Technical Details
Industrial vacuum cleaner IDV 13 1.10 Technical details Power 1,15 Voltage Volts 230-50/60 Max. vacuums rate mm / H 2.500 Max. air flow rate m³ / h Noise level dB (A) Filter type Polyester Filter surface cm² 6.500 Capacity Suction inlet Ø... -
Page 9: Safety
They should also have the tools necessary to perform these duties properly. columbus shall under no circumstances be deemed liable for accidents or damage caused by use of the vacuum cleaner by personnel not properly trained or who use it in an improper manner, as well as by even partial failure to comply with the safety regulations and intervention procedures indicated in this manual. -
Page 10: Safety Warnings
Industrial vacuum cleaner IDV 13 2.2 Safety warnings Attention! The following indications are, by themselves, not enough to fully protect against all the hazards that could arise during vacuum cleaner operation. These will have to be integrated with common sense and the experience of the operator, both of which are crucial factors for preventing accidents. - Page 11 The machine is supplied with: operating manual, Exploded Spare Parts drawing, declaration of conformity. In the event of customers fitting a tool to the machine not supplied by columbus, make sure the safety conditions required by Machine Directive 2006/42/CE are complied with and in any event, columbus is unable to accept liability for any problems arising from the use of such tool.
- Page 12 Industrial vacuum cleaner IDV 13 Before connecting to the power mains, make sure the power voltage and frequency are those shown on the machine plate. Make power connections to a mains supply with efficient earth system. In the event of an extension being used, make sure this is in perfect condition, marked CE and that the cross section of the cable is suitable for the vacuum cleaner power input.
-
Page 13: Safety Signs And Symbols
Clean these with a cloth, soap and water. Do not use solvents, diesel fuel or petrol. Replace the damaged plates with new ones supplied by columbus. If a plate is affixed to a replaced part, make sure a new plate is affixed to the new part. -
Page 14: Outstanding Risks
Industrial vacuum cleaner IDV 13 2.4 Outstanding risks Careful analysis of risks performed by the manufacturer and stored in the technical file has made it possible to eliminate most of the risks associated with vacuum cleaner operation. The manufacturer advises carefully following the instructions, procedures and advice contained in this manual as well as applicable safety regulations, including the use of the envisaged protection devices, both those integrated in the cleaner and individual. -
Page 15: Installation
Industrial vacuum cleaner IDV 13 3 Installation 3.1 Handling weight (package included) (cm) (cm) (cm) IDV 13 The machine is supplied in a strong cardboard box secured with straps. Transport the package using a fork-lift truck of adequate lifting capacity and make sure it is stable and that weight is properly distributed on the forks. -
Page 16: Installation
Industrial vacuum cleaner IDV 13 3.2 Installation Warning! Before installing the vacuum cleaner, carefully make a sight check to pinpoint any damage suffered during transport. In the event of any component parts being damaged, do not proceed with installation. Notify the manufacturer and reach an agreement on how to proceed. - Page 17 Industrial vacuum cleaner IDV 13 Make sure the power supply corresponds to the voltage and frequency indicated on the vacuum cleaner type plate. Warning! Do not fit the plug in the power socket with wet hands. In the event of an extension being used, make sure this is in perfect condition, in compliance with CE...
-
Page 18: Operation
Industrial vacuum cleaner IDV 13 4 Operation 4.1 Description of controls 1) STOPP / START button 2) Green light power on 3) Blocked filter red light 4.2 Work cycle Warning! Before fitting the plug, make sure the power voltage corresponds to that on the CE marking plate. - Page 19 Industrial vacuum cleaner IDV 13 Warning! Before switching the vacuum cleaner back on, make sure the motors have come to a complete halt. After finishing work, disconnect the vacuum cleaner from the power socket. To move the vacuum cleaner, use the handle.
-
Page 20: Releasing And Removing The Removable Container
Industrial vacuum cleaner IDV 13 4.3 Releasing and removing the removable container Stop the vacuum motors by pressing the relevant STOP buttons. Warning! Disconnect the plug from the power socket. Release the vacuum pipe. Release the fastener that lock the container and remove it. -
Page 21: Filter Cleaning System Dustop
Industrial vacuum cleaner IDV 13 4.4 Filter cleaning system DUSTOP When the orange indicator light is on, or the suction efficiency has lowered, or after having vacuumed a considerable quantity of material, a filter cleaning cycle is necessary. The filter cleaning system is best operated every time before use and after prolonged operation. - Page 22 Industrial vacuum cleaner IDV 13 Open the flap as indicated in the picture below allowing the air to flow into the filtering chamber thus providing a counter air flow that passes through the filter. Repeat this operation for at least 5 times.
-
Page 23: Maintenance
Industrial vacuum cleaner IDV 13 5 Maintenance 5.1 Informative notes This section describes the control and special maintenance operations crucial for keeping the vacuum cleaner in perfect working condition. Any other jobs which might be necessary to eliminate operating faults must be expressly authorised by the manufacturer. -
Page 24: Maintenance Operations
If the flexible hose is perforated, the power of the cleaner will be reduced and dust and liquids will leak into the environment. Warning! All maintenance and repair jobs must be performed directly by columbus or its authorised dealers. -
Page 25: Replacing The Filters
Industrial vacuum cleaner IDV 13 5.4 Replacing the filters To replace the filters, proceed as follows: Turn off the vacuum cleaner by pressing the motor STOP buttons. Disconnect the vacuum cleaner plug from the power socket. Important! Wear individual protection devices. - Page 26 Industrial vacuum cleaner IDV 13 Fit the new filter and put everything back in place, locking the cap. Warning! All the material trapped by the filter and the filter itself must be disposed of through authorised channels in the country where the vacuum cleaner is used...
-
Page 27: Troubleshooting
Check the seals and, if Seals worn necessary, replace it. Check for any air leaks out of closing fasteners, tightening Airleak screws, container or filter chamber. Motor very noisy Contact columbus after-sales. Warning! For any other problems, contact the columbus after-sales service. -
Page 28: Recommended Spare Parts
Industrial vacuum cleaner IDV 13 6 Recommended spare parts code description D245 H200 CONICAL CARTRIDGE FILTER CAT M- 21478700 MTL 301 DRY 21480700 BASE PLATE GASKET 21480400 10x3 ADHESIVE MOUSSE GASKET... -
Page 29: Declaration Of Conformity
Industrial vacuum cleaner IDV 13 7 Declaration of conformity in accordance with the EC Directive on Machines 2006/42/EC Manufacturer G. Staehle GmbH u. Co. KG columbus Reinigungsmaschinen Mercedesstraße 15 D-70372 Stuttgart hereby declares that the following product conforms to the regulations of the above mentioned directive –... - Page 30 Industrial vacuum cleaner IDV 13 Notes...
- Page 31 Industrial vacuum cleaner IDV 13...
- Page 32 G. Staehle GmbH u. Co. KG columbus Reinigungsmaschinen Mercedesstr. 15 D - 70372 STUTTGART Telefon +49(0)711 / 9544-950 info@columbus-clean.com www.columbus-clean.com...
