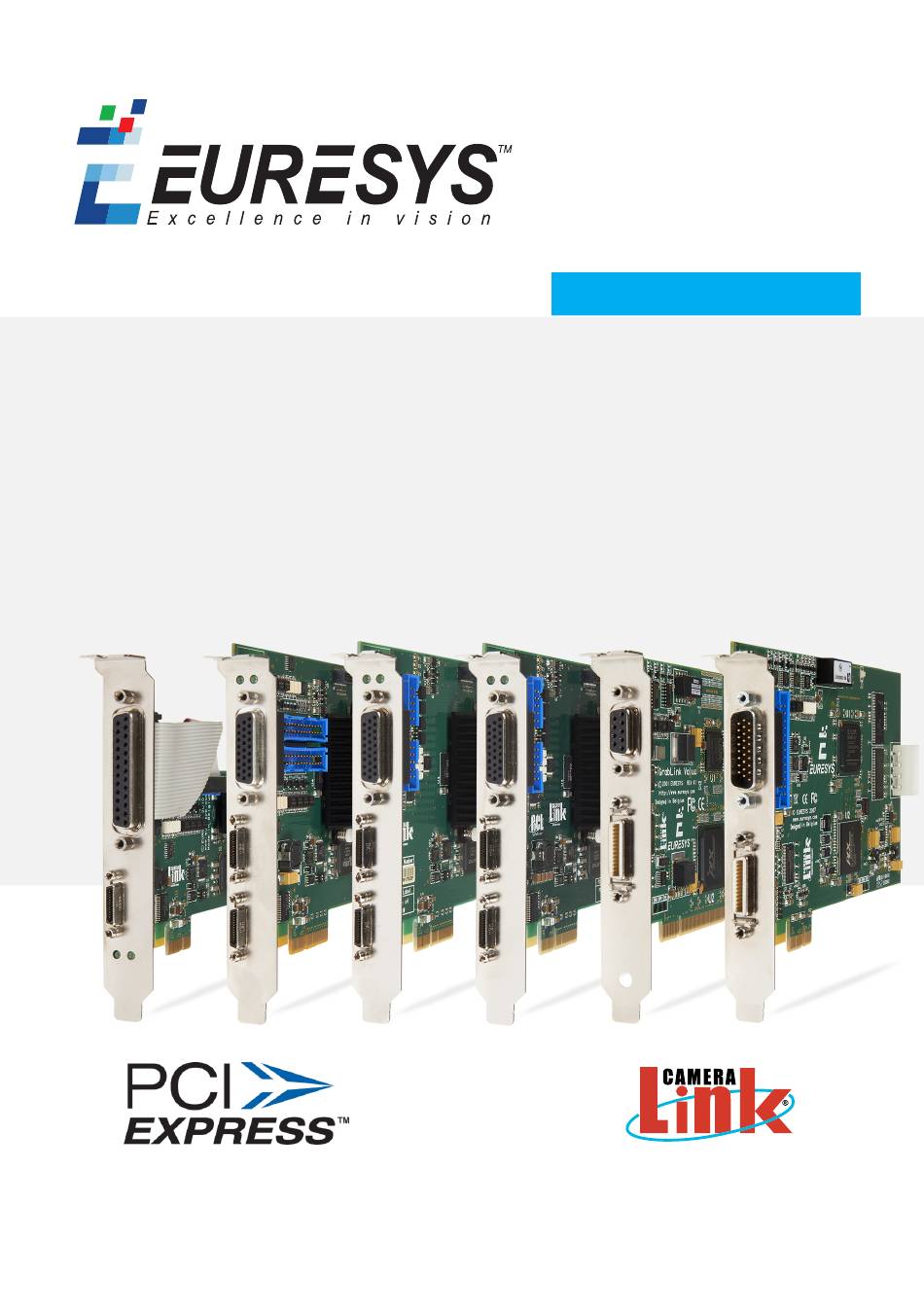

- Page 1 INSTALLATION GUIDE Grablink 1624 Grablink Base 1623 Grablink DualBase 1622 Grablink Full 1626 Grablink Full XR 1191 Grablink Value 1621 Grablink Express © EURESYS s.a.2019 - Document D421EN-Grablink Installation Guide-6.17.0.4033 built on 2019-08-14...
- Page 2 1. Grablink Products Installation Guide 1.1. Disclaimer EURESYS s.a. shall retain all property rights, title and interest of the documentation of the hardware and the software, and of the trademarks of EURESYS s.a. All the names of companies and products mentioned in the documentation may be the trademarks of their respective owners.
- Page 3 Keep the blank bracket in a known place for possible re-use. Unwrap the Euresys card packing, take the board and carefully hold it. Avoid any contact of the board with unnecessary items, including your clothes.
- Page 4 1623 Grablink DualBase, 1622 Grablink Full and 1626 Grablink Full XR must be plugged into a x4, x8 or x16 PCI Express Gen 1 (or higher) card connector providing at least four active lanes. 1624 Grablink Base and 1621 Grablink Express must be plugged into a x1, x4, x8 or x16 PCI Express Gen 1 (or higher) ●...
