Harman AMX VARIA-80 Quick Start Manual

Overview
AMX VARIA-80 (AMX-UTP0811) is an 8" professional-grade touch panel designed
to adapt to the unique needs of your environment by offering a selection of
personas. Varia personas are pre-loaded apps that define the entire panel
experience.
Microphones
Settings Button
Function Button
Side LED
Speakers

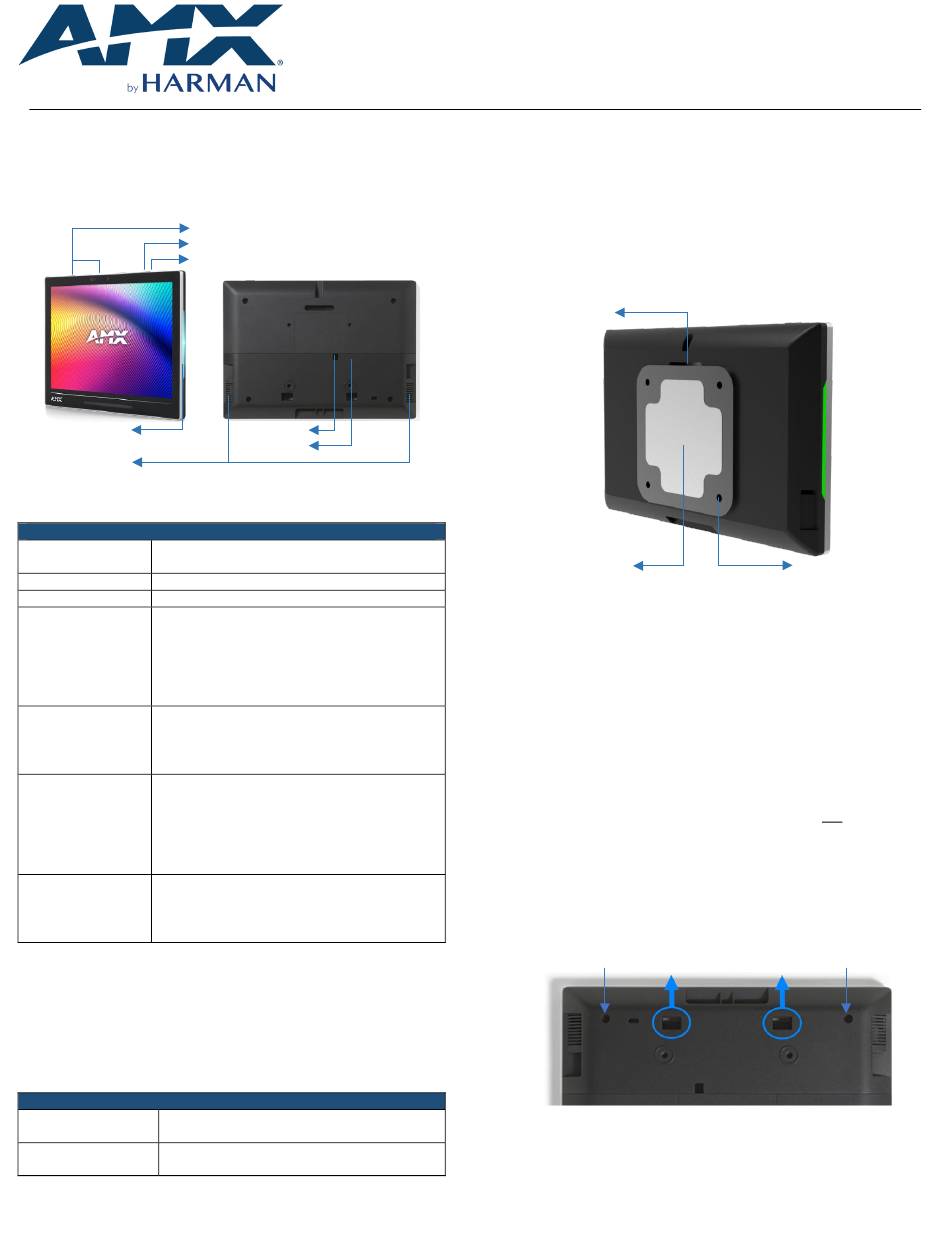

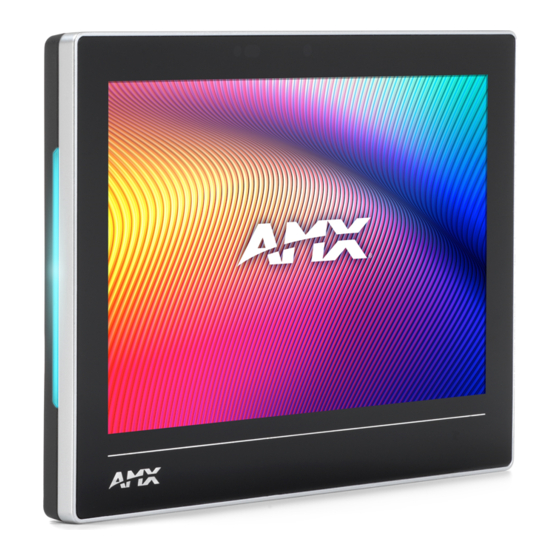

FIG. 1 AMX VARIA-80 Touch Panel
Product Specifications
VARIA-80 SPECIFICATIONS
5 7⁄8" x 7 15⁄16" x 7⁄8"
Dimensions (HWD)
(148.9 mm x 201.2 mm x 21.7 mm)
Product Weight 1.17 lb (532 g)
Power Consumption PoE, 802.3af, 15.4 watt
Optimal performance requires use of one of the
following AMX PoE power supplies (not included):
External Power • PS-POE-AF-TC, PoE Injector, 802.3AF
Supply Required Compliant (FG423-83)
• PS-POE-AT-TC, PoE Injector, 802.3AT
Compliant (FG423-84)
• UL
Certifications & • CE
Compliance CB
•
FCC Class B (-5dB)
•
Operating Temperature
• 0°C - 40° C (32°F – 104°F)
• 5% - 85% Humidity
Environmental
Storage Temperature
-20°C – 60° C (4°F – 140°F)
•
• 5% - 90% Humidity
• Mounting Plate
• Adhesive Pad
Included Accessories
• Set Screw
• Installation Template
VARIA-80 Installation
Varia can be surface-mounted onto a wall, glass or other smooth surface, or
connect to any number of popular VESA mounts with the included mounting
bracket & hardware.
The VARIA-80 converts to a tabletop touch panel when used in conjunction with
a tabletop stand accessory (sold separately).
TABLETOP STAND ACCESSORIES
VARIA-ACS-80F AMX Varia Fixed Tabletop Stand
(AMX-UMT-0801) for VARIA-80
VARIA-ACS-810A AMX Varia Angle-Select Tabletop Stand
(AMX-UMT-8111) for VARIA-80, VARIA-100, & VARIA-100N
LAN/POE
USB
Power Over Ethernet
Power is supplied via Power Over Ethernet (PoE), utilizing an AMX certified PoE
injector such as the PS-POE-AF-TC PoE Injector (FG423-83) or compatible
network switch which is classified as ES1 and PS2 output in accordance with
IEC/EN/UL 62368-1. Connect the incoming Ethernet cable to the RJ-45 port on
the VARIA-80.
Mounting Plate
The included mounting plate contains a 75x75 VESA hole pattern, set screw, and
dedicated area for the included adhesive pad.
Set Screw
Adhesive Pad
FIG. 2 Mounting Plate
STEP 1: Installation Prerequisites
Prior to touch panel installation, identify a proper installation surface in
accordance with local laws and building codes. Ensure that your category cable
(networking cable) has access to the location.
STEP 2: Install the Mounting Plate
If installing on wall, mark your surface using the included installation template
for the four (4) VESA holes and one (1) desired cable pass-thru location. Drill
holes as required and screw the mounting bracket onto the surface, using
appropriate hardware for the surface (ie. drywall, concrete, brick, etc.).
If installing on glass or other smooth surface using the adhesive pad, first apply
the adhesive pad to the mounting bracket, only exposing one side of the pad.
Then adhere the mounting bracket to the surface with the set screw hole facing
UP and the two tabs on the BOTTOM. Make sure it is a secure fit, but do not
apply too much pressure as glass may break.
STEP 3: Route Category Cable
Remove the touch panel's lower rear cover by removing two (2) screws and then
sliding the cover off. Press the rectangular holes to push the cover away from
you.
Screw Location
FIG. 3 Lower Cover Holes
Plug in the networking cable and route it out one (1) of the three (3) available
openings in the lower cover: left, right, or bottom. Once fully seated, reattach
the lower rear cover.
QUICK START GUIDE
VARIA-80
8" Touch Panel
75x75 VESA
Screw Location
