Harman AMX VARIA-150 Quick Start Manual

Overview

AMX VARIA-150 (AMX-UTP1511) & VARIA-150N (AMX-UTP1511N) are 15.6"
professional-grade touch panels designed to adapt to the unique needs of your
environment by offering a selection of personas. Varia personas are pre-loaded
apps that define the entire panel experience.
Microphones
Settings Button
Function Button
Side LED
Speakers

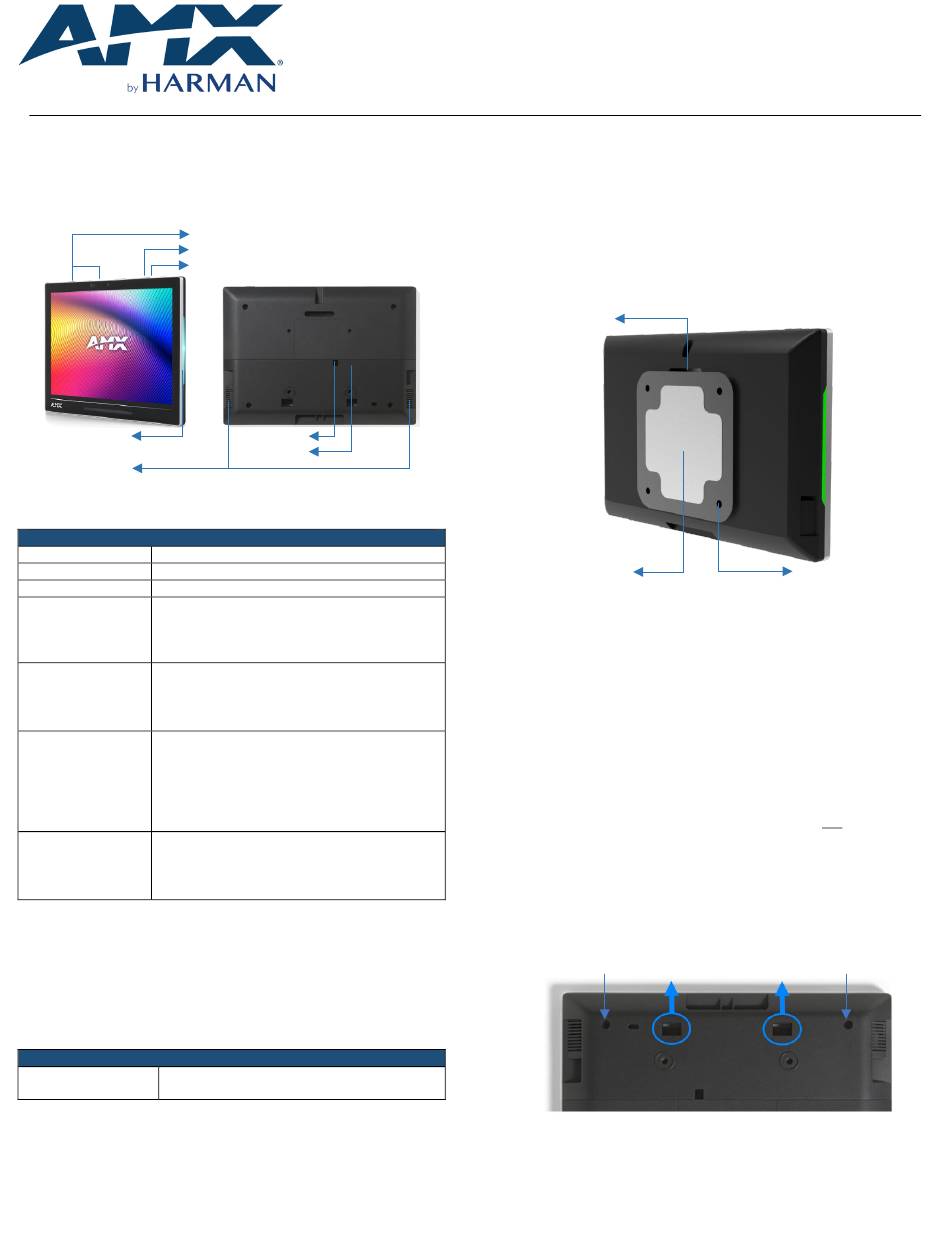

FIG. 1 AMX VARIA-150 Touch Panel

Product Specifications

VARIA-150 SPECIFICATIONS
Dimensions (HWD) TBD
Weight TBD
Power Consumption PoE, 802.3at, 30 watt
Optimal performance requires use of the following
External Power AMX PoE power supply (not included):
Supply Required • PS-POE-AT-TC, PoE Injector, 802.3at
Compliant (FG423-84)
• UL
Certifications & CE
•
Compliance • CB
• FCC Class B (-5dB)
Operating Temperature
• 0°C - 40° C (32°F – 104°F)
• 5% - 85% Humidity
Environmental
Storage Temperature
• -20°C – 60° C (4°F – 140°F)
5% - 90% Humidity
•
• Mounting Plate
• Adhesive Pad
Included Accessories
•

Set Screw

• Installation Template

VARIA-150 Installation

Varia can be surface-mounted onto a wall, glass or other smooth surface, or
connect to any number of popular VESA mounts with the included mounting
bracket & hardware.
The VARIA-150 converts to a tabletop touch panel when used in conjunction with
a tabletop stand accessory (sold separately).
TABLETOP STAND ACCESSORIES
VARIA-ACS-150A AMX Varia Angle-Select Tabletop Stand
(AMX-UMT-1511) for VARIA-150 & VARIA-150N
(except No-Comm)
LAN/POE
USB
VARIA-150N
Power Over Ethernet
Power is supplied via Power Over Ethernet (PoE), utilizing an AMX certified PoE
injector such as the PS-POE-AF-TC PoE Injector (FG423-83) or compatible
network switch which is classified as ES1 and PS2 output in accordance with
IEC/EN/UL 62368-1. Connect the incoming Ethernet cable to the RJ-45 port on
the VARIA-150.
Mounting Plate
The included mounting plate contains a 100x100 VESA hole pattern, set screw,
and dedicated area for the included adhesive pad.
Set Screw
Adhesive Pad
FIG. 2 Mounting Plate
STEP 1: Installation Prerequisites
Prior to touch panel installation, identify a proper installation surface in
accordance with local laws and building codes. Ensure that your category cable
(networking cable) has access to the location.
STEP 2: Install the Mounting Plate
If installing on wall, mark your surface using the included installation template
for the four (4) VESA holes and one (1) desired cable pass-thru location. Drill
holes as required and screw the mounting bracket onto the surface, using
appropriate hardware for the surface (ie. drywall, concrete, brick, etc.).
If installing on glass or other smooth surface using the adhesive pad, first apply
the adhesive pad to the mounting bracket, only exposing one side of the pad.
Then adhere the mounting bracket to the surface with the set screw hole facing
UP and the two tabs on the BOTTOM. Make sure it is a secure fit, but do not
apply too much pressure as glass may break.
STEP 3: Route Category Cable
Remove the touch panel's lower rear cover by removing two (2) screws and then
sliding the cover off. Press the rectangular holes to push the cover away from
you.
Screw Location
FIG. 3 Lower Cover Holes
Plug in the networking cable and route it out one (1) of the three (3) available
openings in the lower cover: left, right, or bottom. Once fully seated, reattach
the lower rear cover.
QUICK START GUIDE
VARIA-150
15.6" Touch Panel
15.6" Touch Panel (No-Comm)
100x100 VESA
Screw Location
