CO N F IG U RATI O N & P RO G RA M M IN G M A NU A L
M O DE RO S S E R I ES G 4 TO U CH PA N E L S
M O DE RO X S E R I ES G 4 TO U C H PA N E L S
H YD RA PO R T TO U C H C O N N E C T I O N PO R TS

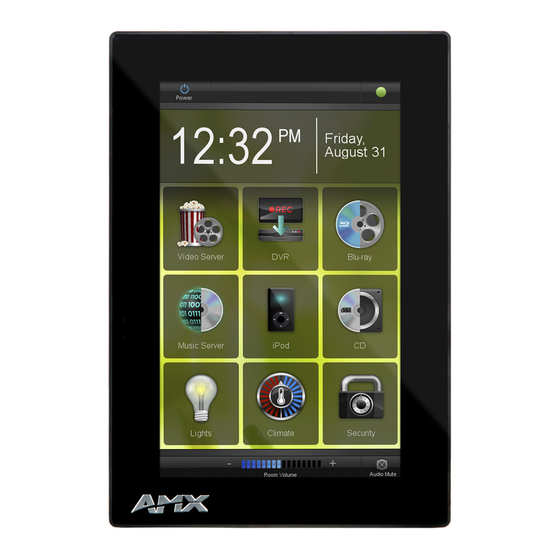

MXT/D-2000XL-PAN 20. 3" MODE RO X SER IES G4 P ANORA MI C TOUCH PAN ELS
MXT/D-1900L-PAN 1 9.4 " MODE RO X SER IES G4 P ANORA MI C TOUCH PAN ELS
MXT/D-1000 10. 1 " MODE RO X SER IES G4 TOUCH PA NELS
MXT/D-700 7" MODE RO X SERIES G4 TOUCH PA NELS
MXD-430 4.3" MODERO X SERIES G4 WALL MOUNT TOUCH PANEL
MST/D-1001(-L/-L2) 10 .1 " MODERO S SERI ES G4 TOUCH PAN ELS
MST/D-701(-L/-L2) 7 " MODERO S SERI ES G4 TOUCH PAN ELS
MST/D-431(-L/-L2) 4. 3" MODERO S SE RI ES G4 TOUCH PAN ELS
HPX-MSP-10 10 MODULE CONN ECTION POR T WI TH 1 0. 1" P ANE L
HPX-MSP-7 HYDR APOR T 8 MODULE CONNE CTION POR T WI TH 7 " PAN EL
