Daytona 58835 Owner's Manual & Safety Instructions

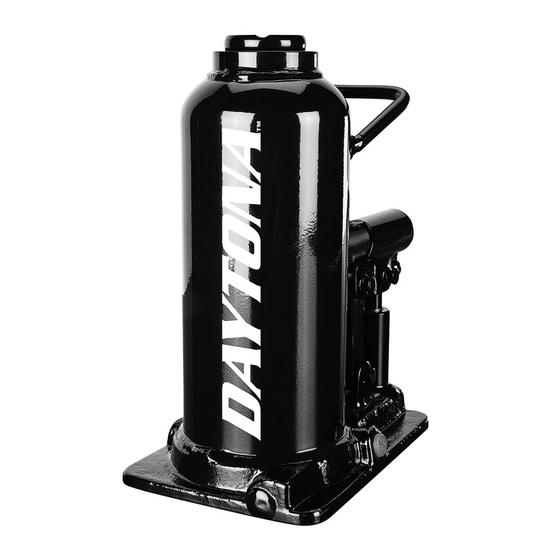

Heavy duty bottle jack
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Owner's Manual & Safety Instructions
Save This Manual
operating, inspection, maintenance and cleaning procedures. Write the product's serial number in the
back of the manual near the assembly diagram (or month and year of purchase if product has no number).
Keep this manual and the receipt in a safe and dry place for future reference.
58835 - 20 Ton
58815 - 12 Ton
Email our technical support at: productsupport@harborfreight.com
When unpacking, make sure that the product is intact
and undamaged. If any parts are missing or broken,
please call 1-888-866-5797 as soon as possible.
©
Copyright
2022 by Harbor Freight Tools
No portion of this manual or any artwork contained herein may be reproduced in
any shape or form without the express written consent of Harbor Freight Tools.
Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein.
Tools required for assembly and service may not be included.
Keep this manual for the safety warnings and precautions, assembly,
58815 Shown.
Visit our website at: http://www.harborfreight.com
®
. All rights reserved.
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.
22j

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 58835 and is the answer not in the manual?

Questions and answers

Related Manuals for Daytona 58835

Summary of Contents for Daytona 58835

  • Page 1 (or month and year of purchase if product has no number). Keep this manual and the receipt in a safe and dry place for future reference. 58835 - 20 Ton 58815 - 12 Ton 58815 Shown.

  • Page 2: Important Safety Information

    Specifications Max. Min. Base ITEM Weight Capacity Height Height Dimensions 58835 20 Tons (40,000 lb.) 20" 10-5/8" 5-3/4″ x 7-5/8″ 58815 12 Tons (24,000 lb.) 18-5/8" 9-7/16" 4-3/4″ x 7-1/2″ WARNING SYMBOLS AND DEFINITIONS This is the safety alert symbol. It is used to alert you to potential personal injury hazards.
  • Page 3 18. Stay alert. Watch what you are doing, and 25. When lifting the entire front end or use common sense when operating a jack. rear end of a vehicle, support the load Do not use a jack while tired or under the immediately with two jack stands.
  • Page 4 Operating Instructions Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this document including all text under subheadings therein before set up or use of this product. Bleeding IMPORTANT! Before first use, check Carefully use a flat dull-sided edge to for proper hydraulic oil level in the push down the top inside rim of the Oil Jack.
  • Page 5 Lifting Place the Handle in the Fulcrum and pump WARNING! TO PREVENT SERIOUS until the top of the Jack’s Saddle has INJURY: Set Jack on a flat, level, solid, nearly reached the vehicle lifting point. ground surface. If using with vehicle, set safely away from oncoming traffic and Saddle turn off vehicle’s engine.
  • Page 6 Lowering Saddle Remove all tools, parts, etc. from under the vehicle. Position the Saddle under the lifting point. Place Handle over Release Valve and turn the Handle firmly clockwise to close the Release Valve. Move the Handle to the Fulcrum and pump to raise the vehicle slightly above the saddle(s) of the jack stand(s).

  • Page 7: Maintenance And Servicing Instructions

    Maintenance and Servicing Instructions Procedures not specifically explained in this manual must be performed only by a qualified technician. TO PREVENT SERIOUS INJURY FROM ACCIDENTAL OPERATION: Do not use damaged equipment. If abnormal noise or vibration occurs, have the problem corrected before further use. Cleaning, Maintenance, and Lubrication Before each use, inspect the general Change the hydraulic oil at least...

  • Page 8: Troubleshooting

    Troubleshooting TO PREVENT SERIOUS INJURY: Use caution when troubleshooting a malfunctioning jack. Stay well clear of the supported load. Completely resolve all problems before use. If the solutions presented in the Troubleshooting guide do not solve the problem, have a qualified technician inspect and repair the jack before use.

  • Page 9: Please Read The Following Carefully

    PLEASE READ THE FOLLOWING CAREFULLY THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY DIAGRAM IN THIS DOCUMENT AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS QUALIFIED TO REPLACE ANY PARTS OF THE PRODUCT.

  • Page 10: Parts List

    Parts List and Diagram (58835 and 58815) Parts List Part Description Part Description Rear Handle Screw Copper Washer Middle Handle Spring Front Handle Steel Ball Handle Socket Release Valve Rod Pump Linkage Pin Screw Body Oil Filler Plug Pump Plunger...
  • Page 11 Diagram For technical questions, please call 1-888-866-5797. Bottle Jacks Page 11...
  • Page 12 Limited 90 Day Warranty Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards, and warrants to the original purchaser that this product is free from defects in materials and workmanship for the period of 90 days from the date of purchase. This warranty does not apply to damage due directly or indirectly, to misuse, abuse, negligence or accidents, repairs or alterations outside our facilities, criminal activity, improper installation, normal wear and tear, or to lack of maintenance.
