Owner's Manual & Safety Instructions
Save This Manual
operating, inspection, maintenance and cleaning procedures. Write the product's serial number in the
back of the manual near the assembly diagram (or month and year of purchase if product has no number).
Keep this manual and the receipt in a safe and dry place for future reference.
DJS6TBK Shown
Email our technical support at: productsupport@harborfreight.com
When unpacking, make sure that the product is intact
and undamaged. If any parts are missing or broken,
please call 1-888-866-5797 as soon as possible.
Copyright
©
2020 by Harbor Freight Tools
No portion of this manual or any artwork contained herein may be reproduced in
any shape or form without the express written consent of Harbor Freight Tools.
Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein.
Tools required for assembly and service may not be included.
Keep this manual for the safety warnings and precautions, assembly,
Visit our website at: http://www.harborfreight.com
®
. All rights reserved.

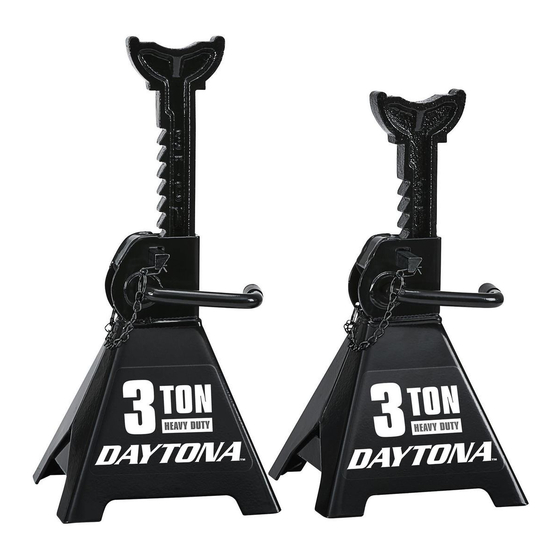

DJS3TBK DJS3TOR DJST3TY
DJS3TGR DJS3TBL 3-Ton
DJS6TBK DJS6TOR DJS6TY
DJS6TGR DJST6TBL 6-Ton
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.
20j
DJS12TBK 12-Ton
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Daytona DJS3TBK
Summary of Contents for Daytona DJS3TBK
- Page 1 (or month and year of purchase if product has no number). Keep this manual and the receipt in a safe and dry place for future reference. DJS3TBK DJS3TOR DJST3TY DJS3TGR DJS3TBL 3-Ton...
- Page 2 Specifications DJS3TBK DJS6TBK DJS12TBK DJS3TOR DJS6TOR Model DJS3TY DJS6TY DJS3TGR DJS6TGR DJS3TBL DJS6TBL Capacity 3 Tons (6,000 lb.)* 6 Tons (12,000 lb.)* 12 Tons (24,000 lb.)* Height Range (Approximate) 11-3/8″ – 16-7/8″ 15-1/4″ – 24″ 19-3/4″ – 30-1/8″ *Evenly distributed across two Jack Stands.
- Page 3 Assembly Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this manual including all text under subheadings therein before set up or use of this product. Note: For additional information regarding the parts listed in the following pages, refer to the Assembly Diagram near the end of this manual.
- Page 4 Operating Instructions Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this manual including all text under subheadings therein before set up or use of this product. WARNING! TO PREVENT SERIOUS INJURY: Use as matched pair to support one end of a vehicle only. Supporting a Vehicle 1.
- Page 5 Jack Stand For technical questions, please call 1-888-866-5797. Page 5...
- Page 6 Maintenance and Servicing Procedures not specifically 2. Before each use, inspect the general condition explained in this manual must be of the Jack. Check for broken, cracked, or bent performed only by a qualified technician. parts, loose or missing parts, and any condition that may affect the proper operation of the product.
- Page 7 Parts List and Assembly Diagram Part Description Post Split Ring Locking Pin Handle Grip Handle Base Pawl Safety Pin PLEASE READ THE FOLLOWING CAREFULLY THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS DIAGRAM IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER NOR DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT OR THAT HE OR SHE IS QUALIFIED TO REPLACE ANY PARTS OF THE PRODUCT.
- Page 8 Limited 90 Day Warranty Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards, and warrants to the original purchaser that this product is free from defects in materials and workmanship for the period of 90 days from the date of purchase. This warranty does not apply to damage due directly or indirectly, to misuse, abuse, negligence or accidents, repairs or alterations outside our facilities, criminal activity, improper installation, normal wear and tear, or to lack of maintenance.
