Daytona DA15LP Owner's Manual & Safety Instructions
  1. Manuals
  2. Brands
  3. Daytona Manuals
  4. Jacks
  5. DA15LP
  6. Owner's manual & safety instructions

Daytona DA15LP Owner's Manual & Safety Instructions

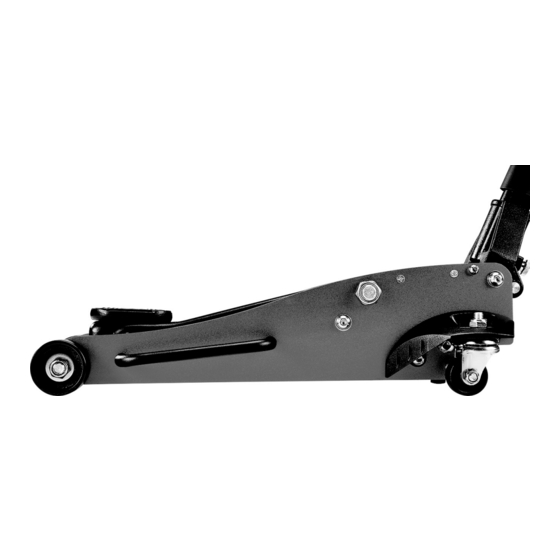

1.5 ton aluminium racing jack
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual
Owner's Manual & Safety Instructions
Owner's Manual & Safety Instructions
Save This Manual
Save This Manual
operating, inspection, maintenance and cleaning procedures. Write the product's serial number in the
inspection, maintenance and cleaning procedures. Write the product's serial number in the back of the manual (or
back of the manual (or month and year of purchase if product has no number). Keep this manual and the
month and year of purchase if product has no number). Keep this manual and
receipt in a safe and dry place for future reference.
the receipt in a safe and dry place for future reference.
1.5
DA15LP
When unpacking, make sure that the product is intact
When unpacking, make sure that the product is intact
and undamaged. If any parts are missing or broken,
and undamaged. If any parts are missing or broken,
please call 1-888-866-5797 as soon as possible.
please call 1-888-866-5797 as soon as possible.
©
©
Copyright
2020 by Harbor Freight Tools
Copyright
2020 by Harbor Freight Tools
No portion of this manual or any artwork contained herein may be reproduced in
No portion of this manual or any artwork contained herein may be reproduced in
any shape or form without the express written consent of Harbor Freight Tools.
any shape or form without the express written consent of Harbor Freight Tools.
Diagrams within this manual may not be drawn proportionally. Due to continuing
Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein.
improvements, actual product may differ slightly from the product described herein.
Tools required for assembly and service may not be included.
Tools required for assembly and service may not be included.
Keep this manual for the safety warnings and precautions, assembly,
Keep this manual for the safety warnings and precautions, assembly, operating,
TON
RACING JACK
ALUMINUM
Visit our website at: http://www.harborfreight.com
Email our technical support at: productsupport@harborfreight.com
®
®
. All rights reserved.
. All rights reserved.
Read this material before using this product.
Read this material before using this product.
Failure to do so can result in serious injury.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.
SAVE THIS MANUAL.
23f
58206

Advertisement

loading
Need help?

Need help?

Do you have a question about the DA15LP and is the answer not in the manual?

Questions and answers

Related Manuals for Daytona DA15LP

Summary of Contents for Daytona DA15LP

  • Page 1 RACING JACK ALUMINUM DA15LP Visit our website at: http://www.harborfreight.com 58206 Email our technical support at: productsupport@harborfreight.com When unpacking, make sure that the product is intact When unpacking, make sure that the product is intact and undamaged.
  • Page 2 Table of Contents Safety ............2 Maintenance ..........6 Setup ............3 Parts Lists and Assembly Diagram ..... 7 Operation ............ 4 Warranty ............. 8 WARNING SYMBOLS AND DEFINITIONS This is the safety alert symbol. It is used to alert you to potential personal injury hazards.
  • Page 3 Specifications Weight Capacity 1.5 Ton Weight Capacity (lb.) 3,000 Maximum Height (in.) 14-1/4 Minimum Height (in.) 3-1/2 Handle Length (in.) 37-1/2 Front Wheel Diameter (in.) 2.170" Front Wheel Width (in.) 1.423" Rear Caster Diameter (in.) 1.576" Rear Caster Width (in.) 0.700"...
  • Page 4 Operating Instructions Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this manual including all text under subheadings therein before set up or use of this product. Tool Set Up Attaching the Handle CAUTION! The Handle Socket will be held 1.
  • Page 5 General Operating Instructions Lifting Park vehicle on a flat, level, solid, surface safely away from oncoming traffic. Turn off the vehicle’s engine. Place the vehicle’s transmission in “PARK” (if automatic) or in its lowest gear (if manual). Set the vehicle’s emergency brake. Then, chock the wheels that are not being lifted. 1.
  • Page 6 Maintenance and Servicing Procedures not specifically explained in this manual must be performed only by a qualified technician. TO PREVENT SERIOUS INJURY FROM TOOL FAILURE: Do not use damaged equipment. If abnormal noise or vibration occurs, have the problem corrected before further use. Cleaning, Maintenance, and Lubrication 1.
  • Page 7 Parts Lists and Assembly Diagram Part Description Part Description Part Description Saddle Pad Lock Washer 8 Handle Bumper Saddle Bolt Washer 8 Handle Set Screw Saddle Lock Nut, M16 Roller Saddle Base Screw, M10 x 25 U-Joint Support Rod Bolt Washer 10 Handle Yoke Retaining Ring 13...
  • Page 8 PLEASE READ THE FOLLOWING CAREFULLY THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY DIAGRAM IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS QUALIFIED TO REPLACE ANY PARTS OF THE PRODUCT.
