J2 680L Integrated Touchscreen Computer

System Manual

May 2012

Table of Contents

Need help?

Do you have a question about the 680L and is the answer not in the manual?

Questions and answers

Summary of Contents for J2 680L

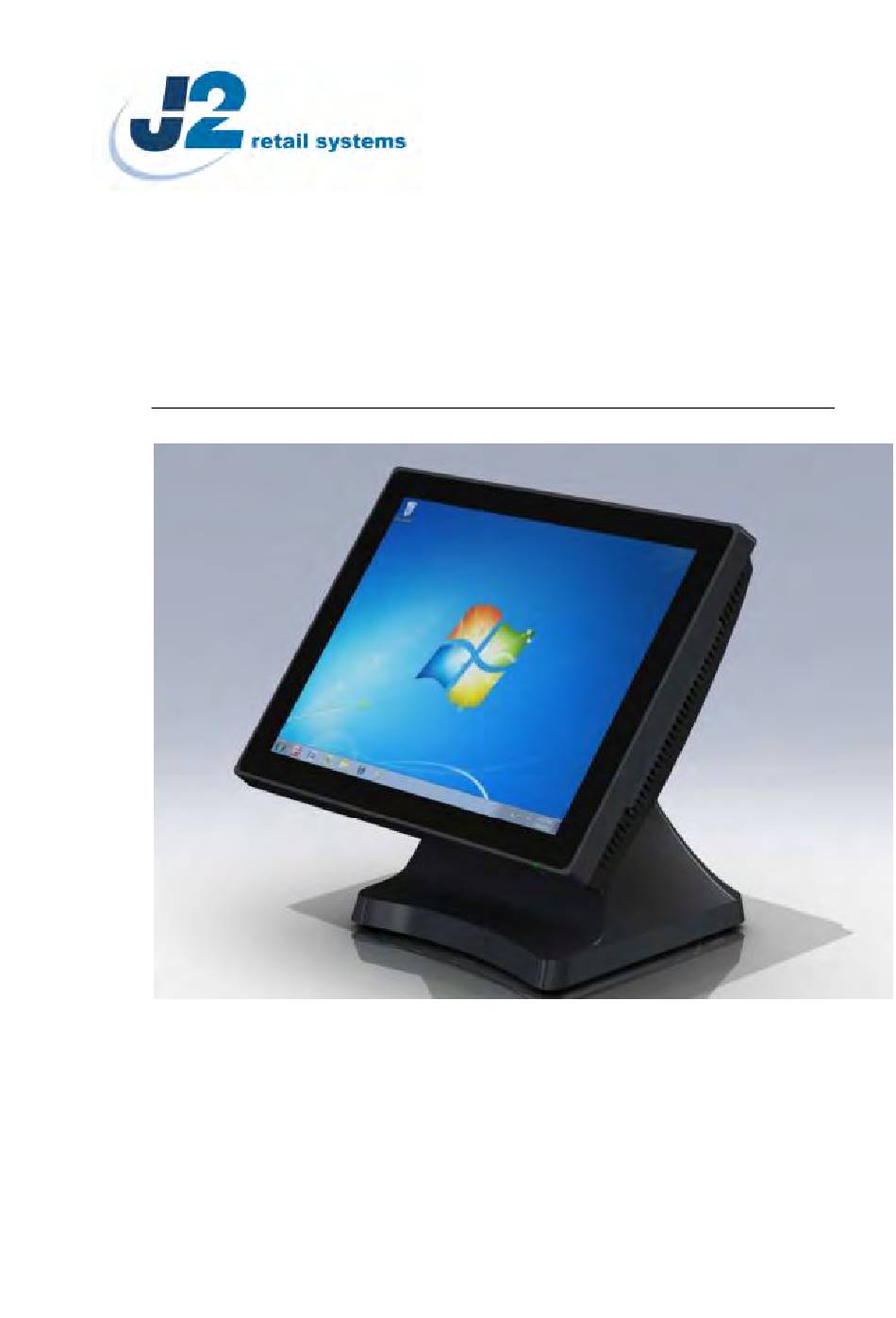

Page 1 J2 680L Integrated Touchscreen Computer System Manual May 2012...
Page 3: Table Of Contents
Optional Wall Mount Bracket Installation ..............29 Removing the Back Cover .................... 30 Changing the System Board ..................31 Adding Memory ......................33 Changing the Processor ....................33 Accessing the HDD/SDD Drives .................. 34 J2 680 System Manual Version 1.0 May 11, 2012...
Page 4 Installation ........................55 Operations ........................55 Cash Drawer Test Utility ....................56 Installation ........................56 Operation ........................56 J2 Virtual Serial Ports Drivers ..................57 RAID ..........................58 RAID Overview ......................58 AHCI ..........................58 Enabling RAID in the BIOS ..................59 RAID Volume Creation ....................
Page 5 Secondary Video Display ....................67 Fingerprint Reader / MSR ..................... 68 iButton / MSR ........................68 680 UPS ..........................68 RFID ..........................68 Wall Mount Bracket ....................... 68 Pole Mount Options ......................68 J2 680 System Manual Version 1.0 May 11, 2012...
Page 6 The J2 680 is the second generation of very high performance integrated Point of Sale computer from J2. Built on the features and capabilities for the J2 650 the J2 680 offers even higher performance and expanded I/O. The J2 680 retains all the versatility of...
Page 7 J2 680 System Manual Version 1.0 May 11, 2012...
Page 8 Power In 19VDC 9.47 amps One headset, one microphone-in Audio Jack Printer Power +24 V 2.5 amps, supports most 24V POS printers Power LED Front bezel, green for on, amber for standby J2 680 System Manual Version 1.0 May 11, 2012...
Page 9 (W x D x H) Weight 8.1kg Windows 7, POSReady 7, Windows 7 Embedded, XP, OS Support POSReady 2009, XP Embedded, version of Linux * This specification is subject to change without prior notice. J2 680 System Manual Version 1.0 May 11, 2012...
Page 10: Features
Hot Swappable RAID/ Dual Hard Drives Like the J2 650, the first integrated POS system on the market to offer a hot swappable RAID feature the J2 680 also supports this feature. The two internal 2.5 inch SATA hard drives can be configured as a RAID array which gives true fault tolerance to the hard drive subsystem.
Page 11: Ups
Not your ordinary UPS, the J2 680 UPS is a DC, not an AC UPS. The UPS fits conveniently into the base of the unit. Unlike an AC UPS the J2 UPS makes the 680 work more like a notebook computer. In addition to running the 680 for up one hour, the UPS will run all the POS peripherals attached to the 680, including the printer.
Page 12: System
J2 680 could be configured with a quad core i5 or i7 processor. J2 will be happy to help you determine what you may require from the 680 in the most cost effective way. More memory may be added to get the performance needed, or sometimes a quad core processor and dual HDD with RAID are needed.
Page 13: Processors Currently Supported On The 680
Processors currently supported on the 680...
Page 14: I/O Ports
I/O Ports Most I/O ports are accessible in the cable well at the bottom of the unit. A cover plate is provided to cover the cables. I/O Panel Off / On Button The Off /On button is located in the cable well, as shown. This button is located near the side to prevent accidental powering down by the user.
Page 15: Hard Disks
The 680 touch screen was designed to easily be changed, normally in less than two minutes. Depending on operating environment and usage, both the Resistive and PCT touch screens have strengths and weaknesses. J2 offers both touch screen technologies on the 680.
Page 16: System Board
25 cd/m . The brightness can be set to a fixed level in the BIOS or controlled by a utility supplied by J2. Secondary Video Port(s) A standard PC VGA video port is supported on the 680 and can be set as the primary or secondary display The VGA video port has an industry standard HD DB15 connector.
Page 17 Extended Desktop. Most all monitor resolutions from 640 x 480 to 2560 x 2048 are supported. Note that only one external video display is support at a time, either on the VGA video port or the DisplayPort video port. VGA and DisplayPort Video Ports J2 680 System Manual Version 1.0 May 11, 2012...
Page 18: Serial Ports
A BIOS setting is used to enable the voltage on each port. J2 does not normally recommend using the +5 volt option on COM 1 and is only there for some legacy devices. The problem is it easy for +5 volt device to be plugged into a +12 enable serial port by mistake which will burn out the +5 volt device.
Page 19: Poweredusb Ports
USB port is used for the PCT touch screen controller and the other internal USB ports is designed for other optional internal devices. All the J2 680 USB ports can supply 1000ma of power, 500ma more than the normal for the USB specification.
Page 20: Kensington Security Slot
It is located on the head in the cable well. The Kensington locks are normally used as a deterrent to prevent opportunistic theft. Most retail locks will work with the 680, however please check to see if a lock fits, as not all do. Kensington slot Cable Well J2 680 System Manual Version 1.0 May 11, 2012...
Page 21: Audio
This same power circuit is used by the +24 PoweredUSB port and normally only one +24V device is supported at one time. Printer Power Port Printer Power Port Cable J2 680 System Manual Version 1.0 May 11, 2012...
Page 22: Cash Drawer Port
CD2 SOLENOID GND / STATUS CD2 The application may address the Cash Drawer port in two ways: 1) Using the J2-supplied OPOS drivers for Windows. 2) Direct access to the I/O ports 3) J2 supplied Virtual Serial Cash Drawer Emulator J2 680 System Manual Version 1.0 May 11, 2012...
Page 23 3 2 1 Reserved Cash Drawer 1 fire Cash Drawer 2 fire Reserved Cash Drawer 1 status Reserved s on the one RJ-11 is the same as is used on Epson printers. J2 680 System Manual Version 1.0 May 11, 2012...
Page 24: Cmos Clear
IV. The power supply connector is a four pin locking type that plugs into the system s power input connector located in the cable well. Power Input connector J2 680 System Manual Version 1.0 May 11, 2012...
Page 25: Typical Power Consumption 680
Maximum load: PassMark BurnInTest Max CPU Temp Temperature: All system where tested in there standard hard drive configuration. Results are +/- 15%. J2 680 G850 2.9GHz Pentium 1: Normal application including most POS software 40 watts 2: Very heavy load application...
Page 26: Service
To remove the integrated head from the base, fully loosen the thumbscrew located on the back of the unit under the hinge of the counter top base, as shown below. Then lift the head as illustrated: Loosen Thumb Screw Slide Head up to remove J2 680 System Manual Version 1.0 May 11, 2012...
Page 27: Removing The Power Supply
The power supply is normally located in the counter top base. When using a wall mount bracket or the J2 UPS, the power supply would be external from the unit. To remove the power supply from the base, three screws needs to be removed as shown.
Page 28: Vesa Mounting
VESA mounting. The four point that thread holes for 4mm screws. 100mm VESA Pattern Threaded Mounting point(s), 4mm screw J2 680 System Manual Version 1.0 May 11, 2012...
Page 29: Optional Wall Mount Bracket Installation
VESA standard; and unthreaded holes for the 100mm standard. Using the 100mm hole pattern the bracket can be used by itself as a wall mount bracket. After installing the thumbscrew clip mount bracket to the wall, hang the J2 680 on the bracket.
Page 30: Removing The Back Cover
Carefully tilt up the back cover to remove Note: The 680 was designed so that the internals of the unit could be accessed without having to remove the mounting base or the mounting bracket of the unit. J2 680 System Manual Version 1.0 May 11, 2012...
Page 31: Changing The System Board
First remove the back cover. There are 3 screws that hold the system board in place that will need to be removed. (see photo below) Three screws to remove System Board J2 680 System Manual Version 1.0 May 11, 2012...
Page 32 While using the I/O bracket to pull on, slide the board out towards the bottom of the unit as shown. When reinstalling the system board make sure the locking tabs on the bottom of the board lock into their mating slots. J2 680 System Manual Version 1.0 May 11, 2012...
Page 33: Adding Memory
Remove the back cover. You can now access the two memory sockets, the order in which the memory is populated does not matter. The J2 680 supports up to 16GB of memory in two sockets. Memory type is 240 DIMM DDR3 1066/1333.
Page 34: Accessing The Hdd/Sdd Drives
No physical damage will happen to the HDD if inserted or removed with power on. J2 680 System Manual Version 1.0 May 11, 2012...
Page 35: Bios Setup
BIOS Build Date, CPU type, CPU speed and DRAM memory size, Product type, System Serial Number and mother board revision. The serial number of the mother board and the system are the same. Main screen J2 680 System Manual Version 1.0 May 11, 2012...
Page 36: Advanced Settings
When enabled, a message screen will appear and Shift-F10 can be typed to access the PXE ROM options. J2 680 System Manual Version 1.0 May 11, 2012...
Page 37: Sata Configuration
IDE compatible mode and default BIOS setting. The other two selections are RAID and AHCI modes. Please see the separate section in the manual for RAID Setup for further information on using RAID and AHCI modes. SATA Configuration Screen J2 680 System Manual Version 1.0 May 11, 2012...
Page 38: Peripheral Power And Lcd Brightness Configuration
Peripheral Power and LCD Brightness Configuration This submenu allows for the enabling of power for the serial ports, default cash drawer pulse timing and default LCD brightness level and power for a J2 supplied VGA port monitor. Power enable for serial Ports...
Page 39: Power Configure Screen
This function is enabled by this setting. The wake up time can also be set here. J2 also has available a utility to set the wake-up time from Windows. This is more versatile than the BIOS setting as it allows for more than one time of day to be set as well as days of the week to turn on.
Page 40: Boot Settings
Boot Settings Screen Display OEM Logo The BIOS can display two types of OEM logos on boot up. The default is a small J2 logo in the upper left hand corner. With this setting BIOS POST test messages can be seen during boot up.
Page 41: Exit Options
BIOS changes. It is not necessary to exit setup from this screen. To discard any BIOS setup changes you can type the ESC key from any screen to exit. Exit Options Screen J2 680 System Manual Version 1.0 May 11, 2012...
Page 42: Driver Installation, Windows
Just answer Next or Yes to all the screen prompts and the drivers will install. Graphics Driver Installation You can download the 680 graphics driver from the J2 web site at: http://www.j2retailsystems.com/support/680/Graphics/. This is an .exe file so just run it and answer Next or Yes to all screen prompts and the drivers will install.
Page 43: Audio Driver Installation
Audio Driver Installation The Audio Drivers can be downloaded from the J2 web site at: http://www.j2retailsystems.com/support/680/Audio/. After extracting the driver to a temporary folder, run Setup, and then follow the instructions below: First Audio setup screen Just click on Next to install the Audio driver.
Page 44: Lan Driver Installation
LAN Driver Installation The LAN drivers can be downloaded from the J2 web site: http://www.j2retailsystems.com/support/680/LAN/. After extracting the driver to a temporary folder, run Setup. Just answer Next or Yes to all the screen prompts and the driver will install.
Page 45 Resistive Touch Screen Driver Installation The Touch Drivers can be downloaded from the J2 web site at: http://www.j2retailsystems.com/support/680/Touch/. When run, the diver will display a welcome screen, at this point just press next for the next few screens. When you get to this screen check both RS232 and USB options and click next.
Page 46 Click finish at the screen. The driver will then detect the port the touch screen is on (normally COM6) then ask you to reboot the system. After rebooting the touch should be working. Calibration is not needed as this is done at the factory. J2 680 System Manual Version 1.0 May 11, 2012...
Page 47: Multi-Touch Projected Capacitive Touch Driver
The first page of options allows for the change how your finger or stylus interacts with the screen. The sensitivity and function of touch to the screen can be changed here. J2 680 System Manual Version 1.0 May 11, 2012...
Page 48 The other four option tabs are shown below for reference. They are self-explanatory in most case and additional information can be obtained through the Windows help function. J2 680 System Manual Version 1.0 May 11, 2012...
Page 49: Optional Multi-Touch Projected Capacitive Touch Driver
Optional Multi-Touch Projected Capacitive Touch Driver In addition to the Windows built in standard touch driver J2 also supplies and optional touch driver that is used when multi-monitor touch support is needed. This driver works with Windows XP and later version of Windows. The driver can be downloading from J2 web site.
Page 50 PCT screen. A draw test is provided to verily the operation and calibration of the touch screen. J2 680 System Manual Version 1.0 May 11, 2012...
Page 51: Opos Drivers
The OPOS driver for the 680 supports the Cash Drawer ports, the optional MSR, the optional 2x20 character Customer Display, and the optional iButton reader. The OPOS driver may be downloaded from the J2 web site at: http://www.j2retailsystems.com/support/680/. Just run the OPOS setup.exe file to install.
Page 52: J2 Health
J2 has a standard program that works with all its POS products, called J2 Health. This program is used in either a standalone mode or in conjunction with J2 remote monitor/asset tracking software. The J2 Health program monitors different aspects of the POS hardware to ensure the hardware is running within specification.
Page 53: Logging To File
680 fans. Logging to File The J2 Health program can log the health data to a file in the csv text format for related problems. When logging is enabled, the tray icon Rx symbol will change to red to indicate logging in is taking place.
Page 54: Registry Entries
J2 680 Health keys are shown below: J2 Remote Monitoring Software J2 now offers a full remote monitoring and asset tracking solution that works in conjunction with J2 Health to ensure the highest uptime possible of your POS hardware. Please contact J2 sales for more information on this fully customizable, remote monitor solution.
Page 55: Smi Bios Info Utility
BIOS is only supported on very high end servers. Now J2 brings this feature to POS hardware. The J2 SMI BIOS Info program will run on any J2 POS hardware or for that fact on any PC hardware. It can display all DMI/SMI information on a formatted form.
Page 56: Cash Drawer Test Utility
J2 has a generic cash drawer test utility that works on all J2 products, including the new J2 680 computer. Installation The utility can be downloaded from the J2 web site: http://support.j2rs.com/Utilities/ To install just unzip anywhere and run as you wish to download the utility form.
Page 57: J2 Virtual Serial Ports Drivers
CTS and RI bits, either bit may be used. This virtual COM port driver is designed to work the same as a hardware serial cash drawer and will work with drivers for serial cash drawers. J2 680 System Manual Version 1.0 May 11, 2012...
Page 58: Raid
To use AHCI drivers from Intel the BIOS must be set to RAID, not AHCI. The AHCI mode uses the same drivers as used for RAID. Follow the instruction for install the RAID drivers but set the HDD as a Non-RAID Disk in the RAID BIOS setup. J2 680 System Manual Version 1.0 May 11, 2012...
Page 59: Enabling Raid In The Bios
Enabling RAID in the BIOS The Intel manual for the Intel Matrix Storage Manager covers this same information given below in more detail and can be downloaded from the J2 web site. The documentation below is tailored for the 680 only.
Page 60: Installing The Intel Matrix Storage Manager Software
If a RAID 1 drive fails the Matrix Storage Manager will warn the user that a drive has failed. A small Icon appears as shown to indicate a drive has failed. Drive Failed Icon in tray J2 680 System Manual Version 1.0 May 11, 2012...
Page 61 In the Intel Matrix Storage Manager select Advance Mode, and under the Action tab Rescan for Plug and Play Devices screen shot This will cause the drive to be detected by the driver. Drive detected J2 680 System Manual Version 1.0 May 11, 2012...
Page 62 Rebuilding Rebuilt The RAID has now mirrored the drive and the system is now protected for a drive failure. Note: more information on using the 680 RAID function. (Available September 2008) J2 680 System Manual Version 1.0 May 11, 2012...
Page 63: Packing List
In addition to the foam packing inserts, the following contents should be found in the 680 shipping carton. Standard Items 1: System with Power Supply and AC cord 2: Cable Well Cover 3: Printer Power Port Cable : COM Port Colored Coded Cable Labels J2 680 System Manual Version 1.0 May 11, 2012...
Page 64: 680 Optional Peripherals
Overview The 680 can be ordered with a 3 track MSR. This MSR is the same as used on the J2 580/615/625/630 POS systems. The MSR mounts on the right side of the 680 and uses a front facing MSR slot. This allows the 680 unit to be placed side by side, or in tight spaces, and still be able to swipe the card.
Page 65: Installing The 680 Msr
Remove Rubber plugs Then remove the MSR cover plate on the right back side of the unit by removing the two screws, as shown. Remove MSR cover plate J2 680 System Manual Version 1.0 May 11, 2012...
Page 66 You may now power up the 680 and the MSR should be working. For a quick test you can open Notepad and swipe a card, the information should appear in Notepad. You can now run the J2 MSR utility if you need any custom settings for the MSR. J2 680 System Manual...
Page 67: Customer Display
Overview A 2 line by 20 character VFD customer side display is available optional for the J2 680. This customer display is the same as used on the J2 580/615/625/630 POS systems. The J2 680 has the same options as available on the J2 580/615/625/630 POS systems.
Page 68: Fingerprint Reader / Msr
This option is the same as available on the J2 580/615/625/630 POS systems. This reader uses the Digital Personal module. This option is the same as available on the J2 580/615/625/630 POS systems. Available Q2 2012 Available Q2 2012 This option is the same as available on the J2 580/615/625/630 POS systems.
Page 69 44 (0) 1925 811989 Fax USA Office J2 Retail Systems Inc. 9251 Irvine Boulevard Irvine CA 92618 Australian Office J2 Retail Systems Pty Ltd Unit 6 83/85 Boundary Road Mortdale NSW 2223 Australia 02 9584 5222 Phone 02 9584 1500 Fax Web site http://www.j2retailsystems.com...
Page 70 FCC Statement This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
