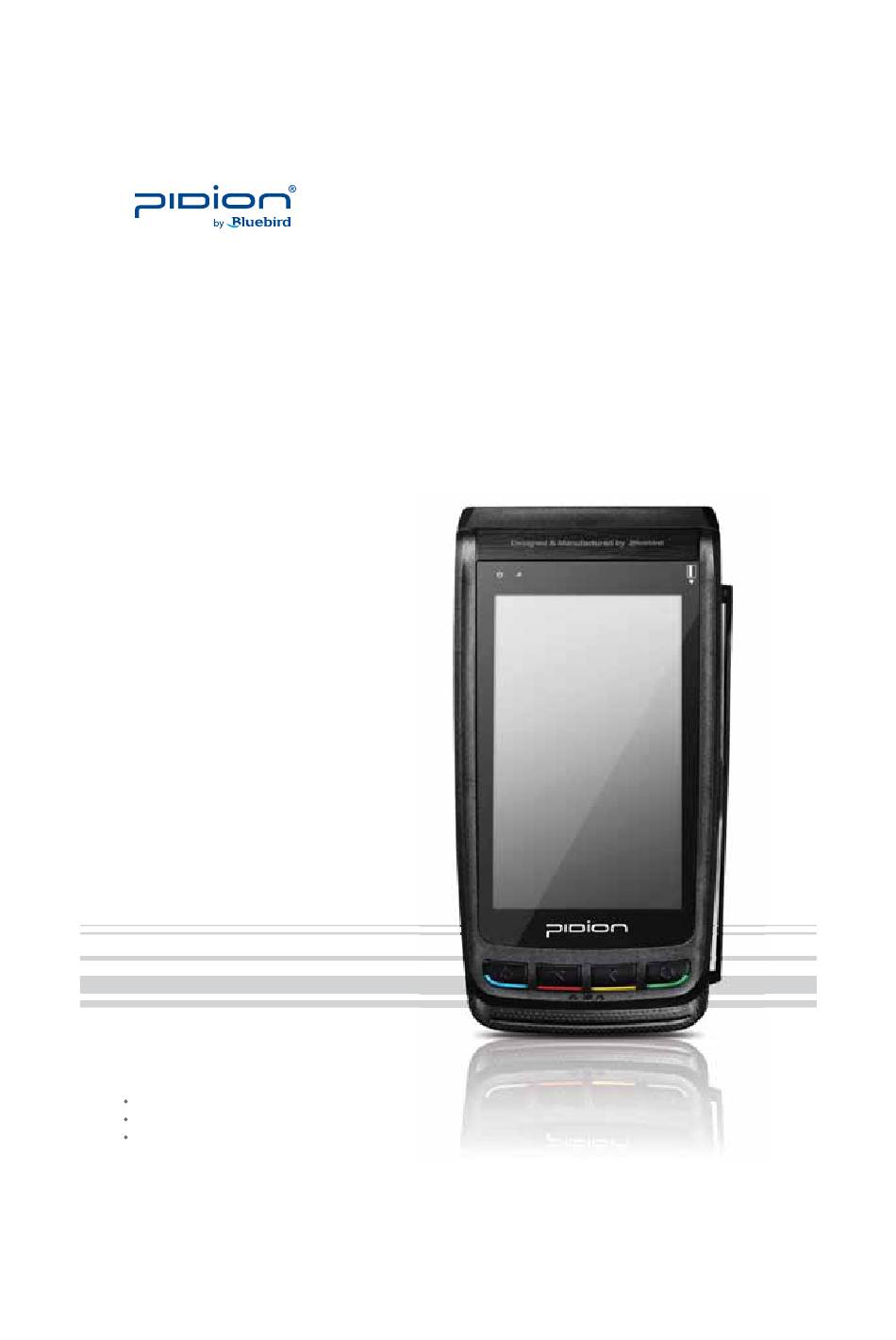

www.bluebirdsoft.com
Touch Mobile Payment Terminal
MT760
User's Manual
. Please read the following warnings before using the product.
. Shapes and colors of the images shown in this manual may differ from the actual products.
. Contents of the manuals may differ based on the software version of products or conditions of the wireless provider.

Advertisement

loading
Need help?

Need help?

Do you have a question about the pidion MT760 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Bluebird pidion MT760

Summary of Contents for Bluebird pidion MT760

  • Page 1 www.bluebirdsoft.com Touch Mobile Payment Terminal MT760 User’s Manual . Please read the following warnings before using the product. . Shapes and colors of the images shown in this manual may differ from the actual products. . Contents of the manuals may differ based on the software version of products or conditions of the wireless provider.
  • Page 2 Pidion is an emerging global brand, striving to lead the market in performance and mobility. Their products represent reliability, innovation, and innovative technology. Pidion is a registered trademark from the global brand of Bluebird Soft Inc. and is copyright protected. User’s guidance Device type User’s guidance...
  • Page 3 This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
  • Page 4 Contents Notice Before Using Device Precautions Before Using Battery About the product Changing the printing paper Paying with card Learning Basics Network setting PCI Key Injection Application Manual Device Specifications Q & A Service Center Warranty Certificate MT760 MANUAL...

  • Page 5: Notice Before Using Device

    Notice Before Using Device MT760 MANUAL...

  • Page 6: Precautions Before Using Battery

    Precautions Before Using Battery MT760 MANUAL...

  • Page 7: About The Product

    About the product 1. Checking components MT760 MANUAL...
  • Page 8 About the product 2. Checking names of parts 2-1. Main Body Designed & Manufactured by 2-2. Cradle MT760 MANUAL...
  • Page 9 About the product 2-3. Cradle 2-4. Cradle MT760 MANUAL...

  • Page 10: Changing The Printing Paper

    About the product 3. Features Designed & Manufactured by Changing the printing paper 1. Opening the Printer Cover MT760 MANUAL...
  • Page 11 Changing the printing paper 2. Closing Paper Roll Cover 3. Direction for Receipt Cut MT760 MANUAL...

  • Page 12: Paying With Card

    Paying with card 1. Paying with MSR 2. Paying with IC Card 3. Contactless MT760 MANUAL...

  • Page 13: Learning Basics

    Learning Basics 1. Insert / Remove the battery 1-1. Insert the battery 1-2. Remove the battery MT760 MANUAL...
  • Page 14 Learning Basics 2. Insert / Remove the USIM card 2-1. Insert the USIM card MT760 MANUAL...
  • Page 15 Learning Basics 2-2. Remove the USIM card 3. Insert / Remove the microSD card 3-1. Insert the microSD card MT760 MANUAL...
  • Page 16 Learning Basics 3-2. Remove microSD card MT760 MANUAL...
  • Page 17 Learning Basics 4. To Connect the Terminal Power MT760 MANUAL...
  • Page 18 Learning Basics 5. Charging with Cradle MT760 MANUAL...

  • Page 19: Network Setting

    Network setting 1. Bluetooth Setting Summary 1 . Running BTAPP.exe MT760 MANUAL...
  • Page 20 Network setting 2. UNTRUST SCAN MT760 MANUAL...
  • Page 21 Network setting 3. Active 4. Successfully Connected MT760 MANUAL...
  • Page 22 Network setting 2. Ethernet Setting Summary 1. Execute Pidion MT760 Pan Setting.exe 2. Match the Bluetooth ID with the Cradle ID 3. Select Ethernet from the drop-down list. MT760 MANUAL...
  • Page 23 Network setting 4. Choose the “Use The Following IP Address” and type in your IP & DNS. 5.Press the Connect Button: TYPE Setting will Pop Up. (*Please wait till the TYPE Setting process completes.) MT760 MANUAL...
  • Page 24 Network setting 6. Conducting The Ping Test MT760 MANUAL...
  • Page 25 Network setting 3. PSTN Setting Summary 1.Select PSTN from the drop-down list. 2.Add profile MT760 MANUAL...
  • Page 26 Network setting 3.Select Profile 4.Press The Connect Button MT760 MANUAL...
  • Page 27 Network setting 4. WiFi Setting 1. Double click this icon [ ] in the status bar. 2. [BCMSDDHD1] will show in a pop-up window. Select the [Wireless Information] Tab Select Amongst The Scanned AP, and Click [Connect] 3. [Wireless Network Properties] will show in a pop-up window.
  • Page 28 Network setting 5. WiFi Static Setting 1. After you press the Start Button, follow the directions shown below. 2. Double Click “BCMSDDHD1”. Network Adapter Setting will Pop-up. MT760 MANUAL...
  • Page 29 Network setting 3. Select the 2nd Radio Button on the First Tab. 4. Enter IP, Subnet Mask, and Default Gateway. 5. Enter Primary and 2ndary DNS on the 2nd Tab. 6. As you press Ok(next to the close X button), your WI-Fi will Connect.
  • Page 30 PCI Key Injection Application Manual 1. User Password Input Mode A. Set a temporary user password(once for registration, twice for verification) B. Type in your real user password(once for the registration, twice for verification) 2. Master Key Input Mode A. When the MT 760 is rebooted, CommPCIApp.exe is executed automatically. B.
  • Page 31 PCI Key Injection Application Manual D. Click ‘Fn Key Send’ Button E. Put In Admin1 password and click ‘Enter’ - The PIN PED will be displayed when you touch the screen. *When the password runs out(Timeout happens in every 2 minute), repeat the same procedure you have done so far.
  • Page 32 PCI Key Injection Application Manual F. Put In admin2 password and click ‘Enter’ - The PIN PED will be displayed when you touch the screen. G. Put In Communication Key ( PTK – must input 24byte ) and click ‘Enter’ - The PIN PED will be displayed when you touch the screen.
  • Page 33 PCI Key Injection Application Manual H. Put In The Communication Key (PTK) again and click ‘Enter’ - The PIN PED will be displayed when you touch the screen. I. Put In Communication Key ( T-MACK – must input 24byte ) and click ‘Enter’ - The PIN PED will be displayed when you touch the screen.
  • Page 34 PCI Key Injection Application Manual J. Put In Communication (T-MACK) Key again and click ‘Enter’ - The PIN PED will be displayed when you touch the screen. K. Key Input Mode Step MT760 MANUAL...
  • Page 35 PCI Key Injection Application Manual L. Put In PIN Master Key - Select PIN Master Key - Select Key size - Put In Key Data [000102030405060735313213843536371544095645732411] - Put In Key Index [0] - Click ‘Send Packet’ button - If successful, the MT760 screen will confirm the PIN Master Key has been successfully installed.
  • Page 36 PCI Key Injection Application Manual M. Input MAC Master Key - Select MAC Master Key - Select Key size - Input Key Data [000102030405060735313213843536371544095645732411] - Input Key Index [0] - Click ‘Send Packet’ button - If successful,the MT760 screen will confirm the MAC Master Key has been successfully installed.
  • Page 37 PCI Key Injection Application Manual N. Input Fix Key - Select Fix Key - Select Key size - Input Key Data [000102030405060735313213843536371544095645732411] - Input Key Index [0] - Click ‘Send Packet’ button - If successful, the MT760 screen will confirm the Fix Key has been successfully installed.
  • Page 38 PCI Key Injection Application Manual O. Input SK MAC Key - Select SK_MAC Key - Input Key Data [000102030405060735313213843536371544095645732411] - Click ‘Send Packet’ button - If successful, the MT760 screen will confirm the SK_MAC Key has been successfully installed MT760 MANUAL...
  • Page 39 PCI Key Injection Application Manual P. Input Key End - Select Input Key End - Click ‘Send Packet’ button - If ‘State – Send Connection Ack’ output, success - Once the MT760 Auto-Reboots, the Key Injection is complete. MT760 MANUAL...
  • Page 40 'HYLFH 6SHFL¿FDWLRQV Performance Characteristics Processor Memory Interface Communication Options WWAN Radio WLAN Radio WPAN Radio Payment Options Magstripe Smart Card Contactless Security Chracteristics Security Physical Characteristics Dimension & Weight Display Keypad Battery & Voltage Expansion Slot SIM/SAM Slot MT760 MANUAL...
  • Page 41 'HYLFH 6SHFL¿FDWLRQV User Environment Characteristics Durability Operating Temp Storage Temp Humidity Cradle Charger Ethernet Dial-up Modem Bluetooth Ethernet Dial-up Modem MT760 MANUAL...
  • Page 42 Q & A Water went into my device. What do I do? The MT760 won’t turn on. The MT760 won’t charge. How do I get the repair service? My battery drains very quickly. MT760 MANUAL...
  • Page 43 Q & A Printer Would Not Print. Printer Paper Jam. Transactions Process Fails. Check the Magnetic Stripe Reader. Check the IC-Card Reader. MT760 MANUAL...

  • Page 44: Service Center

    Service Center Before Requesting After-Sales Service Bluebird Soft Customer Service Operating hours Registering for After-Sales Service MT760 MANUAL...
  • Page 45 Service Center Charged Service There will be no returning of goods or repayment upon the following situation MT760 MANUAL...
  • Page 46 :DUUDQW\ &HUWL¿ FDWH Thank you for purchasing a product from Bluebird Soft Inc. Name of Product Name of Model Date of Purchase Manufacture Number Place of Purchase Term of Guarantee Warranty MT760 MANUAL...
  • Page 47 (GMT Time: +9 Hours) We are not open on Saturday, Sundays and National Holidays. Address Customers service center, SSang-young IT twintower B 703, Sangdaewon-dong 442-5, Joongwon-gu, Sungnam-si, Keonggi-do, Korea Bluebird constantly strives to bring utmost satisfaction to all our customers.
