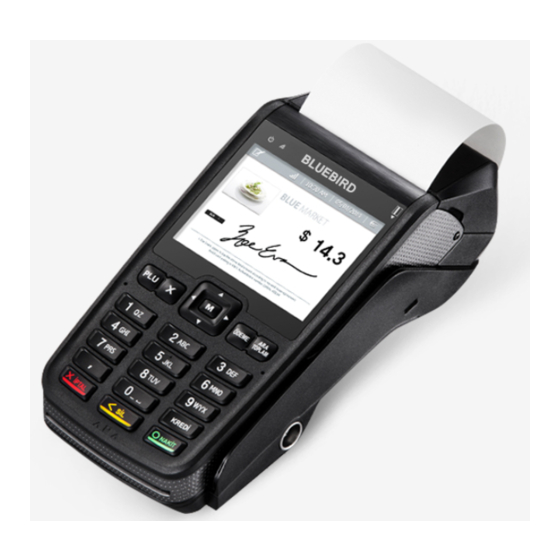

- Page 1 Touch Mobile Payment Terminal MT281 User’s Manual Please read the following warnings before using the product.
- Page 2 • This user manual is protected by copyright. • This user manual has been created by the Bluebird Inc. We have done our best not to create typos, editing errors, and leaving out any information. Please understand if there are any inconveniences.
- Page 3 End users cannot modify this transmitter device. Any Unauthorized modification could void the user`s authority to operate this device. Hereby, Bluebird Inc. declares that this MT281 is in compliance with the essential requirements and other relevant provisions of directive 1999/5/EC.
-
Page 4: Table Of Contents
Contents ........Notice Before Using Device . -
Page 5: Notice Before Using Device
Notice Before Using Device This information is for your own safety. Please observe the following precautions. WARNING • This device is qualified for the standard of the safety of human body against electromagnetic wave. For your own safety, please use certified devices provided by headquarter. -
Page 6: Precautions Before Using Battery
Precautions Before Using Battery These are safety precautions in order to prevent a dangerous accident. Please use the battery correctly and carefully observe the instructions. WARNING • If the battery is taken apart by impact, applied heat, submersion, or hole-drilling, there is a risk of a dangerous explosion. -
Page 7: About The Product
The images in this User’s Manual may not refl ect the color and shape of the actual product. Please contact the Customer Care Center if you wish to purchase any additional or optional products. Power Cable Power Adapter Cradle Gender MT281 Main Body MT3XX Main Body Battery... -
Page 8: Checking Names Of Parts
About the product 2. Checking names of parts 2-1. Main Body Power LED Conn. LED Screen Button MSR Card Slot IC Card Slot Battery Cover Speaker Printer 2-2. Cradle A Type POWER 1SC-MT-A : DC Only... - Page 9 About the product 2-3. Cradle B Type Line RS232 ETHERNET USB HOST POWER USB Client 1SC-MT-B : DC, PSTN, Ethernet, USB Host 2Slot, RS232 2Slot, USB Client * B type function - All functions are available when installing the MT760. - USB Client cable is disconnected if: Charge, PSTN, Ethernet, USB Host 2 slot, RS232 2 slots are available.
-
Page 10: Features
About the product 3. Features The front panel includes the following features: Terminal display, Backlight LCD screen. • Built-in MSR is located at the right side of the • device. There is the icon shows you the proper way to swipe the card. It will be swiped down. The magnetic stripe of the card needs to be facing to the device while swiping. -
Page 11: Closing Paper Roll Cover
Changing the printing paper 2. Closing Paper Roll Cover Please be careful not to insert printer paper in the opposite direction. Tear the paper off against the top case in the printer. WARNING 3. Direction for Receipt Cut Pull the Receipt Toward the LCD. The printer cover can open if the Receipt is pulled backward. -
Page 12: Paying With Card
Paying with card 1. Paying with MSR The card can be swiped in both directions. Please swipe the card. 2. Paying with IC Card 2. Paying with IC Card Insert IC card. IC chip needs to go in Insert IC card. IC chip needs to go in fi rst. -
Page 13: Learning Basics
Learning Basics 1. Insert / Remove the battery 1-1. Insert the battery 1 Push your battery in the direction 2 Put on the battery cover in the of the arrow. direction on the arrows. 1-2. Remove the battery 1 Slide down the battery cover to 2 Lift the battery in the direction of open it. -
Page 14: Insert / Remove The Sam/Usim Card
Learning Basics 2. Insert / Remove the SAM/USIM card 2-1. Insert the SAM card Slide in the SAM card in the arrow direction. The devices supports 2 SAM slots. 2-2. Insert the USIM card 1 Push the USIM card holder to ‘OPEN’ direction then lift up. -
Page 15: Remove The Sam Card
Learning Basics 2-3. Remove the SAM card Push the top of the SAM card to slide it out in the arrow direction. 2-4. Remove the USIM card Push the top of the USIM card and slide it out from the holder. 3. -
Page 16: Remove Microsd Card
Learning Basics 2 Insert the microSD card into the storage card holder with its gold contacts facing out. 3 Lock the storage card holder by pushing it down into place. 3-2. Remove microSD card 1 With the USIM card and storage card compartment opened, lift the storage card holder flap to open it. -
Page 17: To Connect The Terminal Power
Learning Basics 4. To Connect the Terminal Power Power Cable Power Adapter Gender As you see in the picture, connect the adapter with the power cable to charge the power. • When The battery of the device is low, it may warn you with a ring and a message. -
Page 18: Charging With Cradle
Learning Basics 5. Charging with Cradle Power Cable Power Adapter Cradle As you see in the picture, connect the adapter with the power cable to Cradle. • When The battery of the device is low, it may warn you with a ring and a message. -
Page 19: Device Specifications
Device Specifications Performance Characteristics ARM9 32-bit Processor Exclusive Security Processor Windows CE 6.0 Memory 256MB (128MB of Flash, 128MB of SDRAM) standard, can exceed up to 640 MB Interface One USB Host & Device port Communication Options WWAN Radio Optional, GSM/GPRS/EDGE/UMTS/HSDPA/HSPA+ or CDMA/1X/EVDO Rev0/RevA WLAN Radio Optional, IEEE 802.11 b/g/n WPAN Radio... - Page 20 Device Specifications User Environment Characteristics TankSmith™ Technology Durability 4ft./1.2m drop to steel & Waterproof Keypad Operating Temp 0 ℃ to 50 ℃ / 32 ℉ to 122 ℉ operating temperature Storage Temp -20 ℃ to 60 ℃ / -4 ℉ to 140 ℉ Humidity 5% to 95% relative humidity, non-condensing Cradle...
-
Page 21: Q & A
Please contact to your service center. The MT281 won’t turn on. The program may be damaged. Please try resetting your device. If it still doesn’t work, Please contact the service center. - Page 22 Q & A Printer Would Not Print. Check the battery status as well as the power connection. Without sufficient battery life to carry out a complete printing operation, the printer will not print. Make sure the printer has not run out of paper, and the roll has been properly installed.
-
Page 23: Service Center
• Do not intentionally damage the label on the product. • Damaged label may result in a disadvantage to the customer. • When you return the product to Bluebird for service, please put the product in a protective box. • Warranty will not be provided for any damage occurring during delivery. - Page 24 Service Center Charged Service 1. If it is not a default, it will be charged when requesting for after-sales service. - Service request due to inappropriate use of the customer - Loss of a PIN number - Use of programs that might effect the program (over-clock, forceful changes in the input of the system, personal developments) 2.
-
Page 25: Warranty Certificate
1 year from purchase Warranty 1. Bluebird Inc. (hereinafter referred to as Bluebird) provides the warranty service for its products in compliance with the regulations on compensation for damage of customer. 2. Upon receiving a notification on a defect of its product within the range of warranty during the warranty period, Bluebird will repair or replace the defective product according to its warranty policy. - Page 26 Customers Service Center Hours Mon. ~ Fri. : 9:30 A.M. ~ 6:30 P.M. (GMT Time: +9 Hours) W e ar e not open on Satur day, Sundays and National Holidays. Addr ess Customers service center, SSang-young IT twin tower B 703, Sangdaewon-dong 442-5, Joongwon-gu, Sungnam-si, K eonggi-do, K or ea Bluebir d constantly strives to bring...
