CareCo BA07036 Quick Start Manual

Product Specifications (BA07036)
Seat Width
Seat Depth
Seat Height
Product Weight
Max User Weight

How to fit:

1. Remove product from carton and read all instructions carefully before attempting
to install product.
2. To install the arms, depress push pins and insert into mounting tubes. There
will be an audible click. Ensure the push pin fully protrude through the holes in
the mounting tubes. Make sure the arms are locked in place by pulling them. To
remove arms, reverse steps.
3. Lift toilet lid and seat assembly and place rear wings of toilet seat around rim
of the toilet bowl. (Some toilet bowls may require that seat assembly should be
removed to allow proper fit). In addition the front adjustment bracket must clear
the rim in order for the raised toilet seat to fit securely.
4. With the raised toilet seat resting correctly on the rim, straighten and centre the
product over the toilet bowl as necessary. Turn adjusting knob clockwise to tighten
product securely in place. Hand tighten product securely in place. Hand tighten
only - use no tools, and be careful not to over-tighten, as threads on adjustment
bracket may strip.
5. Check for secure fit routinely before using product. User's weight should be
centred over toilet seat, not too far forward or too far to one side, as unit may tip.
6. If you have a style of commode where this product will not fit properly, or cannot
be tightened securely as noted above, it is recommended that you
discontinue usage.

Removal instructions:

1. Rotate knob counter clockwise until seat is loose.
2. Lift front of raised toilet seat and pull forward to move.

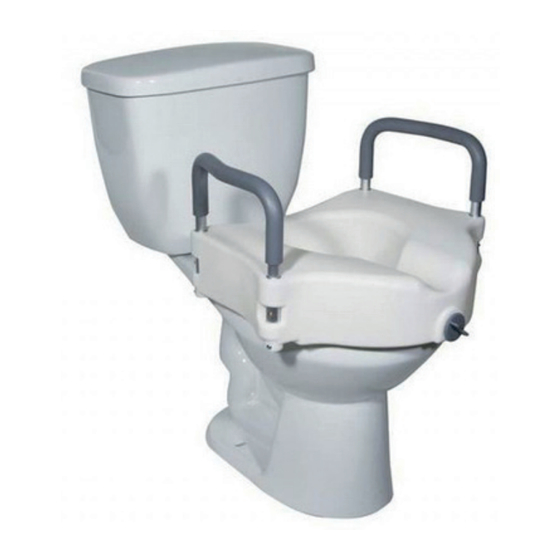

BA07036 - Deluxe Toilet Seat Raiser
46cm
42cm
18cm
2.4kg
180kg / 28 stone
