ASSEMBLY INSTRUCTIONS
ITEM NO.
164WAITRS3WL
164WAITRS3BK.

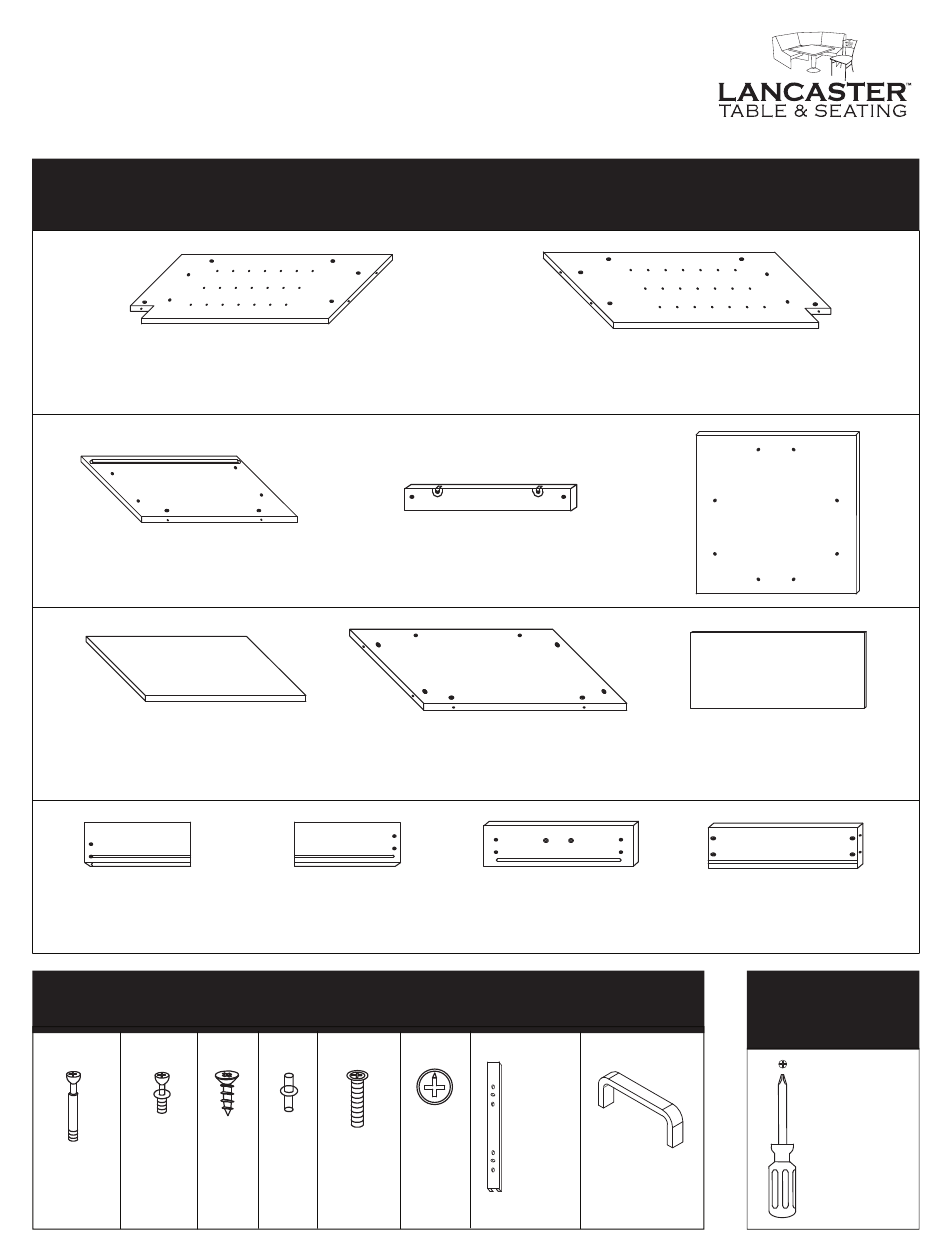

PART LIST:
SIZE: 31in x 22in
(3)/1PC
Top Board
SIZE: 36in x 23in
(6)/1PC
Shelf
SIZE: 35in x 22in
(9)/1PC
Right Drawer Side
SIZE: 12in x 4in
HARDWARE LIST:
(A)
(B)
Small Cam
Cam Lock
Screws
Screw (46PCS)
Lock (4PCS)
(12PCS)
(1)/1PC
Left Side Board
(10)/1PC
Left Drawer Side
SIZE: 12in x 4in
(E)
(C)
(D)
Machine
Shelf Pin
Screw (2PCS)
(46PCS)
(4)/1PC
Kick Board
SIZE: 36in x 3in
(7)/1PC
Bottom Board
SIZE: 35in x 22in
(11)/1PC
Front Drawer Side
SIZE: 36in x 4in
(G)
Drawer
Track (1PC)
(F)
Cam Lock
(26PCS)
(2)/1PC
Right Side Board
SIZE: 31in x 22in
(5)/1PC
Back Board
SIZE: 36in x 36in
(8)/1PC
Drawer Bottom
SIZE: 33in x 12in
(12)/1PC
Back Drawer Side
SIZE: 32in x 4in
TOOLS
REQUIRED:
(H)
Handle
(1PC)
Phillip's Head
Screwdriver
(not included)
Advertisement
Table of Contents
Related Manuals for Lancaster 164WAITRS3WL
Summary of Contents for Lancaster 164WAITRS3WL
- Page 1 ASSEMBLY INSTRUCTIONS ITEM NO. 164WAITRS3WL 164WAITRS3BK. PART LIST: (1)/1PC (2)/1PC Left Side Board Right Side Board SIZE: 31in x 22in SIZE: 31in x 22in (5)/1PC Back Board SIZE: 36in x 36in (3)/1PC (4)/1PC Top Board Kick Board SIZE: 36in x 3in...
- Page 2 STEP 1. Screw cam lock screws (Ax16) onto side boards (1 and 2), top board (3), and back board (5). a. Attach tracks onto predrilled holes on side 1 and 2 using the pilot holes to guide you. A=4PCS A=2PCS A=8PCS A=2PCS STEP 2.
- Page 3 STEP 3. 1. Lay top board (3) on ground. Add sideboards (1 and 2), and line up cam lock screw (Ax4) and cam lock (Fx4). Tighten cam lock (Fx4) with screwdriver once boards are in place. 2. Align bottom board (7) with remaining cam lock screws (A). Tighten cam locks with screwdriver. BEFORE ASSEMBLY TIGHTEN ALL THE A SCREWS AFTER THEY ARE...
- Page 4 STEP 6. 1. Place cam locks (Fx4) into back drawer (12) and place cam lock screws into front drawer (11). 2. Place cam locks (Fx2) and cam lock screws into right and left drawer sides (9 and 10). (11) (12) STEP 7.
