Summary of Contents for Lancaster TRESTLE BASE

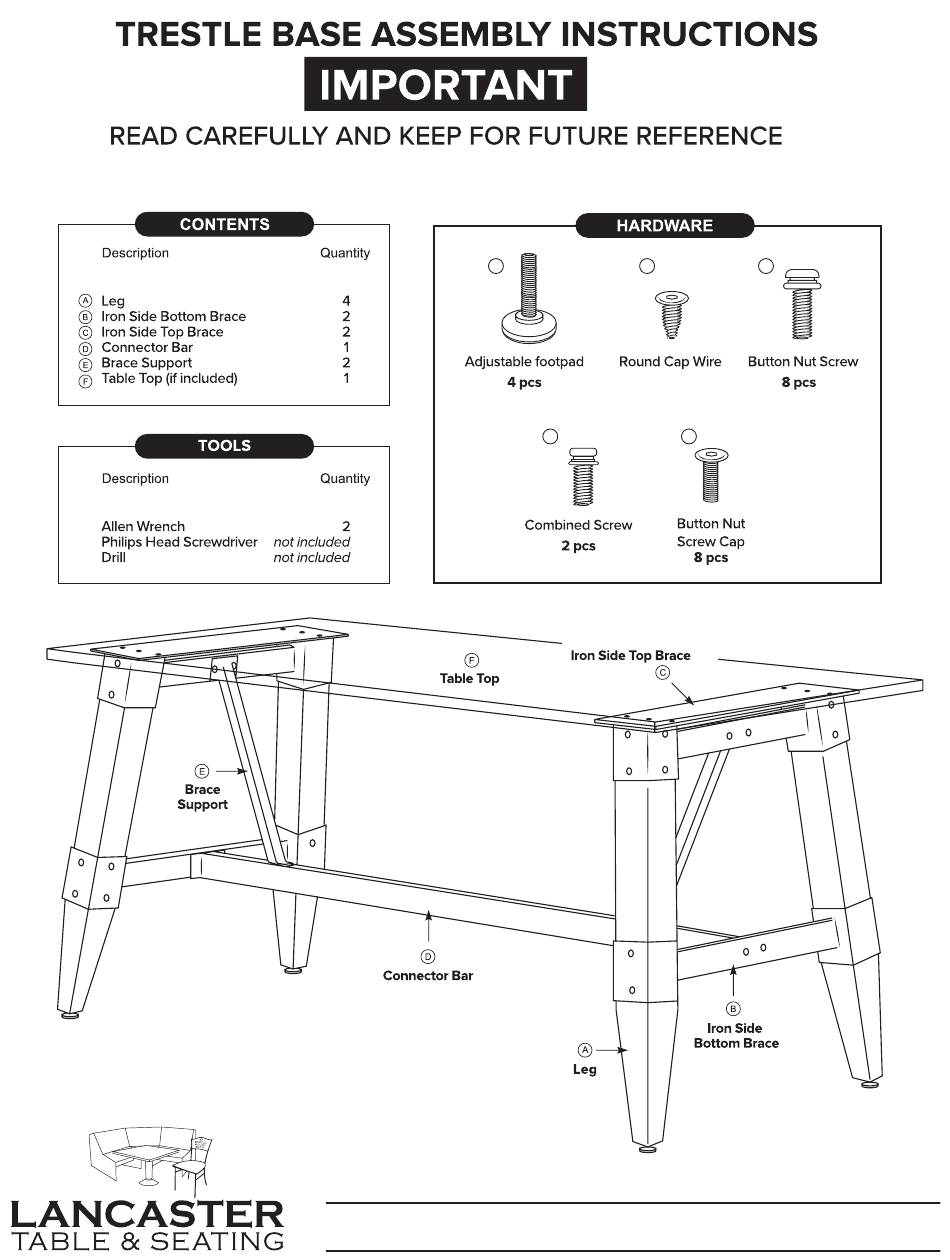

- Page 1 44 pcs 2205 OLD PHILADELPHIA PIKE • LANCASTER, PA 17602 1-800-942-0412 • WWW.LANCASTERTABLEANDSEATING.COM...
- Page 2 Brace Support (Part E), and 2ea Button nut from the opposite side. Secure Button nut into Button nut Screw Cap. Repeat for second pair. For this step you will need: x4 Button nut x4 Button nut Screw Cap 2205 OLD PHILADELPHIA PIKE • LANCASTER, PA 17602...
- Page 3 Take Connector Bar (Part D) to secure to Brace Supports (Part E). Secure them by using Combined Screw, from Brace Support (Part E) side. For this step you will need: x2 Combined screws 1-800-942-0412 • WWW.LANCASTERTABLEANDSEATING.COM...
- Page 4 Place Table Legs (Part A) into the Iron Side Top Braces (Part C), ensure the foot end of each leg is level. Place Iron Side Bottom Brace (Part B) down the Table Legs to meet Connector Bar (Part D) at the pre-drilled holes. Secure Iron Side Bottom Braces (Part B) to Connector Bar (Part D) using Button Nut from the outside and Button nut screw cap from the opposite side.
- Page 5 Secure Iron Side Bottom Brace (Part B) to Table Legs (Part A) by using Round Cap Wire Screws at the pre-drilled holes. For this step you will need: x16 Round Wire Cap Screws (4 on each leg) Then use Round cap Wire Screws to secure Iron Side Top Brace (Part C) from the sides.
- Page 6 Place and secure Adjustable Footpad to bottom of the Table Base Legs (Part A).1 For this step you will need: x4 Footpads Next, turn base right side up. Secure legs to Iron Side Top Brace (Part C) using Round Cap Wire Screws .
- Page 7 Place Table Top on top of Iron Side Top Braces (Part C) Secure by using Round Cap Wire Screws from underneath the top For this step you will need: x8 Round Cap Wire Screws...
