2.11 Steam drain

The appliance is equipped with a special metal pipe (DN30) for the discharge of steam from the cooking
chamber.
No other type of pipe can be connected to this pipe, which protrudes from the back of the casing.
Failure to comply with this specific prohibition shall relieve the Manufacturer from any liability concerning
the potential malfunction of the appliance and poor cooking quality.
Increasing the length of the original drain hose may result in the formation of abnormal "condensation" in
the cooking chamber.
To prevent steam from escaping from the exhaust pipe, place the appliance under the extractor hood, or
connect it to the "TECNOEKA" extractor hood/condensing hood, specific for the appliance model used.

3. INSTRUCTIONS FOR THE USER

3.1 Control panel

Programming cooking time - The oven is switched on by turning the programmer knob (Fig.1) to
the symbol (continuous operation) or to the selected cooking time (up to 120 minutes); in the
latter case the end of cooking is signalled by the oven switching off automatically.
Programming cooking temperature
selected for cooking.
Programming humidity/steam quantity - To generate humidity/steam during the operation of the
oven (hot cooking chamber), turn the knob of the automatic humidifier (Fig.1) to the desired value
(from 1 to 5). By turning the knob to the • (off) position the humidifier stops working.
9

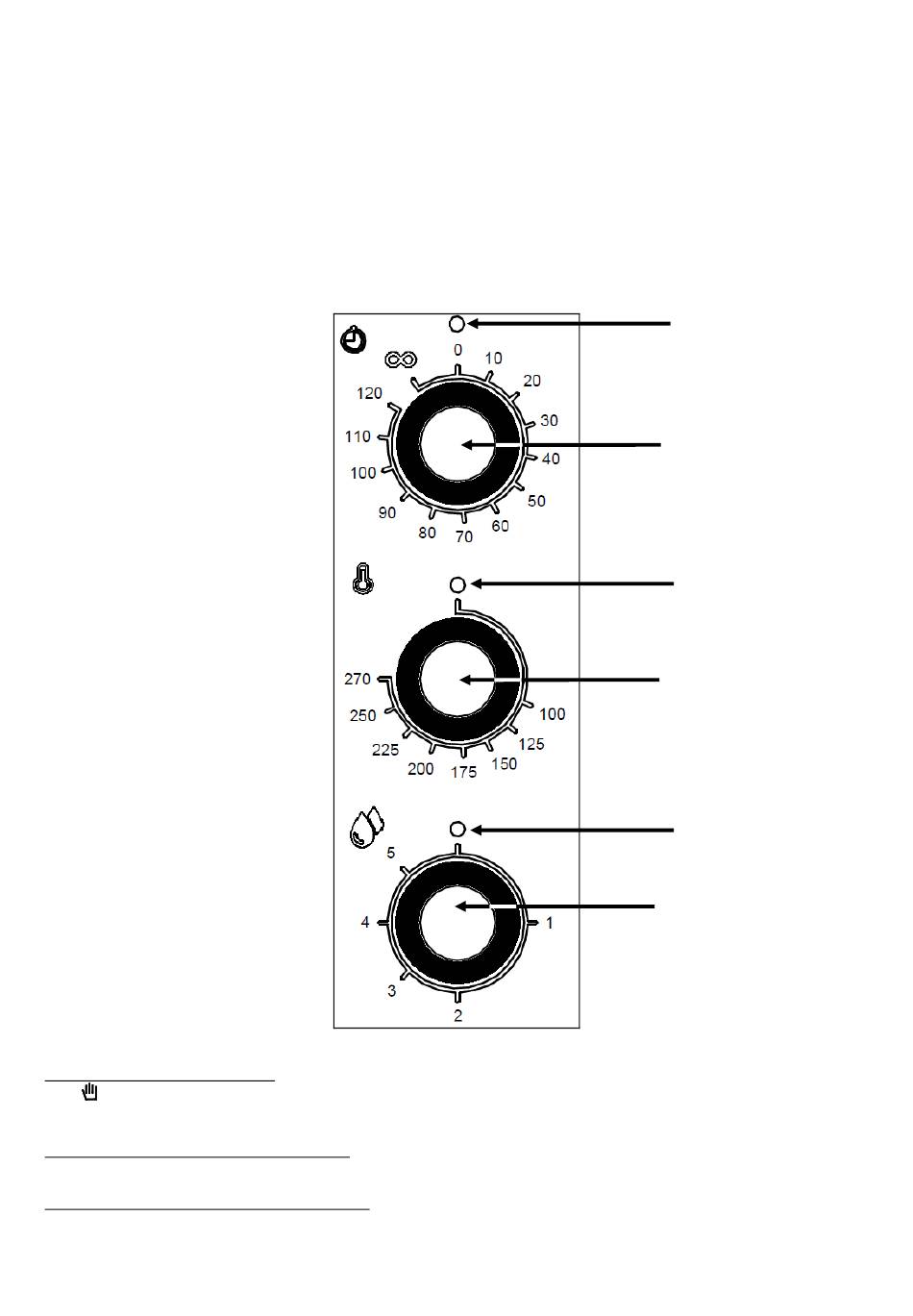

Fig.1
- Turn the thermostat knob (Fig.1) to adjust the temperature
"End of cooking"
programmer
warning light
"End of cooking"
programmer knob
Adjustment
thermostat
warning light
Thermostat control
knob
Automatic
humidifier warning
light
Automatic
humidifier knob
