Easy Setup Guide
Please read this manual carefully before operating your set and retain it for future reference.
ESPAÑOL
Guía Rápida de Configuración
Lea atentamente este manual antes de poner en marcha el equipo y consérvelo para futuras
consultas.
FRANÇAIS
Guide de configuration rapide
Avant d'utiliser l'appareil, veuillez lire attentivement ce manuel et le conserver pour pouvoir
vous y reporter ultérieurement.
AAA
www.lg.com
43UV340C
49UV340C
55UV340C

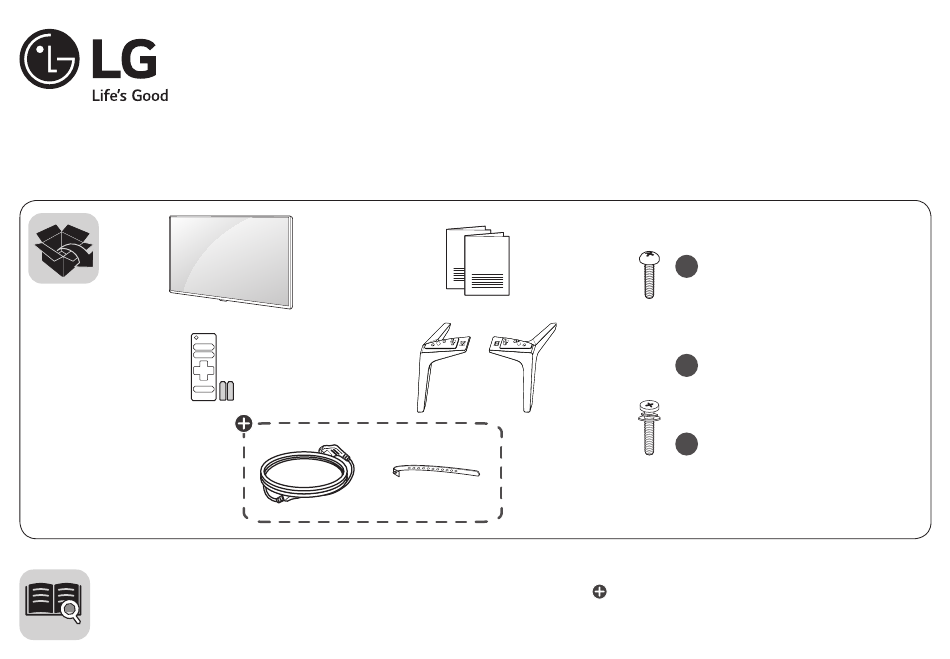

a
X 4
43UV340C
49UV340C
(M4 X L16)
b
X 4
55UV340C
(M4 X L20)
65UV340C
b
X 6
65UV340H
(M4 X L20)
75UV340C
: Depending upon model / Según el modelo / Selon le modèle
P/No: MFL69843832 (1812-REV01)
LED TV
65UV340C
65UV340H
75UV340C
