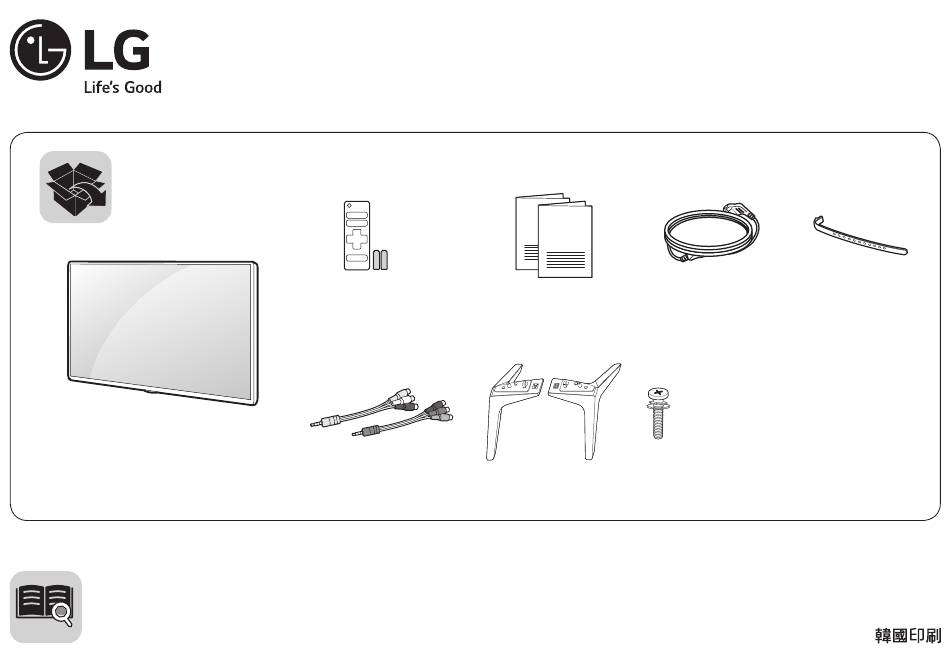

LED TV
UV76**
12
14
16
20
AAA
X 4
(M4 x L20)
P/No: MFL70206003 (1706-REV00)
www.lg.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UV76 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for LG UV76 Series

Summary of Contents for LG UV76 Series

  • Page 1 LED TV UV76** (M4 x L20) P/No: MFL70206003 (1706-REV00) www.lg.com...
  • Page 3 ANTENNA/ CABLE IN HDMI IN HDMI IN / ARC USB IN OPTICAL DIGITAL AUDIO OUT AUX LAN...
  • Page 4 AUX LAN H/P OUT SPEAKER OUT (STEREO) SPEAKER OUT (VOLUME CONTROL) DOWN...
  • Page 5 HDMI IN AV IN...
  • Page 7 43UV760H-CC 967.6 625.1 217.9 566.4 62.1 10.3 10.2 49UV760H-CC 1100.1 701.3 232.9 640.9 62.1 12.9 12.7 55UV760H-CC 1236 777.9 232.9 717.6 62.1 15.5 15.3...
  • Page 9 OWNER’S MANUAL Safety and Reference LED TV* * LG LED TVs are LCD TVs with LED backlighting. Please read this manual carefully before operating your TV and retain it for future reference. www.lg.com Copyright © 2017 LG Electronics Inc. All Rights Reserved.
  • Page 10 Warning! Safety instructions •  Ensure the power cord does not come into contact with hot objects such as a heater. This may cause a fire or an electric shock hazard. •  Do not place a heavy object, or the product itself, on power cables. Otherwise, this may result in fire or electric shock.
  • Page 11 •  Only use an authorized AC adapter and power cord approved by product from overheating. LG Electronics. Otherwise, this may result in fire, electric shock, - The distance between the product and the wall should be more malfunction or product deformation.
  • Page 12 Symbols •  As long as this unit is connected to the AC wall outlet, it is not disconnected from the AC power source even if you turn off this unit by SWITCH. Refers to alternating current(AC). •  When unplugging the cable, grab the plug and unplug it, by Refers to direct current(DC).

  • Page 13: Separate Purchase

    Separate purchase •  When transporting a large TV, there should be at least 2 people. •  When transporting the TV by hand, hold the TV as shown in the following illustration. Separate purchase items can be changed or modified for quality improvement without any notification.

  • Page 14: Using The Button

    Using the button Mounting on a table You can simply operate the TV functions, using the button. 1 Lift and tilt the TV into its upright position on a table. •  Leave a 10 cm (minimum) space from the wall for proper ventilation.

  • Page 15: Securing The Tv To A Wall

    We recommend the use of LG’s wall mount bracket. The LG wall mount is easy to adjust or to connect the cables. When you do not use LG’s wall mount bracket, please use a wall mount bracket where the device is adequately secured to the wall with enough space to allow connectivity to external devices.

  • Page 16: Connections (Notifications)

    Connections (notifications) Other connections Connect your TV to external devices. For the best picture and audio Connect various external devices to the TV and switch input modes to quality, Connect the external device and the TV with the HDMI cable. select an external device.

  • Page 17: Wired Network Connection

    Remote control Wired network connection (Depending on model) (Some buttons and services may not be provided depending on This TV can be connected to a Pro:Centric server via the LAN port. After models or regions.) making the physical connection, the TV needs to be set up for network The descriptions in this manual are based on the buttons on the communication.
  • Page 18 HDMI port or change the TV’s HDMI ULTRA HD Deep Colour setting to Off. Licenses Supported licenses may differ by model. For more information about licenses, visit www.lg.com. Adjusts the volume level. The terms HDMI and HDMI High-Definition Multimedia Interface, Selects a smart menu.

  • Page 19: Supported Audio Formats

    Supported Video Codec Supported Audio Formats Extension Codec File Item Info Format VC-1 Advanced Profile (WMVA excluded), Video VC-1 Simple and Main Profiles Bir rate 32 Kbps - 320 Kbps .asf .wmv WMA Standard (WMA v1/ WMA Speech Sample freq. 16 KHz - 48 KHz Audio .mp3...

  • Page 20: Open Source Software Notice Information

    LG Electronics will also provide open source code to you on CD-ROM of the product. for a charge covering the cost of performing such distribution (such...

  • Page 21: Key Codes

    Key Codes •  This feature is not available for all models. Code (Hexa) Function Note Code (Hexa) Function Note R/C Button R/C Button R/C Button R/C Button R/C Button R/C Button R/C Button R/C Button (Blue) R/C Button R/C Button (Arrow Key / Right Key) (Yellow) R/C Button...

  • Page 22: External Control Device Setup

    (PC) (TV) •  LGTV supports PL2303 chip-based (Vendor ID : 0x0557, Product ID : 0x2008) USB to serial converter which is not made nor provided by LG. (PC) •  It can be purchased from computer stores that carry accessories for IT support professionals.
  • Page 23 Type of connector : D-Sub 9-Pin male RS-232C (Serial port) RS-232C Configurations 7-Wire Configurations 3-Wire Configurations (Standard RS-232C cable) (Not standard) D-Sub 9 D-Sub 9 D-Sub 9 D-Sub 9 Set ID For Set ID number, see “Real Data Mapping”. 1 Press to access the main menus.

  • Page 24: Communication Parameters

    Communication Parameters •  Baud rate : 9600 bps (UART) •  Stop bit : 1 bit •  Data length : 8 bits •  Communication code : ASCII code •  Parity : None •  Use a crossed (reverse) cable. Command reference list (Depending on model) DATA DATA...

  • Page 25: Transmission / Receiving Protocol

    Transmission / Receiving Protocol Transmission [Command1][Command2][ ][Set ID][ ][Data][Cr] [Command 1] First command to control the TV. (j, k, m or x) [Command 2] Second command to control the TV. [Set ID] You can adjust the [Set ID] to choose desired monitor ID number in option menu. Adjustment range in TV is 1 to 99.
  • Page 26 * Commands may work differently depending on model and 04 Volume Mute (Command: k e) signal. ▶ To control volume mute on/off. You can also adjust mute using the MUTE button on remote 01 Power (Command: k a) control. ▶ To control Power *On or Off of the set. Transmission Transmission [k][e][ ][Set ID][ ][Data][Cr]...
  • Page 27 08 Color/Colour (Command: k i) 12 Remote control lock mode (Command: k m) ▶ To adjust the screen Color (Colour). ▶ To lock the front panel controls on the monitor and remote You can also adjust colour in the PICTURE menu. control.
  • Page 28 15 Equalizer (Command : j v) 17 Tune Command (Command: m a) ▶ Adjust EQ of the set. * This command may work differently depending upon model and signal. Transmission •  For Europe, Mid-East, Colombia, Asia except South Korea and Japan [j][v][ ][Set ID][ ][Data][Cr] Model ▶...
  • Page 29 3. Tune to the satellite (DVB-S) Channel 1000. Data 05 : Input Source (Digital) Set ID = All = 00 - 02 : Antenna TV (DTV) – Use Physical Channel Data 00 & 01 = Channel Data is 1000 = 03 E8 Number Data 02 = Digital Satellite TV = 40 - 06 : Cable TV (CADTV) –...
  • Page 30 [Data 03][Data 04]: Minor/Branch Channel Number 20 Control Backlight (Command: m g) (Don’t care in Satellite) * For LCD TV / LED TV Data 03: High byte Channel Data ▶ To control the backlight. Data 04: Low byte Channel Data Transmission Data 05 : Input Source (Digital/Satellite for Japan) - 02 : Antenna TV (DTV)

  • Page 31: Specifications

    Specifications HDMI (PC) supported mode (Use HDMI IN 1 for PC mode) Wireless module Specification Horizontal Vertical •  As band channels can vary per country, the user cannot change or Resolution Frequency (kHz) Frequency (Hz) adjust the operating frequency. This product is configured for the regional frequency table.
  • Page 32 HDMI (DTV) supported mode Component port connecting information (Depending on model) Horizontal Frequency Vertical Frequency Resolution (kHz) (Hz) Component ports on the TV 31.46 59.94 640 x 480 31.50 60.00 31.47 59.94 720 x 480 31.50 60.00 Video output ports on DVD player 720 x 576 31.25 50.00...
  • Page 36 Record the model number and serial number of the TV. Refer to the label on the back cover and quote this information to your dealer when requiring any service. MODEL SERIAL...
