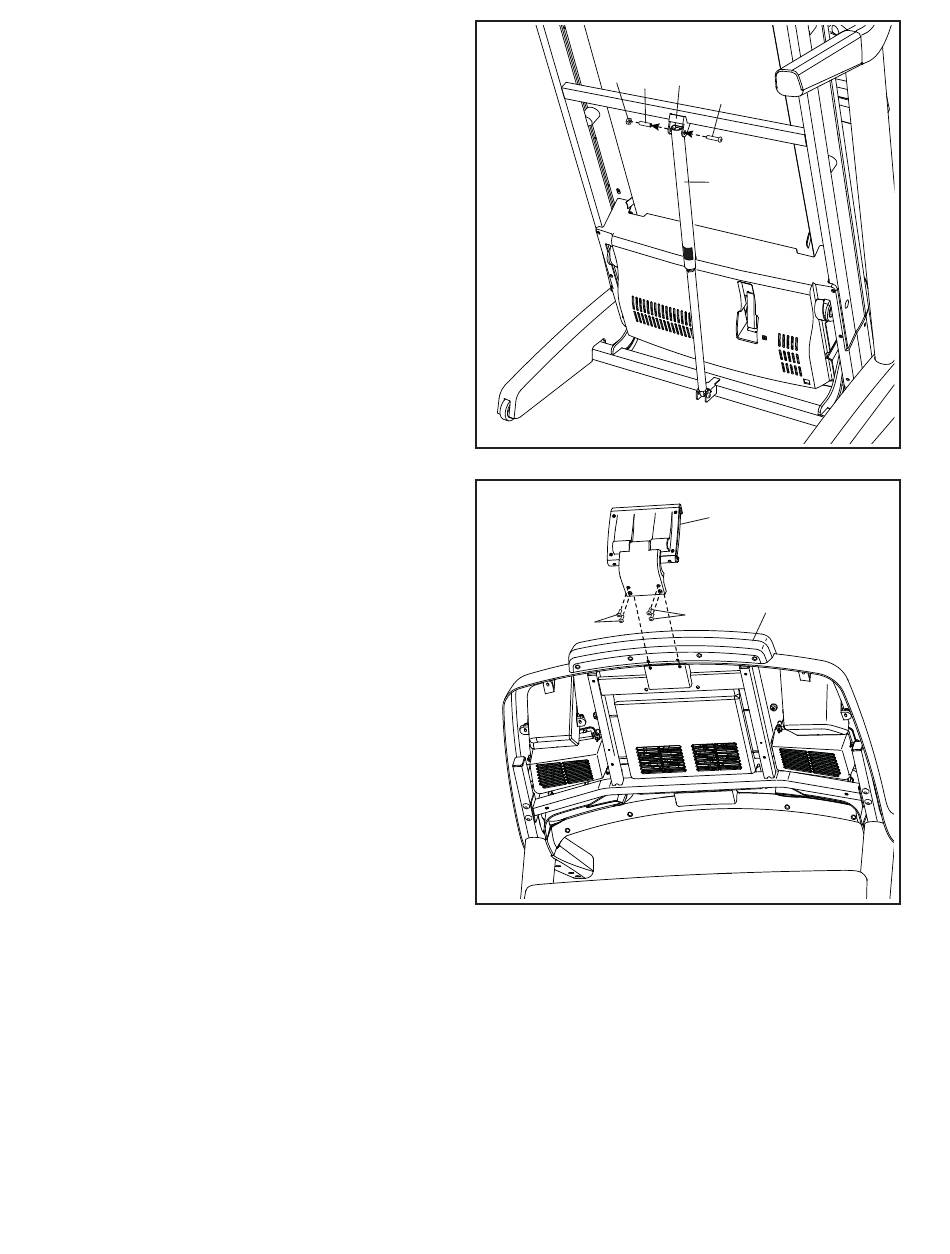

15. Remove the 5/16" Nut (9) and the 5/16" x 2 1/4"
Bolt (4) from the bracket on the Frame (52).
Align the upper end of the Storage Latch (56)
with the bracket on the Frame (52), and insert
the 5/16" x 2 1/4" Bolt (4) through the bracket
and the Storage Latch. This will push a spacer
(G) out of the Storage Latch; discard the
spacer.
Next, tighten the 5/16" Nut (9) onto the 5/16" x
2 1/4" Bolt (4). Do not overtighten the Nut; the
Storage Latch (56) must be able to pivot.
Then, lower the Frame (52) (see HOW TO
LOWER THE TREADMILL FOR USE on page
32).
16 . Attach the Tablet Holder (100) to the console
assembly (C) with four #8 x 5/8" Machine Screws
(99). Note: Start the two top Machine Screws
fi rst, and then start the two bottom Machine
Screws. Be careful not to overtighten the
Machine Screws.
IMPORTANT: The Tablet Holder (100) is
designed for use with most full-size tablets.
Do not place any other electronic device or
object in the Tablet Holder.
17. Make sure that all parts are properly tightened before you use the treadmill. If there are sheets of plastic
on the treadmill decals, remove the plastic. To protect the fl oor or carpet, place a mat under the treadmill. To
avoid damage to the console, keep the treadmill out of direct sunlight. Keep the included hex keys in a secure
place; one of the hex keys is used to adjust the walking belt (see page 34). Note: Extra parts may be included.
