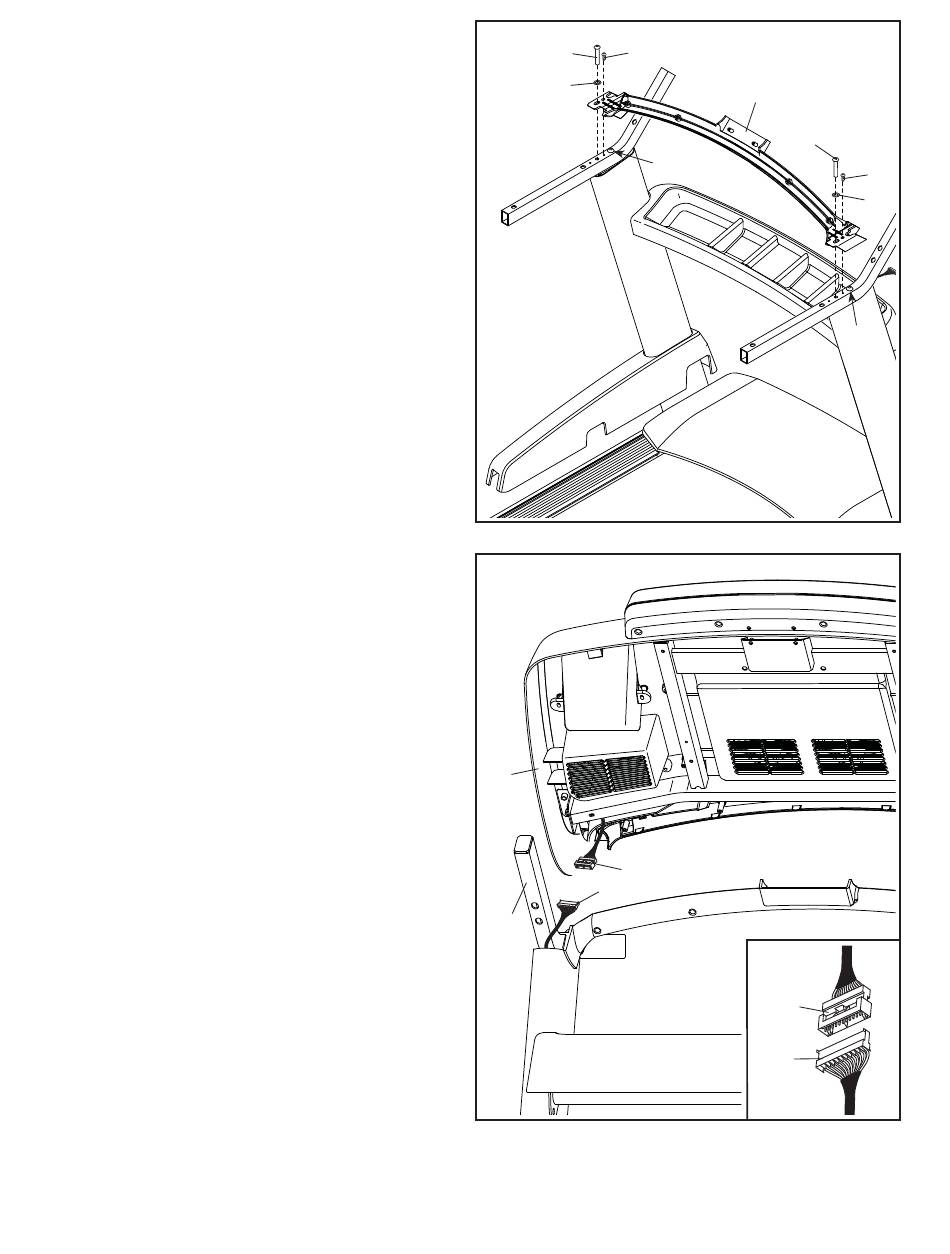

9. IMPORTANT: To avoid damaging the Pulse
Crossbar (80), do not use power tools, and
do not overtighten the #10 x 3/4" Screws (6)
or the 5/16" x 2" Screws (2).
Orient the Pulse Crossbar (80) as shown. Attach
the Pulse Crossbar with two of the 5/16" x 2"
Screws (2) that you removed in step 3, two 5/16"
Star Washers (8), and two #10 x 3/4" Screws (6);
start all four Screws, and then tighten them.
Then, tighten the other two 5/16" x 2"
Screws (2).
10. With the help of a second person, hold the con-
sole assembly (C) near the Handrails (74) (only
one side is shown).
See the inset drawing. Connect the Upright
Wire (83) to the console wire (E). The connec-
tors should slide together easily and snap
into place. If they do not, turn one connector
and try again. IF YOU DO NOT CONNECT THE
CONNECTORS PROPERLY, THE CONSOLE
MAY BECOME DAMAGED WHEN YOU TURN
ON THE POWER. Then, remove any wire ties
from the Upright Wire.
