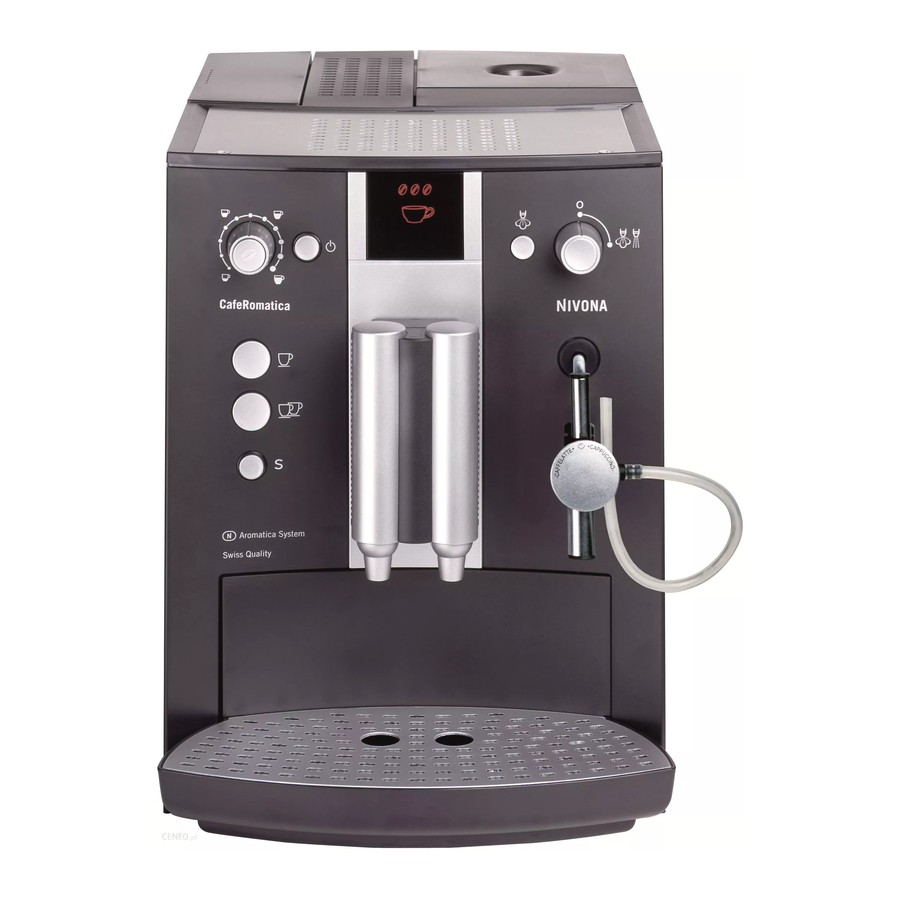

Nivona CafeRomatica 710 - Fully Automatic Coffee Centre Operating Instructions

Also See for CafeRomatica 710:

Operating instructions manual (34 pages)

Table of Contents

Contents

1 Equipment
2 Symbols
3 Safety instructions
4 Specifications
5 Set up
6 Making coffee
7 Programming functions
8 Maintenance
9 System messages
10 Troubleshooting
11 Documents / Resources
- 11.1 Download manual

Nivona CafeRomatica 710 - Fully Automatic Coffee Centre Operating Instructions

Equipment

Equipment - Part 1

Symbol display screen
Removable water reservoir
Cup warming / holding plate
Water quantity control knob
Coffee strength button
On / Off (stand-by) button
1-cup button
2-cup button
Service button 'S'
Height-adjustable coffee spout
Drip grill
Drip tray
Grinder settings control knob (inside)
Bean container with lid
Pre-ground coffee chamber
Steam warm-up button
Steam / hot water valve control button
Document compartment (on rear)
Mains supply switch (on rear)
Steam / hot water jet and 'spumatore' (milk frother)
Used coffee con - tainer (inside)
Power cord storage compartment (on rear)

Equipment - Part 2

Control knob
Air inlet valve
Air inlet pipe
Inlet valve
Steam / hot water jet
Liquid inlet hose

Symbols

	8	Coffee ready
	9	Coffee strength MILD
	10	Coffee strength NORMAL
	11	Coffee strength STRONG
	12	Add coffee beans, Fill bean container
	13	Fill water reservoir
	14	Pre-ground coffee
	15	Steam / hot water
	16	Steam / hot water, open / closed
	17	Empty used coffee container / drip tray
	18	Descale machine
	19	Clean machine
	20	Change filter
	21	Brewing unit incorrectly fitted or door open

Safety instructions

This machine may only be used for the intended purpose (domestic use) and is not for commercial application (more than 3000 brewing cycles per year).
Operating voltage must be the same as mains voltage. Please note the model nameplate / sticker on the machine.
Do not operate the machine if the power cord or machine case is damaged.
Keep the power cord away from hot parts.
Do not unplug the machine by pulling on the power cord.
Observe the descaling in-structions provided.
Make sure to switch off and unplug the machine before maintenance or cleaning.
Place the machine on a firm, level surface and use it indoors only.
Do not place the machine on a hot surface or near open flames.
Keep the machine away from children.
Always unplug the machine during extended periods of absence.
Do not leave the machine switched on unnecessarily.
Never submerge the machine in water.
Do not put the machine or in-dividual parts in the dishwasher.
Unplug immediately if there is a defect (do not pull the cord or machine to unplug).
Liability for damages cannot be accepted if the machine is incorrectly operated, subject to improper use or non-professional servicing. In such cases, services will not be provided under the guarantee.
Use the coffee grinder for grinding roasted coffee beans only – do not use with other foods. Always make sure there is nothing but coffee beans in the beans container – otherwise the guarantee will not apply.
This machine is not suitable for individuals (including children) with physical, sensory or mental impairments, including indivi- duals who do not have sufficient experience or knowledge, unless they are shown how to operate the machine or initially supervised by someone responsible for their safety.

If repair services are required, in- cluding replacement of the power cord, please send the machine to the dealer from whom it was purchased – or to NIVONA central customer services.

Electrical appliances must be repaired by qualified personnel! Non-professional repairs can expose the user to significant dangers. Liability for damages cannot be accepted if the machine is used for any other than the intended purpose, incorrectly maintained or serviced.

Using the mains switch during brewing can damage the machine! Only switch off at the mains when the On / Off switch is switched to Off (standby).

Risk of scalding!

Then you draw steam or hot water, watch out for splashes from the jet / frother: risk of scalding!
Only touch the plastic parts of the steam jet and never point it at people.
The steam jet becomesVERY HOT during use. Preferably leave to cool for a few minutes before touching.

CE – This machine conforms to the following EC guidelines:

73/23/EWG dated 19/02/1973 "Low Voltage Directive", including amendment 93/68/EWG.
89/336/EWG dated 03/05/1989"EMV Directive", including amendment 92/31/EWG.

Specifications

Mains voltage: 220 - 240 V
Power input: 1350 W

Note: Your fully automatic coffee centre has a cord storage compartment – if the power cord is too long, any surplus can be accommodated in the storage area on the rear of the machine.

Set up

Preparing the machine

Carefully remove the machine and all parts from the packaging.

Note: If you need to return your machine for servicing, it can be sent by post in the original pack ag ing. Please keep all packag ing and protective material for this purpose.

Remove the water reservoir and wash it out with cold, clean tap water.
Then fill the reservoir up to the max. mark and replace it in the machine. Make sure that it clicks into place.

Note: Only fill the reservoir with fresh, cold water. Do not use carbonated water or other liquids.

Open the lid of the coffee container and add coffee beans.

Note: Do not use beans which have been treated with supplements, such as sugar, during or after the roasting. Supplements can damage the grinding mechanism and any repair costs arising as a result are not covered by the guarantee.
Please make sure the steam / hot water valve control knob is turned to '0'!

Getting started

Remove the plug from the power cord compartment and plug the machine in.
Switch the mains supply on. The On / Off button lights up.
Press the On / Off button. The 'cup' symbol (Symbol 8) starts to flash in the display.
After the machine has warmed up, the Service button flashes.
Now place a cup under the height-adjustable coffee spout. Press the Service button
The system is then filled with water and completely rinsed out via the height- adjustable coffee spout
The machine is now operat ional.

Note: For manufacturing reasons, the machine pipes may still be empty when the machine is first operated. The machine indicates this as follows:

After the machine has been switched on using the On / Off button, the 'water / steam open / closed' symbol (Symbol 16) starts to flash.
Open the steam / hot water control valve by turning to the right. The system now fills up and some water may come out of the jet
As soon as the 'water / steam open / closed' symbol (Symbol 16) starts flashing again, you can turn the valve control knob back to the left to close.
After the machine has warmed up, the Service button flashes.
Press the Service button and the system is rinsed out via the coffee spout
The machine is now operational.

Grinder settings

Grinder settings can only be adjusted when the grinder is in operation. You can adjust the grinder to suit the roast of your coffee beans. We recommend that you leave the grinder on a medium setting.

Open the lid of the bean con tainer
Turn the control knob to the desired position while the grinder is running. The smaller the dot, the finer the coffee is ground.

Remember:
- a light roast requires a finer grind
- dark roast requires a coarser grind

Try out the different settings to find the one that best meets your personal preferences.

Making coffee

Note: The machine is preset for immediate use. However, we recommend that you first adjust the most important settings to suit your personal needs. Please follow the instructions in chapter ('programming functions') for filter, temperature, automatic standby and water hardness settings.

Note: When the machine is brand new or has not been used for an extended period, the first cup of coffee does not have the full aroma and should not be drunk.

Selecting coffee strength

There are three levels of coffee strength to which you can adjust the brewing unit. They are shown in the display as follows:
MILD, '1 bean' (Symbol 9): about 7g of ground coffee, e.g. for café latte or cappuccino
NORMAL, '2 beans' (Symbol 10): about 9g of ground coffee e.g. for American coffee
STARK, '3 beans' (Symbol 11): about 11g of ground coffee e.g. for espresso or very strong coffee.
As soon as the machine is operational, the display shows the default setting (Symbol 8, 'cup', and Symbol 10, '2 beans').

You can change this setting by pressing the button repeatedly until the desired coffee strength appears in the display

Select water quantity

You can freely select the quantity of water used by turning the water quantity control knob, the dot scale indicating the current setting. The little cup bottom left represents less water, the large cup bottom right represents more water.

Tip: The water quantity can be ad justed while the machine is running. Try out various cup sizes and quantities to find the setting that best suits your personal preferences.

Making one cup of coffee

Place your (pre-heated) cup un der the coffee spout

The coffee spout is height-adjust- able and can be raised or lowered to best suit the cup size.

Set the desired coffee strength and water quantity.
Press the 1-cup button.
The machine now starts the grinding and brewing operation.

The brewing operation can be stopped at any point by pressing either the 1-cup or 2-cup button

The first time you brew a coffee, the grinding chamber is still empty. The symbol for 'add beans' (Symbol 12, 3 beans) begins to flash and no coffee is produced. If this occurs, simply press the 1-cup button again and the operation is repeated.

Tip: To determine the ideal quant- ity of water for your taste or cup size, make your first cup of coffee as follows:

Turn the water quantity control knob to one of the following positions:
- To the middle of the dot scale for an espresso cup.
- To the far right for a large cup.
Press the 1-cup button

The machine starts brewing.

Shortly before the desired amount of coffee is reached, turn the water quantity control knob slowly to the left until the machine stops brewing.
For future use, note where on the dot scale the water quantity control knob is now pointing.

Brewing two cups

In the 2-cup operation, two grind ings of coffee are done consecutively.

Place both (pre-heated) cups under the coffee spout
Select the desired coffee strength and water quantity sett- ings for one cup
Press the 2-cup button
The machine now starts the grinding and brewing operation and produces two consecutive cups of coffee.

Tip:

The brewing operation can be stopped at any point by pressing the 1-cup button or 2-cup button.
- If the water or bean supply runs out or the trays need emptying between brewing the first cup and the second, the appropriate symbol (Symbols 12, 13 or 17) will appear in the display and the second coffee will no longer be made. Follow the display screen and then press only the 1-cup button for the second cup.

Using pre-ground coffee

First turn the water quantity control knob to the desired amount for one cup.
Open the lid of the pre-ground coffee chamber
Add a level measuring spoon of ground coffee and close the lid again (Symbols 8, 11 and 14 appear).
Place a cup under the coffee spout and press the 'brew' button for one cup

Note: If the pre-ground coffee chamber is left open by accident or no brew button is pressed after ground coffee is added, the machine will automatically be rinsed out via the coffee spout a minute after the lid is closed. It is then operational again.

The pre-ground coffee chamber is not a storage container. Never add more than one measure at a time to the chamber, and use only fresh or vacuum-packed coffee ground from beans. Do not use instant coffee powder!

Drawing hot water/making tea

Hold a cup under the jet
Turn the steam / hot water valve control knob to the right. Hot water comes out of the jet and Symbol 16, 'steam / hot water', flashes.
Fill the cup up to the desired level and turn the valve control knob back to '0'.

Risk of scalding!
Watch out for splashes. The jet be comes very hot during use. Leave to cool for a few minutes be fore touching, or only touch the plastic parts.

Drawing steam

Press the steam warm-up button. The 'steam / hot water' symbol (Symbol 15) flashes.
As soon as the system is ready, Symbol 16 starts flashing and Symbol 15 lights up without flashing.
Dip the jet into the cup with the liquid to be heated.
Make sure that the 'spumatore' control knob is pointing to '0' (steam symbol).
Turn the steam / hot water valve control knob to the right.

Some water will come out before the steam.

The operation is completed by turning the control knob back to '0'.
Press the steam warm-up button and the machine switches back to normal coffee-brewing mode.

Note:

Steam can be produced for about 2 minutes. Then the machine will automatically switch the operation off. You can prolong the operation by turning the control knob back and forth.
It is hard to remove dried milk left on the jet after frothing. Please therefore clean the equipment as soon as it has cooled down – ideally repeat the steam drawing operation in a cup with clean cold water.

Risk of scalding!
The steam which comes out is very hot. Only touch the black plastic parts of the jet.

Frothing milk, hot milk and cappuccino

With the special 'spumatore' frothing device you can heat up milk straight from the carton or from a container and then froth it into the cup.
Dip the inlet hose straight into the milk carton or container.
Place a cup under the 'spu matore' jet.

Then press the steam warm-up button. The 'steam / hot water' symbols (Symbol 15) flash.

As soon as the system is ready, Symbol 16 starts flashing and Symbol 15 lights up.
For cappuccino: now turn the 'spumatore' control knob to the left so that it points to 'cappuccino'.
For hot milk, turn the 'spu- matore' control knob to the right so that it points to 'caffè latte'.
Turn the steam / hot water valve control knob slowly to the right.
As soon as the desired amount of milk foam or hot milk has been drawn, turn the steam / hot water valve control knob back left to the '0' position.
Press the steam warm-up button again
Now place the cup with the frothed up or hot milk under the coffee spout and fill with coffee as described above.

It is hard to remove dried milk left on the jet after frothing. Please therefore clean the equipment as soon as it has cooled down.

To do this, fill a container with cold clean water, and dip the inlet hose into it.
Place an empty container under the 'spumatore' jet
Now draw steam until only clean water / steam flows out.
Now the whole 'spumatore' mechanism is clean and operational again.

Cleaning:
For optimal cleaning the 'spumatore' must be dismantled from time to time and its parts rinsed under fresh, cold water. It is easy to take apart and reas semble.

Note: Steam can be drawn for about 2 minutes. Then the machine will automatically switch the operation off. You can prolong the operation by turning the control knob back and forth.

Programming functions

The following buttons are used for programming functions: Service button 'S' = programming mode / confirmation button

Coffee strength button = Selection button
On / Off button = cancel

Note that functions can only be programmed when the On / Off button is switched to 'Off' (stand-by mode).

You can program / re-program the following functions:
Operation with / without filter ='Change filter' (Symbol 20)
Water hardness = 'Descale machine' (Symbol 18)
Temperature = 'Coffee ready' (Symbol 8)
Automatic stand-by = 'Water / steam open / closed' (Symbol 16)

Filter

Inserting filter:
A special filter for the water reservoir is included in the machine accessories. If you use this filter correctly you will not need to descale your coffee machine as often (recommended: about twice yearly, see point 5.4, 'descaling'). So that the machine knows that the filter has been inserted, you must change the filter setting to 'On'. The default setting is 'without filter'.

The current setting is designated by the following symbols:

Function setting for filter ON: Symbols 14 and 9 light up
Function setting for filter OFF: Symbol 14 alone lights up.

Switch your machine off (standby mode) by pressing the On / Off button
Press and hold the Service button for about 4 seconds to enter programming mode.
Symbols 20, 18, 8 and 16 light up and rotate sequentially in the display.
Wait until the filter symbol (Symbol 20) lights up and press the Selection button
Symbol 14 starts to flash.
Press the Selection button until both Symbols 14 and 9 ('filter ON') flash.
Press and hold the Service button for about 4 seconds to confirm. Symbols 13, 16 and 20 flash.
Empty the water tank and screw the filter into the bracket provided in the water reservoir using the assembly tool on the end of the measuring spoon.
Fill up the reservoir with fresh water and replace it in the machine. Symbol 16 flashes.
Hold a container under the steam / hot water jet and turn the control knob to the right to open. The system will now be rinsed out.
Wait until no more water comes out of the jet for a short time and turn the control knob back to the left to close.

If water continues to come out of the jet after a short while, the system is also ready. If this occurs, turn the control knob back to the left anyway.
The system briefly warms up (Symbol 8 flashes) and is then operational again.
Note: The Service button may still flash. Press the button and the system will briefly be rinsed out via the coffee spout.

If you use a filter for your machine and have changed the function setting to 'filter ON', the water hardness and manual descaling functions will no longer be shown. The filter loses its efficiency after processing about 50 l of water

If the machine is rarely used and so the 'CHANGE FILTER' signal does not appear in the dis play, the filter must be replaced anyway after no longer than two months (see chapter 'Washing filter manually').

Operating without a filter:
If you no longer wish to use a filter, the filter setting must be changed back to 'filter OFF'. This is important, as without a filter the machine must be descaled (the machine is delivered in the default setting 'Without filter').

Switch your machine off (standby mode) by pressing the On / Off button
Press and hold the Service button for about 4 seconds to enter programming mode.
Symbols 20, 8 and 16 light up and rotate sequentially in the display.
Wait until the filter symbol (Symbol 20) lights up and press the Selection button
Symbols 14 and 9 start to flash.
Press the Selection button until only Symbol 14 ('filter OFF') flashes.
Press and hold the Service button for about 4 seconds to confirm.
The programming operation is now complete and the system returns to stand-by mode.

Note: Do not forget to set the water hardness

Water hardness

Depending on the water hardness in your region, or if you have not inserted a filter, the machine sooner or later requires descaling. So that the system can indicate correctly when descaling is necessary, you must enter the correct water hardness settings before the first use.
The default setting is level 3, indicated by Symbols 14 and 10.

First, test your water with the test strips provided:

Dip the strip into the water and then shake it lightly off.
After about a minute you can read the result by counting the red dots on the test strip.
The settings corresponding to the different levels of hardness are as follows:

Test strip / hardness level = Symbol
for setting:
1 red dot / 1–7° = 14
2 red dots / 8–14° = 14 and 9
3 red dots / 15–21° = 14 and 10
4 red dots / > 21° = 14 and 11

Note: If none of the dots turn red on the test strip, please set level 1, Symbol 14.

Switch your machine off (standby mode) by pressing the On / Off button
Press and hold the Service button for about 4 seconds to enter programming mode.
Symbols 20, 18, 8 and 16 light up and rotate sequentially in the display. (The symbol for water hardness, Symbol 18, does not appear if the filter function is set to 'ON').
Wait until the symbol for water hardness, Symbol 18, lights up and press the Selection button to confirm.
Symbols 14 and 10 start to flash.
Press the Selection button until the symbols for the desired water hardness flash.
Press and hold the Service button for about 4 seconds to confirm.
The programming operation is now complete and the system returns to stand-by mode.

Temperature

You can change the coffee tem p- erature as desired. The default setting is 'High':
Normal = Symbol 14
High = Symbols 14 and 9
Maximum = Symbols 14 and 10

Switch your machine off (standby mode) by pressing the On / Off button
Press and hold the Service button for about 4 seconds to enter programming mode.
Symbols 20, 18, 8 and 16 light up and rotate sequentially in the display.
Wait until the symbol for temp- era ture, Symbol 8, lights up and press the Selection button to confirm.
Symbols 14 and 9 start to flash.
Press the Selection button until the symbols for the desired setting flash.
Press and hold the Service button for about 4 seconds to confirm.
The programming operation is now complete and the system returns to stand-by mode.

Automatic stand-by

This function allows you to program the machine to switch automatically to stand-by mode a given length of time after the last brewing operation. The following settings are possible:
Never = Symbol 14
30 mins. = Symbols 14 and 9
2 hours = Symbols 14 and 10
5 hours = Symbols 14 and 11

Note: The default setting is 5 hours (Symbols 14 and 11).

Switch your machine off (standby mode) by pressing the On / Off button.
Press and hold the Service button for about 4 seconds to enter programming mode.
Symbols 20, 18, 8 and 16 light up and rotate sequentially in the display.
Wait until the symbol for the automatic stand-by function, Symbol 16, lights up and press the Selection button
Symbols 14 and 11 start to flash.
Press the Selection button until the symbols for the desired setting flash.
Press and hold the Service button for about 4 seconds to confirm.
The programming operation is now complete and the system returns to stand-by mode.

Maintenance

Inserting filter

See chapter 'Filter – Inserting filter'

Changing filter

Filter loses its efficiency after processing about 50 l of water. Symbol 20 appears in the display and the Service button flashes.
Tip: Only press the Service button when you wish to change filter. You can continue to make coffee, hot water or steam. How ever, we recommend that you change the filter immediately.

Press and hold the Service button for about 4 seconds. Symbols 13, 16 and 20 flash.
Empty the water reservoir and replace the filter
Fill up the reservoir with fresh water and replace it in the ma chine.
Hold a container under the steam / hot water jet and turn the control knob to the right to open. The system is rinsed through.
Wait until no more water comes out of the jet for a short time and turn the control knob back to the left to close.

If water continues to come out of the jet, the system is ready in any case. If this occurs, still turn the control knob back to the left.
The system then briefly warms up (Symbol 8 flashes) and is then operational again. The usual coffeebrewing symbols appear in the display.

Changing / washing filter manually:

If you use the machine infrequently, you must change the filter after at most two months. No message will appear in the display and you must rinse the new filter manually. You can set the replacement date using the special rotat- ing disk at the top of the filter (scale in months).

Switch your machine on (operating mode) by pressing the On / Off button.
Press and hold the Service button for about 4 seconds. Symbols 19 and 20 light up and alternate in the display.
Wait until the symbol for the filter function, Symbol 20, lights up and press the Selection button to confirm.
Symbols 20 starts to flash.
Press and hold the Service button for about 4 seconds. Symbols 13, 16 and 20 flash.
Then follow the instructions given in this point, from "Empty the water reservoir..."

Cleaning program

When the machine needs to be cleaned, Symbol 19 appears in the display and the Service button flashes.

Tip: Only press the Service button when you wish to start the cleaning program. You can continue to make coffee, hot water or steam. However, we recommend that you start the cleaning program as soon as possible.

Once running, the clean ing program must not be stopped. Only add cleaning tablet when the machine instructs you to do so.

Press and hold the Service button for about 4 seconds. Symbol 17 flashes.
Remove the drip tray and used coffee container and clean them both.
Fill the reservoir with fresh water and replace it and the tray in the machine.
The machine rinses itself briefly out and Symbol 19 starts to flash.

Tip: Place a sufficiently container (about 0.5 l) under the coffee spout

Put a cleaning tablet into the ground coffee chamber and close the lid. The Service button flashes.
Press the Service button
The machine starts the cleaning operation.
The cleaning operation runs automatically and lasts about 10 minutes. As soon as the cycle is complete, Symbol 17 flashes.
Empty, clean and replace the drip tray
Refill the water reservoir with fresh water if required.
The machine warms up briefly and is then operational again.

Manual cleaning
If required, the cleaning program can also be started even if no in dication has been displayed by the machine that this is necessary:

Switch your machine on (operati ng mode) by pressing the On / Off button
Press and hold the Service button for about 4 seconds. Symbols 19, 20 and / or 18 light up sequentially in the display.
Wait until Symbol 19 lights up and press the Service button to confirm. Symbol 19 starts to flash.
Press and hold the Service button again for about 4 seconds. Symbol 17 flashes.
Follow the instructions given in this point, from "Remove the drip tray...".

Tip: If you start the manual clean- ing program by accident, you can cancel the operation at the start by pressing and holding the On / Off button for about 4 seconds.

Descaling

Note: The descaling function does not work if the filter program is set to 'operation with filter' (see 'Operating without a filter'). When the machine needs to be descaled, Symbol 18 appears in the display and the Ser vice button flashes. However, you can start the des cal ing program manually at any time (see under 'Manual descaling').

Tip: Only press the Service button when you wish to start the descal ing program. You can continue to make coffee, hot water or steam, but we recommend that you complete the descaling program as soon as possible.

Once started, the descal ing program cannot be inter rupted. Please strictly observe the order of the following instructions when descaling your machine. Never use vinegar or acetic acid based agents for descaling. Use standard liquid products available in specialist retailers and recommended for use on fully automatic coffee centres.

Press the Service button for about 4 seconds. Symbol 17 flashes.
Empty the drip tray and replace it in the machine. Symbol 13 flashes and Symbol 18 lights up.
Remove the water reservoir and fill with water up to the 0.5 l mark before adding the descaling agent.

never the other way round – consult the manufacturers' instructions.
Replace the water reservoir in the machine. Symbol 16 flashes.

Tip: Place a sufficiently large container (about 0.5 l) under the coffee spout and under the steam / hot water jet.

Open the steam / hot water valve control knob by turning to the right.
The machine descales auto matically and the descaling so lution now flows out at intervals through the steam / hot water jet (about 10 mins.). Symbol 15 flashes during this operation.
When Symbol 16 starts flashing again, turn the control knob back to the left.
The descaling solution now flows out at intervals through the inside spout (about 15 mins).
As soon as the descaling so lution has flowed out, Symbols 13 and 17 flash.
Remove and empty the drip tray and water reservoir
Fill up the reservoir with fresh water and replace it and the drip tray in the machine. Symbol 16 flashes.
Open the steam / hot water valve control knob by turning to the right.
The system is again rinsed out in intervals, this time through the steam / hot water jet (about 5 mins).
As soon Symbol 16 starts flash ing again, you can turn the control knob back to the left to close.
The system is rinsed out at intervals through the inside spout (about 5 minutes).
As soon as the rinse is com- pleted, Symbol 17 starts flashing.
Empty the drip tray and replace it in the machine.
The system warms up briefly.
Then the Service button flashes
Press the Service button and the system is rinsed out through the coffee spout
The machine is now once again operational.

Manual descaling
If required, the descaling program can also be started even if no indication has been displayed by the machine that this is necessary:

Switch your machine on (operating mode) by pressing the On / Off button
Press and hold the Service button for about 4 seconds. Symbols 18 and 19 light up and alternate in the display.
Wait until Symbol 18 lights up and press the Service button to confirm. Symbol 18 starts to flash.
Press and hold the Service button for about 4 seconds. Symbol 17 flashes.
Follow the instructions given in point 5.4, from "Empty the drip tray...".

Tip: If you start the manual des- caling program by accident, you can cancel the operation at the start by pressing and holding the On / Off button for about 4 seconds. The machine may ask you to change the water.

General cleaning

Never submerge the machine in water! Do not use abrasive materials to clean the machine.

Wash the case inside and out with a soft, damp cloth only.
Empty the drip tray and the used coffee container only when instructed to do so by the display. From time to time use soapy water to clean.

When cleaning the drip tray, make sure that the two contacts on the back of the tray are always clean and dry.

The water reservoir should be rinsed out and refilled with fresh, cold water daily.
Clean the hot water and steam jet with a damp cloth or rinse it out with fresh, cold water until it is completely clean

Cleaning the brewing unit
If required, the brewing unit can be removed and cleaned under running water. Please use only water to do this, no cleaning agents!

The machine must be in standby mode for this operation!
Remove the right cover by un screwing both screws (e.g. with a 5 cent coin).
Unlock the brewing unit by press ing the red release switch and turning the handle to the left until it blocks
Then carefully take the brewing unit out by the handle
Wash the brewing unit under running water and then let it dry.
Carefully replace and lock the brewing unit by pressing the red lever switch and turning the handle to the right until it clicks.
Replace the cover and screw the screws back in.

Press the stand-by button to switch the machine back to normal coffeebrewing mode.

System messages

Message	Meaning	What to do
Symbol 16 flashes	Fill system with water Or rinse	Turn hot water jet control knob to the right to open
Symbol 13 flashes	Water reservoir is empty Water reservoir is absent or incorrectly positioned	Add fresh water Correctly position water reservoir
Symbols 9, 10 and 11 flash increas ingly	Not enough coffee beans	Add beans to the container
	Coffee beans do not fall into grinder (stuck)	Stir beans in container e.g. with a spoon to release
	NOTE: The message 'fill beans' (Symbols 9, 10 and 11) will only disappear when coffee has been brewed after refilling.
Symbol 17 flashes	Drip tray and / or used coffee container are full	Empty drip tray and / or used coffee container
Symbol 17 lights up	Drip tray and used coffee container are absent or not correctly positioned	Position drip tray and used coffee container
Symbol 17 lights up	Contacts on back of drip tray are not clean	Clean contacts
Symbols 8 and 16 flash	Machine is overheating	Cool machine by drawing hot water
Symbol 19 lights up	Cleaning is required	Clean machine
Symbol 18 lights up	Descaling is required	Descale the machine
Symbol 20 lights up	Filter is no longer efficient	Replace filter
Symbol 14 flashes	Lid to ground coffee chamber is open	Close lid
Symbol 21 flashes	Door to the brewing unit is open	Shut doors properly and lock securely
Symbol 21 flashes	Brewing unit incorrectly positioned	Check and lock brewing unit

Troubleshooting

Fault	Meaning	What to do
No hot water / steam comes out of jet	Jet is blocked	Clean jet thoroughly
Too little milk foam or foam too liquid	Unsuitable milk	Use cold milk
Too little milk foam or foam too liquid	Jet is blocked	Take jet apart and clean
Coffee only comes out in drips	Grinder setting to fine	Select coarser grinder setting
Coffee only comes out in drips	Pre-ground coffee too fine	Use coarser pre-ground coffee
Coffee without 'crema'	Unsuitable coffee type	Change coffee type
	Beans no longer fresh	Use fresh beans
	Grinder settings not adjusted to coffee beans	Optimise grinder settings
Grinder makes loud noise	Other substances in grinder, e.g. little stones	Call service hotline, meanwhile pre-ground coffee can be used
Descaling program does not start	Filter program set to 'ON'	Change filter setting to 'OFF'
Symbol 14 lights up, Symbols 13, 18, 19, 20, 21 flash	Circular light around On / Off button flashes	Let the machine warm up at room temperature for one to two hours
Symbol 14 lights up, Symbols 13, 18, 19, 20, 21 flash	Machine is too cold
Symbol 11 lights up, Symbols 13, 18, 19, 20, 21 flash	Circular light around On / Off button flashes	Let the machine warm up at room temperature for one to two hours
Symbol 11 lights up, Symbols 13, 18, 19, 20, 21 flash	Machine has not reached operating temperature
Symbol 15 lights up, Symbols 13, 18, 19, 20, 21 flash	Circular light around On / Off button flashes	Call the Service Hotline
Symbol 15 lights up, Symbols 13, 18, 19, 20, 21 flash	Brewing unit is blocked or incorrectly positioned	Call the Service Hotline

If you are unable to correct a fault yourself, please call the service hot - line – consult the notes in the accompanying guarantee and customer service information booklet.
