Summary of Contents for Nivona CafeRomatica NICR 695

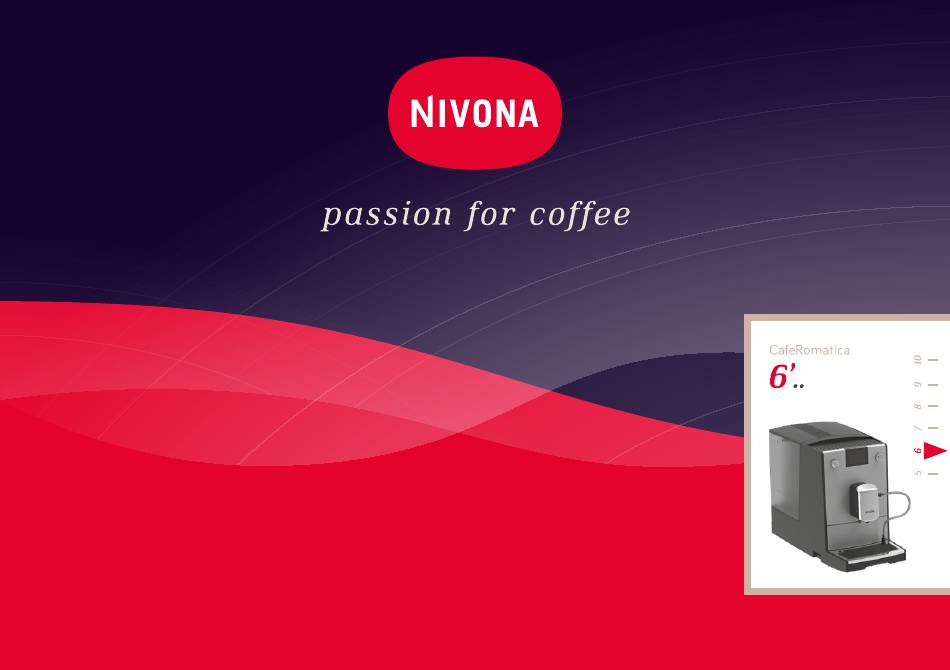

- Page 1 User manual...
- Page 2 This symbol draws your attention reference or pass it on to any subsequent owner. to special information. We hope you enjoy your NIVONA product and, with it, a good, flavourful cup of coffee. Best wishes to you from the NIVONA team!
-
Page 3: Table Of Contents
Table of contents TABLE OF CONTENTS SAFETY INFORMATION ..........4 7. BASIC SETTINGS ............16 1.1. Correct use ..................4 7.1. General settings ............... 16 1.2. General instructions for the user ........4 7.2. Set grind fineness ..............17 1.3. Limits to the range of users ..........5 7.3. -
Page 4: Safety Information
Safety instructions 1.2. General instructions for the user SAFETY INSTRUCTIONS Set the machine on a dry, level and stable surface, and use it only indoors. Never place this machine on a hot CAUTION surface, near other appliances which become very hot Repairs to electrical appliances must be carried out when in use (e.g. -
Page 5: Limits To The Range Of Users
(never by pulling on the mains supply cable or the replacement of the mains cable!), please first contact machine itself). the NIVONA service telephone or the dealer from which the machine was purchased, and, after consultation Before carrying out maintenance or cleaning, check with us and observing the section “How to make... -
Page 6: Control Elements
Control elements CONTROL ELEMENTS Flavour protection cover Coffee bean holder Cover for coffee bean holder Water tank cover Coffee bean holder Frother Cover plate Water tank Coffee grounds container (inside) Rear rollers (underneath) Drip grid Cable compartment (in back) Drip pan On/off switch Type plate (remove drip pan) Cup storage area... -
Page 7: Operation Of The Machine
Operation of the machine OPERATION OF THE MACHINE The NIVONA machine can be operated using the rotary dial and the valve: 3.1. Operation with the rotary dial Rotary dial navigate / select / change / confirm by turning and pressing... -
Page 8: Operation Of The Valve
Operation of the machine 3.2. Operation of the valve The valve opens or closes the frother when hot water or milk froth is drawn. 3.3. Symbol functions Open/ close valve Cancellation of a beverage draw or deletion of a saved Location / process progress MY COFFEE speciality Start a SPECIALITY COFFEE... -
Page 9: Initial Startup
Operation of the machine INITIAL STARTUP 4.1. Preparation Remove the machine and other supplied parts from the packaging Place the machine on a level, dry work surface (ventilation slots must not be covered) Connect the mains supply cable to a power socket which has been correctly installed (any unnecessary length of cable remains inside the cable compartment) Connect the milk tube to the frother and drip pan Turn on machine... - Page 10 Operation of the machine Operation with filter Operation without filter (factory settings) NOTE Set the menu setting to FILTER "YES" Set the menu to FILTER “NO” and If used with a filter, the machine does not and confirm with the rotary dial. need to be descaled as often.
- Page 11 Menu navigation Fill coffee bean holder NOTE Fill the coffee bean holder with untreated, roasted coffee beans without foreign objects At initial startup, the grind or dirt and without sugar, then close the flavour protection cover well and confirm using chamber is still empty.
-
Page 12: Menu Navigation
Draw speciality coffees MENU NAVIGATION In the NIVONA machine there is a choice of SPECIALITY COFFEES and the main menus SETTINGS and MAINTENANCE. All available functions of the machine can be carried out there. SETTINGS MAINTENANCE Detailed information on navigation within and between the main menus is found in Chapter 3 starting at page 7. -
Page 13: Recipe Menu
Draw speciality coffees 6.2. Recipe menu The recipe menu is a submenu in the individual speciality coffees. Here, the factory recipe settings can be changed individually and stored permanently. A long press on the rotary dial on the symbol of a speciality coffee leads to the recipe menu of the beverage Adjustable parameters in the recipe menu: Recipe menu... -
Page 14: Flavour Profiles
CONSTANT INTENSE (see also Chapter 7.3. Aroma Balance System on page 17). 6.5. MY COFFEE (for individual speciality coffees) Up to 5 different beverages can be individually set, named and stored with the NIVONA machine. MY COFFEE SAVE RECIPE Confirm... -
Page 15: Prepare Ground Coffee
Basic settings 6.6. Prepare ground coffee Open the cover of the ground coffee shaft (underneath the cover on the upper right of the machine) The display shows FILL GROUND COFFEE AND CLOSE SHAFT LID FILL GROUND CLOSE SHAFT LID Add a level measuring spoon of ground coffee COFFEE Close cover and flap CAUTION... -
Page 16: Basic Settings
Basic settings BASIC SETTINGS 7.1. General settings All of the following parameters can be changed, edited or checked in the SETTINGS menu SETTINGS using the rotary dial. LIVE PROGRAMMING FILTER TIMES – Change and save the recipe setting – Set operation with / without filter –... -
Page 17: Set Grind Fineness
When changing the grind fineness, we recommend: The NIVONA machine is equipped with the Aroma Balance System, which brings out the best – a finer setting for light roasts of the bean for every taste. The three flavour profiles DYNAMIC, CONSTANT and INTENSE (regulator further to the left), create a different taste with the same bean, same coffee strength, and same water amount. -
Page 18: Cleaning & Maintenance
Cleaning & maintenance CLEANING & MAINTENANCE All cleaning and maintenance programs can generally be selected and started in the MAINTENANCE menu. If a message / instruction for a cleaning / maintenance activity MAINTE- Message / appears on the display, this program can also be started directly through the message / NANCE instruction instruction. -
Page 19: Clean Frother
Select and confirm the message / instruction with the rotary dial or The running program must not be interrupted! In the MAINTENANCE menu, select the menu option CLEAN FROTHER Put some detergent (recommendation: NIVONA CreamClean milk system cleaner) NOTE and water in a container (at least 0.3 l) message... -
Page 20: Rinse System
Cleaning & maintenance 8.3. Rinse system CAUTION The system should be rinsed from time to time. The running program must not be interrupted! In the MAINTENANCE menu, select the menu option RINSE SYSTEM. The display shows SYSTEM RINSING As soon as the rinse cycle is ended, the machine heats up and is then ready for operation again. -
Page 21: Descale System
The running descaling program must not be interrupted! afterwards! Never use vinegar or vinegar-based products for descaling, but always use liquid products recommended for fully automatic coffee machines (recommendation: NIVONA PREMIUM liquid NOTE descaler). A message / instruction is shown on The filter (if present) must be removed from the water tank prior to the start of the descaling program. -
Page 22: Remove & Clean Brewing Unit
Cleaning & maintenance 8.6. Remove & clean brewing unit CAUTION The brewing unit should be removed and cleaned under running water as needed. Please Clean the brewing unit at least once a never use detergent for this, only pure, cold water! month. -
Page 23: Disassemble And Clean Frother
Cleaning & maintenance Clean the housing inside and outside only with a soft, moist cloth without detergent Empty the drip pan and coffee grounds container not later than when shown in the display (only with the machine switched on, as only then can it tell that the containers have been emptied) After the drip pan and coffee grounds container have been removed, clean the housing inside with a soft, moist cloth without detergent... -
Page 24: Change Filter
Cleaning & maintenance 8.9. Change filter NOTE The filter’ s effectiveness is used up after about 50 l of water has flowed through it. You can continue to draw beverages. A message / instruction to replace the filter appears in the display. But we recommend changing the filter immediately. -
Page 25: Solving Problems Yourself
If an error occurs or a problem cannot be solved by yourself, please contact your specialist retailer Type plate (example) or visit the service area at www.nivona.com. Model The following information is important for fast, competent processing of the matter... - Page 26 Solving problems yourself Problem Cause Remedy NOTE No hot water or easyclean knob Open easyclean knob To avoid problems, the following should be observed: drawing of milk froth / not opened (Chapter 4.2.) steam possible Always remove the water tank System might need Perform high-dosage from the machine to fill it...
- Page 27 Optimise grind fineness coffee grinder to coffee beans (Chapter 7.2.) Foreign matter in the grinder, Call NIVONA service telephone; e.g. small stones ground coffee can still be used The display shows The drive cannot properly Turn off the machine and pull...
-
Page 28: Accessories & Coffee Assortment
Packaging & disposal 10. ACCESSORIES & COFFEE ASSORTMENT Our current assortment of accessories and coffee can be found at www.nivona.com. 11. CUSTOMER SERVICE & WARRANTY If you have to send in the machine due to a defect, first evaporate it out so that no water remains in the system. -
Page 29: Technical Data
Technical data household waste. If treated as household waste or handled incorrectly, they may cause harm to human health or the environment. Therefore, never throw a defective machine away with household waste, but bring it to the municipal collection point for return and recycling of old electrical and electronic devices. - Page 30 NIVONA Apparate GmbH Südwestpark 49 D-90449 Nürnberg, Germany www.nivona.com 2022 © Copyright NIVONA Apparate GmbH, Germany ANR 000136964 All rights reserved BDA NICR 6.. GB Rev.01 14.09.2022...
