710
CafeRomatica
Fully automatic coffee centre
Operating Instructions and Useful Tips
A passion for coffee.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CAFEROMATICA 710 and is the answer not in the manual?

Questions and answers

Related Manuals for Nivona CAFEROMATICA 710

Summary of Contents for Nivona CAFEROMATICA 710

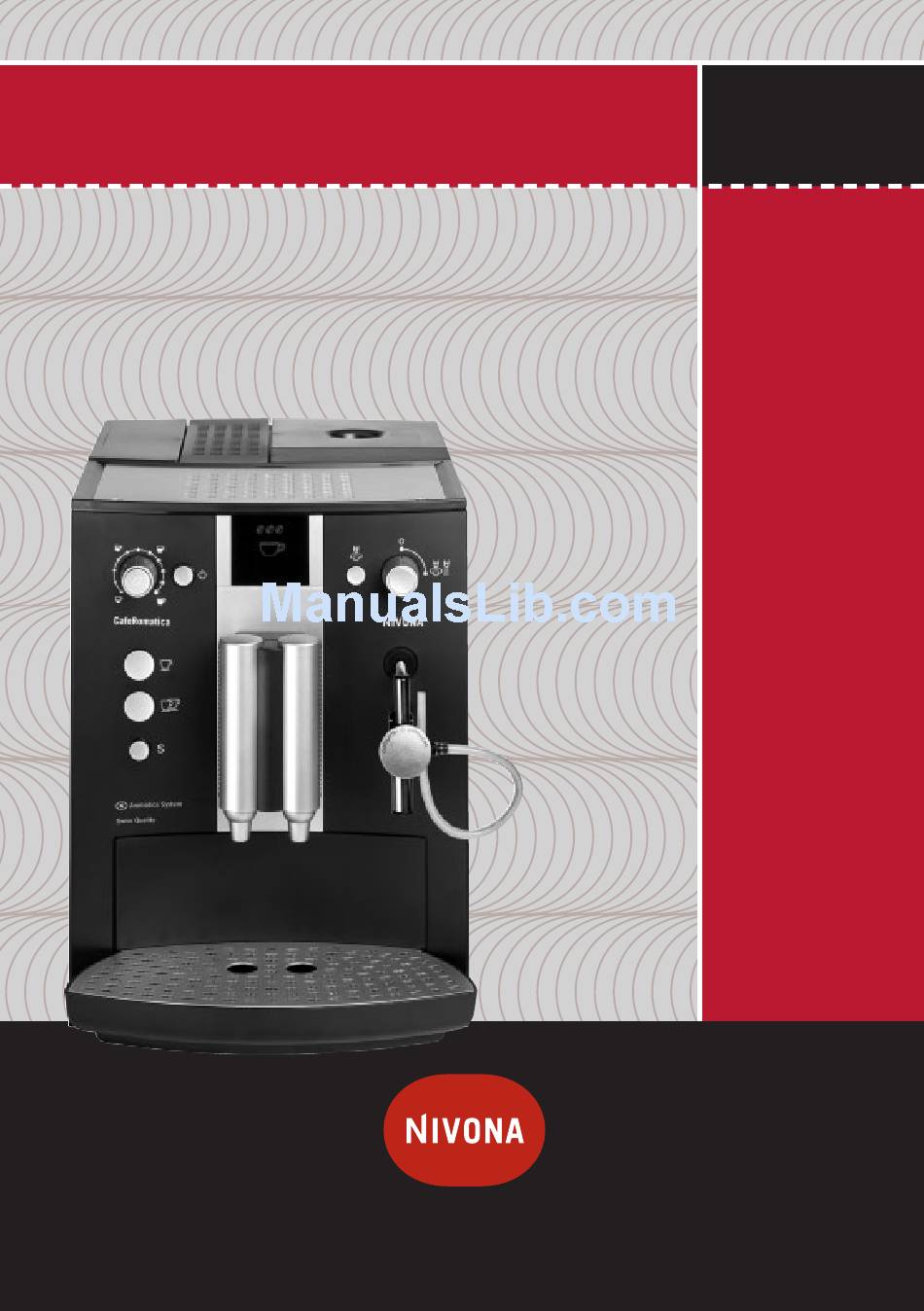

  • Page 1 CafeRomatica Fully automatic coffee centre Operating Instructions and Useful Tips A passion for coffee.
  • Page 2 Operating Instructions and Useful Tips Dear Customer, Congratulations and many thanks for choosing a high-quality NIVONA product. To get the most out of your NIVONA machine, please read this manual carefully before use. Please start by reading the safety notes.
  • Page 3 Equipment Symbol display screen Service button ‘S’ Steam / hot water valve control button Removable water Height-adjustable reservoir coffee spout Document compart- ment (on rear) Cup warming / Drip grill holding plate Mains supply Drip tray switch (on rear) Water quantity Grinder settings control knob Steam / hot water...
  • Page 4 Equipment Control knob Air inlet valve Air inlet pipe Inlet valve Steam / hot water jet Liquid inlet hose...
  • Page 5 Symbols Symbol Number Brief description Coffee ready Coffee strength MILD Coffee strength NORMAL Coffee strength STRONG Add coffee beans, Fill bean container flashing Fill water reservoir Pre-ground coffee Steam / hot water Steam / hot water, open / closed Empty used coffee container / drip tray Descale machine Clean machine Change filter...

  • Page 6: Table Of Contents

    Contents 1. Security instructions 2. Set up 2.1 Preparing the machine 2.2 Getting started 2.3 Grinder settings 3. Making coffee 3.1 Select coffee strength 3.2 Select water quantity 3.3 Making one cup 3.4 Making two cups 3.5 Using pre-ground coffee 3.6 Drawing hot water 3.7 Producing steam 3.8 Frothing milk, hot milk or cappuccino...
  • Page 7 1. Safety instructions • This machine may only be used • Always unplug the machine for the intended purpose during extended periods of (domestic use) and is not for absence. commercial application (more • Do not leave the machine than 3000 brewing cycles per switched on unnecessarily.
  • Page 8 CE – This machine conforms to chased – or to NIVONA central the following EC guidelines: customer services. • 73/23/EWG dated 19/02/1973 Caution: Electrical appliances “Low Voltage Directive”,...
  • Page 9 2. Set up 2.1 Preparing the machine Note: Do not use beans which have been treated with supplements, Carefully remove the machine such as sugar, during or after the and all parts from the packaging. roasting. Supplements can damage Note: If you need to return your the grinding mechanism and any machine for servicing, it can be...

  • Page 10: Set Up

    ... 2. Set up The system is then filled with Press the Service button (fig. water and completely rinsed out 1/I) and the system is rinsed via the height- adjustable coffee out via the coffee spout (fig. 1/J spout (fig. 1/J and 5). and 5).

  • Page 11: Select Water Quantity

    3. Making coffee Note: The machine is preset for As soon as the machine is immediate use. However, we operational, the display shows the recommend that you first adjust default setting (Symbol 8, ‘cup’, the most important settings to suit and Symbol 10, ‘2 beans’).
  • Page 12 ... 3. Making coffee Set the desired coffee strength The machine starts brewing. and water quantity. Shortly before the desired Press the 1-cup button (fig. amount of coffee is reached, turn 1/G). the water quantity control knob The machine now starts the (fig.

  • Page 13: Using Pre-Ground Coffee

    ... 3. Making coffee Tip: Note: If the pre-ground coffee · The brewing operation can be chamber is left open by accident stopped at any point by pressing or no brew button is pressed after the 1-cup button (fig. 1/G) or ground coffee is added, the 2-cup button (fig.

  • Page 14: Frothing Milk, Hot Milk Or Cappuccino

    ... 3. Making coffee Caution: Risk of scalding! Note: Watch out for splashes. The jet · Steam can be produced for about be comes very hot during use. 2 minutes. Then the machine will Leave to cool for a few minutes automatically switch the operation be fore touching, or only touch the off.
  • Page 15 ... 3. Making coffee Then press the steam warm-up Caution: It is hard to remove dried button (fig. 1/P and 7). The ‘steam milk left on the jet after frothing. / hot water’ symbols (Symbol 15) Please therefore clean the equip- flash.
  • Page 16 4. Programming functions The following buttons are used for see point 5.4, ‘descaling’). So that programming functions: the machine knows that the filter Service button ‘S’ = programming has been inserted, you must mode / confirmation button change the filter setting to ‘On’. (fig.

  • Page 17: Programming Functions

    ... 4. Programming functions Empty the water tank (fig. 1/B the water hardness and manual and 2) and screw the filter into descaling functions will no longer the bracket provided in the water be shown. The filter loses its effi- reservoir using the assembly tool ciency after processing about 50 l on the end of the measuring...

  • Page 18: Filter

    ... 4. Programming functions Wait until the filter symbol First, test your water with the test (Symbol 20) lights up and press strips provided: the Selection button (fig. 1/E Dip the strip into the water and and 6). then shake it lightly off. Symbols 14 and 9 start to After about a minute you can flash.

  • Page 19: Temperature

    ... 4. Programming functions Wait until the symbol for water Wait until the symbol for temp - hardness, Symbol 18, lights up er ature, Symbol 8, lights up and and press the Selection button press the Selection button (fig. 1/E (fig.

  • Page 20: Maintenance And Care

    ... 4. Programming functions Press and hold the Service but- Press the Selection button (fig. ton (fig. 1/I) for about 4 seconds 1/E and 6) until the symbols for to enter programming mode. the desired setting flash. Symbols 20, 18, 8 and 16 light Press and hold the Service but- up and rotate sequentially in the ton (fig.

  • Page 21: Changing / Washing Filter Manually

    ... 5. Maintenance and care (Caution! If water continues to come Press and hold the Service but- out of the jet, the system is ready ton (fig. 1/I) for about 4 seconds. in any case. If this occurs, still turn Symbols 13, 16 and 20 flash.

  • Page 22: Manual Cleaning

    ... 5. Maintenance and care The machine rinses itself briefly Press and hold the Service but- out and Symbol 19 starts to flash. ton (fig. 1/I) for about 4 seconds. Symbols 19, 20 and / or 18 light Tip: Place a sufficiently container up sequentially in the display.
  • Page 23 ... 5. Maintenance and care Tip: Only press the Service button Tip: Place a sufficiently large con- when you wish to start the descal - tainer (about 0.5 l) under the ing program. You can continue to coffee spout (fig. 1/J and 5) and make coffee, hot water or steam, under the steam / hot water jet but we recommend that you com-...

  • Page 24: Manual Descaling

    ... 5. Maintenance and care The system is again rinsed out Press and hold the Service but- in intervals, this time through the ton (fig. 1/I) for about 4 seconds. steam / hot water jet (fig. 1/T) Symbols 18 and 19 light up and (about 5 mins).
  • Page 25 ... 5. Maintenance and care do so by the display. From time to and turning the handle to the left time use soapy water to clean. until it blocks (see fig. 10). Then carefully take the brewing Important: When cleaning the drip unit out by the handle tray (fig.
  • Page 26 6. System messages Message Meaning What to do Symbol 16 Fill system with water Turn hot water jet control flashes Or rinse knob (fig. 1/Q and 7) to the right to open Symbol 13 Water reservoir (fig. 2) Add fresh water flashes is empty Water reservoir (fig.

  • Page 27: System Messages

    ... 6. System messages Message Meaning What to do Symbols 8 Machine is overheating Cool machine by drawing and 16 hot water (see point 3.6) flash Symbol 19 Cleaning is required Clean machine lights up (see point 5.3) Symbol 18 Descaling is required Descale the machine lights up...

  • Page 28: Troubleshooting

    7. Troubleshooting Fault Meaning What to do No hot water / Jet (fig. 1/T) is blocked Clean jet thoroughly steam comes out of jet Too little milk Unsuitable milk Use cold milk foam or foam Jet is blocked Take jet apart and clean too liquid Coffee only Grinder setting to fine...
  • Page 29 ... 7. Troubleshooting Fault Meaning What to do Symbol 14 Circular light around Let the machine warm lights up, On / Off button (fig. 1/F) up at room temperature Symbols 13, flashes for one to two hours 18, 19, 20, Machine is too cold 21 flash Symbol 11...

  • Page 30: Further Instructions

    Customer service tronic appliances” provided by your local council. You can obtain NIVONA products are designed further information from your local to meet the highest quality council, the waste collection standards. However, if questions services or the specialist retailer who sold you the product.
  • Page 31 - pliance and improve its durability. scaling programme. The The CLARIS filter cartridge, if NIVONA descaler is de - changed regularly, ensures that signed especially for our machines you will have to descale your and will reliably remove limescale NIVONA machine less often.
  • Page 32 Notices...
  • Page 33 Notices...
  • Page 34 Nivona Apparate GmbH Fritz-Haber-Straße 10 D-90449 Nürnberg www.nivona.com © 2008 by NIVONA...
