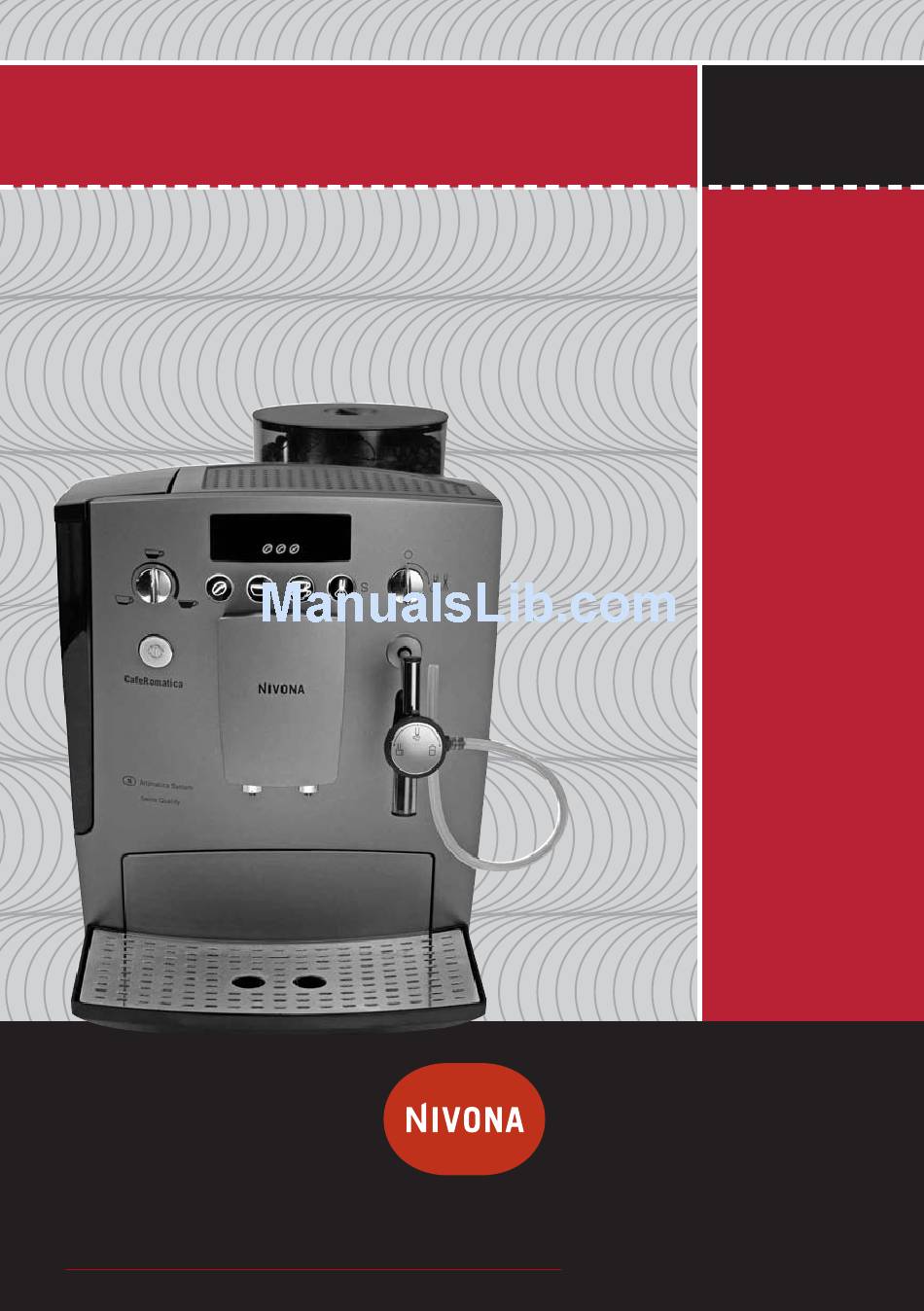

- Page 1 CafeRomatica Fully automatic coffee centre Operating Instructions and Useful Tips A passion for coffee. Downloaded from CoffeeMachineManual.com Manuals...
- Page 2 Operating Instructions and Useful Tips Dear Customer, Congratulations and many thanks for choosing a high-quality NIVONA product. To get the most out of your NIVONA machine, please read this manual carefully before use. Please start by reading the safety notes.

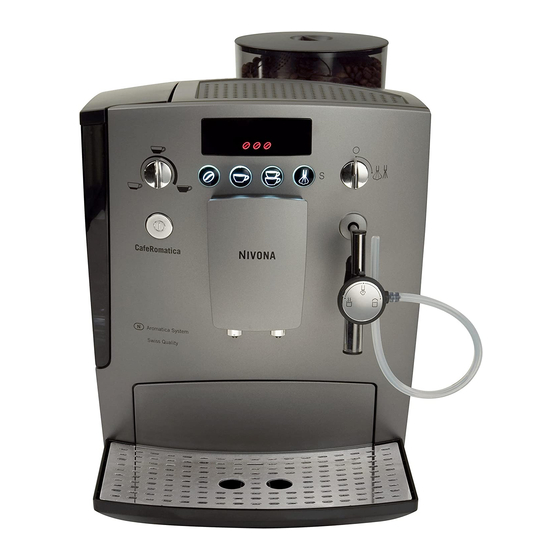

- Page 3 Equipment Bean container Height-adjustable Milk-frothing device with lid coffee spout ‘spumatore’, hot water jet Symbol display screen Drip grill Nameplate with Removable water Fill level indicator model name tank for drip tray Power cord storage Water quantity Drip tray compartment (on rear) control knob Pre-ground coffee Used coffee tray...
- Page 4 Equipment Control knob Air inlet valve Air inlet pipe Inlet valve Steam / hot water jet Liquid inlet hose Downloaded from CoffeeMachineManual.com Manuals...
- Page 5 Symbols Symbol Number Brief description Coffee strength MILD Coffee strength NORMAL Coffee strength STRONG Not enough coffee beans – fill container Flashing Fill water tank Pre-ground coffee Hot water / steam, open / closed Empty used coffee tray / drip tray Descale machine Clean machine Downloaded from CoffeeMachineManual.com Manuals...
-
Page 6: Table Of Contents
Contents 1. Safety instructions 2. Set up 2.1 Preparing the machine 2.2 Getting started 2.3 Grinder settings 3. Making coffee 3.1 Selecting coffee strength 3.2 Selecting water quantity 3.3 Making one cup 3.4 Making two cups 3.5 Using pre-ground coffee 3.6 Drawing hot water 3.7 Drawing steam / frothing milk 3.7.1 Drawing steam... - Page 7 1. Safety instructions • The machine is for domestic use • Always unplug the machine only and is not suitable for during extended periods of commercial applications. Other- absence. wise, claims under the guarantee • Do not leave the machine will not be accepted.
-
Page 8: Safety Instructions
Afterwards send the machine to CE – This machine conforms to the dealer from whom it was pur- EC guidelines. chased – or to NIVONA national customer services. Specifications Caution! Electrical appliances Mains voltage: 230 V... - Page 9 2. Set up 2.1 Preparing the machine Please make sure the steam / hot water valve control knob (fig. 1/P ➔ Carefully remove the machine and 5) is turned to ‘0’! and all parts from the packaging. Note: If you need to return your 2.2 Getting started machine for servicing, it can be ➔...
-
Page 10: Set Up
... 2. Set up ➔ The machine is now operational. your coffee beans. We recommend that you leave the grinder on a Note: As a protective measure, the medium setting. pipes are not filled with water when ➔ Slide the regulator on the rear the machine is first operat ed. -
Page 11: Making Coffee
3. Making coffee Note: The machine is preset for STRONG, Symbol uses about immediate use. However, we 11g of ground coffee e.g. for recommend that first you adjust espresso or very strong coffee. the most important settings to suit ➔ As soon as the machine is your personal needs. -
Page 12: Making Two Cups
... 3. Making coffee ➔ Select the water quantity sett ing ➔ Shortly before the desired as described in 3.2. amount of coffee is reached, turn ➔ Press the coffee strength button the water quantity control knob (fig. 1/F) until the desired coffee (fig. -
Page 13: Using Pre-Ground Coffee
... 3. Making coffee Follow the display screen and then Caution: The pre-ground coffee press the 1-cup button (fig. 1/G) chamber is not a storage container. for the second cup. Never add more than one measure at a time to the chamber, and use 3.5 Using pre-ground coffee only fresh grinded or vacuum- packed coffee ground. -
Page 14: Drawing Steam / Frothing Milk
... 3. Making coffee 3.7 Drawing steam / frothing milk 3.7.2 Frothing milk, hot milk and cappuccino 3.7.1 Drawing steam With the special ‘spumatore’ froth - ➔ Press the steam warm-up button ing device (fig. 1/R and 10) you (fig. 1/O). can heat up milk straight from the ➔... - Page 15 ... 3. Making coffee ➔ Place an empty container under Caution: A little water comes out before the steam. the spumatore / jet (fig. 1/R). ➔ As soon as the desired amount Turn the spumatore control knob of milk or hot milk has been (fig.
- Page 16 4. Programming functions The following buttons are used for turn the valve control knob (fig. programming: 1/P and 5) to the right to open. Coffee strength button (fig. 1/F) The system will now be rinsed 1-cup button (fig. 1/G) through. If the machine was in 2-cup button (fig.
-
Page 17: Programming Functions
... 4. Programming functions 4.2 Water hardness Note: If none of the dots turn red on the test strip, please set to According to the water hardness in level 1. your region, or if you have not ➔ Switch your machine ON. inserted a filter (see chapter 4.1), ➔... -
Page 18: Temperature
... 4. Programming functions Note: If you interrupt your pro- minutes, your machine auto- gramming operation for more than matically switches back into coffee- minutes, your machine goes brewing mode. automatically back into coffee- brewing mode. 4.4 Automatic switch off This function allows you to pro- 4.3 Temperature gram the machine to switch OFF... -
Page 19: Eco Mode
... 4. Programming functions which indicate the setting flash To change this setting, follow the twice to confirm the selection. instructions below: ➔ Press and hold the coffee Note: If you interrupt the pro - strength button (fig. 1/F) for about gramm ing operation longer than 5 seconds. - Page 20 5. Maintenance and care 5.1 Changing filter 5.2 Cleaning program The filter loses its efficiency and When the machine must be cleaned, must be replaced after at most Symbol ap pears in the display. two months. Note: You can continue to brew ➔...
-
Page 21: Maintenance And Care
... 5. Maintenance and care ➔ Add the cleaning tablet to the 5.3 Descaling pre-ground coffee chamber and If the machine needs to be des - shut the lid. caled, Symbol ap pears in the ➔ Symbol flashes and the 1- display. - Page 22 ... 5. Maintenance and care ➔ Symbol ➔ As soon as the cycle is com - lights up and Sym- con tinues to flash. pleted, Symbol lights up. ➔ Remove the drip tray and used ➔ Remove, empty and replace the coffee tray (fig.
-
Page 23: Cleaning Program
... 5. Maintenance and care ➔ It is hard to remove dried milk Manual descaling left on the jet (fig. 1/R) after If required, the descaling program frothing. Please therefore clean can be started and run as described the equipment as soon as it has above even if no indication has cooled down –... - Page 24 ... 5. Maintenance and care If machine was not switched off it will now automatically do so. ➔ Wash the brewing unit under running water and then let it dry. ➔ Carefully replace the brewing unit and lock by pressing the red lever switch and turning the handle to the right until it clicks.
-
Page 25: System Messages
6. System messages ➔ Meaning ➔ What to do Message ➔ Fill or rinse out water ➔ Turn hot water control Symbol 17 flashes pipes knob (fig. 1/P and 5) to the right to open valve ➔ Water reservoir (fig. 2) ➔... -
Page 26: Troubleshooting
7. Trouble-shooting ➔ Reason ➔ What to do Fault ➔ ‘Spumatore’ blocked / ➔ Take ‘spumatore’ (fig. 1/R) No hot water or steam stuck apart and clean thoroughly comes out (fig. 10) of the jet / ‘spumatore’ ➔ Unsuitable milk ➔... -
Page 27: Further Instructions
- Customer service pliances” provided by your local council. You can obtain further in - NIVONA products are designed to formation from your local council, meet the highest quality standards. the waste collection services or the... - Page 28 NIVONA machine less often. MilkCooler NICT 500: Standard accessory for the NICR770, optional for all NIVONA fully automatic coffee Cleaning tablets centres with milk NIRT 700 frothing devices: The Your fully auto matic coffee centre...
- Page 29 NIVONA Apparate GmbH Fritz-Haber-Straße 10 D-90449 Nürnberg www.nivona.com © 2010 by NIVONA Downloaded from CoffeeMachineManual.com Manuals...
