Summary of Contents for Seagate Nytro 5350S NVMe SSD

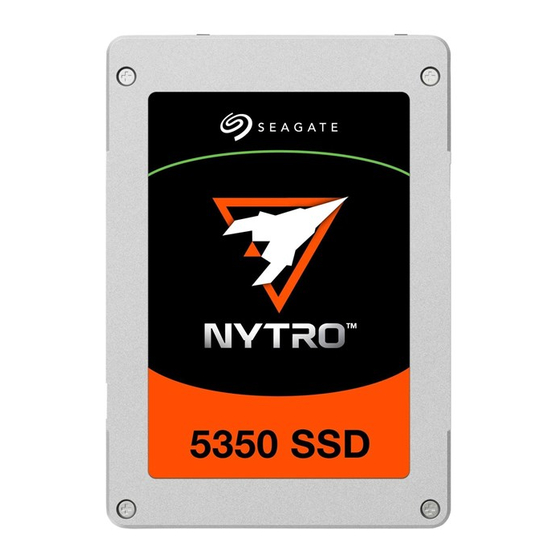

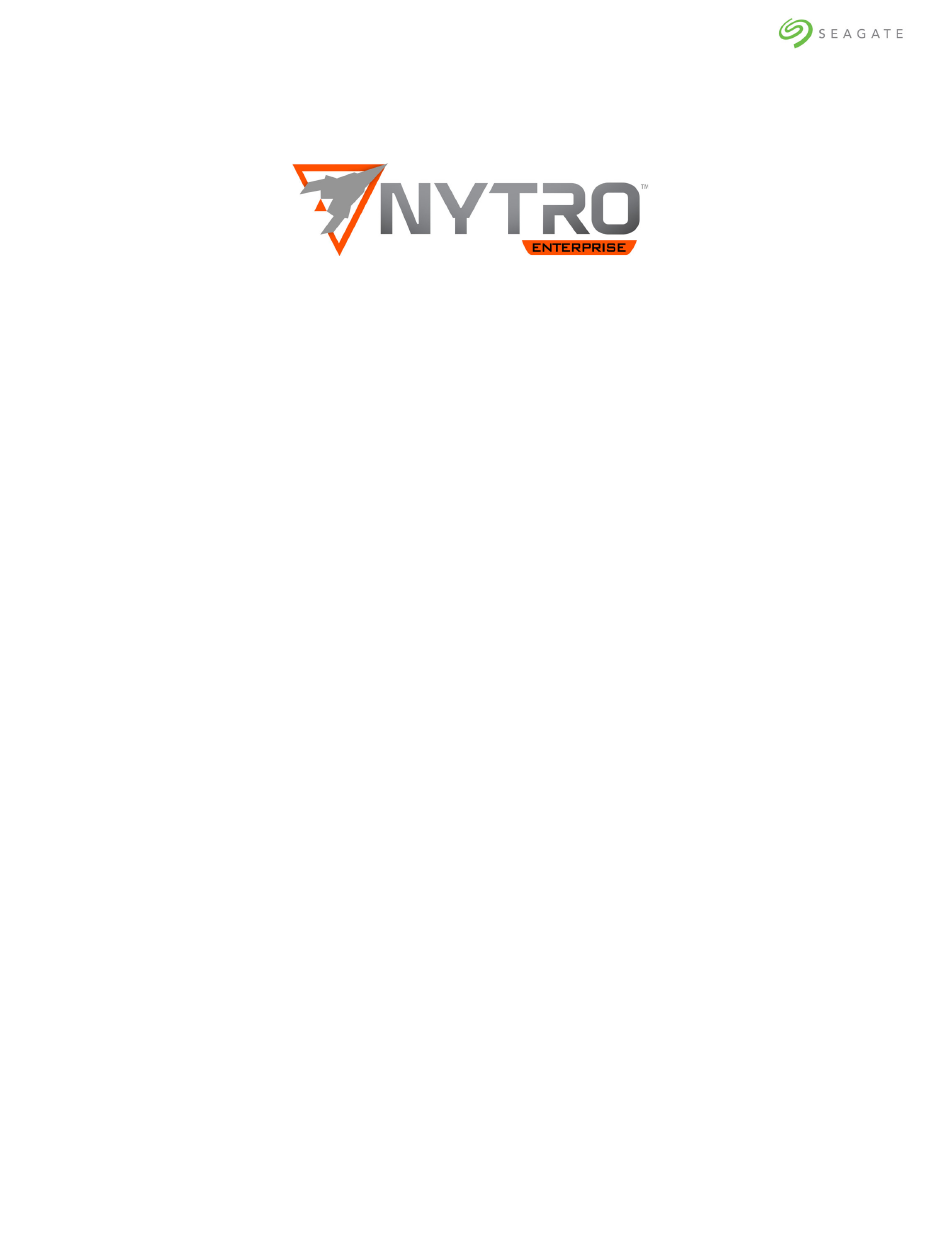

- Page 1 Seagate® Nytro® 5350S NVMe SSD Product Manual Nytro 5350S 15mm U.2/U.3 Read Intensive (1 DWPD) Capacity Standard 15360 XP15360SE70065 XP15360SE70075 7680 XP7680SE70065 XP7680SE70075 3840 XP3840SE70065 XP3840SE70075 1920 XP1920SE70065 XP1920SE70075 205276300, Rev A March 2023...
- Page 2 Actual data rates may vary depending on operating environment and other factors. The export or re-export of hardware or software containing encryption may be regulated by the U.S. Department of Commerce, Bureau of Industry and Security (for more information, visit www.bis.doc.gov), and controlled for import and use outside of the U.S. Seagate reserves the right to change, without notice,...
-
Page 3: Table Of Contents
8.5.6.6 Abort ....................... . . 21 Seagate Nytro 5350S NVMe SSD Product Manual, Rev A... - Page 4 12.3 NVMe Commands Supported ..................... 48 Seagate Nytro 5350S NVMe SSD Product Manual, Rev A...
- Page 5 12.4.1 ACTIVITY# signal ......................51 Seagate Nytro 5350S NVMe SSD Product Manual, Rev A...
-
Page 6: Seagate Technology Support Services
For information regarding online support and services, visit: http://www.seagate.com/contacts/ For information regarding Warranty Support, visit: http://www.seagate.com/support/warranty-and-replacements/ For information regarding data recovery services, visit: http://www.seagate.com/services-software/seagate-recovery-services/recover/ For Seagate OEM and Distribution partner and Seagate reseller portal, visit: http://www.seagate.com/partners Seagate Nytro 5350S NVMe SSD Product Manual, Rev A... -
Page 7: Introduction
1. Introduction This manual describes the Seagate® Nytro® 5350S NVMe™ (NVM Express™) SSDs. The Nytro 5350S SSD is a member of the Nytro 5050 family. The NVMe interface meets next-generation computing demands for performance, scalability, flexibility, and high-density storage requirements. Nytro 5350S NVMe SSDs are random access storage devices that support the NVMe Protocol. -
Page 8: Features
TCG Storage Security Subsystem Class Opal Specification, Version 2.01, Revision 1.0 End-to-end data path protection MTBF: 2.5 million hours Reliability UBER: 1 error in 10 bits read Section 8.1 Read error rates Seagate Nytro 5350S NVMe SSD Product Manual, Rev A... - Page 9 Have all of the above NVMe features and the following features Automatic data encryption/decryption Controlled access Random number generator Drive locking Up to 8 independent locking bands plus one global band Sanitize Cryptographic Erase support Seagate Nytro 5350S NVMe SSD Product Manual, Rev A...
-
Page 10: Nytro 5350S Models And Capacities
XP1920SE70065 XP1920SE70075 Nytro 5350S SED models provide for "Security of Data at Rest" as defined by the Trusted Computing Group (see http://www.trustedcomputinggroup.org). For product certification status visit https://csrc.nist.gov/projects/cryptographic-module-validation-program/validated-modules/se arch Seagate Nytro 5350S NVMe SSD Product Manual, Rev A... -
Page 11: Safety, Standards, And Compliance
The following information provides an overview of requirements that may apply to the drive. NOTE The most up to date information on Safety, Standards, and Compliance for this product is available in the Seagate HDD and SSD Regulatory Compliance and Safety document. You can find this document on the Seagate Support page here: https://www.seagate.com/support/... -
Page 12: Reference Documents
Trusted Computing Group (TCG) Documents (apply to Self-Encrypting Drive models only) TCG Storage Architecture Core Specification Version 2.01, Revision 1.0 TCG Storage Security Subsystem Class Opal Specification Version 2.01, Revision Self-Encrypting Drives Manual Seagate part number: 100515636 Seagate Nytro 5350S NVMe SSD Product Manual, Rev A... -
Page 13: Formatted Capacities
Block 3840 GB 1920 GB Size Decimal Decimal 7,501,476,527 1BF1F72AF 3,750,748,847 DF8FE2AF 7,342,769,279 1B5A9C47F 3,671,384,639 DAD4E23F 4096 937,684,565 37E3EE55 468,843,605 1BF1FC55 4104 927,251,463 3744BC07 463,625,735 1BA25E07 4160 919,384,615 36CCB227 459,692,311 1B665917 Seagate Nytro 5350S NVMe SSD Product Manual, Rev A... -
Page 14: Performance
These drives provide the highest possible performance under typical conditions. However, due to the nature of Flash memory technologies many factors can result in values other than those stated here. Seagate Nytro 5350S NVMe SSD Product Manual, Rev A... -
Page 15: Performance (Throughput)
Random testing performed at Queue Depth = 256 after Random Preconditioning. Flash technology can produce results that differ from Seagate testing. Bandwidth limitations in the host adapter, operating system, driver limitations, and other factors can cause discrepancies. When evaluating performance of SSD devices, it is recommended to measure performance of the device in a way that resembles the targeted application using real world data and workloads. -
Page 16: Reliability Specifications
SSD Percentage Used field in the SMART Health Log reaches 100 whichever comes first. NOTE Error rate specified with automatic retries and data correction with ECC enabled and all flaws reallocated. Seagate Nytro 5350S NVMe SSD Product Manual, Rev A... -
Page 17: Endurance
Customer satisfaction with Solid State Drives can be directly related to the internal algorithms which an SSD uses to manage the limited number of Program-Erase (PE) cycles that NAND Flash can withstand. These algorithms consist of Wear Leveling, Garbage Collection, Write Amplification, Deallocation, Data Retention, Lifetime Endurance Management. Seagate Nytro 5350S NVMe SSD Product Manual, Rev A... -
Page 18: Wear Leveling
The drive uses Wear Leveling to make sure that all Flash cells are written to or exercised as evenly as possible to avoid hot spots where some cells are used up faster than other locations. The drive automatically manages Wear Leveling without user interaction. The Seagate algorithm operates only when needed to ensure reliable product operation. 8.4.2... -
Page 19: Reliability And Service
Reliability and service Integrators can enhance the reliability of Seagate Nytro 5350S NVMe SSD drives by ensuring that the drive receives adequate cooling. Section 9.5.2 Physical characteristics provides temperature measurements and other information that may be used to enhance the service life of the drive. -
Page 20: Thermal Monitor
"false" and "failed" predictions. 8.5.5 Thermal monitor Seagate Nytro 5350S NVMe SSD drives implement a temperature warning system which: Signals the host if the composite temperature exceeds the warning threshold, indicating an overheat condition during which the controller continues to operate. -
Page 21: Engage Dst
Shipping When transporting or shipping a drive, use only a Seagate-approved container. Keep the original box. Seagate approved containers are easily identified by the Seagate Approved Package label. Shipping a drive in a non-approved container voids the drive warranty. Seagate repair centers may refuse receipt of components improperly packaged or obviously damaged in transit. -
Page 22: Product Repair And Return Information
8.5.8.2 Storage You can store the drive for a maximum of 180 days in the original unopened Seagate shipping package or 60 days, unpackaged, in the defined non-operating limits (refer to environmental section in this manual). You can extend storage to 1 year packaged or unpackaged under optimal environmental conditions (<40°C, <40% relative humidity non-condensing, and non-corrosive environment). -
Page 23: Physical And Electrical Specifications
Table 11 - +3.3V Requirements Supply Tolerance +5% / -5% Absolute Maximum Voltage 3.63V Supply Rise Time 2 to 100 ms Supply Drop Time 0.1 to 500 ms Typical Capacitance TBD μf Seagate Nytro 5350S NVMe SSD Product Manual, Rev A... -
Page 24: Conducted Noise Immunity
supply at nominal voltage. N (number of drives tested) = 3, 60 Degrees C internal. Section 9.1.1 Conducted noise immunity. Specified voltage tolerance includes ripple, noise, and transient response. Seagate Nytro 5350S NVMe SSD Product Manual, Rev A... -
Page 25: Power Consumption By Model And Capacity
Average Idle Current 0.48 Maximum Start Current Average DC 1.08 13.0 Maximum DC (Peak) 1.31 Operating Current (Random Read) Average DC 1.24 14.6 Maximum DC 1.29 15.2 Maximum DC (peak) 1.50 Seagate Nytro 5350S NVMe SSD Product Manual, Rev A... - Page 26 Operating Current (Sequential Read) Average DC 0.96 11.5 Maximum DC 0.98 11.7 Maximum DC (peak) 1.29 Operating Current (Sequential Write) Average DC 1.01 12.1 Maximum DC 1.07 12.8 Maximum DC (peak) 2.09 Seagate Nytro 5350S NVMe SSD Product Manual, Rev A...
- Page 27 Operating Current (Sequential Read) Average DC 1.01 12.1 Maximum DC 1.04 12.5 Maximum DC (peak) 1.31 Operating Current (Sequential Write) Average DC 1.67 19.9 Maximum DC 1.75 20.9 Maximum DC (peak) 2.62 Seagate Nytro 5350S NVMe SSD Product Manual, Rev A...
-
Page 28: Environmental Limits
Non-operating -40° to 167°F (-40° to 75°C) package ambient with a maximum gradient of 36°F (20°C) per hour. This specification assumes that the drive is packaged in the shipping container designed by Seagate for use with drive. 9.3.2 Relative humidity The values below assume that no condensation on the drive occurs. -
Page 29: Effective Altitude (Sea Level)
Packaged Seagate finished drive bulk packs are designed and tested to meet or exceed applicable ISTA and ASTM standards. Volume finished drives will be shipped from Seagate factories on pallets to minimize freight costs and ease material handling. Seagate finished drive bulk packs may be shipped individually. For less than full shipments, instructions are printed on the bulk pack carton for minimum drive quantities and proper drive placement. -
Page 30: Vibration
The silver, copper, nickel and gold films used in Seagate products are especially sensitive to the presence of sulfide, chloride, and nitrate contaminants. Sulfur is found to be the most damaging. Materials used in cabinet fabrication, such as vulcanized rubber, that can outgas corrosive compounds should be minimized or eliminated. -
Page 31: Mechanical Specifications
For 2.5" Form Factor Drives Dimension Rev 3.3, AUGUST 30 2014, or from SFF-8223 Specification Rev 2.7, AUGUST 30, 2014. You can find these documents here: https://www.snia.org/technology-communities/sff/specifications Figure 1 Mounting configuration (U.3 - 15mm models) Seagate Nytro 5350S NVMe SSD Product Manual, Rev A... -
Page 32: Nytro 5350S Weights
Table 13 Nytro 5350S Weights Nytro 5350S 15mm U.2/U.3 weight by model Endurance Capacity Weight Standard Class in GB 15360 XP15360SE70065 XP15360SE70075 7680 XP7680SE70065 XP7680SE70075 3840 XP3840SE70065 XP3840SE70075 1920 XP1920SE7065 XP1920SE70075 Seagate Nytro 5350S NVMe SSD Product Manual, Rev A... -
Page 33: Connector Specification
Figure 4, NVMe device plug dimensions (detail), on page 35 provide the dimensions of the NVMe connector. Details of the physical, electrical, and logical characteristics are provided within this section. Figure 2 Physical Interface Seagate Nytro 5350S NVMe SSD Product Manual, Rev A... - Page 34 Figure 3 NVMe device plug dimensions Seagate Nytro 5350S NVMe SSD Product Manual, Rev A...
- Page 35 Figure 4 NVMe device plug dimensions (detail) Seagate Nytro 5350S NVMe SSD Product Manual, Rev A...
-
Page 36: Physical Characteristics
Electrical description NVMe drives use the device connector for: DC power PCIe links Activity LED SMBus interface This connector can plug directly into a backpanel or accept cables. Seagate Nytro 5350S NVMe SSD Product Manual, Rev A... -
Page 37: Pin Descriptions
Transmitter differential pair, Lane 2 Positive PETp3 (U.3) Presence Detect (also drive PETn2 (U.2) / PRSNT# Transmitter differential pair, Lane 2 Negative type) PETn3 (U.3) ACTIVITY# Activity signal from the drive Ground Seagate Nytro 5350S NVMe SSD Product Manual, Rev A... -
Page 38: Power
There is no power control switch on the drive. However, power can be cycled on the drive by using the Power Disable (PWRDIS) feature (that is, drive Pin 3 high) as defined by the PCI Express SFF-8639 Module specification. Seagate Nytro 5350S NVMe SSD Product Manual, Rev A... -
Page 39: About Self-Encrypting Drives
Specifications as detailed in Section. The Trusted Computing Group (TCG) is an organization sponsored and operated by companies in the computer, storage and digital communications industry. The Seagate SED models comply with the standards published by the TCG. To use the security features in the drive, the host must be capable of constructing and issuing the following two NVMe... -
Page 40: Default Password
Each data band has its own drive-generated encryption key and its own user-supplied password. The host may change the Encryption Key or the password when required. The bands shall be aligned to 4KB LBA boundaries. Seagate Nytro 5350S NVMe SSD Product Manual, Rev A... -
Page 41: Cryptographic Erase
In addition to providing a locking mechanism to prevent unwanted firmware download attempts, the drive also only accepts download files which have been cryptographically signed by the appropriate Seagate Design Center. Three conditions must be met before the drive will allow the download operation: The download must be an SED file. -
Page 42: Supported Commands
PSID (Physical Secure ID) printed on the drive label must be provided. PSID is not electronically accessible and can only be manually read from the drive label or scanned in using the 2D barcode. Seagate Nytro 5350S NVMe SSD Product Manual, Rev A... -
Page 43: Installation
11. Installation Nytro 5350S NVMe SSD installation is a plug-and-play process. There are no jumpers on the drive. NVMe drives are designed to be used in a host system that provides an PCIe-compatible backplane with bays designed to accommodate the drive. In such systems, the host system typically provides a carrier or tray into which the drive must be mounted. - Page 44 Conduction, convection, or other forced air-flow patterns are acceptable as long as the temperature measurement guidelines of Section 9.3.1 Temperature are met. Figure 6 Air Flow NOTE Image may not represent actual product, for reference only. Seagate Nytro 5350S NVMe SSD Product Manual, Rev A...
-
Page 45: Drive Mounting
(electrically isolating) method of mounting the drive in the host equipment. Increased radiated emissions may result if designers do not provide the maximum surface area ground connection between system ground and drive ground. This is the system designer’s and integrator’s responsibility. Seagate Nytro 5350S NVMe SSD Product Manual, Rev A... -
Page 46: Nvme Interface Requirements
LBA Status Information Report Interval Host Behavior Support Sanitize Config Endurance Group Event Configuration Controller Metadata Namespace Metadata Software Progress Marker Host Identifier Reservation Notification Mask Reservation Persistence Namespace Write Protection Config Seagate Nytro 5350S NVMe SSD Product Manual, Rev A... -
Page 47: Log
Error Information SMART / Health Information Firmware Slot Information Changed Namespace List Commands Supported and Effects Log Device Self-Test Log Telemetry Host-Initiated Telemetry Controlled-Initiated Persistent Event Log Reservation Notification Sanitize Status Seagate Nytro 5350S NVMe SSD Product Manual, Rev A... -
Page 48: Nvme Commands Supported
Set Features Get Features Async Event Request Namespace Management Firmware Commit Firmware Image Download Device Self-Test Namespace Attachment NVMe-MI Send NVMe-MI Receive Doorbell Buffer Config Format NVM Security Send Security Receive Sanitize Seagate Nytro 5350S NVMe SSD Product Manual, Rev A... - Page 49 Supported Identifier Flush Write Read Write Uncorrectable Compare Write Zeros Dataset Management - Trim Dataset Management - IDW Dataset Management - IDR Verify Reservation Register Reservation Report Reservation Acquire Reservation Release Seagate Nytro 5350S NVMe SSD Product Manual, Rev A...
- Page 50 4. Supported Capabilities Supported Capabilities returns the capabilities supported for this Feature Identifier. The capabilities supported are returned in Dword 0 of the completion entry of the Get Features command. Seagate Nytro 5350S NVMe SSD Product Manual, Rev A...
- Page 51 LED off, high 0.3 V <= V <= 3.6 V -100 μA < I < 100 μA LED on, low = 15 mA 0 <= V <= 0.225 V Seagate Nytro 5350S NVMe SSD Product Manual, Rev A...
- Page 52 AMERICAS Seagate Technology LLC 47488 Kato Road, Fremont, California 94538, United States, 510-661-1000 ASIA/PACIFIC Seagate Singapore International Headquarters Pte. Ltd. 7000 Ang Mo Kio Avenue 5, Singapore 569877, 65-6485-3888 EUROPE, MIDDLE EAST AND AFRICA Seagate Technology (Netherlands) B.V. Koolhovenlaan 1, 1119 NB Schiphol-Rijk, Netherlands, 31-20-316-7300 Publication Number: 205276300, Rev A March 2023...
