Usage and connections

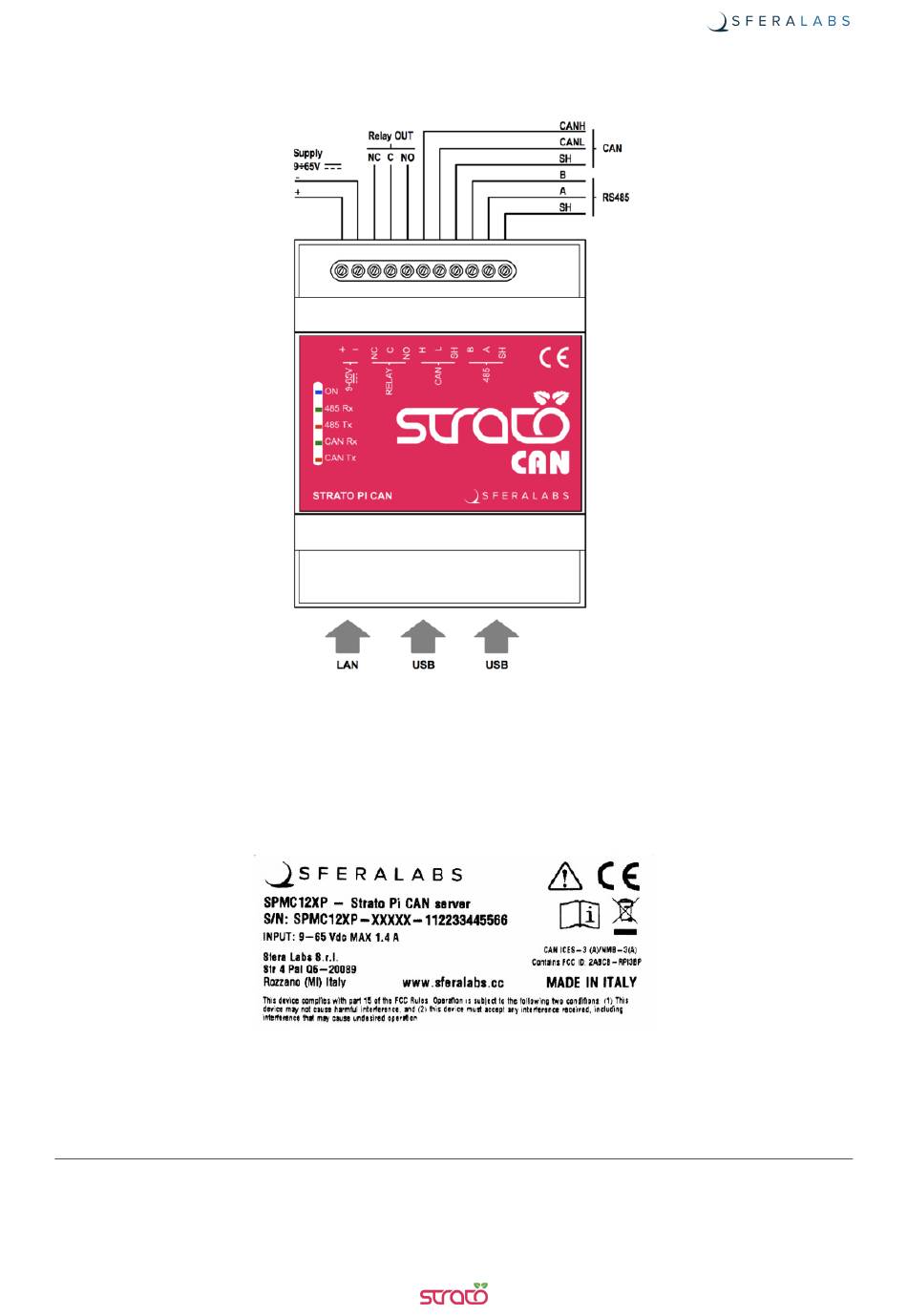

STRATO PI CAN CONNECTION DIAGRAM

Device identiﬁcation

The device can be identiﬁed with the information provided in the rating and identiﬁcation

plate, permanently attached to the side of the case.

EXAMPLE RATING AND IDENTIFICATION PLATE

The Strato Pi CAN board is supplied with all connectors pre-installed. No soldering is

required. You should connect Strato Pi to Raspberry Pi aligning the GPIO connector. Use

Strato Pi CAN User Guide
