OPENING THE CASE OF RASPBERRY PI 4 MODEL B MODELS
Terminal block
Strato Pi CAN has an 11 positions terminal block, used for power, CAN, RS-485 and relay
connections.
The maximum conductor cross section is 1.5 mm
2
(16 AWG), or 0.5 mm
2
when using
ferrules (highly recommended). Recommended stripping length is 5 mm. Screw thread is
M2. Never exceed 0.25 Nm torque when tightening the screws.

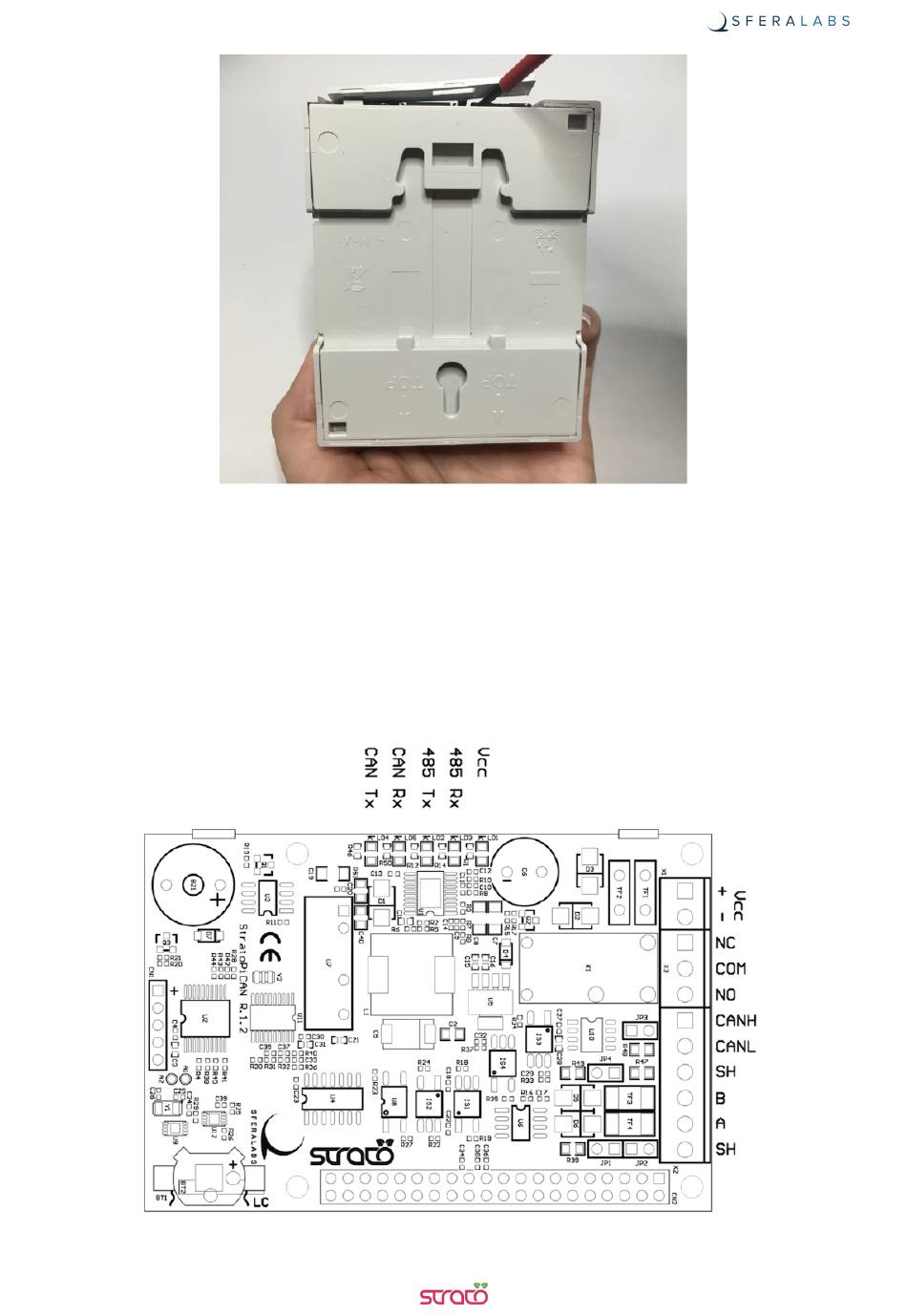

THE STRATO PI CAN CIRCUIT BOARD
12
Strato Pi CAN User Guide
