Summary of Contents for Multitech Dragonfly Nano MTQN-MNG1-B02

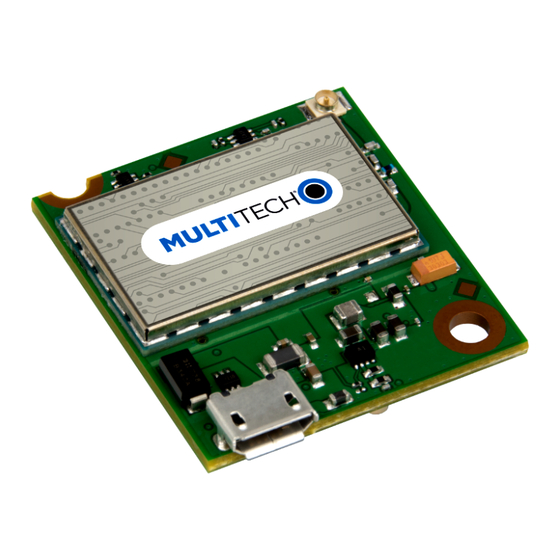

- Page 1 ™ Dragonfly Nano MTQN-MNG1-B02 Device Guide...
- Page 2 Legal Notices The MultiTech products are not designed, manufactured or intended for use, and should not be used, or sold or re-sold for use, in connection with applications requiring fail-safe performance or in applications where the failure of the products would reasonably be expected to result in personal injury or death, significant property damage, or serious physical or environmental damage.
-
Page 3: Table Of Contents
CONTENTS Contents Chapter 1 – Product Overview ..........................5 Overview ..................................5 Documentation ................................5 Product Build Options ..............................5 Chapter 2 – Mechanical Drawings..........................6 MTQN-MNG1-B02................................. 6 Chapter 3 – Hardware and Specifications......................... 7 Specifications ................................7 Mounting Hardware..............................8 Recommended Parts.............................. - Page 4 CONTENTS Chapter 7 – AT Commands............................. 21 Powering Down the Device............................21 Resetting the Device ..............................21 Configuring Low Power Options ..........................21 Chapter 8 – Labels..............................22 Approvals and Certifications ............................22 Example Labels................................22 Chapter 9 – Regulatory Information........................23 47 CFR Part 15 Regulation Class B Devices .........................
-
Page 5: Chapter 1 - Product Overview
The Dragonfly Nano functions similarly to the Dragonfly and maintains interoperability with legacy systems that use a 40-pin connector and forward mounting hole. Documentation The following documentation is available on the product page at https://www.multitech.com/brands/multiconnect-dragonfly-nano. Document Description Part Number MTQN-MNG1-B02 Device... -
Page 6: Chapter 2 - Mechanical Drawings
MECHANICAL DRAWINGS Chapter 2 – Mechanical Drawings MTQN-MNG1-B02 ™ Dragonfly Nano MTQN-MNG1-B02 Device Guide... -
Page 7: Chapter 3 - Hardware And Specifications
HARDWARE AND SPECIFICATIONS Chapter 3 – Hardware and Specifications Specifications Category Description Performance 3GPP Release 13 Cat M1 Half Duplex (Up to 375K bps downlink and uplink) Frequency Band AT&T Verizon (MHz) 700 MHz (B12), 850 MHz (B5), 700 MHz (B13) AWS1700 MHz (B4) and 1900 MHz (B2) Interface... -
Page 8: Mounting Hardware
HARDWARE AND SPECIFICATIONS Category Description Radio Compliance FCC Part 22, 24, 27 Safety Compliance UL/cUL 60950-1 2nd ED, IEC 60950-1 2nd ED +Am.2 Network PTCRB Carrier AT&T Verizon Mounting Hardware The board has two mounting holes at the corners. Use #4 or M3 hardware for mounting the Dragonfly Nano to the board. -
Page 9: Pin Definitions
HARDWARE AND SPECIFICATIONS Pin Definitions Signal Name I/O Level In/Out Description Power Ground Connection USB-DATA+ USB Data+ connection to cellular module USB-DATA- USB Data- connection to cellular module VCC-IN Power Power Input RADIO_RX Cellular Radio UART Data Output RADIO_DCD Cellular Radio UART DCD Output RADIO_RI Cellular Radio UART RI Output RADIO_CTS... - Page 10 HARDWARE AND SPECIFICATIONS Signal Name I/O Level In/Out Description Power Ground Connection VUSB-SELECT 5 Apply 5V to use USB Interface to cellular modem 1V8_MON 3.318 When high, the radio is powered up. When low, the radio is powered down or in PSM mode.
-
Page 11: 40-Pin Connector
HARDWARE AND SPECIFICATIONS 40-Pin Connector Manufacturer: Hirose Electric Co LTD Description: .5MM 40 PN B>B RECEPTACLE Model Number: DF17(4.0)-40DP-0.5V(57) Use with: Manufacturer: Hirose Electric Co LTD Description: .5mm 40 pin B.B header MALE Model Number: DF17(2.0)-40DP-0.5V(57) Communications Flow The MTQN-MNG1-B02 provides a full UART interface from the cellular radio to the user application. Model B02 also provides a USB interface. -
Page 12: Absolute Maximum Rating
HARDWARE AND SPECIFICATIONS Absolute Maximum Rating Symbol Description Conditions Min. Max. Unit Module supply voltage Input DC voltage at VCC pin -0.5 Generic digital interfaces Input DC voltage at Generic -0.5 digital interfaces pins SIM interface Input DC voltage at SIM digital -0.3 interfaces pins External reset signal... -
Page 13: Power Draw
If possible, use a USB port that connects directly to the motherboard rather than a USB port with added cabling inside the computer chassis. Use USB 3.0 ports if available. These ports are typically rated for more current. You can order the USB cable through MultiTech. The part number is: CA-USB-A-MICRO-B-3. ™ Dragonfly... -
Page 14: Chapter 4 - Antennas
ANTENNAS Chapter 4 – Antennas Antenna Devices were approved with the following antenna: Manufacturer: Wieson Description: LTE Antenna with SMA-Male Connector Model Number GY115IE002-001 MultiTech ordering information: Model Quantity ANLTE4-1HRA ANLTE4-2HRA ANLTE4-10HRA ANLTE4-50HRA Antenna Specifications Category Description Frequency Range 0.698 - 0.96 GHz 1.710 - 2.170 GHz... -
Page 15: Chapter 5 - Safety Information
SAFETY INFORMATION Chapter 5 – Safety Information Handling Precautions To avoid damage due to the accumulation of static charge, use proper precautions when handling any cellular device. Although input protection circuitry has been incorporated into the devices to minimize the effect of static build-up, use proper precautions to avoid exposure to electronic discharge during handling and mounting the device. -
Page 16: General Safety
SAFETY INFORMATION General Safety The device is designed for and intended to be used in fixed and mobile applications. Fixed means the device is physically secured at one location and cannot be easily moved to another location. Mobile means the device is used in other than fixed locations. -
Page 17: Device Maintenance
Do not place the device alongside computer discs, credit or travel cards, or other magnetic media. The information contained on discs or cards may be affected by the device. Using accessories, such as antennas, that MultiTech has not authorized or that are not compliant with MultiTech's accessory specifications may invalidate the warranty. -
Page 18: Chapter 6 - Getting Started
USB connector on the MTQN. There is no connection to pins 6, 7 and 24 on the MTUDK2. VUSB_SELECT is isolated from VUSB of the micro USB connector. Establish serial communication using Multitech developer board MTUDK2. See the Universal Developer Kit 2.0 Developer Guide (PN S000610) for more information. - Page 19 GETTING STARTED Updates to MNO profile version: Note 1: +CPSMS Note 2: +CEDRXS Note 3: +URAT Note 4: +UBANDMASK If your carrier network is not on the supported list of MNOs, you must set to Cat M1 mode and follow the instructions per that scenario below.
-
Page 20: Usb Driver Installation
For the Windows USB driver, refer to the SARA-R4 USB Driver Installation Guide on the product page of the Multitech website. The driver is located under the Downloads section of the product page. For the Linux USB driver, if your Linux OS does not automatically detect your device, you may need to execute a script. -
Page 21: Chapter 7 - At Commands
AT COMMANDS Chapter 7 – AT Commands Powering Down the Device CAUTION: Failing to properly power down the device before removing power may corrupt your device's file system. Following are two options that power down the device while maintaining the current parameter settings and allowing for a clean network detach. -
Page 22: Chapter 8 - Labels
This device is an industry and/or carrier approved modem. In most cases, when integrated and used with an antenna system that was part of the MultiTech modem certification, additional approvals or certifications are not required for the device that you develop as long as the following requirements are met: PTCRB Requirements: The antenna system cannot be altered. -
Page 23: Chapter 9 - Regulatory Information
REGULATORY INFORMATION Chapter 9 – Regulatory Information 47 CFR Part 15 Regulation Class B Devices This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. - Page 24 REGULATORY INFORMATION UMTS CH 2 UP UMTS CH 25 UP UMTS CH 35 DOWN The following table provides the certified radio frequency data for this device: FCC Rule Frequency Range Output Watts (mW) Frequency Tolerance Emission Parts Designator 699 - 716 MHz 0.316 1.0 PM 1M11G7D...
-
Page 25: Chapter 10 - Environmental Notices
Substances) complements the WEEE Directive by banning the presence of specific hazardous substances in the products at the design phase. The WEEE Directive covers all MultiTech products imported into the EU as of August 13, 2005. EU-based manufacturers, distributors, retailers and importers are obliged to finance the costs of recovery from municipal collection points, reuse, and recycling of specified percentages per the WEEE requirements. -
Page 26: Restriction Of The Use Of Hazardous Substances (Rohs)
2015/863 of the European Parliament (Restriction of the use of certain Hazardous Substances in electrical and electronic equipment - RoHS 3). These MultiTech products do not contain the following banned chemicals Lead, [Pb] < 1000 PPM Mercury, [Hg] <... -
Page 27: Information On Hs/Ts Substances According To Chinese Standards (In Chinese)
ENVIRONMENTAL NOTICES Information on HS/TS Substances According to Chinese Standards (in Chinese) 依 依 照 照 中 中 国 国 标 标 准 准 的 的 有 有 毒 毒 有 有 害 害 物 物 质 质 信 信 息 息 根据中华人民共和国信息产业部... -
Page 28: Information On Hs/Ts Substances According To Chinese Standards
ENVIRONMENTAL NOTICES Information on HS/TS Substances According to Chinese Standards In accordance with China's Administrative Measures on the Control of Pollution Caused by Electronic Information Products (EIP) # 39, also known as China RoHS, the following information is provided regarding the names and concentration levels of Toxic Substances (TS) or Hazardous Substances (HS) which may be contained in Multi-Tech Systems Inc. -
Page 29: Chapter 11 - Using Connection Manager
Click Connection Manager. Open or unzip the Connection Manager file and run the installer (.msi file). In the MultiTech Connection Manager Setup Wizard, read the end-user license agreement and check I accept the terms in the License Agreement. Click Next to have the installer automatically disable the native WWAN AutoConfig service in Windows. -
Page 30: Setting Up A Serial Device In Windows Device Manager
To specify a folder for Connection Manager, use the default folder or click Change to browse to the folder you want to use. Click Install. A separate wizard opens for installing Telit drivers. Some MultiTech devices use embedded modules from Telit Wireless Solutions to provide cellular connectivity; these devices require Telit drivers. Select Complete setup type. - Page 31 USING CONNECTION MANAGER In the Add Hardware Wizard: Click Next. Select Install the hardware that I manually select from a list, then click Next. Select Modems, then click Next. Check Don't detect my modem; I will select it from a list, then click Next. Select Standard Modem Types, then select Standard 33600 bps Modem on the right.
-
Page 32: Connecting A Device
USING CONNECTION MANAGER Connecting a Device Before You Begin Make sure that your device is connected to the computer where Connection Manager is installed. Set up the device in Device Manager. Refer to Setting Up a Serial Device in Windows Device Manager. -
Page 33: Uninstalling Connection Manager
The steps above describe how to uninstall Connection Manager using Control Panel. You can also uninstall the application by using the installer file (.msi). Double-click the file, in the MultiTech Connection Manager Setup Wizard, click Next, and then select Remove on the next two pages. -
Page 34: Connection Manager User Interface
USING CONNECTION MANAGER Connection Manager User Interface Connection Manager consists of the following tabs: Main Settings Connection Details Terminal Charts Main tab The Main tab displays the following: Status of device connection: Searching, Connecting, Connected, Disconnecting, or Disconnected The action button, which changes according to the current device connection status: Detect, Connect, or Disconnect Signal strength bars and percentage indicator (only when connection to the carrier's network is established) Note:... -
Page 35: Settings Tab
USING CONNECTION MANAGER Connection statistics: download and upload speeds, amount of traffic sent and received (only when connection to the carrier's network is established) The keep-alive check status and when the last ping response was received if Enable keep-alive check is checked on the Connection tab. -
Page 36: Troubleshooting
USING CONNECTION MANAGER Troubleshooting Serial COM port is not available in the Serial Modem Settings Close Connection Manager and reopen it. Device is not detected ("No Device") After following the steps to activate your device, the Main tab still indicates "No Device." Try the following steps: Click the Settings tab and make sure that the appropriate modem type is selected: USB or Serial. -
Page 37: Index
INDEX Index absolute maximum rating ..........11 hazardous substances ...........26 activation...............29 antenna .................14 install SIM card..............18 build options ..............5 labels ................22 Chinese hazardous substances Chinese version............27 English version ............28 mounting hardware ............8 Connection Manager Charts tab..............34 connecting device to carrier's network ....32 Connection tab............34 operating conditions .............11 Details tab ..............34...
