Microsensor MPM483DM Operation Manual page 6

3.2 Installation
3.2.1 Check before Installation
Before installing the transmitter, please pay attention to:
a) Whether the pressure of the measured point will exceed the
measuring range of the transmitter.
b) Whether the measured medium is suitable for the wetted parts of the
transmitter.
c) Whether the measured medium will block the impulse hole of the
transmitter.
3.2.2 Installation Method
In general, the transmitter should be mounted upwards perpendicular to
the horizontal orientation (inverted mounting may affect the zero output
of the transmitter)
The pressure interface of the standard MPM483DM pressure transmitter
(120)
34
SW27

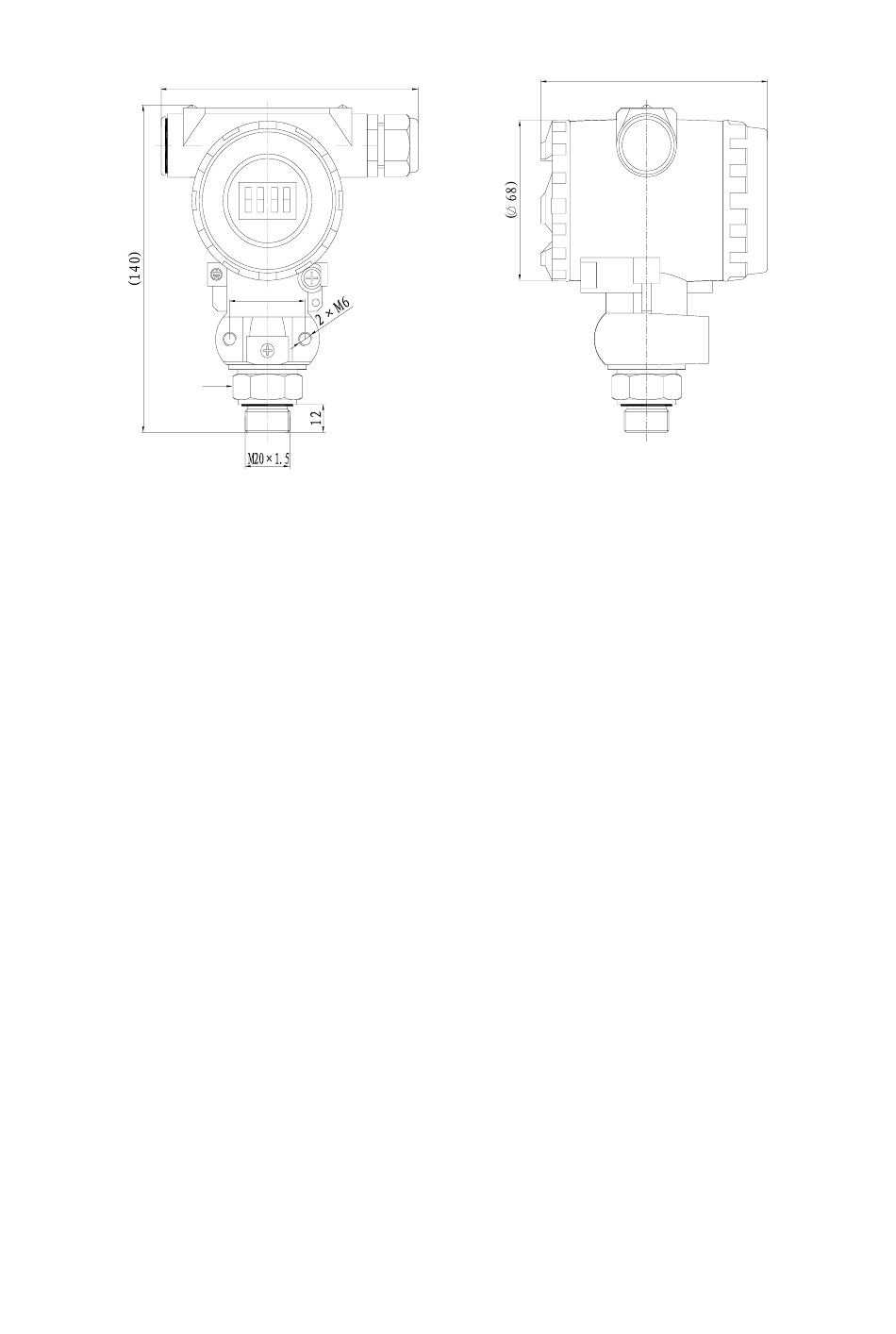

Fig 1
6
(105)
